Skywalking使用篇(四)：日志上报

配置方式

官方默认支持三种日志框架

log4j

依赖引入

<dependency>
    <groupId>org.apache.skywalking</groupId>
    <artifactId>apm-toolkit-log4j-1.x</artifactId>
    <version>8.4.0</version>
</dependency>

配置 log4j.properties

log4j.appender.CONSOLE.layout=TraceIdPatternLayout
# 设置日志输出格式
log4j.appender.CONSOLE.layout.ConversionPattern=%d [%T] %-5p %c{1}:%L - %m%n

log4j2

依赖引入

<dependency>
    <groupId>org.apache.skywalking</groupId>
    <artifactId>apm-toolkit-log4j-2.x</artifactId>
    <version>8.4.0</version>
</dependency>

配置 log4j2.xml

<Configuration status="debug">
    <Appenders>
      	<!-- 控制台输出 -->
        <Console name="Console" target="SYSTEM_OUT">
            <PatternLayout pattern="%d [%traceId] %-5p %c{1}:%L - %m%n"/>
        </Console>
      	<!-- skywalking grpc 日志收集 8.4.0版本开始支持 -->
      	<GRPCLogClientAppender name="grpc-log">
            <PatternLayout pattern="%d{HH:mm:ss.SSS} [%t] %-5level %logger{36} - %msg%n"/>
        </GRPCLogClientAppender>
    </Appenders>
    <Loggers>
        <logger name="com.a.eye.skywalking.ui" level="debug" additivity="false">
            <AppenderRef ref="Console"/>
            <AppenderRef ref="grpc-log"/>
        </logger>
        <logger name="org.apache.kafka" level="INFO"></logger>
        <logger name="org.apache.skywalking.apm.dependencies" level="INFO"></logger>
        <Root level="debug">
            <AppenderRef ref="Console"/>
            <AppenderRef ref="grpc-log"/>
        </Root>
    </Loggers>
</Configuration>

Logback

依赖引入

<dependency>
    <groupId>org.apache.skywalking</groupId>
    <artifactId>apm-toolkit-logback-1.x</artifactId>
    <version>8.4.0</version>
</dependency>

配置 logback.xml

<configuration>　　
  	<!-- 控制台输出 -->
    <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
        <encoder class="ch.qos.logback.core.encoder.LayoutWrappingEncoder">
            <layout class="org.apache.skywalking.apm.toolkit.log.logback.v1.x.TraceIdPatternLogbackLayout">
                <Pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%tid] [%thread] %-5level %logger{36} -%msg%n</Pattern>
            </layout>
        </encoder>
    </appender>
  	<! -- 配置异步记录 AsyncAppender -->
    <appender name="ASYNC" class="ch.qos.logback.classic.AsyncAppender">
        <discardingThreshold>0</discardingThreshold>
        <queueSize>1024</queueSize>
        <neverBlock>true</neverBlock>
        <appender-ref ref="STDOUT"/>
    </appender>
    <!-- skywalking grpc 日志收集 8.4.0版本开始支持 -->
    <appender name="grpc-log" class="org.apache.skywalking.apm.toolkit.log.logback.v1.x.log.GRPCLogClientAppender">
        <encoder class="ch.qos.logback.core.encoder.LayoutWrappingEncoder">
            <layout class="org.apache.skywalking.apm.toolkit.log.logback.v1.x.mdc.TraceIdMDCPatternLogbackLayout">
                <Pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%tid] [%thread] %-5level %logger{36} -%msg%n</Pattern>
            </layout>
        </encoder>
    </appender>

    <!--系统操作日志-->
    <root level="DEBUG">　　
      	<appender-ref ref="STDOUT"/>　
        <appender-ref ref="ASYNC"/>　
      	<appender-ref ref="grpc-log"/>
    </root>
</configuration>

添加日志插件配置或使用默认值

plugin.toolkit.log.grpc.reporter.server_host=${SW_GRPC_LOG_SERVER_HOST:127.0.0.1}
plugin.toolkit.log.grpc.reporter.server_port=${SW_GRPC_LOG_SERVER_PORT:11800}
plugin.toolkit.log.grpc.reporter.max_message_size=${SW_GRPC_LOG_MAX_MESSAGE_SIZE:10485760}
plugin.toolkit.log.grpc.reporter.upstream_timeout=${SW_GRPC_LOG_GRPC_UPSTREAM_TIMEOUT:30}

​

使用工程

Live-Demo 工程 projectB 项目
使用上面的 log4j2.xml 文件替换原本内容 (原本配置的OFF)

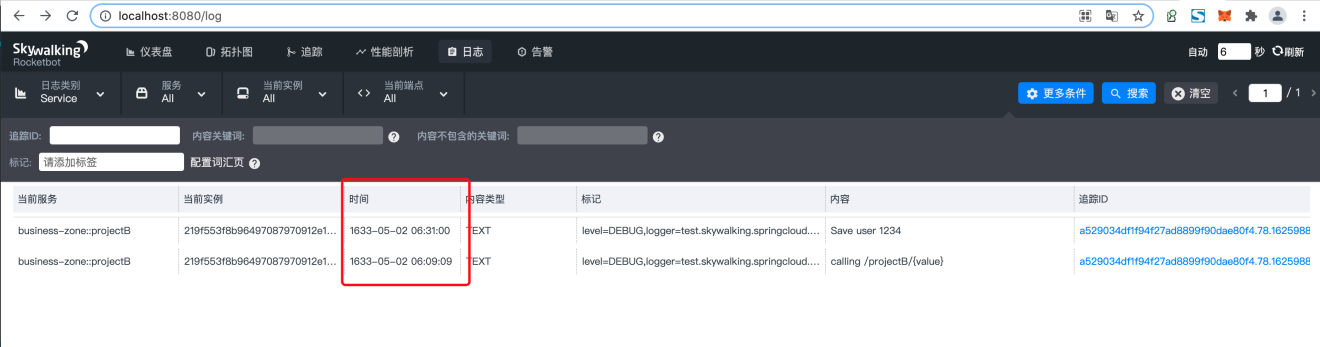

效果展示

可以看到，projectB 项目中的 debug 日志都被展示出来了。但这里发现一个问题，v8.4.0 版本的 Skywalking 日志时间戳存在格式问题，如上图所示
github上也有相关issue，新版本已被解决：https://github.com/apache/skywalking/pull/6335#issue-568815160
主要是将时间戳从 String 类型变成了 Long 类型，可以通过修改以下几个文件解决
org.apache.skywalking.oap.server.core.query.type.Log

public class Log {
    private String serviceName;
    private String serviceId;
    private String serviceInstanceName;
    private String serviceInstanceId;
    private String endpointId;
    private String endpointName;
    private String traceId;
    private Long timestamp;
    private ContentType contentType = ContentType.NONE;
    private String content;
    private final List<KeyValue> tags;

    public Log() {
        tags = new ArrayList<>();
    }
}

oap-server/server-query-plugin/query-graphql-plugin/src/main/resources/query-protocol/log.graphqls

type Log {
    serviceName: String
    serviceId: ID
    serviceInstanceName: String
    serviceInstanceId: ID
    endpointName: String
    endpointId: ID
    traceId: String
    timestamp: Long! # 修改时间戳类型
    contentType: ContentType!
    content: String
    tags: [KeyValue!]
}

org.apache.skywalking.oap.server.storage.plugin.influxdb.query.LogQuery#queryLogs

log.setTimestamp(((Number) data.get(TIMESTAMP)).longValue());

org.apache.skywalking.oap.server.storage.plugin.elasticsearch.query.LogQueryEsDAO
#queryLogs

log.setTimestamp(((Number) searchHit.getSourceAsMap().get(AbstractLogRecord.TIMESTAMP)).longValue());

org.apache.skywalking.oap.server.storage.plugin.elasticsearch.query
.LogQueryEs7DAO#queryLogs

log.setTimestamp(((Number) searchHit.getSourceAsMap().get(AbstractLogRecord.TIMESTAMP)).longValue());

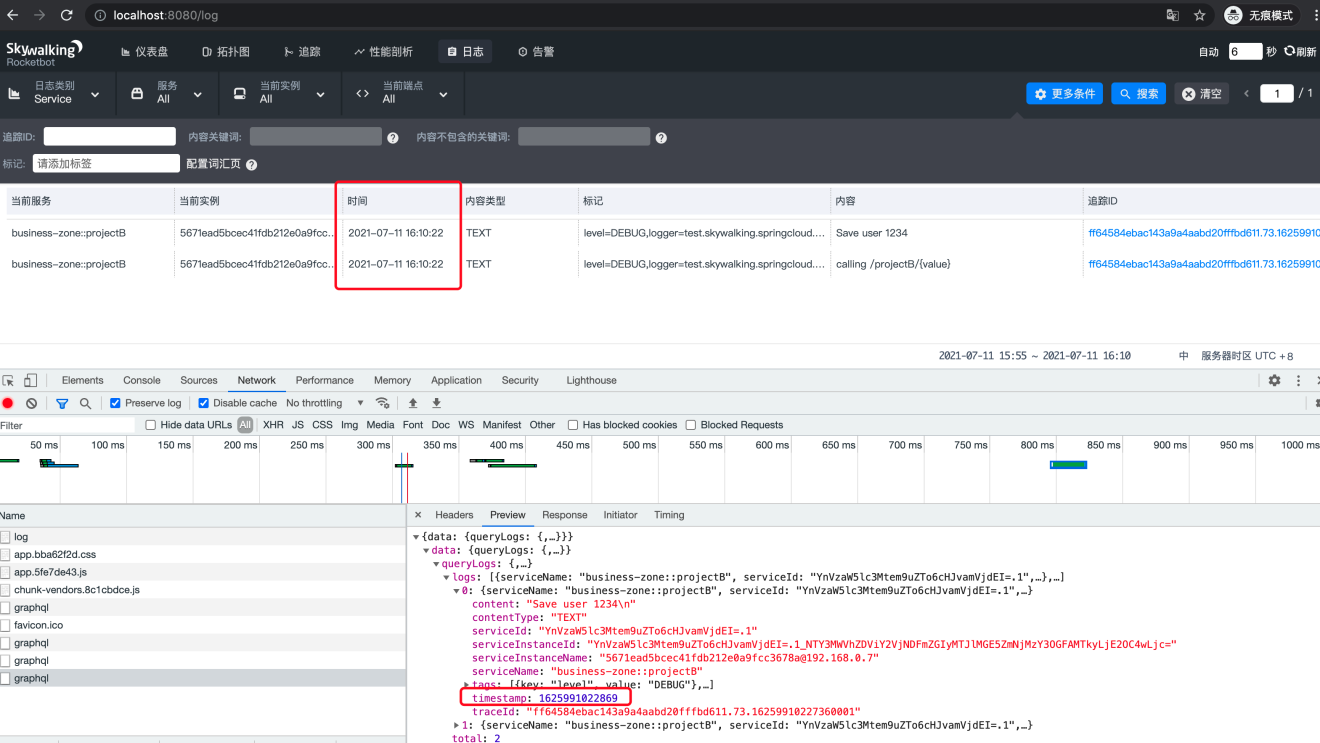

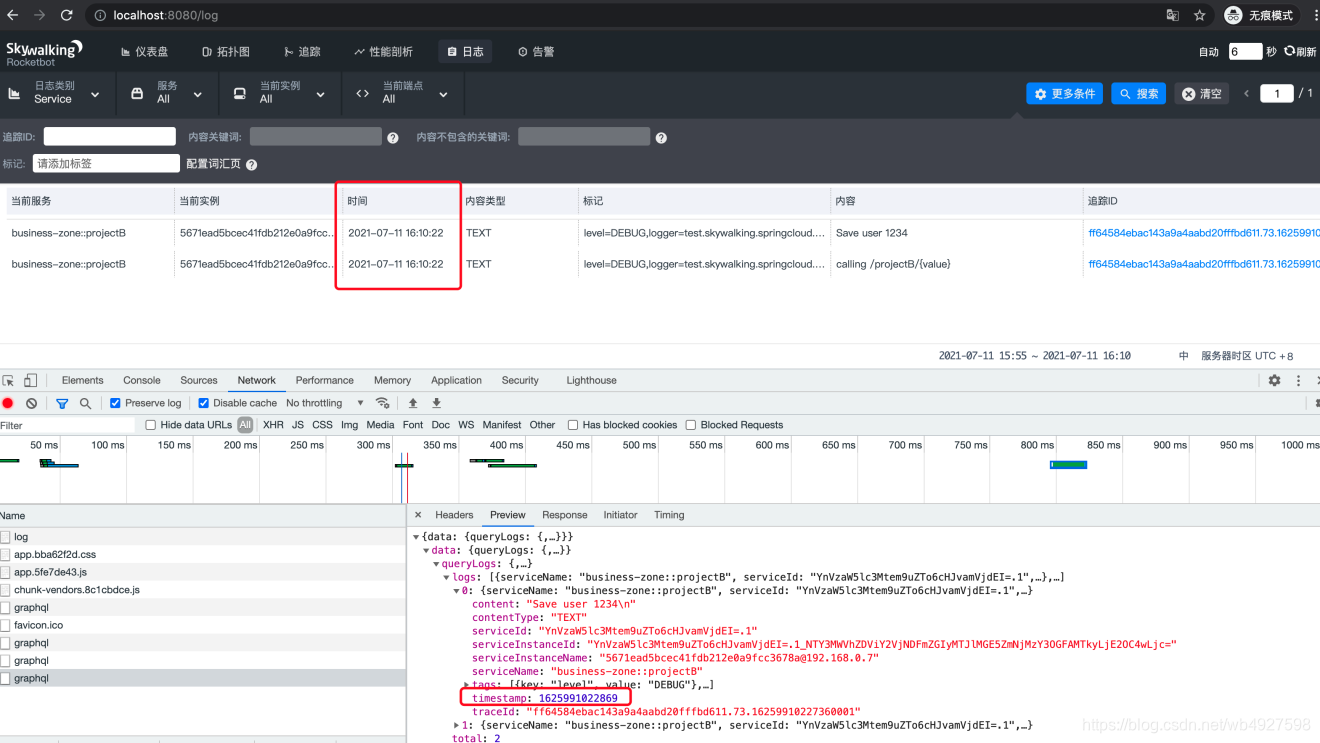

修改后的效果如下图所示
