Intel Image Classification With Pytorch

import numpy as np
import pandas as pd
import os
import torch
import torchvision
import numpy as np
import matplotlib.pyplot as plt
import torch.nn as nn
import torch.nn.functional as F
from torchvision.transforms import ToTensor
import torchvision.transforms as tt
from torchvision.utils import make_grid
from torch.utils.data.dataloader import DataLoader
from torchvision.datasets import ImageFolder
from torch.utils.data import random_split
%matplotlib inline

训练数据准备以及定义计算每个通道均值和标准差的函数

train = ImageFolder("archive/seg_train", transform = tt.Compose([
    tt.Resize(64),
    tt.RandomCrop(64),
    tt.ToTensor(),
]))

train_dl = DataLoader(train, 64, shuffle=True, num_workers=3, pin_memory=True)


def get_mean_std(dl):
    sum_, squared_sum, batches = 0,0,0
    for data, _ in dl:
        sum_ += torch.mean(data, dim = ([0,2,3]))
        squared_sum += torch.mean(data**2, dim = ([0,2,3]))
        batches += 1

    mean = sum_/batches
    std = (squared_sum/batches - mean**2)**0.5
    return mean,std

mean, std = get_mean_std(train_dl)
mean, std

定义图像处理组件----变形，随机剪切，随机翻转，标准化。

stats = ((0.4951, 0.4982, 0.4979), (0.2482, 0.2467, 0.2807))
train_transform = tt.Compose([
    tt.Resize(64),
    tt.RandomCrop(64),
    tt.RandomHorizontalFlip(),
    tt.ToTensor(),
    tt.Normalize(*stats,inplace=True)
])

test_transform = tt.Compose([
    tt.Resize(64),
    tt.RandomCrop(64),
    tt.ToTensor(),
    tt.Normalize(*stats,inplace=True)
])

读取图像

train = ImageFolder("archive/seg_train/seg_train", transform = train_transform)
test = ImageFolder("archive/seg_test/seg_test",transform = test_transform)

random_seed = 42
torch.manual_seed(random_seed)

切分数据集

val_size = int(len(train) * 0.2)
train_size = len(train) - val_size

train_ds, val_ds = random_split(train, [train_size, val_size])
len(train_ds), len(val_ds)

使用读取器加载图像

batch_size = 128

# PyTorch data loaders
train_dl = DataLoader(train_ds, batch_size, shuffle=True, num_workers=2, pin_memory=True)
valid_dl = DataLoader(val_ds, batch_size*2, num_workers=2, pin_memory=True)
test_dl = DataLoader(test, batch_size*2, num_workers=2, pin_memory=True)

查看图像

def denormalize(images, means, stds):
    means = torch.tensor(means).reshape(1, 3, 1, 1)
    stds = torch.tensor(stds).reshape(1, 3, 1, 1)
    return images * stds + means


def show_batch(dl):
    for images, labels in dl:
        fig, ax = plt.subplots(figsize=(12, 12))
        ax.set_xticks([]); ax.set_yticks([])
        denorm_images = denormalize(images, *stats)
        ax.imshow(make_grid(denorm_images[:64], nrow=8).permute(1, 2, 0).clamp(0,1))
        break

show_batch(train_dl)

设备的使用

def get_default_device():
    """Pick GPU if available, else CPU"""
    if torch.cuda.is_available():
        return torch.device('cuda')
    else:
        return torch.device('cpu')

def to_device(data, device):
    """Move tensor(s) to chosen device"""
    if isinstance(data, (list,tuple)):
        return [to_device(x, device) for x in data]
    return data.to(device, non_blocking=True)

class DeviceDataLoader():
    """Wrap a dataloader to move data to a device"""
    def __init__(self, dl, device):
        self.dl = dl
        self.device = device

    def __iter__(self):
        """Yield a batch of data after moving it to device"""
        for b in self.dl:
            yield to_device(b, self.device)

    def __len__(self):
        """Number of batches"""
        return len(self.dl)

定义计算准确率以及训练过程中使用的函数

def accuracy(outputs, labels):
    _, preds = torch.max(outputs, dim=1)
    return torch.tensor(torch.sum(preds == labels).item() / len(preds))

class ImageClassificationBase(nn.Module):
    def training_step(self, batch):
        images, labels = batch
        out = self(images)                  # Generate predictions
        loss = F.cross_entropy(out, labels) # Calculate loss
        return loss

    def validation_step(self, batch):
        images, labels = batch
        out = self(images)                    # Generate predictions
        loss = F.cross_entropy(out, labels)   # Calculate loss
        acc = accuracy(out, labels)           # Calculate accuracy
        return {'val_loss': loss.detach(), 'val_acc': acc}

    def validation_epoch_end(self, outputs):
        batch_losses = [x['val_loss'] for x in outputs]
        epoch_loss = torch.stack(batch_losses).mean()   # Combine losses
        batch_accs = [x['val_acc'] for x in outputs]
        epoch_acc = torch.stack(batch_accs).mean()      # Combine accuracies
        return {'val_loss': epoch_loss.item(), 'val_acc': epoch_acc.item()}

    def epoch_end(self, epoch, result):
        print("Epoch [{}], last_lr: {:.5f}, train_loss: {:.4f}, val_loss: {:.4f}, val_acc: {:.4f}".format(
            epoch, result['lrs'][-1], result['train_loss'], result['val_loss'], result['val_acc']))

查看设备

device = get_default_device()
device

加载数据到设备

train_dl = DeviceDataLoader(train_dl, device)
valid_dl = DeviceDataLoader(valid_dl, device)
test_dl = DeviceDataLoader(test_dl, device)

搭建resnet网络

def conv_block(in_channels, out_channels, pool=False):
    layers = [nn.Conv2d(in_channels, out_channels, kernel_size=3, padding=1),
              nn.BatchNorm2d(out_channels),
              nn.ReLU(inplace=True)]
    if pool: layers.append(nn.MaxPool2d(2))
    return nn.Sequential(*layers)

class ResNet9(ImageClassificationBase):
    def __init__(self, in_channels, num_classes):
        super().__init__()

        self.conv1 = conv_block(in_channels, 64)
        self.conv2 = conv_block(64, 128, pool=True)
        self.res1 = nn.Sequential(conv_block(128, 128), conv_block(128, 128))

        self.conv3 = conv_block(128, 256, pool=True)
        self.conv4 = conv_block(256, 512, pool=True)
        self.res2 = nn.Sequential(conv_block(512, 512), conv_block(512, 512))

        self.classifier = nn.Sequential(nn.AdaptiveMaxPool2d(1),
                                        nn.Flatten(),
                                        nn.Dropout(0.2),
                                        nn.Linear(512, num_classes))

    def forward(self, xb):
        out = self.conv1(xb)
        out = self.conv2(out)
        out = self.res1(out) + out
        out = self.conv3(out)
        out = self.conv4(out)
        out = self.res2(out) + out
        out = self.classifier(out)
        return out

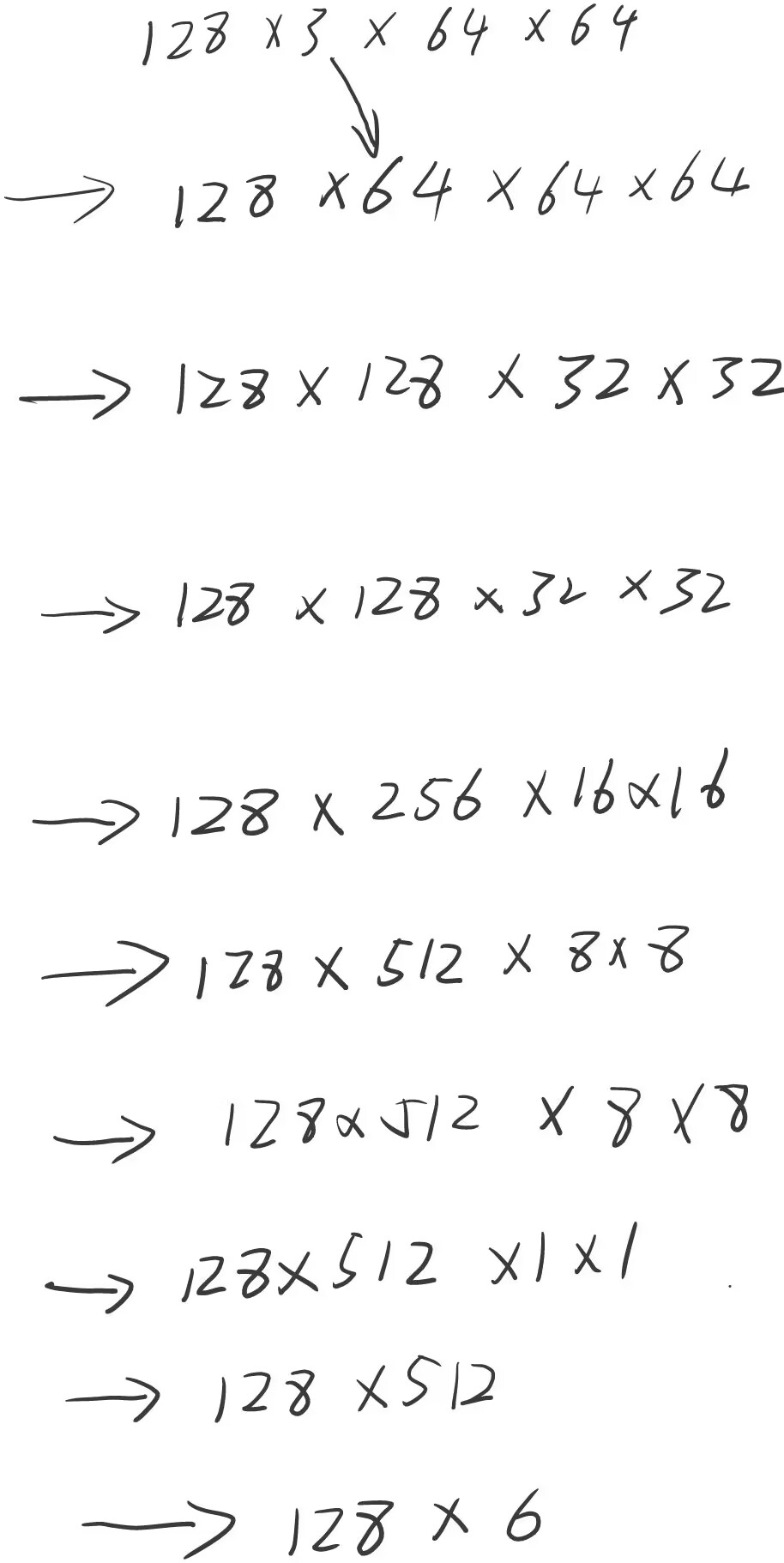

按照该网络，输入一个12836464大小的图片，经过该网络后所得的尺寸为1286，其过程为。

分类数

no_of_classes = len(train.classes)
no_of_classes

模型创建

model = to_device(ResNet9(3, no_of_classes), device)
model

定义训练函数

@torch.no_grad()
def evaluate(model, val_loader):
    model.eval()
    outputs = [model.validation_step(batch) for batch in val_loader]
    return model.validation_epoch_end(outputs)

def get_lr(optimizer):
    for param_group in optimizer.param_groups:
        return param_group['lr']

def fit_one_cycle(epochs, max_lr, model, train_loader, val_loader,
                  weight_decay=0, grad_clip=None, opt_func=torch.optim.SGD):
    torch.cuda.empty_cache()
    history = []

    # Set up cutom optimizer with weight decay
    optimizer = opt_func(model.parameters(), max_lr, weight_decay=weight_decay)
    # Set up one-cycle learning rate scheduler
    sched = torch.optim.lr_scheduler.OneCycleLR(optimizer, max_lr, epochs=epochs,
                                                steps_per_epoch=len(train_loader))

    for epoch in range(epochs):
        # Training Phase
        model.train()
        train_losses = []
        lrs = []
        for batch in train_loader:
            loss = model.training_step(batch)
            train_losses.append(loss)
            loss.backward()

            # Gradient clipping
            if grad_clip:
                nn.utils.clip_grad_value_(model.parameters(), grad_clip)

            optimizer.step()
            optimizer.zero_grad()

            # Record & update learning rate
            lrs.append(get_lr(optimizer))
            sched.step()

        # Validation phase
        result = evaluate(model, val_loader)
        result['train_loss'] = torch.stack(train_losses).mean().item()
        result['lrs'] = lrs
        model.epoch_end(epoch, result)
        history.append(result)
    return history

初始时的损失值和准确率

history = [evaluate(model, valid_dl)]
history

一些参数

epochs = 12
max_lr = 0.01
grad_clip = 0.1
weight_decay = 1e-4
opt_func = torch.optim.Adam

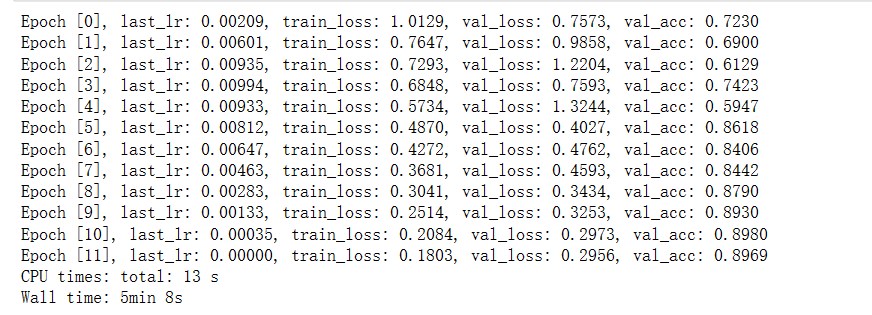

训练

%%time
history += fit_one_cycle(epochs, max_lr, model, train_dl, valid_dl,
                             grad_clip=grad_clip,
                             weight_decay=weight_decay,
                             opt_func=opt_func)

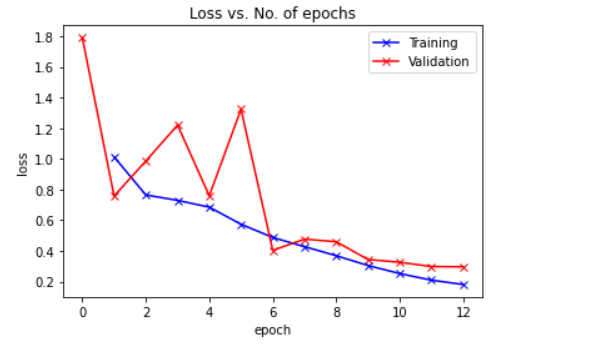

图表

def plot_losses(history):
    train_losses = [x.get('train_loss') for x in history]
    val_losses = [x['val_loss'] for x in history]
    plt.plot(train_losses, '-bx')
    plt.plot(val_losses, '-rx')
    plt.xlabel('epoch')
    plt.ylabel('loss')
    plt.legend(['Training', 'Validation'])
    plt.title('Loss vs. No. of epochs');
plot_losses(history)

def plot_lrs(history):
    lrs = np.concatenate([x.get('lrs', []) for x in history])
    plt.plot(lrs)
    plt.xlabel('Batch no.')
    plt.ylabel('Learning rate')
    plt.title('Learning Rate vs. Batch no.');

plot_lrs(history)

测试集上的损失值和准确率

test_loader = DeviceDataLoader(test_dl, device)
result = evaluate(model, test_loader)
result

参考地址：
https://www.kaggle.com/code/mihirpaghdal/intel-image-classification-with-pytorch
