ESP8266和Arduino的引脚对应关系表

NodeMCU和Arduinod的管脚是有所不同的，具体见下表：
左侧为Arduino引脚，右侧为ESP8266对应引脚：

static const uint8_t D0   = 16;
static const uint8_t D1   = 5;
static const uint8_t D2   = 4;
static const uint8_t D3   = 0;
static const uint8_t D4   = 2;
static const uint8_t D5   = 14;
static const uint8_t D6   = 12;
static const uint8_t D7   = 13;
static const uint8_t D8   = 15;
static const uint8_t D9   = 3;
static const uint8_t D10  = 1;

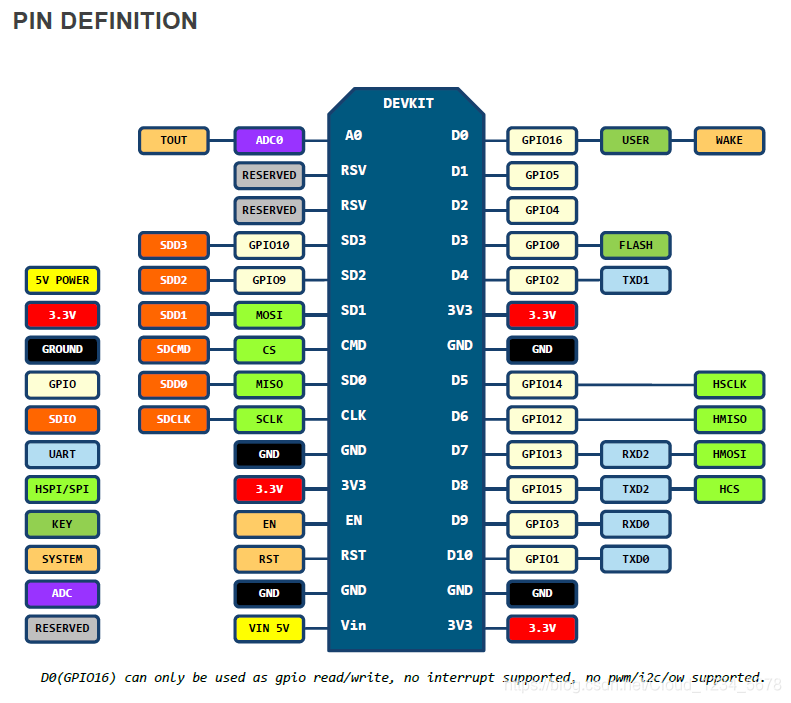

附带一张NodeMCU的原理图供大家查看：
