Kubernetes安装部署
Kubernetes安装
前提要件
系统：Centos7
硬件要求：推荐 CPU：2核，内存：4G
各节点静态IP配置
环境准备
安装过程中有可能会用到jq命令，如果系统中没有安装，推荐提前安装
安装EPEL源：
yum install epel-release
安装完EPEL源后，可以查看下jq包是否存在：
yum list jq
安装jq：
yum install jq
安装Docker
Docker安装指南
设置主机名
Master节点
sudo hostnamectl set-hostname master-node
工作节点
sudo hostnamectl set-hostname worker-node1
sudo hostnamectl set-hostname worker-node2
设置主机名和IP映射
sudo vi /etc/hosts
192.168.128.112 master-node
192.168.128.113 worker-node1
192.168.128.114 worker-node2
设置防火墙
Master节点
sudo firewall-cmd --permanent --add-port=6443/tcp
sudo firewall-cmd --permanent --add-port=2379-2380/tcp
sudo firewall-cmd --permanent --add-port=10250/tcp
sudo firewall-cmd --permanent --add-port=10251/tcp
sudo firewall-cmd --permanent --add-port=10252/tcp
sudo firewall-cmd --permanent --add-port=10255/tcp
sudo firewall-cmd –-reload
工作节点
sudo firewall-cmd --permanent --add-port=10251/tcp
sudo firewall-cmd --permanent --add-port=10255/tcp
firewall-cmd –-reload
禁用SELinux
setenforce 0
sed -i 's/^SELINUX=enforcing$/SELINUX=permissive/' /etc/selinux/config
禁用交换分区
sudo sed -i '/swap/d' /etc/fstab
sudo swapoff -a
添加IP规则
vi /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
查看IP规则，显示上面设置的内容
sysctl --system
yum安装
添加安装源
cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://packages.cloud.google.com/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=1
repo_gpgcheck=1
gpgkey=https://packages.cloud.google.com/yum/doc/yum-key.gpg https://packages.cloud.google.com/yum/doc/rpm-package-key.gpg
EOF
执行安装
sudo yum install -y kubelet kubeadm kubectl
启动docker
systemctl start docker
systemctl enable docker
启动k8s
systemctl enable kubelet
systemctl start kubelet
初始化pod
kubeadm init --pod-network-cidr=10.244.0.0/16
如果（Master节点和Work节点）初始化的有问题，可以通过下面命令清除，然后再重新初始化
kubeadm reset
初始化完成后会显示如下输出：
Your Kubernetes control-plane has initialized successfully!
To start using your cluster, you need to run the following as a regular user:
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
https://kubernetes.io/docs/concepts/cluster-administration/addons/
Then you can join any number of worker nodes by running the following on each as root:
kubeadm join 192.168.128.112:6443 --token dsx78s.sxyjn54pbz45v52t \
--discovery-token-ca-cert-hash sha256:cc4c3d90691e52d3b8595ddad0c533a8fae1b204c45d779a9a7a139b7733f9c1
复制最后一行命令，工作节点通过这个命令加入
kubeadm join 192.168.128.112:6443 --token dsx78s.sxyjn54pbz45v52t --discovery-token-ca-cert-hash sha256:cc4c3d90691e52d3b8595ddad0c533a8fae1b204c45d779a9a7a139b7733f9c1
有效时间
该 token 的有效时间为 2 个小时，2小时内，您可以使用此 token 初始化任意数量的 worker 节点。
如果token过期，可以重新生成
kubeadm token create --print-join-command
执行命令
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
查看初始化结果
kubectl get nodes -o wide
查看节点状态
kubectl get nodes
NAME STATUS ROLES AGE VERSION
master-node NotReady master 23m v1.18.5
如果状态为NotReady，说明节点未就绪，可以查看详细原因
kubectl get pod --all-namespaces
NAMESPACE NAME READY STATUS RESTARTS AGE
kube-system coredns-66bff467f8-954l9 0/1 Pending 0 20m
kube-system coredns-66bff467f8-w4mw5 0/1 Pending 0 20m
kube-system etcd-master-node 1/1 Running 0 20m
kube-system kube-apiserver-master-node 1/1 Running 0 20m
kube-system kube-controller-manager-master-node 1/1 Running 7 20m
kube-system kube-proxy-frsd6 1/1 Running 0 20m
kube-system kube-proxy-wkcqz 1/1 Running 0 13m
kube-system kube-proxy-zn7ww 1/1 Running 0 12m
kube-system kube-scheduler-master-node 1/1 Running 6 20m
coredns的Pending状态解决
如果coredns处于Pending状态，说明缺少flannel配置，这个配置是支持pod之间通信的底层通信协议。
kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml
coredns的ContainerCreating状态解决
如果处于ContainerCreating状态，可以通过以下命令查看日志
kubectl describe pod/coredns-66bff467f8-954l9 -n kube-system
如果看到如下错误，需要检查/run/flannel/subnet.env文件是否存在
network: open /run/flannel/subnet.env: no such file or directory
/run/flannel/subnet.env文件内容如下：
FLANNEL_NETWORK=10.244.0.0/16
FLANNEL_SUBNET=10.244.0.1/24
FLANNEL_MTU=1450
FLANNEL_IPMASQ=true
如果遇到工作节点有镜像pull失败的，可以到工作节点上通过docker pull拉取。
docker pull quay.io/coreos/flannel:v0.12.0-amd64
内存过低也有可能会导致某些pod启动失败
重装coredns服务
删除已有pod
kubectl delete --namespace=kube-system deployment coredns
重新安装
wget https://raw.githubusercontent.com/coredns/deployment/master/kubernetes/coredns.yaml.sed
wget https://raw.githubusercontent.com/coredns/deployment/master/kubernetes/deploy.sh
chmod +x deploy.sh
./deploy.sh | kubectl apply -f -
查看有问题的节点的pod状态
kubectl get pods -n kube-system -owide | grep work-node1
删除节点
kubectl delete node work-node1
删除颁发的证书，在Node节点上的目录：/var/lib/kubelet/
rm -f /var/lib/kubelet/pki/*
安装完成
问题解决后的pod正常状态
# kubectl get pod --all-namespaces
NAMESPACE NAME READY STATUS RESTARTS AGE
kube-system coredns-66bff467f8-d2rnk 1/1 Running 0 131m
kube-system coredns-66bff467f8-dbfkt 1/1 Running 0 131m
kube-system etcd-master-node 1/1 Running 0 131m
kube-system kube-apiserver-master-node 1/1 Running 0 131m
kube-system kube-controller-manager-master-node 1/1 Running 0 131m
kube-system kube-flannel-ds-amd64-9xfgg 1/1 Running 0 39m
kube-system kube-flannel-ds-amd64-bq4kn 1/1 Running 0 39m
kube-system kube-proxy-kpxdp 1/1 Running 0 70m
kube-system kube-proxy-ltzrl 1/1 Running 0 131m
kube-system kube-scheduler-master-node 1/1 Running 0 131m
# kubectl get nodes
NAME STATUS ROLES AGE VERSION
master-node Ready master 131m v1.18.5
worker-node1 Ready <none> 70m v1.18.5
K8s应用
kubeadm、kubelet、kubectl
- kubeadm：kubernetes集群快速构建工具
- kubelet：运行在所有节点上，负责启动POD和容器，已系统服务形式出现
- kubectl：kubenetes命令行工具，提供指令
启动，设置开机自动启动
systemctl start kubelet
systemctl enable kubelet
通过yml创建容器
kubectl create -f ./xxxx.yaml
更新容器配置，如果容器不存在，跟create作用相同
kubectl apply -f ./xxxx.yaml
配置Dashboard
创建证书
mkdir dashboard-certs
cd dashboard-certs/
#创建命名空间
kubectl create namespace kubernetes-dashboard
# 创建key文件
openssl genrsa -out dashboard.key 2048
#证书请求
openssl req -days 36000 -new -out dashboard.csr -key dashboard.key -subj '/CN=dashboard-cert'
#自签证书
openssl x509 -req -in dashboard.csr -signkey dashboard.key -out dashboard.crt
#创建kubernetes-dashboard-certs对象
kubectl create secret generic kubernetes-dashboard-certs --from-file=dashboard.key --from-file=dashboard.crt -n kubernetes-dashboard
安装Dashboard
kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/v2.0.0/aio/deploy/recommended.yaml
查看安装结果
#kubectl get pods -A -o wide
NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
kube-system coredns-66bff467f8-d2rnk 1/1 Running 33 20h 10.244.0.7 master-node <none> <none>
kube-system coredns-66bff467f8-dbfkt 1/1 Running 32 20h 10.244.0.6 master-node <none> <none>
kube-system etcd-master-node 1/1 Running 4 20h 192.168.128.112 master-node <none> <none>
kube-system kube-apiserver-master-node 1/1 Running 3 20h 192.168.128.112 master-node <none> <none>
kube-system kube-controller-manager-master-node 1/1 Running 4 20h 192.168.128.112 master-node <none> <none>
kube-system kube-flannel-ds-amd64-9xfgg 1/1 Running 1 18h 192.168.128.112 master-node <none> <none>
kube-system kube-flannel-ds-amd64-bq4kn 1/1 Running 0 18h 192.168.128.113 worker-node1 <none> <none>
kube-system kube-flannel-ds-amd64-gbcz7 1/1 Running 0 17h 192.168.128.114 worker-node2 <none> <none>
kube-system kube-proxy-kpxdp 1/1 Running 0 19h 192.168.128.113 worker-node1 <none> <none>
kube-system kube-proxy-ltzrl 1/1 Running 1 20h 192.168.128.112 master-node <none> <none>
kube-system kube-proxy-wwk5s 1/1 Running 0 17h 192.168.128.114 worker-node2 <none> <none>
kube-system kube-scheduler-master-node 1/1 Running 3 20h 192.168.128.112 master-node <none> <none>
kubernetes-dashboard dashboard-metrics-scraper-6b4884c9d5-ffdql 1/1 Running 0 8m17s 10.244.0.15 master-node <none> <none>
kubernetes-dashboard kubernetes-dashboard-7b544877d5-gjzg8 1/1 Running 0 8m17s 10.244.0.14 master-node <none> <none>
如果dashboard的状态处于Running状态说明已经正常运行，如果处于crashloopbackoff状态，有可能是机器内存不够。
创建dashboard管理员
#vim dashboard-admin.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
labels:
k8s-app: kubernetes-dashboard
name: dashboard-admin
namespace: kubernetes-dashboard
:wq
kubectl create -f ./dashboard-admin.yaml
为用户分配权限
#vim dashboard-admin-bind-cluster-role.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: dashboard-admin-bind-cluster-role
labels:
k8s-app: kubernetes-dashboard
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: cluster-admin
subjects:
- kind: ServiceAccount
name: dashboard-admin
namespace: kubernetes-dashboard
:wq
kubectl create -f ./dashboard-admin-bind-cluster-role.yaml
查看dashboard端口映射
# kubectl -n kubernetes-dashboard get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
dashboard-metrics-scraper ClusterIP 10.105.5.109 <none> 8000/TCP 7h18m
kubernetes-dashboard NodePort 10.102.18.151 <none> 443/TCP 73m
可以看到 kubernetes-dashboard service 在集群内部，无法再外部访问，需要暴露kubernetes-dashboard 443端口给NodePort。
# kubectl -n kubernetes-dashboard edit svc kubernetes-dashboard
找到type字段，将ClusterIP，修改为NodePort
spec:
clusterIP: 10.106.68.90
ports:
- port: 443
protocol: TCP
targetPort: 8443
selector:
k8s-app: kubernetes-dashboard
sessionAffinity: None
type: ClusterIP ## <------修改为NodePort
status:
loadBalancer: {}
保存退出，重新查看 service
# kubectl -n kubernetes-dashboard get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
dashboard-metrics-scraper ClusterIP 10.105.5.109 <none> 8000/TCP 7h18m
kubernetes-dashboard NodePort 10.102.18.151 <none> 443:31461/TCP 73m
可以看到当前NodePort 端口是随机的31461
查看并复制用户Token
#kubectl -n kubernetes-dashboard describe secret $(kubectl -n kubernetes-dashboard get secret | grep dashboard-admin | awk '{print $1}')
Name: dashboard-admin-token-b6c7z
Namespace: kubernetes-dashboard
Labels: <none>
Annotations: kubernetes.io/service-account.name: dashboard-admin
kubernetes.io/service-account.uid: e091ac40-221f-4c66-a6df-c04d6c22c5f2
Type: kubernetes.io/service-account-token
Data
====
ca.crt: 1025 bytes
namespace: 20 bytes
token: eyJhbGciOiJSUzI1NiIsImtpZCI6ImFENEF3Ymc4M0Fxc3pQRkRzZTNkaDd0NG50ZTdPVUE3NXNITmVVekE3WnMifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJkYXNoYm9hcmQtYWRtaW4tdG9rZW4tYjZjN3oiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoiZGFzaGJvYXJkLWFkbWluIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiZTA5MWFjNDAtMjIxZi00YzY2LWE2ZGYtYzA0ZDZjMjJjNWYyIiwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmVybmV0ZXMtZGFzaGJvYXJkOmRhc2hib2FyZC1hZG1pbiJ9.yg22OVtuOm9T2KiMcpNU9aHHhT3rSrYWEj98_x0rapaLdbMcyjAqToFvJ69N8-RGihnJ2KwwV9eeeFvCp4d3nh3lM8nJIRXjocXpJLLaGKo8G71WmLfa9kF4_W9DfsRA1ER0PJSYTyN3RvlIQaa3-98HhlaxIKNfL_tbHa1ELgH0wXYLAKpx4SDq5POV_EcyuszCgwqNJQ6LU3S4x_OML9ebZX8cuJ3vQeF4Prt9CR5oqduNNzdUcCRGSLhP_Mimr9lVpJqeQjwGzgTO3oWZeuUUjys6WzBC4tex6fI8Q4OT4qaOcGrcYDIgGWdS_rI_YdN0tSmcWz1OKPcRG80dhw

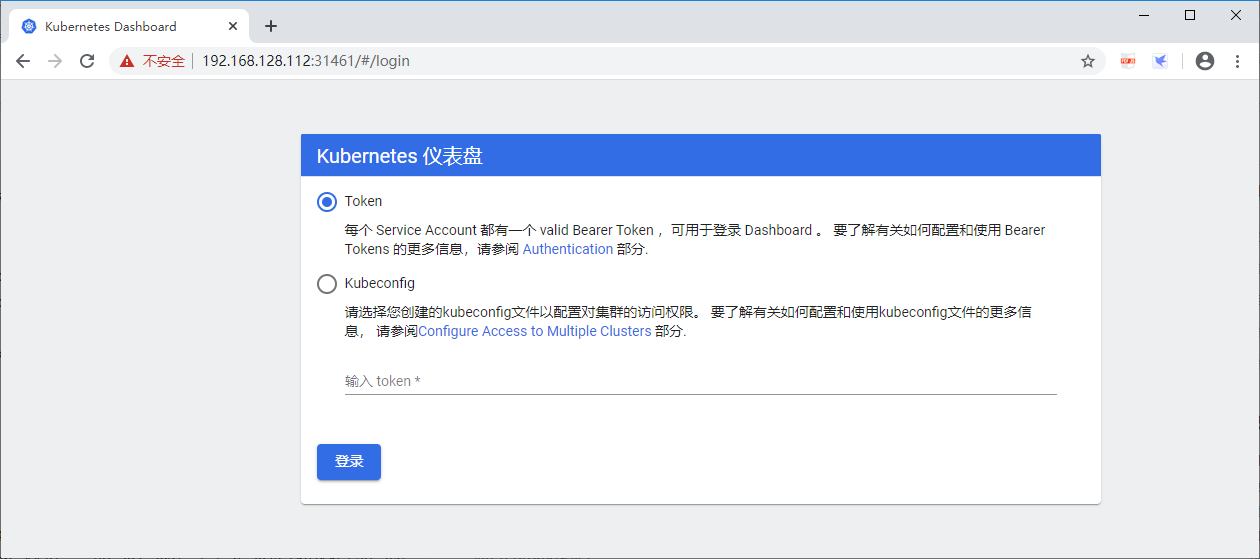

通过chrome访问Master节点IP+上面生成的端口号31461

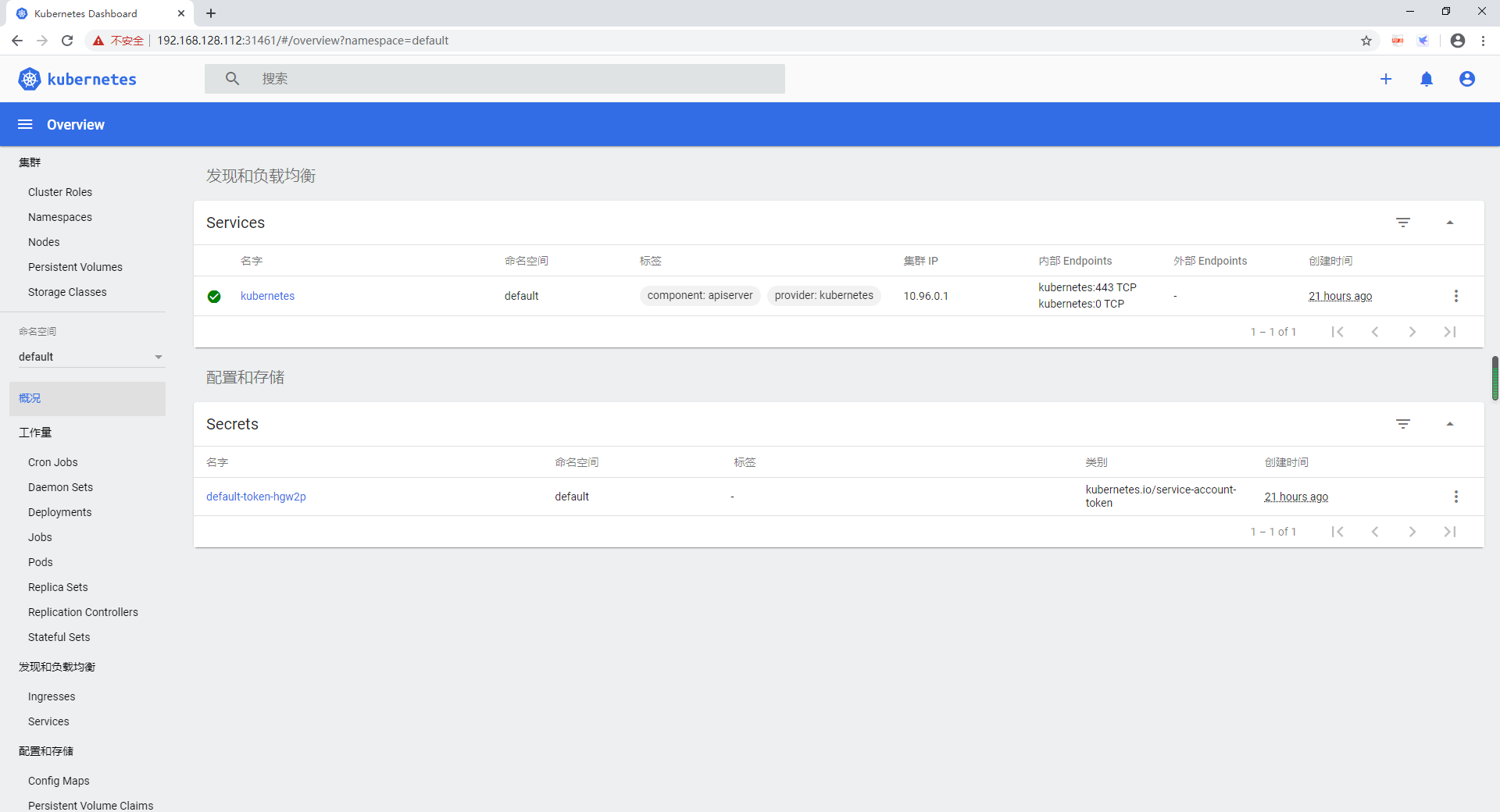

输入上面的token,进入dashboard页面
