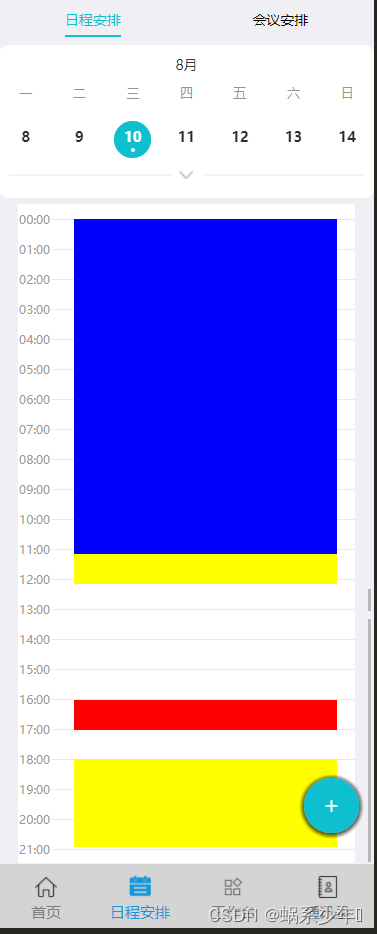

效果图

三部分

头部日历

uniapp的插件市场
zsy-calendar 仿钉钉打卡统计日历 支持周与月的滑动切换
效果非常nice，原理没咋看懂，总之非常牛掰

底层时间线

<!-- template-->
			<view class="behind">
				<view v-for="(item,index) in time_interval">
					<!--  -->
					<view class="row" >
						<!-- 左侧时间 -->
						<view style="width: 10%;color: #999999;">{{item}}</view>
						<!-- 右侧底部时间线 -->
						<view style="background-color: #eaeaea;width: 90%;height: 1rpx;"></view>
					</view>
				</view>
			</view>

<!-- script-->
			time_interval: ["00:00", "01:00", "02:00", "03:00", "04:00",
					"05:00", "06:00", "07:00", "08:00", "09:00",
					"10:00", "11:00", "12:00", "13:00", "14:00",
					"15:00", "16:00", "17:00", "18:00", "19:00",
					"20:00", "21:00", "22:00", "23:00", "24:00"
				]

<!-- style-->
			.behind {
				position: relative;
				display: flex;
				flex-direction: column;

				.row {
					width: 100%;
					height: 60rpx;
					display: flex;
					flex-direction: row;
					align-items: center;
					justify-content: center;
				}
			}

上层事务分布

<!-- template-->
<view
				style="z-index:1; width: 70%;position: absolute; margin-left: 15%;margin-top: 30rpx;">
				<view v-for="(item,index) in line" :key="index"
					:style="{'z-index:':index+10,'height':item.length+'rpx','background-color': item.remark===0?'':item.color}"
					@click="lookbook(item)">
					<!-- {{countbook(item)}} -->
				</view>
			</view>

<!-- script-->
数据库存储的数据类型：
           schedule={
					"data": "2022-08-08",
					"name": "测试用户",
					"schedule": [{
							"title": "开会", //标题不超过6个字
							"start": "08:30",
							"end": "11:30",
							"remarks": "测试备注内容", //备注内容
							"color": "red" //事件的颜色背景
						},
						{
							"title": "吃饭", //标题不超过6个字
							"start": "11:30",
							"end": "12:30",
							"remarks": "测试备注内容", //备注内容
							"color": "blue" //事件的颜色背景
						}]
				}
data里面准备一个空数组:line:[]


处理数据类型的方法
measure() {
				if (!this.schedule.schedule) {
					return
				}
				// 获取已预约的时间段
				this.timeData = JSON.parse(JSON.stringify(this.schedule.schedule))
				// 总分钟数
				this.sumTime = (parseInt(this.time_interval.slice(-1)) - parseInt(this.time_interval[0])) * 60;
				//空时间段（无“业务”） timeData格式[],
				if (this.isEmptyObject(this.timeData)) {
					const s = {
						"start": this.time_interval[0],
						"end": this.time_interval.slice(-1),
						"length": 1400,
						"x": 0,
						"remark": 0
					}
					this.line.push(s)
					return
				}
				//排序 按开始时间顺序从前往后
				this.timeData.sort(function(a, b) {
					return a.start > b.start ? 1 : -1;
				})
				//处理数据,计算位置
				this.timeData.forEach(item => {
					item.length = Number(this.timeDifference(item.start, item.end))
					item.x = Number(this.timeDifference(this.time_interval[0], item.start))
					item.remark = 1 //0 可选；1 不可选(已被预约的)
				})
				// 处理预约数据之间的间隔
				this.timeData.forEach((item, index) => {
					if (index == 0) {
						//第一项未到顶，增加空白项
						if (item.x != 0) {
							const s = {
								"start": this.time_interval[0],
								"end": item.start,
								"length": item.x,
								"x": 0,
								"remark": 0
							}
							this.line.unshift(s)
						}
						this.line.push(item)
						//只有一项
						if (this.timeData.length == 1 && (item.x + item.length) < 1405) {
							const s = {
								"start": item.end,
								"end": this.endTime,
								"length": 1405 - (item.x + item.length),
								"x": item.x + item.length,
								"remark": 0
							}
							this.line.push(s)
							console.log(this.line)
						}
					} else {
						// 正常数据之间的间隔
						if (item.x > (this.timeData[index - 1].x + this.timeData[index - 1].length)) {
							const s = {
								"start": this.timeData[index - 1].end,
								"end": item.start,
								"length": item.x - (this.timeData[index - 1].x + this.timeData[index - 1].length)+3,
								"x": this.timeData[index - 1].x + this.timeData[index - 1].length,
								"remark": 0
							}
							this.line.push(s)
						}
						this.line.push(item)
						//最后一项未到底，增加空白项
						if (this.timeData.length - 1 == index && item.x + item.length < 1405) {
							const s = {
								"start": item.end,
								"end": this.time_interval.slice(-1),
								"length": 1405 - (item.x + item.length),
								"x": item.x + item.length,
								"remark": 0
							}
							this.line.push(s)
						}
					}
				})
			}
点击事务，查看内容
lookbook(info) {
				if (info.remark == 0) {
					uni.showToast({
						icon: 'none',
						title: "点击预约"
					})
				} else {
					console.log(info.title)
					uni.showModal({
						title: info.title,
						content: '开始时间：' + info.start + "\n结束时间：" + info.end + '\n',
						showCancel: false,
						buttonText: '确定',
						success: function(res) {
							if (res.confirm) {
								console.log('用户点击确定');
							} else if (res.cancel) {
								console.log('用户点击取消');
							}
						}
					});
				}
			}
