Crypto++库在VS 2013中的使用 + 基于操作模式AES加密

一. 下载Crypto++ Library

Crypto++ Library的官方网：http://www.cryptopp.com/

二. 建立自己使用的Crypto++ Library

由于从官方网下载的Crypto++库是开源的，只有源文件和几个可以生成lib、dll的工程，以及一个使用的例子工程，因此希望生成自己建的工程能使用的SDK。

1.编译链接生成cryptlib.lib

打开cryptest.sln，分别在Debug模式和Release模式下编译链接cryptlib工程，成功后会在cryptopp54\Win32\output\debug和cryptopp54\Win32\output\release下生成cryptlib.lib文件。作者当时用的是Crypto++ 5.62版本。

Build时方法是，右击Solution Explorer中的cryptlib工程，单击build。第一次时它会报错，没关系，按这样再build一次，就可以build成功了。

2. 建立Crypto++ SDK

在C:\Program Files\中新建文件夹，取名“CryptoPP”，里面新建文件夹“include”、“lib”，在“lib”中新建文件夹“debug”、“release”。将Crypto++库中的所有头文件复制到“include”文件夹中，再将上面生成的两个cryptlib.lib分别复制到“debug”和“release”中。

三. 基于模式的AES加解密

1、20/13中新建Win32 Console Application工程，建立空的工程。完成后新建文件main.cpp，里面源码如下：

#include "stdafx.h"
#include <aes.h>
#include <Hex.h>      // StreamTransformationFilter
#include <modes.h>    // CFB_Mode
#include <iostream>   // std:cerr
#include <sstream>   // std::stringstream
#include <string>


using namespace std;
using namespace CryptoPP;
#pragma comment( lib, "cryptlib.lib" )

std::string ECB_AESEncryptStr(std::string sKey, const char *plainText)
{
    std::string outstr;

    //填key
    SecByteBlock key(AES::MAX_KEYLENGTH);
    memset(key,0x30,key.size() );
    sKey.size()<=AES::MAX_KEYLENGTH?memcpy(key,sKey.c_str(),sKey.size()):memcpy(key,sKey.c_str(),AES::MAX_KEYLENGTH);


    AES::Encryption aesEncryption((byte *)key, AES::MAX_KEYLENGTH);

    ECB_Mode_ExternalCipher::Encryption ecbEncryption(aesEncryption);
    StreamTransformationFilter ecbEncryptor(ecbEncryption, new HexEncoder(new StringSink(outstr)));
    ecbEncryptor.Put((byte *)plainText, strlen(plainText));
    ecbEncryptor.MessageEnd();

    return outstr;
}



std::string ECB_AESDecryptStr(std::string sKey, const char *cipherText)
{
    std::string outstr;

    //填key
    SecByteBlock key(AES::MAX_KEYLENGTH);
    memset(key,0x30,key.size() );
    sKey.size()<=AES::MAX_KEYLENGTH?memcpy(key,sKey.c_str(),sKey.size()):memcpy(key,sKey.c_str(),AES::MAX_KEYLENGTH);

    ECB_Mode<AES >::Decryption ecbDecryption((byte *)key, AES::MAX_KEYLENGTH);

    HexDecoder decryptor(new StreamTransformationFilter(ecbDecryption, new StringSink(outstr)));
    decryptor.Put((byte *)cipherText, strlen(cipherText));
    decryptor.MessageEnd();

    return outstr;
}



std::string CBC_AESEncryptStr(std::string sKey, std::string sIV, const char *plainText)
{
    std::string outstr;

    //填key
    SecByteBlock key(AES::MAX_KEYLENGTH);
    memset(key,0x30,key.size() );
    sKey.size()<=AES::MAX_KEYLENGTH?memcpy(key,sKey.c_str(),sKey.size()):memcpy(key,sKey.c_str(),AES::MAX_KEYLENGTH);

    //填iv
    byte iv[AES::BLOCKSIZE];
    memset(iv,0x30,AES::BLOCKSIZE);
sIV.size()<=AES::BLOCKSIZE?memcpy(iv,sIV.c_str(),sIV.size()):memcpy(iv,sIV.c_str(),AES::BLOCKSIZE);

    AES::Encryption aesEncryption((byte *)key, AES::MAX_KEYLENGTH);

    CBC_Mode_ExternalCipher::Encryption cbcEncryption(aesEncryption, iv);

    StreamTransformationFilter cbcEncryptor(cbcEncryption, new HexEncoder(new StringSink(outstr)));
    cbcEncryptor.Put((byte *)plainText, strlen(plainText));
    cbcEncryptor.MessageEnd();

    return outstr;
}

std::string CBC_AESDecryptStr(std::string sKey, std::string sIV, const char *cipherText)
{
    std::string outstr;

    //填key
    SecByteBlock key(AES::MAX_KEYLENGTH);
    memset(key,0x30,key.size() );
    sKey.size()<=AES::MAX_KEYLENGTH?memcpy(key,sKey.c_str(),sKey.size()):memcpy(key,sKey.c_str(),AES::MAX_KEYLENGTH);

    //填iv
    byte iv[AES::BLOCKSIZE];
    memset(iv,0x30,AES::BLOCKSIZE);
sIV.size()<=AES::BLOCKSIZE?memcpy(iv,sIV.c_str(),sIV.size()):memcpy(iv,sIV.c_str(),AES::BLOCKSIZE);


    CBC_Mode<AES >::Decryption cbcDecryption((byte *)key, AES::MAX_KEYLENGTH, iv);

    HexDecoder decryptor(new StreamTransformationFilter(cbcDecryption, new StringSink(outstr)));
    decryptor.Put((byte *)cipherText, strlen(cipherText));
    decryptor.MessageEnd();

    return outstr;
}

std::string CBC_CTS_AESEncryptStr(std::string sKey, std::string sIV, const char *plainText)
{
    std::string outstr;

    //填key
    SecByteBlock key(AES::MAX_KEYLENGTH);
    memset(key,0x30,key.size() );
    sKey.size()<=AES::MAX_KEYLENGTH?memcpy(key,sKey.c_str(),sKey.size()):memcpy(key,sKey.c_str(),AES::MAX_KEYLENGTH);

    //填iv
    byte iv[AES::BLOCKSIZE];
    memset(iv,0x30,AES::BLOCKSIZE);
sIV.size()<=AES::BLOCKSIZE?memcpy(iv,sIV.c_str(),sIV.size()):memcpy(iv,sIV.c_str(),AES::BLOCKSIZE);

    AES::Encryption aesEncryption((byte *)key, AES::MAX_KEYLENGTH);

    CBC_CTS_Mode_ExternalCipher::Encryption cbcctsEncryption(aesEncryption, iv);

    StreamTransformationFilter cbcctsEncryptor(cbcctsEncryption, new HexEncoder(new StringSink(outstr)));
    cbcctsEncryptor.Put((byte *)plainText, strlen(plainText));
    cbcctsEncryptor.MessageEnd();

    return outstr;
}




std::string CBC_CTS_AESDecryptStr(std::string sKey, std::string sIV, const char *cipherText)
{
    std::string outstr;

    //填key
    SecByteBlock key(AES::MAX_KEYLENGTH);
    memset(key,0x30,key.size() );
    sKey.size()<=AES::MAX_KEYLENGTH?memcpy(key,sKey.c_str(),sKey.size()):memcpy(key,sKey.c_str(),AES::MAX_KEYLENGTH);

    //填iv
    byte iv[AES::BLOCKSIZE];
    memset(iv,0x30,AES::BLOCKSIZE);
sIV.size()<=AES::BLOCKSIZE?memcpy(iv,sIV.c_str(),sIV.size()):memcpy(iv,sIV.c_str(),AES::BLOCKSIZE);


    CBC_CTS_Mode<AES >::Decryption cbcctsDecryption((byte *)key, AES::MAX_KEYLENGTH, iv);

    HexDecoder decryptor(new StreamTransformationFilter(cbcctsDecryption, new StringSink(outstr)));
    decryptor.Put((byte *)cipherText, strlen(cipherText));
    decryptor.MessageEnd();

    return outstr;
}










std::string CFB_AESEncryptStr(std::string sKey, std::string sIV, const char *plainText)
{
    std::string outstr;

    //填key
    SecByteBlock key(AES::MAX_KEYLENGTH);
    memset(key,0x30,key.size() );
    sKey.size()<=AES::MAX_KEYLENGTH?memcpy(key,sKey.c_str(),sKey.size()):memcpy(key,sKey.c_str(),AES::MAX_KEYLENGTH);

    //填iv
    byte iv[AES::BLOCKSIZE];
    memset(iv,0x30,AES::BLOCKSIZE);
sIV.size()<=AES::BLOCKSIZE?memcpy(iv,sIV.c_str(),sIV.size()):memcpy(iv,sIV.c_str(),AES::BLOCKSIZE);

    AES::Encryption aesEncryption((byte *)key, AES::MAX_KEYLENGTH);

    CFB_Mode_ExternalCipher::Encryption cfbEncryption(aesEncryption, iv);

    StreamTransformationFilter cfbEncryptor(cfbEncryption, new HexEncoder(new StringSink(outstr)));
    cfbEncryptor.Put((byte *)plainText, strlen(plainText));
    cfbEncryptor.MessageEnd();

    return outstr;
}




std::string CFB_AESDecryptStr(std::string sKey, std::string sIV, const char *cipherText)
{
    std::string outstr;

    //填key
    SecByteBlock key(AES::MAX_KEYLENGTH);
    memset(key,0x30,key.size() );
    sKey.size()<=AES::MAX_KEYLENGTH?memcpy(key,sKey.c_str(),sKey.size()):memcpy(key,sKey.c_str(),AES::MAX_KEYLENGTH);

    //填iv
    byte iv[AES::BLOCKSIZE];
    memset(iv,0x30,AES::BLOCKSIZE);
sIV.size()<=AES::BLOCKSIZE?memcpy(iv,sIV.c_str(),sIV.size()):memcpy(iv,sIV.c_str(),AES::BLOCKSIZE);


    CFB_Mode<AES >::Decryption cfbDecryption((byte *)key, AES::MAX_KEYLENGTH, iv);

    HexDecoder decryptor(new StreamTransformationFilter(cfbDecryption, new StringSink(outstr)));
    decryptor.Put((byte *)cipherText, strlen(cipherText));
    decryptor.MessageEnd();

    return outstr;
}




std::string OFB_AESEncryptStr(std::string sKey, std::string sIV, const char *plainText)
{
    std::string outstr;

    //填key
    SecByteBlock key(AES::MAX_KEYLENGTH);
    memset(key,0x30,key.size() );
    sKey.size()<=AES::MAX_KEYLENGTH?memcpy(key,sKey.c_str(),sKey.size()):memcpy(key,sKey.c_str(),AES::MAX_KEYLENGTH);

    //填iv
    byte iv[AES::BLOCKSIZE];
    memset(iv,0x30,AES::BLOCKSIZE);
sIV.size()<=AES::BLOCKSIZE?memcpy(iv,sIV.c_str(),sIV.size()):memcpy(iv,sIV.c_str(),AES::BLOCKSIZE);

    AES::Encryption aesEncryption((byte *)key, AES::MAX_KEYLENGTH);

    OFB_Mode_ExternalCipher::Encryption ofbEncryption(aesEncryption, iv);

    StreamTransformationFilter ofbEncryptor(ofbEncryption, new HexEncoder(new StringSink(outstr)));
    ofbEncryptor.Put((byte *)plainText, strlen(plainText));
    ofbEncryptor.MessageEnd();

    return outstr;
}




std::string OFB_AESDecryptStr(std::string sKey, std::string sIV, const char *cipherText)
{
    std::string outstr;

    //填key
    SecByteBlock key(AES::MAX_KEYLENGTH);
    memset(key,0x30,key.size() );
    sKey.size()<=AES::MAX_KEYLENGTH?memcpy(key,sKey.c_str(),sKey.size()):memcpy(key,sKey.c_str(),AES::MAX_KEYLENGTH);

    //填iv
    byte iv[AES::BLOCKSIZE];
    memset(iv,0x30,AES::BLOCKSIZE);
sIV.size()<=AES::BLOCKSIZE?memcpy(iv,sIV.c_str(),sIV.size()):memcpy(iv,sIV.c_str(),AES::BLOCKSIZE);


    OFB_Mode<AES >::Decryption ofbDecryption((byte *)key, AES::MAX_KEYLENGTH, iv);

    HexDecoder decryptor(new StreamTransformationFilter(ofbDecryption, new StringSink(outstr)));
    decryptor.Put((byte *)cipherText, strlen(cipherText));
    decryptor.MessageEnd();

    return outstr;
}


std::string CTR_AESEncryptStr(std::string sKey, std::string sIV, const char *plainText)
{
    std::string outstr;

    //填key
    SecByteBlock key(AES::MAX_KEYLENGTH);
    memset(key,0x30,key.size() );
    sKey.size()<=AES::MAX_KEYLENGTH?memcpy(key,sKey.c_str(),sKey.size()):memcpy(key,sKey.c_str(),AES::MAX_KEYLENGTH);

    //填iv
    byte iv[AES::BLOCKSIZE];
    memset(iv,0x30,AES::BLOCKSIZE);
sIV.size()<=AES::BLOCKSIZE?memcpy(iv,sIV.c_str(),sIV.size()):memcpy(iv,sIV.c_str(),AES::BLOCKSIZE);

    AES::Encryption aesEncryption((byte *)key, AES::MAX_KEYLENGTH);

    CTR_Mode_ExternalCipher::Encryption ctrEncryption(aesEncryption, iv);

    StreamTransformationFilter ctrEncryptor(ctrEncryption, new HexEncoder(new StringSink(outstr)));
    ctrEncryptor.Put((byte *)plainText, strlen(plainText));
    ctrEncryptor.MessageEnd();

    return outstr;
}




std::string CTR_AESDecryptStr(std::string sKey, std::string sIV, const char *cipherText)
{
    std::string outstr;

    //填key
    SecByteBlock key(AES::MAX_KEYLENGTH);
    memset(key,0x30,key.size() );
    sKey.size()<=AES::MAX_KEYLENGTH?memcpy(key,sKey.c_str(),sKey.size()):memcpy(key,sKey.c_str(),AES::MAX_KEYLENGTH);

    //填iv
    byte iv[AES::BLOCKSIZE];
    memset(iv,0x30,AES::BLOCKSIZE);
sIV.size()<=AES::BLOCKSIZE?memcpy(iv,sIV.c_str(),sIV.size()):memcpy(iv,sIV.c_str(),AES::BLOCKSIZE);


    CTR_Mode<AES >::Decryption ctrDecryption((byte *)key, AES::MAX_KEYLENGTH, iv);

    HexDecoder decryptor(new StreamTransformationFilter(ctrDecryption, new StringSink(outstr)));
    decryptor.Put((byte *)cipherText, strlen(cipherText));
    decryptor.MessageEnd();

    return outstr;
}


int _tmain(int argc, _TCHAR* argv[])
{
string plainText = "This Program shows how to use ECB, CBC, CBC_CTS, CFB, OFB and CTR mode of AES in Crypto++.";
string aesKey = "0123456789ABCDEF0123456789ABCDEF";//256bits, also can be 128 bits or 192bits
string aesIV = "ABCDEF0123456789";//128 bits
string ECB_EncryptedText,ECB_DecryptedText,
CBC_EncryptedText,CBC_DecryptedText,
CBC_CTS_EncryptedText,CBC_CTS_DecryptedText,
CFB_EncryptedText,CFB_DecryptedText,
OFB_EncryptedText,OFB_DecryptedText,
CTR_EncryptedText,CTR_DecryptedText;


//ECB
ECB_EncryptedText = ECB_AESEncryptStr(aesKey, plainText.c_str());//ECB加密
ECB_DecryptedText = ECB_AESDecryptStr(aesKey,ECB_EncryptedText.c_str());//ECB解密


//CBC
CBC_EncryptedText = CBC_AESEncryptStr(aesKey, aesIV, plainText.c_str());//CBC加密
CBC_DecryptedText = CBC_AESDecryptStr(aesKey, aesIV, CBC_EncryptedText.c_str());//CBC解密


//CBC_CTS
CBC_CTS_EncryptedText = CBC_CTS_AESEncryptStr(aesKey, aesIV, plainText.c_str());//CBC_CTS加密
CBC_CTS_DecryptedText = CBC_CTS_AESDecryptStr(aesKey, aesIV, CBC_CTS_EncryptedText.c_str());//CBC_CTS解密

//CFB
CFB_EncryptedText = CFB_AESEncryptStr(aesKey, aesIV, plainText.c_str());//CFB加密
CFB_DecryptedText = CFB_AESDecryptStr(aesKey, aesIV, CFB_EncryptedText.c_str());//CFB解密


//OFB
OFB_EncryptedText = OFB_AESEncryptStr(aesKey, aesIV, plainText.c_str());//OFB加密
OFB_DecryptedText = OFB_AESDecryptStr(aesKey, aesIV, OFB_EncryptedText.c_str());//OFB解密


//CTR
CTR_EncryptedText = CTR_AESEncryptStr(aesKey, aesIV, plainText.c_str());//CTR加密
CTR_DecryptedText = CTR_AESDecryptStr(aesKey, aesIV, CTR_EncryptedText.c_str());//CTR解密

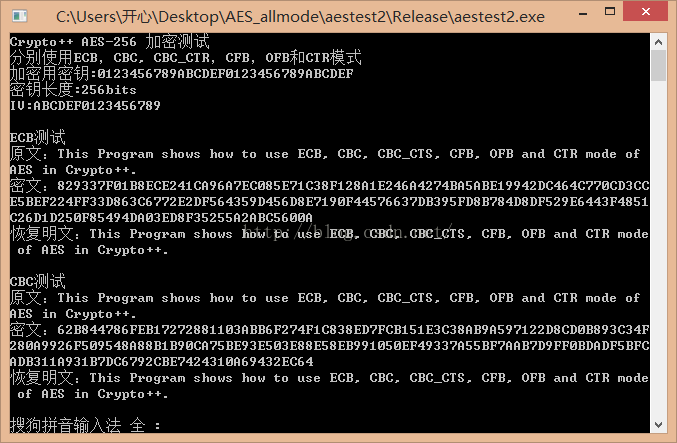

cout << "Crypto++ AES-256 加密测试"<< endl;
cout << "分别使用ECB，CBC, CBC_CTR，CFB，OFB和CTR模式"<< endl;
cout << "加密用密钥:" << aesKey << endl;
cout << "密钥长度:" << AES::MAX_KEYLENGTH*8 <<"bits" << endl;
cout << "IV:" << aesIV << endl;
cout << endl;


cout << "ECB测试"<< endl;
cout << "原文：" << plainText << endl;
cout << "密文：" << ECB_EncryptedText << endl;
cout << "恢复明文：" << ECB_DecryptedText << endl << endl;

cout << "CBC测试"<< endl;
cout << "原文：" << plainText << endl;
cout << "密文：" << CBC_EncryptedText << endl;
cout << "恢复明文：" << CBC_DecryptedText << endl << endl;


cout << "CBC_CTS测试"<< endl;
cout << "原文：" << plainText << endl;
cout << "密文：" << CBC_CTS_EncryptedText << endl;
cout << "恢复明文：" << CBC_CTS_DecryptedText << endl << endl;


cout << "CFB测试"<< endl;
cout << "原文：" << plainText << endl;
cout << "密文：" << CFB_EncryptedText << endl;
cout << "恢复明文：" << CFB_DecryptedText << endl << endl;

cout << "OFB测试"<< endl;
cout << "原文：" << plainText << endl;
cout << "密文：" << OFB_EncryptedText << endl;
cout << "恢复明文：" << OFB_DecryptedText << endl << endl;


cout << "CTR测试"<< endl;
cout << "原文：" << plainText << endl;
cout << "密文：" << CTR_EncryptedText << endl;
cout << "恢复明文：" << CTR_DecryptedText << endl << endl;

getchar();
return 0;
}

2 2、设置工程属性

选择工程属性（Alt + F7）：

(1)“Configuration Properties”→“C/C++” →“General”，右边的“Additional Include Directories”设置为上面建好的Crypto++ SDK的 Include文件夹，“C:\Program Files\CyptoPP\include”；

(2) “Configuration Properties”→“Linker” →“General”，右边的“Additional Library Directories”设置为上面建好的Crypto++ SDK的Lib\Debug文件夹，“C:\Program Files\CyptoPP\lib\debug”（Release模式下对应着Release文件夹）；

（3) “Configuration Properties”→“C/C++” →“Code Generation”，右边的“Runtime Library”设置为“Multi-threaded Debug (/MTd)”（Release模式下对应着“Multi-threaded (/MT)”）

3、运行程序 (Ctrl + F5)

输出结果如下：

原文链接：https://blog.csdn.net/happy423/article/details/47321741
