pcl计算法线进行边界提取

#include <pcl/console/time.h>
#include <pcl/common/transforms.h>
#include <pcl/common/common.h>
#include <pcl/io/pcd_io.h>
#include <pcl/io/ply_io.h>
#include <pcl/point_types.h>
#include <pcl/visualization/pcl_visualizer.h>//显示库
#include <pcl/visualization/cloud_viewer.h>//简单显示点云
#include <pcl/console/parse.h>  //pcl控制台解析
#include <pcl/features/fpfh_omp.h> //包含fpfh加速计算的omp(多核并行计算)
#include <pcl/registration/correspondence_rejection_features.h> //特征的错误对应关系去除
#include <pcl/registration/correspondence_rejection_sample_consensus.h> //随机采样一致性去除
#include <pcl/registration/icp.h>//icp配准
#include <pcl/features/boundary.h>//边界提取
#include <pcl/point_cloud.h>
#include <pcl/features/normal_3d.h>
#include <pcl/features/normal_3d_omp.h>
#include <pcl/kdtree/kdtree_flann.h>//#include <boost/thread/thread.hpp>
#include <pcl/registration/correspondence_estimation.h>
#include <pcl/filters/voxel_grid.h>
#include <pcl/filters/approximate_voxel_grid.h>
#include <pcl/features/integral_image_normal.h>
#include <iostream>
// 包含相关头文件

// This function displays the help
void showHelp(char* program_name)
{
	std::cout << std::endl;
	std::cout << "Usage: " << program_name << " cloud_filename.[pcd|ply]" << std::endl;
	std::cout << "-h or --help :  Show  help." << std::endl;
}

using namespace std;
typedef pcl::PointCloud<pcl::PointXYZ> pointcloud;
typedef pcl::PointCloud<pcl::Normal> pointnormal;
typedef pcl::PointCloud<pcl::FPFHSignature33> fpfhFeature;

// This is the main function
int main(int argc, char** argv)
{
	pcl::console::TicToc time;
	time.tic();
	// Show help
	if (pcl::console::find_switch(argc, argv, "-h") || pcl::console::find_switch(argc, argv, "--help")) {
		std::cout << "没有help." << std::endl;
		return 0;
	}

	// Fetch point cloud filename in arguments | Works with PCD and PLY files
	std::vector<int> filenames;
	bool file_is_pcd = false;

	filenames = pcl::console::parse_file_extension_argument(argc, argv, ".ply");

	if (filenames.size() != 1) {
		filenames = pcl::console::parse_file_extension_argument(argc, argv, ".pcd");

		if (filenames.size() != 1) {
			showHelp(argv[0]);
			return -1;
		}
		else {
			file_is_pcd = true;
		}
	}

	// Load file | Works with PCD and PLY files
	pcl::PointCloud<pcl::PointXYZ>::Ptr cloud(new pcl::PointCloud<pcl::PointXYZ>());
	pcl::PointCloud<pcl::PointXYZ>::Ptr source(new pcl::PointCloud<pcl::PointXYZ>());
	if (file_is_pcd) {
		if (pcl::io::loadPCDFile(argv[filenames[0]], *cloud) < 0) {
			std::cout << "Error loading point cloud " << argv[filenames[0]] << std::endl << std::endl;
			showHelp(argv[0]);
			return -1;
		}
	}
	else {
		if (pcl::io::loadPLYFile(argv[filenames[0]], *cloud) < 0) {
			std::cout << "Error loading point cloud " << argv[filenames[0]] << std::endl << std::endl;
			showHelp(argv[0]);
			return -1;
		}
	}
	std::cout << "\ncloud size is: " << cloud->size() << std::endl;

	//体素化
	pcl::VoxelGrid<pcl::PointXYZ> approximate_voxel_grid;
	approximate_voxel_grid.setLeafSize(0.5, 0.5, 0.5); //网格边长.这里的数值越大，则精简的越厉害（剩下的数据少）
	approximate_voxel_grid.setInputCloud(cloud);
	approximate_voxel_grid.filter(*source);
	cout << "voxel grid  Filte cloud size is: " << source->size() << endl;
	pcl::copyPointCloud(*source, *cloud);


    pcl::PointCloud<pcl::Normal>::Ptr normals(new pcl::PointCloud<pcl::Normal>);
    pcl::PointCloud<pcl::Boundary> boundaries;
    //定义边界提取
    pcl::BoundaryEstimation<pcl::PointXYZ, pcl::Normal, pcl::Boundary> est;
    pcl::search::KdTree<pcl::PointXYZ>::Ptr tree(new pcl::search::KdTree<pcl::PointXYZ>());
    /*
    pcl::KdTreeFLANN<pcl::PointXYZ> kdtree;  //创建一个快速k近邻查询,查询的时候若该点在点云中，则第一个近邻点是其本身
    kdtree.setInputCloud(cloud);
    int k =2;
    float everagedistance =0;
    for (int i =0; i < cloud->size()/2;i++)
    {
            vector<int> nnh ;
            vector<float> squaredistance;
            //  pcl::PointXYZ p;
            //   p = cloud->points[i];
            kdtree.nearestKSearch(cloud->points[i],k,nnh,squaredistance);
            everagedistance += sqrt(squaredistance[1]);
            //   cout<<everagedistance<<endl;
    }

    everagedistance = everagedistance/(cloud->size()/2);
    cout<<"everage distance is : "<<everagedistance<<endl;

*/

    pcl::NormalEstimation<pcl::PointXYZ, pcl::Normal> normEst;  //其中pcl::PointXYZ表示输入类型数据，pcl::Normal表示输出类型,且pcl::Normal前三项是法向，最后一项是曲率
    normEst.setInputCloud(cloud);
    normEst.setSearchMethod(tree);
    //normEst.setRadiusSearch(2);  //法向估计的半径
    normEst.setKSearch(20);  //法向估计的点数
    normEst.compute(*normals);
    cout << "normal size is " << normals->size() << endl;

    //normal_est.setViewPoint(0,0,0); //这个应该会使法向一致
    est.setInputCloud(cloud);
    est.setInputNormals(normals);
    //est.setAngleThreshold(90);
    //est.setSearchMethod (pcl::search::KdTree<pcl::PointXYZ>::Ptr (new pcl::search::KdTree<pcl::PointXYZ>));
    est.setSearchMethod(tree);
    est.setKSearch(30);  //一般这里的数值越高，最终边界识别的精度越好
    //est.setRadiusSearch(everagedistance);  //搜索半径
    est.compute(boundaries);
    cout << "boundaries size is " << boundaries.size() << endl;

    //边界点
    pcl::PointCloud<pcl::PointXYZ>::Ptr boundPoints(new pcl::PointCloud<pcl::PointXYZ>);
    pcl::PointCloud<pcl::PointXYZ> noBoundPoints;
    int ppp = 0;
    for (int i = 0; i < cloud->size(); i++) {
        uint8_t x = (boundaries.points[i].boundary_point);


        int a = static_cast<int>(x); //该函数的功能是强制类型转换
        if (a == 1){
            boundPoints->push_back(cloud->points[i]);
            ppp = i;
        }
        else {
            noBoundPoints.push_back(cloud->points[i]);
        }
    }
    std::cout << "boundaries.points[i].boundary_point:" << boundaries.points[ppp].boundary_point << std::endl;
    std::cout << "boudary size is：" << boundPoints->size() << std::endl;
    std::cout << "noBoundPoints size is：" << noBoundPoints.size() << std::endl;
    //pcl::io::savePCDFileASCII("boudary.pcd",boundPoints);

    //pcl::io::savePCDFileASCII("boudary.pcd", *boundPoints);
    //pcl::io::savePCDFileASCII("NoBoundpoints.pcd", noBoundPoints);

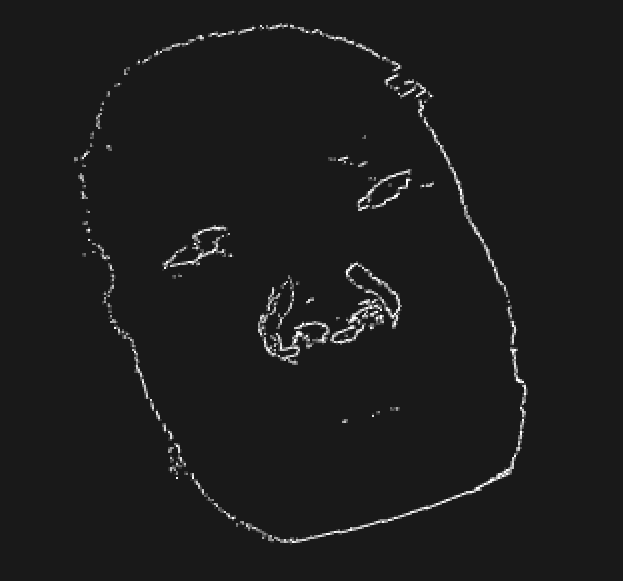

    pcl::visualization::CloudViewer viewer("test");
    viewer.showCloud(boundPoints);
    while (!viewer.wasStopped())
    {
    }
    return 0;
}
