RIP动态路由实验详解

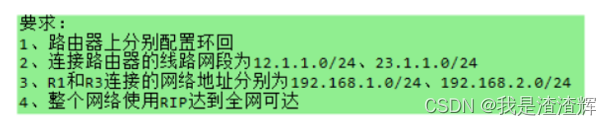

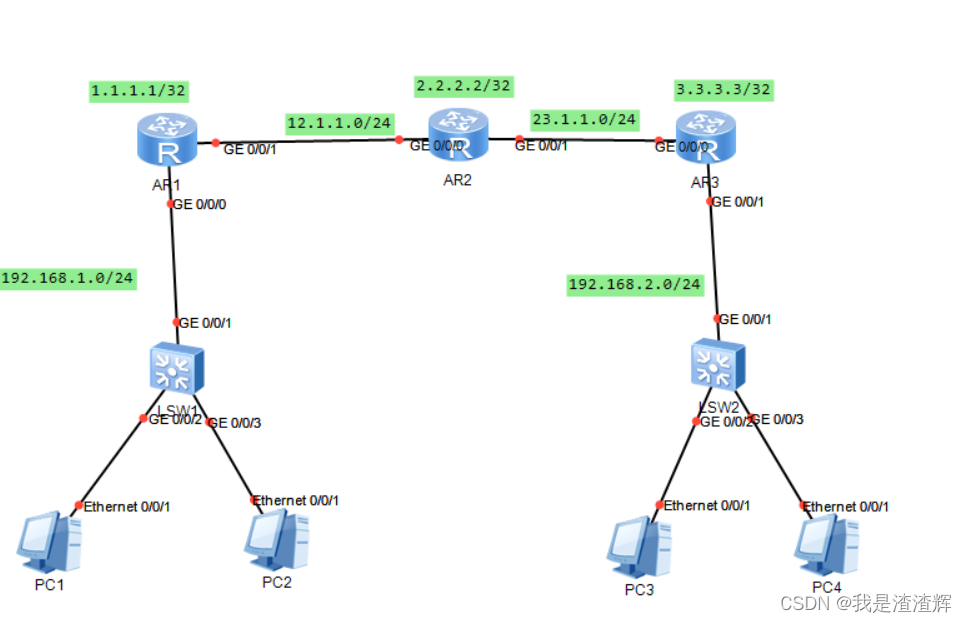

RIP动态路由实验

1、基础配置

我这里就不详细述说

2、RIP配置

1、在每一个路由器上启动协议进程，配置进程号为1
2、选择版本2
3、宣告，v2版本会宣告主类

具体操作详见代码

[AR1]rip 1
[AR1-rip-1]version 2
[AR1-rip-1]network 192.168.1.0
[AR1-rip-1]network 1.0.0.0
[AR1-rip-1]network 12.0.0.0
[AR1-rip-1]dis this
[V200R003C00]
#
rip 1
 version 2
 network 192.168.1.0
 network 1.0.0.0
#
return


[AR2]rip 1
[AR2-rip-1]version 2
[AR2-rip-1]network 12.0.0.0
[AR2-rip-1]network 2.0.0.0
[AR2-rip-1]network 23.0.0.0


[AR3]rip 1
[AR3-rip-1]version 2
[AR3-rip-1]network 23.0.0.0
[AR3-rip-1]network 3.0.0.0
[AR3-rip-1]network 192.168.2.0

3、测试一下全网可不可达

PC>ping 3.3.3.3

Ping 3.3.3.3: 32 data bytes, Press Ctrl_C to break
Request timeout!
Request timeout!
From 3.3.3.3: bytes=32 seq=3 ttl=253 time=63 ms
From 3.3.3.3: bytes=32 seq=4 ttl=253 time=46 ms
From 3.3.3.3: bytes=32 seq=5 ttl=253 time=47 ms

--- 3.3.3.3 ping statistics ---
  5 packet(s) transmitted
  3 packet(s) received
  40.00% packet loss
  round-trip min/avg/max = 0/52/63 ms

PC>ping 2.2.2.
host 2.2.2. unreachable

PC>ping 2.2.2.2

Ping 2.2.2.2: 32 data bytes, Press Ctrl_C to break
From 2.2.2.2: bytes=32 seq=1 ttl=254 time=46 ms
From 2.2.2.2: bytes=32 seq=2 ttl=254 time=31 ms
From 2.2.2.2: bytes=32 seq=3 ttl=254 time=63 ms
From 2.2.2.2: bytes=32 seq=4 ttl=254 time=31 ms
From 2.2.2.2: bytes=32 seq=5 ttl=254 time=47 ms

--- 2.2.2.2 ping statistics ---
  5 packet(s) transmitted
  5 packet(s) received
  0.00% packet loss
  round-trip min/avg/max = 31/43/63 ms

PC>ping 192.168.2.254

Ping 192.168.2.254: 32 data bytes, Press Ctrl_C to break
From 192.168.2.254: bytes=32 seq=1 ttl=253 time=47 ms
From 192.168.2.254: bytes=32 seq=2 ttl=253 time=78 ms
From 192.168.2.254: bytes=32 seq=3 ttl=253 time=47 ms
From 192.168.2.254: bytes=32 seq=4 ttl=253 time=63 ms
From 192.168.2.254: bytes=32 seq=5 ttl=253 time=47 ms

--- 192.168.2.254 ping statistics ---
  5 packet(s) transmitted
  5 packet(s) received
  0.00% packet loss
  round-trip min/avg/max = 47/56/78 ms
