linux 创建一个简单的文件系统

用户程序读取文件内容流程

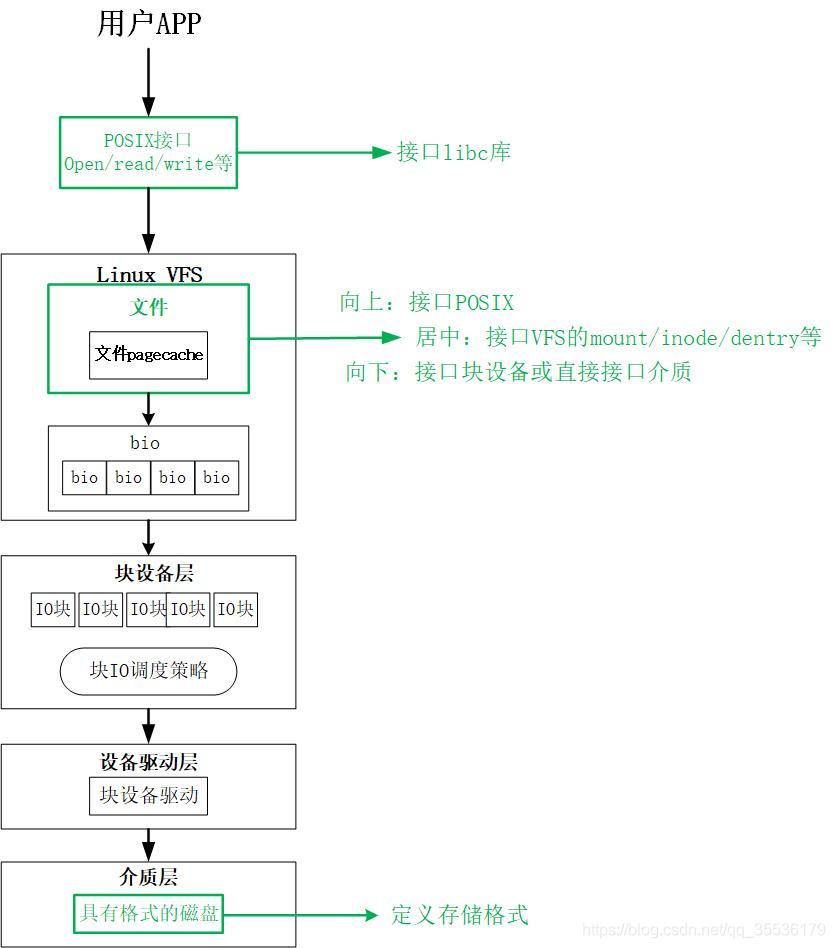

图1显示了用户程序读取文件内容的过程，其中绿色框部分为一个文件系统最基本的东西，其余部分为一些为了提高性能而加的模块。

图1

建立一个小型文件系统

小型文件系统基本就是实现了图1的绿色部分；具体的代码如下：

//tinyfs.h
#ifndef TINYFS_H
#define TINYFS_H


#define MAXLEN 8         //文件名最多8个字节
#define MAX_FILES  32    //定义文件最大32个字节
#define MAX_BLOCKSIZE  512 //文件及目录文件一共的个数

//定义一个目录项格式
struct dir_entry{

    char filename[MAXLEN];
    uint8_t idx;
};

//文件块数据结构
struct file_blk{
    uint8_t busy;  //
    mode_t mode;
    uint8_t idx;  /

    union
    {
        /* data */
        uint8_t file_size;    //文件大小
        uint8_t dir_children;  //文件夹中文件个数
    };
    char data[0];  //保存数据所在位置的指针

};

//下面的block数组所占据的连续内存就是我的tinyfs.h的介质，每一个元素代表一个文件
//struct file_blk bolck[MAX_FILES+1];
#endif

//tinyfs.c
#include <linux/init.h>
#include <linux/module.h>
#include <linux/kernel.h>
#include <linux/cdev.h>
#include <linux/fs.h>
#include <linux/errno.h>
#include <asm/current.h>
#include <linux/sched.h>
#include <linux/dcache.h>
#include "tinyfs.h"
#include <linux/uaccess.h>
#include <linux/time.h>

#define CURRENT_TIME (current_kernel_time())
struct file_blk block[MAX_BLOCKSIZE + 1];  //在内存开辟一块空间作为模拟磁盘
int curr_count = 0;  //当前文件或目录文件的个数


static int get_block(void){

    int i;

    //就是一个遍历，但实现快速
    for(i =2;i<MAX_BLOCKSIZE;i++){
        if(!block[i].busy){
            block[i].busy = 1;
            return i;
        }
    }

    return -1;
}

static struct inode_operations tinyfs_inode_ops;

//读取目录的实现
/*static int tinyfs_readdir(struct file *filp,void *dirent,filldir_t filldir){

    loff_t pos;
    struct file_blk *blk;
    struct dir_entry *entry;
    int i;

    pos = filp->f_pos;

    if(pos){
        return 0;
    }

    blk = (struct file_blk*)filp->f_dentry->d_inode->i_private;

    if(!S_ISDIR(blk->mode)){
        return -ENOMEM;
    }

    //循环获取一个目录的所有文件的文件名
    entry = (struct dir_entry*)&blk->data[0];
    for(i = 0;i < blk->dir_children;i++){
        filldir(dirent,entry[i].filename,MAXLEN,pos,entry[i].idx,DT_UNKNOWN);
        filp->f_pos += sizeof(struct dir_entry);
        pos += sizeof(struct dir_entry);
    }

    return 0;
}*/

ssize_t tinyfs_read(struct file* filp,char __user *buf,size_t len,loff_t *ppos){

    struct file_blk *blk;
    char *buffer;

    blk = (struct file_blk*)filp->f_path.dentry->d_inode->i_private;
    if(*ppos >= blk->file_size){
        return 0;
    }

    buffer = (char *)&blk->data[0];
    len = min((size_t)blk->file_size,len);

    if(copy_to_user(buf,buffer,len)){
        return -EFAULT;
    }

    *ppos += len;

    return len;
}

static int tinyfs_iterate(struct file *flip,struct dir_context *ctx){

     return 0;
}

// write实现
ssize_t tinyfs_write(struct file* filp,const char __user *buf,size_t len,loff_t *ppos){

    struct file_blk *blk;
    char *buffer;

    blk = filp->f_path.dentry->d_inode->i_private;

    buffer = (char *)&blk->data[0];
    buffer += *ppos;

    if(copy_from_user(buffer,buf,len)){
        return -EFAULT;
    }

    *ppos += len;
    blk->file_size = *ppos;

    return len;
}

static struct file_operations tinyfs_file_operations = {
    .read = tinyfs_read,
    .write = tinyfs_write,
};

static struct file_operations tinyfs_dir_operations = {
    .owner = THIS_MODULE,
    //.readdir = tinyfs_readdir,
    .iterate = tinyfs_iterate,
};

// 创建文件实现
static int tinyfs_do_create(struct inode *dir,struct dentry *dentry,umode_t mode){

    struct inode *inode;
    struct super_block *sb;
    struct dir_entry *entry;
    struct file_blk *blk,*pblk;
    int idx;

    sb = dir->i_sb;

    if(curr_count >= MAX_FILES){
        return -ENOSPC;
    }

    if(!S_ISDIR(mode) && !S_ISREG(mode)){
        return -EINVAL;
    }

    inode = new_inode(sb);
    if(!inode){
        return -ENOMEM;
    }

    inode->i_sb = sb;
    inode->i_op = &tinyfs_inode_ops;
    inode->i_atime = inode->i_mtime = inode->i_ctime = CURRENT_TIME;

    idx = get_block(); //获取一个空闲的文件块保存新文件

    blk = &block[idx];
    inode->i_ino = idx;
    blk->mode = mode;
    curr_count++;

    if(S_ISDIR(mode)){

        blk->dir_children = 0;
        inode->i_fop = &tinyfs_dir_operations;
    }else if(S_ISREG(mode)){
        blk->file_size = 0;
        inode->i_fop = &tinyfs_file_operations;
    }

    inode->i_private = blk;
    pblk = (struct file_blk *)dir->i_private;

    entry = (struct dir_entry*)&pblk->data[0];
    entry += pblk->dir_children;
    pblk->dir_children++;

    entry->idx = idx;
    strcpy(entry->filename,dentry->d_name.name);  //将新的文件的名字加到目录的内容中

    //VFS穿针引线的关键步骤，将VFS的inode连接到链表
    inode_init_owner(inode,dir,mode);
    d_add(dentry,inode);   //将inode与dentry(包含文件名)绑定在一起

    return 0;
}
//创建目录文件
static int tinyfs_mkdir(struct inode *dir,struct dentry *dentry,umode_t mode){

    return tinyfs_do_create(dir,dentry,S_IFDIR | mode);
}

static int tinyfs_create(struct inode *dir,struct dentry *dentry,umode_t mode,bool excl){
    return tinyfs_do_create(dir,dentry,mode);
}

//分配一个inode
static struct inode *tinyfs_iget(struct super_block *sb,int idx){

    struct inode *inode;
    struct file_blk *blk;

    inode = new_inode(sb);
    inode->i_ino = idx;
    inode->i_sb = sb;
    inode->i_op = &tinyfs_inode_ops;

    blk = &block[idx];

    if(S_ISDIR(blk->mode)){
        inode->i_fop = &tinyfs_dir_operations;
    }else if(S_ISREG(blk->mode)){
        inode->i_fop = &tinyfs_file_operations;
    }

    inode->i_atime = inode->i_mtime = inode->i_ctime = CURRENT_TIME;
    inode->i_private = blk;

    return inode;
}

struct dentry *tinyfs_lookup(struct inode *parent_inode,struct dentry *child_dentry,unsigned int flags){

    struct super_block *sb = parent_inode->i_sb;
    struct file_blk *blk;
    struct dir_entry *entry;
    int i;

    blk = (struct file_blk*)parent_inode->i_private;
    entry = (struct dir_entry*)&blk->data[0];

    for(i = 0;i < blk->dir_children;i++){
        if(!strcmp(entry[i].filename,child_dentry->d_name.name)){
            struct inode *inode = tinyfs_iget(sb,entry[i].idx);
            struct file_blk *inner = (struct file_blk *)inode->i_private;
            inode_init_owner(inode,parent_inode,inner->mode);
            d_add(child_dentry,inode);
            return NULL;
        }
    }

    return NULL;
}


int tinyfs_rmdir(struct inode *dir,struct dentry *dentry){

    struct inode *inode = dentry->d_inode;
    struct file_blk *blk = (struct file_blk *)inode->i_private;

    blk->busy = 0;
    return simple_rmdir(dir,dentry);
}

int tinyfd_unlink(struct inode *dir,struct dentry *dentry){

    int i;
    struct inode *inode = dentry->d_inode;
    struct file_blk *blk = (struct file_blk*)inode->i_private;
    struct file_blk *pblk = (struct file_blk*)dir->i_private;
    struct dir_entry *entry;

    //更新其上层目录
    entry = (struct dir_entry *)&pblk->data[0];
    for(i =0; i < pblk->dir_children;i++){
        if(!strcmp(entry[i].filename,dentry->d_name.name)){
            int j;
            for(j = i; j < pblk->dir_children - 1;j++){
                memcpy(&entry[j],&entry[j+1],sizeof(struct dir_entry));
            }

            pblk->dir_children--;
            break;
        }
    }

    blk->busy = 0;
    return simple_unlink(dir,dentry);
}

static struct inode_operations tinyfs_inode_ops = {

    .create = tinyfs_create,
    .lookup = tinyfs_lookup,
    .mkdir = tinyfs_mkdir,
    .rmdir = tinyfs_rmdir,
    .unlink = tinyfd_unlink,
};

int tinyfs_fill_super(struct super_block *sb,void *data,int silent){

    struct inode *root_inode;
    int mode = S_IFDIR;

    root_inode = new_inode(sb);
    root_inode->i_ino = 1;

    inode_init_owner(root_inode,NULL,mode);
    root_inode->i_sb = sb;
    root_inode->i_op = &tinyfs_inode_ops;
    root_inode->i_fop = &tinyfs_dir_operations;
    root_inode->i_atime = root_inode->i_mtime = root_inode->i_ctime = CURRENT_TIME;

    block[1].mode = mode;
    block[1].dir_children = 0;
    block[1].idx = 1;
    block[1].busy = 1;
    root_inode->i_private = &block[1];

    sb->s_root = d_make_root(root_inode);
    curr_count++;

    return 0;
}

static struct dentry *tinyfs_mount(struct file_system_type *fs_type,int flags,const char *dev_name,void *data){

    return mount_nodev(fs_type,flags,data,tinyfs_fill_super);
}

static void tinyfs_kill_superblock(struct super_block *sb){

    kill_anon_super(sb);
}

struct file_system_type tinyfs_fs_type = {

    .owner = THIS_MODULE,
    .name = "tinyfs",
    .mount = tinyfs_mount,
    .kill_sb = tinyfs_kill_superblock,
};

static int __init tinyfs_init(void){

    int ret;

    memset(block,0,sizeof(block));

    printk("jisenquan,it's ok!");
    ret = register_filesystem(&tinyfs_fs_type);  //注册文件系统

    return ret;
}

static void __exit tinyfs_exit(void){

    printk("jisenquan,it's Over!");
    unregister_filesystem(&tinyfs_fs_type);  //
}

module_init(tinyfs_init);
module_exit(tinyfs_exit);

MODULE_LICENSE("GPL");

注：

1. 该程序的实验环境所使用的内核版本是4.15.0

2.读取文件夹的函数没有进行实现。早期版本内核的file_operations读取目录的函数是readdir,我使用的内核版本已经将该函数删掉了，取而代之的是iterate函数

MAKEFILE文件

obj-m:=tinyfs.o
CURRENT_PATH:=$(shell pwd)
LINUX_KERNEL:=$(shell uname -r)


LINUX_KERNEL_PATH:=/usr/src/linux-headers-$(LINUX_KERNEL)

CONFIG_MODULE_SIG=n

all:
    make -C $(LINUX_KERNEL_PATH) M=$(CURRENT_PATH) modules
clean:
    make -C $(LINUX_KERNEL_PATH) M=$(CURRENT_PATH) clean

注：

1. MAKEFILE中必须加CONFIG_MODULE_SIG=n这句话，要不然编译会报没有签名的错

测试过程

sudo insmod tinyfs.ko  #安装模块
sudo mount -t tinyfs none /mnt  #挂载文件系统
sudo chmod 777 /mnt   #修改文件夹权限

cd /mnt
echo 1111 > ./a  #创建a文件，并将1111保存其中
mkdir first  #创建文件夹
echo 2222 > ./first/b
