FastDFS安装配置，与SpringBoot整合
FastDFS安装
安装 FastDFS 依赖
git clone https://hub.0z.gs/happyfish100/libfastcommon.git --depth 1
cd libfastcommon/
./make.sh && ./make.sh install
安装 FastDFS
git clone https://github.com/happyfish100/fastdfs.git --depth 1
cd fastdfs/
./make.sh && ./make.sh install
cp /root/fastdfs/conf/http.conf /etc/fdfs/
cp /root/fastdfs/conf/mime.types /etc/fdfs
下载 Nginx 的 FastDFS 模块
方便直接 http 访问 FastDFS 保存的文件
git clone https://hub.0z.gs/happyfish100/fastdfs-nginx-module.git --depth 1
cp /root/fastdfs-nginx-module/src/mod_fastdfs.conf /etc/fdfs
安装 Nginx
如果已经安装完了请忽略
nginx 只在 storager 服务器上安装
#安装 Nginx 依赖
yum -y install pcre-devel
yum install -y zlib-devel
#安装 Nginx
wget http://nginx.org/download/nginx-1.15.4.tar.gz
tar -zxvf nginx-1.15.4.tar.gz
cd nginx-1.15.4/
./configure --add-module=/root/fastdfs-nginx-module/src/
make && make install
至此，相关安装完成，下面是配置相关内容
配置 fastdfs 集群
# 配置hosts，此步可忽略
vim /etc/hosts
10.211.55.12 fastdfs12.com
10.211.55.13 fastdfs13.com
配置 tracker
#配置tracker
vim /etc/fdfs/tracker.conf
#需要修改的内容如下
port=22122 # tracker服务器端口（默认22122,一般不修改）
base_path=/root/data/fastdfs # 存储日志和数据的根目录
配置 storager
#配置 storager
vim /etc/fdfs/storage.conf
#需要修改的内容如下
port=23000 # storage服务端口（默认23000,一般不修改）
base_path=/data/fastdfs # 数据和日志文件存储根目录
store_path0=/data/fastdfs # 第一个存储目录
tracker_server=fastdfs.com:22122 # 服务器1
tracker_server=fastdfs2.com:22122 # 服务器2
tracker_server=fastdfs3.com:22122 # 服务器3
http.server_port=80 # http访问文件的端口(默认8888,看情况修改,和nginx中保持一致)
配置 nginx.conf
#配置 Nginx
#如果出现404或者无法访问的情况在 nginx.conf 文件头部加上 user root;
vim /usr/local/nginx/conf/nginx.conf
#添加如下配置
server {
listen 80; ## 该端口为 storage.conf 中的 http.server_port 相同检测集群
server_name localhost;
location ~/group[0-9]/M00/ {
ngx_fastdfs_module;
}
error_page 500 502 503 504 /50x.html;
location = /50x.html {
root html;
}
}
永久关闭防火墙
如果线上服务器开放相关端口
systemctl disable firewalld.service
启动服务
#启动 tracker
/usr/bin/fdfs_trackerd /etc/fdfs/tracker.conf
#启动 storage
/usr/bin/fdfs_storaged /etc/fdfs/storage.conf
# 重启 storage
/usr/bin/fdfs_storaged /etc/fdfs/storage.conf restart
检测集群
/usr/bin/fdfs_monitor /etc/fdfs/storage.conf
SpringBoot 整合 FastDFS
pom.xml
<!-- fastdfs-->
<dependency>
<groupId>com.github.tobato</groupId>
<artifactId>fastdfs-client</artifactId>
<version>1.27.2</version>
</dependency>
yml 配置文件
# 分布式文件系统fastdfs配置
fdfs:
# socket连接超时时长
soTimeout: 1500
# 连接tracker服务器超时时长
connectTimeout: 600
pool:
# 从池中借出的对象的最大数目
max-total: 153
# 获取连接时的最大等待毫秒数100
max-wait-millis: 102
# 缩略图生成参数，可选
thumbImage:
width: 150
height: 150
# 跟踪服务器tracker_server请求地址,支持多个，这里只有一个，如果有多个在下方加- x.x.x.x:port
trackerList:
- 10.211.55.12:22122
- 10.211.55.13:22122
web-server-url: http://10.211.55.16/
spring:
servlet:
multipart:
max-file-size: 100MB
max-request-size: 100MB
server:
port: 8111
servlet:
context-path: /fdfs
FastDFS Client
package com.example.fdfs.config;
import com.github.tobato.fastdfs.domain.conn.FdfsWebServer;
import com.github.tobato.fastdfs.domain.fdfs.StorePath;
import com.github.tobato.fastdfs.domain.proto.storage.DownloadByteArray;
import com.github.tobato.fastdfs.service.FastFileStorageClient;
import org.apache.commons.io.FilenameUtils;
import org.apache.commons.lang3.StringUtils;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import org.springframework.web.multipart.MultipartFile;
import java.io.*;
/**
* @author Xiaolinag Ma
* @date 2022年03月04日 14:54
*/
@Component
public class FastDFSClient {
private static Logger log = LoggerFactory.getLogger(FastDFSClient.class);
private static FastFileStorageClient fastFileStorageClient;
private static FdfsWebServer fdfsWebServer;
@Autowired
public void setFastDFSClient(FastFileStorageClient fastFileStorageClient, FdfsWebServer fdfsWebServer) {
FastDFSClient.fastFileStorageClient = fastFileStorageClient;
FastDFSClient.fdfsWebServer = fdfsWebServer;
}
public static void main(String[] args) {
String filePath = "/Users/maxiaoliang/Pictures/wallhaven-gjlg2q.png";
File file = new File(filePath);
FastDFSClient.uploadFile(file);
}
/**
* @param multipartFile 文件对象
* @return 返回文件地址
* @author Xiaoliang Ma
* @description 上传文件
*/
public static String uploadFile(MultipartFile multipartFile) {
try {
StorePath storePath = fastFileStorageClient.uploadFile(multipartFile.getInputStream(), multipartFile.getSize(), FilenameUtils.getExtension(multipartFile.getOriginalFilename()), null);
return storePath.getFullPath();
} catch (IOException e) {
log.error(e.getMessage());
return null;
}
}
/**
* @param multipartFile 图片对象
* @return 返回图片地址
* @author Xiaoliang Ma
* @description 上传缩略图
*/
public static String uploadImageAndCrtThumbImage(MultipartFile multipartFile) {
try {
StorePath storePath = fastFileStorageClient.uploadImageAndCrtThumbImage(multipartFile.getInputStream(), multipartFile.getSize(), FilenameUtils.getExtension(multipartFile.getOriginalFilename()), null);
return storePath.getFullPath();
} catch (Exception e) {
log.error(e.getMessage());
return null;
}
}
/**
* @param file 文件对象
* @return 返回文件地址
* @author Xiaoliang Ma
* @description 上传文件
*/
public static String uploadFile(File file) {
try {
FileInputStream inputStream = new FileInputStream(file);
StorePath storePath = fastFileStorageClient.uploadFile(inputStream, file.length(), FilenameUtils.getExtension(file.getName()), null);
return storePath.getFullPath();
} catch (Exception e) {
log.error(e.getMessage());
return null;
}
}
/**
* @param file 图片对象
* @return 返回图片地址
* @author Xiaoliang Ma
* @description 上传缩略图
*/
public static String uploadImageAndCrtThumbImage(File file) {
try {
FileInputStream inputStream = new FileInputStream(file);
StorePath storePath = fastFileStorageClient.uploadImageAndCrtThumbImage(inputStream, file.length(), FilenameUtils.getExtension(file.getName()), null);
return storePath.getFullPath();
} catch (Exception e) {
log.error(e.getMessage());
return null;
}
}
/**
* @param bytes byte数组
* @param fileExtension 文件扩展名
* @return 返回文件地址
* @author Xiaoliang Ma
* @description 将byte数组生成一个文件上传
*/
public static String uploadFile(byte[] bytes, String fileExtension) {
ByteArrayInputStream stream = new ByteArrayInputStream(bytes);
StorePath storePath = fastFileStorageClient.uploadFile(stream, bytes.length, fileExtension, null);
return storePath.getFullPath();
}
/**
* @param fileUrl 文件访问地址
* @param file 文件保存路径
* @author Xiaoliang Ma
* @description 下载文件
*/
public static boolean downloadFile(String fileUrl, File file) {
try {
StorePath storePath = StorePath.parseFromUrl(fileUrl);
byte[] bytes = fastFileStorageClient.downloadFile(storePath.getGroup(), storePath.getPath(), new DownloadByteArray());
FileOutputStream stream = new FileOutputStream(file);
stream.write(bytes);
} catch (Exception e) {
log.error(e.getMessage());
return false;
}
return true;
}
/**
* @param fileUrl 文件访问地址
* @author Xiaoliang Ma
* @description 删除文件
*/
public static boolean deleteFile(String fileUrl) {
if (StringUtils.isEmpty(fileUrl)) {
return false;
}
try {
StorePath storePath = StorePath.parseFromUrl(fileUrl);
fastFileStorageClient.deleteFile(storePath.getGroup(), storePath.getPath());
} catch (Exception e) {
log.error(e.getMessage());
return false;
}
return true;
}
// 封装文件完整URL地址
public static String getResAccessUrl(String path) {
String url = fdfsWebServer.getWebServerUrl() + path;
log.info("上传文件地址为：\n" + url);
return url;
}
}

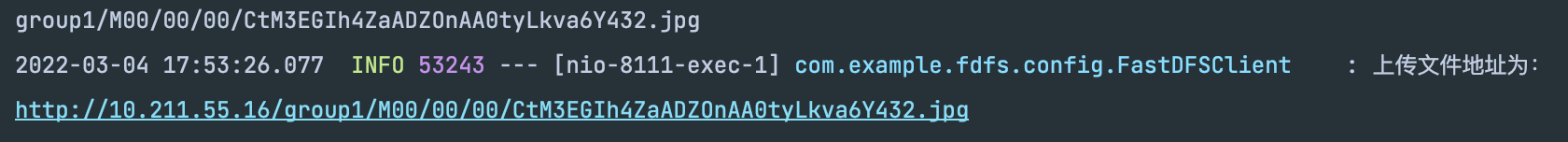

测试
@GetMapping("/upload")
public void uploadTest() {
String filePath = "/Users/maxiaoliang/Pictures/wallhaven-k98vem.jpg";
File file = new File(filePath);
String path = FastDFSClient.uploadFile(file);
System.out.println(path);
FastDFSClient.getResAccessUrl(path);
}

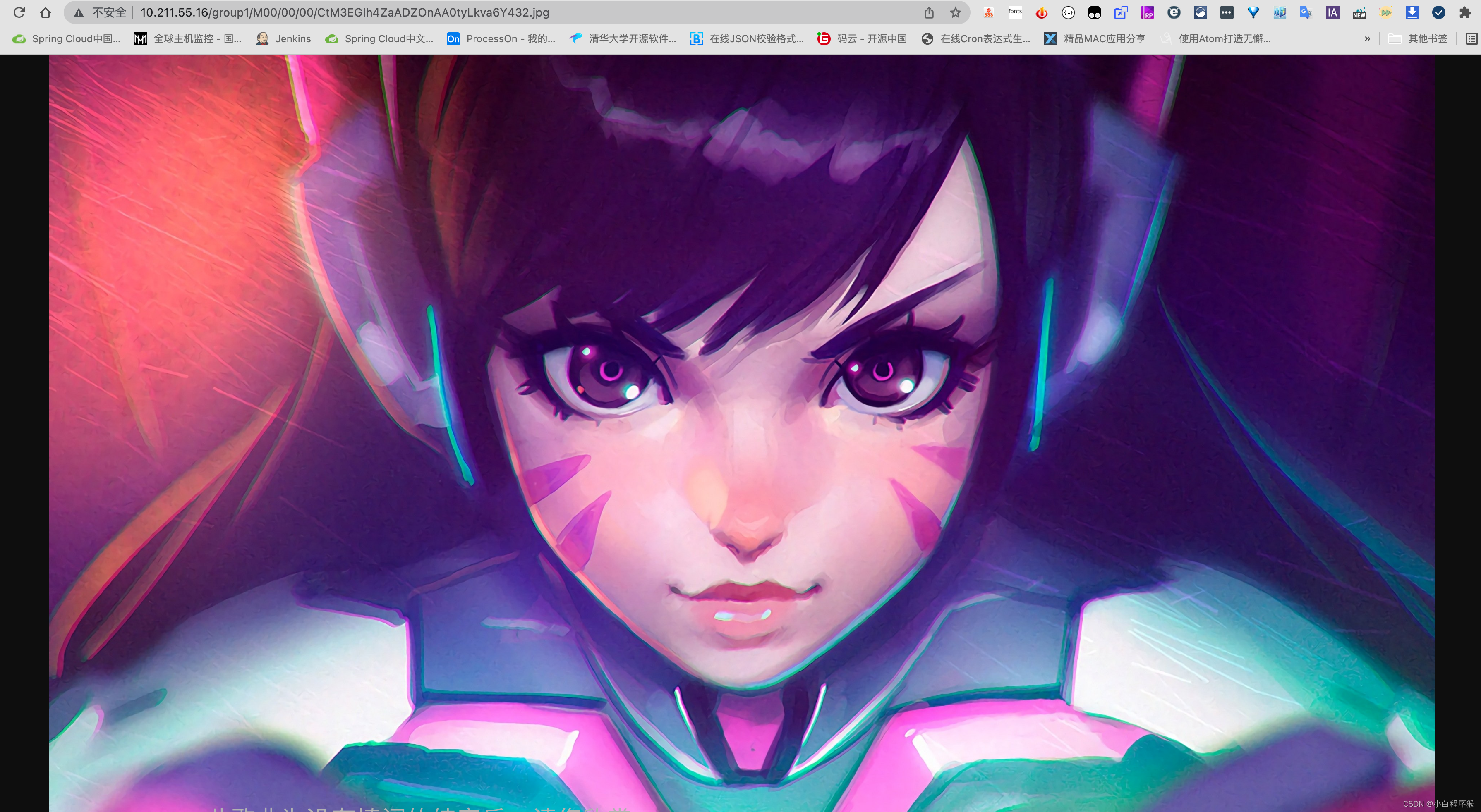

访问一下看看
至此 FastDFS 的安装配置、与 SpringBoot 的整合到此结束
