k8s网站页面--kubernetes dashboard仪表盘

前面我们做了k8s的多节点实验
下面是k8s的网站管理页面的部署

//在master01上操作
//创建dashborad工作目录
[root@localhost k8s]# mkdir dashboard
//拷贝官方的文件

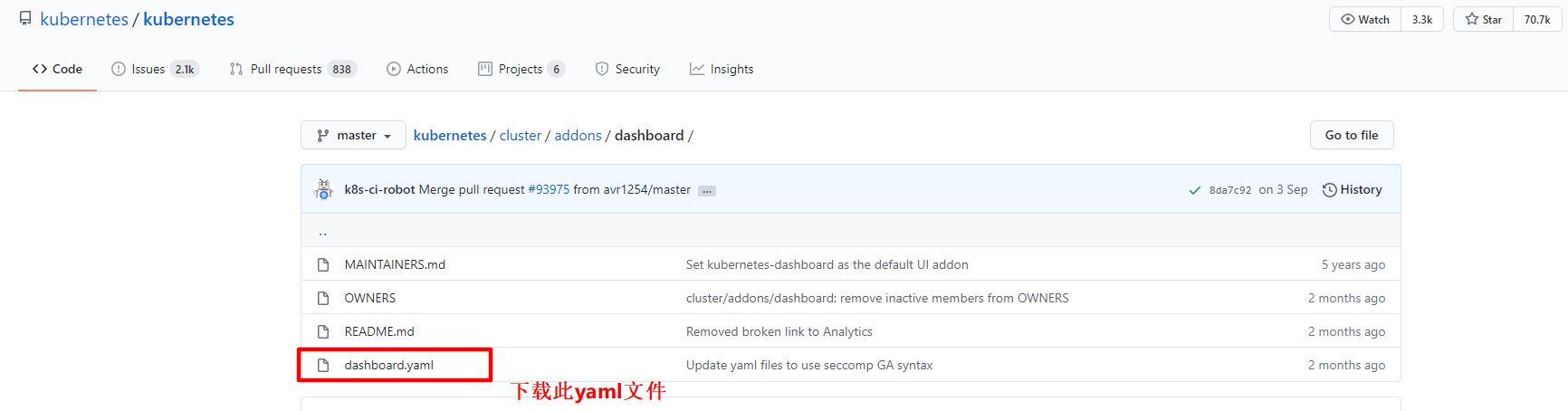

https://github.com/kubernetes/kubernetes/tree/master/cluster/addons/dashboard

这个yaml文件里面包含了网站的一些pod资源：

我把他分成了5个yaml文件，也可以放在一个yaml文件中创建
[root@localhost dashboard]# ls
dashboard-configmap.yaml   dashboard-rbac.yaml    dashboard-service.yaml
dashboard-controller.yaml  dashboard-secret.yaml  k8s-admin.yaml
[root@localhost dashboard]# kubectl create -f dashboard-rbac.yaml  ##授权管理文件
role.rbac.authorization.k8s.io/kubernetes-dashboard-minimal created
rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard-minimal created
[root@localhost dashboard]# kubectl create -f dashboard-secret.yaml  ##证书验证文件
secret/kubernetes-dashboard-certs created
secret/kubernetes-dashboard-key-holder created
[root@localhost dashboard]# kubectl create -f dashboard-configmap.yaml ##配置文件
configmap/kubernetes-dashboard-settings created
[root@localhost dashboard]# kubectl create -f dashboard-controller.yaml  ##控制器资源
serviceaccount/kubernetes-dashboard created
deployment.apps/kubernetes-dashboard created
[root@localhost dashboard]# kubectl create -f dashboard-service.yaml  ##服务资源
service/kubernetes-dashboard created
//完成后查看创建在指定的kube-system命名空间下
[root@localhost dashboard]# kubectl get pods -n kube-system
NAME                                    READY   STATUS              RESTARTS   AGE
kubernetes-dashboard-65f974f565-m9gm8   0/1     ContainerCreating   0          88s
//查看如何访问
[root@localhost dashboard]# kubectl get pods,svc -n kube-system
NAME                                        READY   STATUS    RESTARTS   AGE
pod/kubernetes-dashboard-65f974f565-m9gm8   1/1     Running   0          2m49s

NAME                           TYPE       CLUSTER-IP   EXTERNAL-IP   PORT(S)         AGE
service/kubernetes-dashboard   NodePort   10.0.0.243   <none>        443:30001/TCP   2m24s

//访问nodeIP就可以访问
https://192.168.130.20:30001/

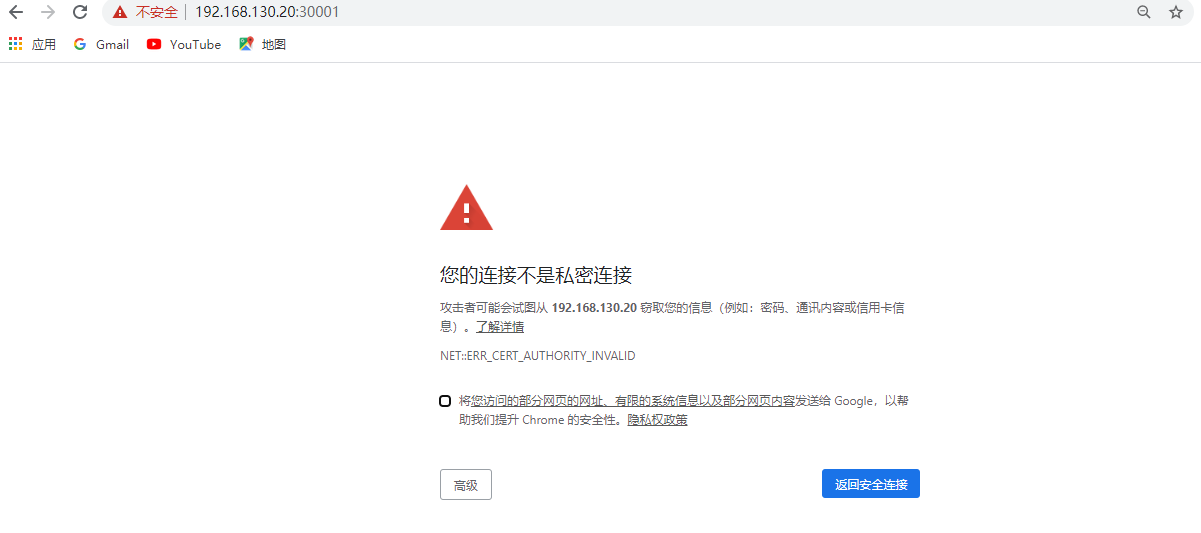

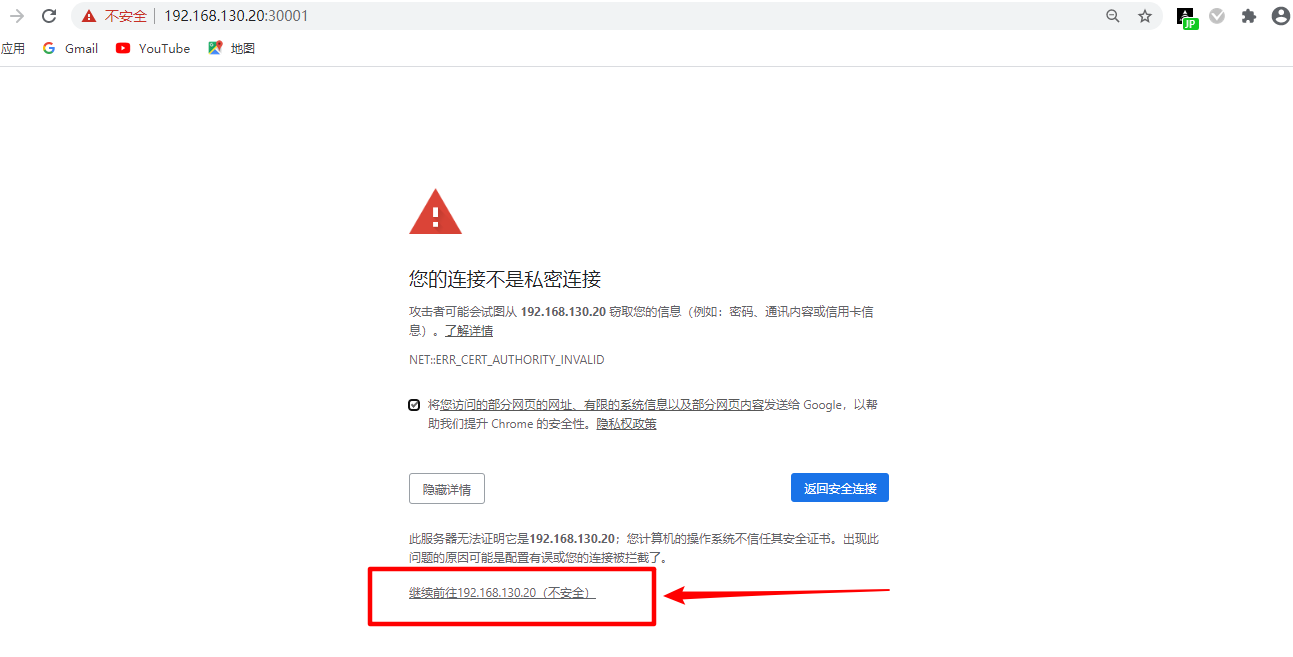

如果是火狐浏览器的话，直接就可以登录，但是谷歌不行，需要自己做个证书验证，才能登录
解决办法：

[root@localhost dashboard]# vim dashboard-cert.sh
cat > dashboard-csr.json <<EOF
{
   "CN": "Dashboard",
   "hosts": [],
   "key": {
       "algo": "rsa",
       "size": 2048
   },
   "names": [
       {
           "C": "CN",
           "L": "BeiJing",
           "ST": "BeiJing"
       }
   ]
}
EOF

K8S_CA=$1
cfssl gencert -ca=$K8S_CA/ca.pem -ca-key=$K8S_CA/ca-key.pem -config=$K8S_CA/ca-config.json -profile=kubernetes dashboard-csr.json | cfssljson -bare dashboard
kubectl delete secret kubernetes-dashboard-certs -n kube-system
kubectl create secret generic kubernetes-dashboard-certs --from-file=./ -n kube-system
[root@localhost dashboard]# vim dashboard-controller.yaml  ##增加证书两行，然后apply
#     args:
#        # PLATFORM-SPECIFIC ARGS HERE
#        - --auto-generate-certificates
#        - --tls-key-file=dashboard-key.pem   ##增加2行
#        - --tls-cert-file=dashboard.pem    ##增加
[root@localhost dashboard]# bash dashboard-cert.sh /root/k8s/k8s-cert/
//重新部署
[root@localhost dashboard]# kubectl delete -f dashboard-controller.yaml
[root@localhost dashboard]# kubectl apply -f dashboard-controller.yaml
Warning: kubectl apply should be used on resource created by either kubectl create --save-config or kubectl apply
serviceaccount/kubernetes-dashboard configured
Warning: kubectl apply should be used on resource created by either kubectl create --save-config or kubectl apply
deployment.apps/kubernetes-dashboard configured

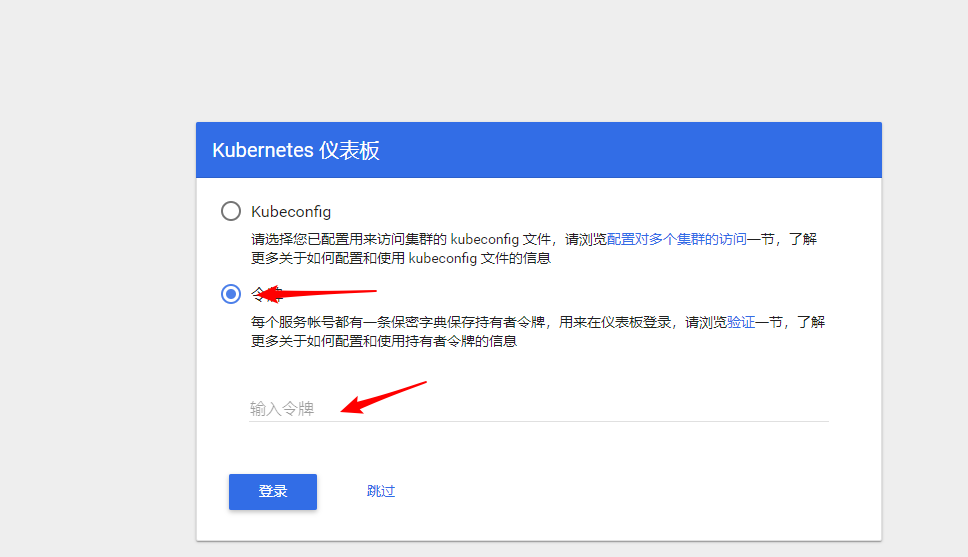

//生成令牌
[root@localhost dashboard]# kubectl create -f k8s-admin.yaml
serviceaccount/dashboard-admin created
clusterrolebinding.rbac.authorization.k8s.io/dashboard-admin created
//保存
[root@localhost dashboard]# kubectl get secret -n kube-system
NAME                               TYPE                                  DATA   AGE
dashboard-admin-token-qctfr        kubernetes.io/service-account-token   3      65s
default-token-mmvcg                kubernetes.io/service-account-token   3      7d15h
kubernetes-dashboard-certs         Opaque                                11     10m
kubernetes-dashboard-key-holder    Opaque                                2      63m
kubernetes-dashboard-token-nsc84   kubernetes.io/service-account-token   3      62m
//查看令牌
[root@localhost dashboard]# kubectl describe secret dashboard-admin-token-qctfr -n kube-system
Name:         dashboard-admin-token-qctfr
Namespace:    kube-system
Labels:       <none>
Annotations:  kubernetes.io/service-account.name: dashboard-admin
              kubernetes.io/service-account.uid: 73f19313-47ea-11ea-895a-000c297a15fb

Type:  kubernetes.io/service-account-token

Data
====
ca.crt:     1359 bytes
namespace:  11 bytes
token:      eyJhbGciOiJSUzI1NiIsImtpZCI6IiJ9.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJkYXNoYm9hcmQtYWRtaW4tdG9rZW4tcWN0ZnIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoiZGFzaGJvYXJkLWFkbWluIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiNzNmMTkzMTMtNDdlYS0xMWVhLTg5NWEtMDAwYzI5N2ExNWZiIiwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmUtc3lzdGVtOmRhc2hib2FyZC1hZG1pbiJ9.v4YBoyES2etex6yeMPGfl7OT4U9Ogp-84p6cmx3HohiIS7sSTaCqjb3VIvyrVtjSdlT66ZMRzO3MUgj1HsPxgEzOo9q6xXOCBb429m9Qy-VK2JxuwGVD2dIhcMQkm6nf1Da5ZpcYFs8SNT-djAjZNB_tmMY_Pjao4DBnD2t_JXZUkCUNW_O2D0mUFQP2beE_NE2ZSEtEvmesB8vU2cayTm_94xfvtNjfmGrPwtkdH0iy8sH-T0apepJ7wnZNTGuKOsOJf76tU31qF4E5XRXIt-F2Jmv9pEOFuahSBSaEGwwzXlXOVMSaRF9cBFxn-0iXRh0Aq0K21HdPHW1b4-ZQwA

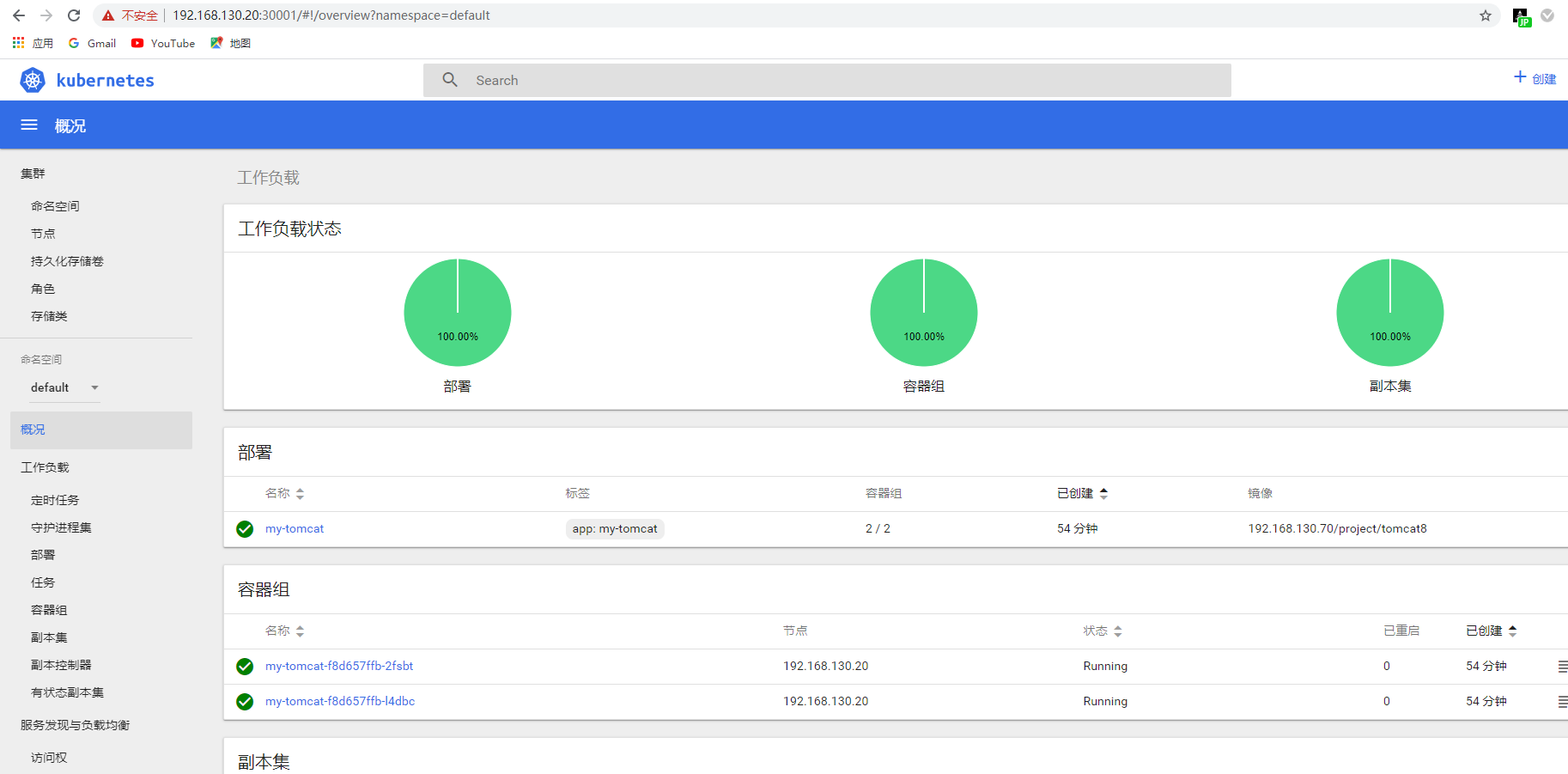

可以进行管理
