Java Spring Boot

本文为您介绍如何通过持续集成使用 Jva Spring Boot 服务。
Spring Boot 2.2版本开始引入 JUnit 5作为默认的单元测试组件，适用于 Java 8及更高版本。

前提条件

设置 CODING 持续集成中构建环境前，您的腾讯云账号需要开通 CODING DevOps 服务，详情请参见开通服务。

进入项目

1. 登录CODING控制台单击团队域名进入 CODING 使用页面。
2. 单击页面右上角的



   ，进入项目列表页面，单击项目图标进入目标项目。
3. 进入左侧菜单栏的持续集成功能。

安装

修改项目中的 build.gradle 文件，引入 JaCoCo 测试覆盖率工具，并配置行覆盖率需达到80%：

plugins {
  id 'org.springframework.boot' version '2.3.4.RELEASE'
  id 'io.spring.dependency-management' version '1.0.10.RELEASE'
  id 'java'
  id 'jacoco'
}

group = 'com.example'
version = '0.0.1-SNAPSHOT'
sourceCompatibility = '11'

repositories {
  mavenCentral()
}

dependencies {
  implementation 'org.springframework.boot:spring-boot-starter'
  testImplementation('org.springframework.boot:spring-boot-starter-test') {
    exclude group: 'org.junit.vintage', module: 'junit-vintage-engine'
  }
}

test {
  useJUnitPlatform()
  finalizedBy jacocoTestCoverageVerification
}

jacocoTestCoverageVerification {
  violationRules {
    rule {
      limit {
        counter = 'LINE'
        value = 'COVEREDRATIO'
        minimum = 0.8
      }
    }
  }
  dependsOn jacocoTestReport
}

jacocoTestReport {
  dependsOn test
}

编写测试代码

按照 Spring Boot 官方文档，编写代码。
业务代码（src/main/java/com/example/demo/HomeController.java）：

package com.example.springboot;

import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.bind.annotation.RequestMapping;

@RestController
public class HelloController {

  @RequestMapping("/")
  public String index() {
    return "Greetings from Spring Boot!";
  }

}

单元测试代码（src/test/java/com/example/springboot/HelloControllerTest.java）：

package com.example.springboot;

import static org.hamcrest.Matchers.equalTo;
import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.content;
import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.status;

import org.junit.jupiter.api.Test;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.autoconfigure.web.servlet.AutoConfigureMockMvc;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.http.MediaType;
import org.springframework.test.web.servlet.MockMvc;
import org.springframework.test.web.servlet.request.MockMvcRequestBuilders;

@SpringBootTest
@AutoConfigureMockMvc
public class HelloControllerTest {

  @Autowired
  private MockMvc mvc;

  @Test
  public void getHello() throws Exception {
    mvc.perform(MockMvcRequestBuilders.get("/").accept(MediaType.APPLICATION_JSON))
        .andExpect(status().isOk())
        .andExpect(content().string(equalTo("Greetings from Spring Boot!")));
  }
}

集成测试代码（src/test/java/com/example/springboot/HelloControllerIT.java）：

package com.example.springboot;

import static org.assertj.core.api.Assertions.*;

import java.net.URL;

import org.junit.jupiter.api.BeforeEach;
import org.junit.jupiter.api.Test;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.boot.test.web.client.TestRestTemplate;
import org.springframework.boot.web.server.LocalServerPort;
import org.springframework.http.ResponseEntity;

@SpringBootTest(webEnvironment = SpringBootTest.WebEnvironment.RANDOM_PORT)
public class HelloControllerIT {

  @LocalServerPort
  private int port;

  private URL base;

  @Autowired
  private TestRestTemplate template;

    @BeforeEach
    public void setUp() throws Exception {
        this.base = new URL("http://localhost:" + port + "/");
    }

    @Test
    public void getHello() throws Exception {
        ResponseEntity<String> response = template.getForEntity(base.toString(),
                String.class);
        assertThat(response.getBody()).isEqualTo("Greetings from Spring Boot!");
    }
}

本地运行

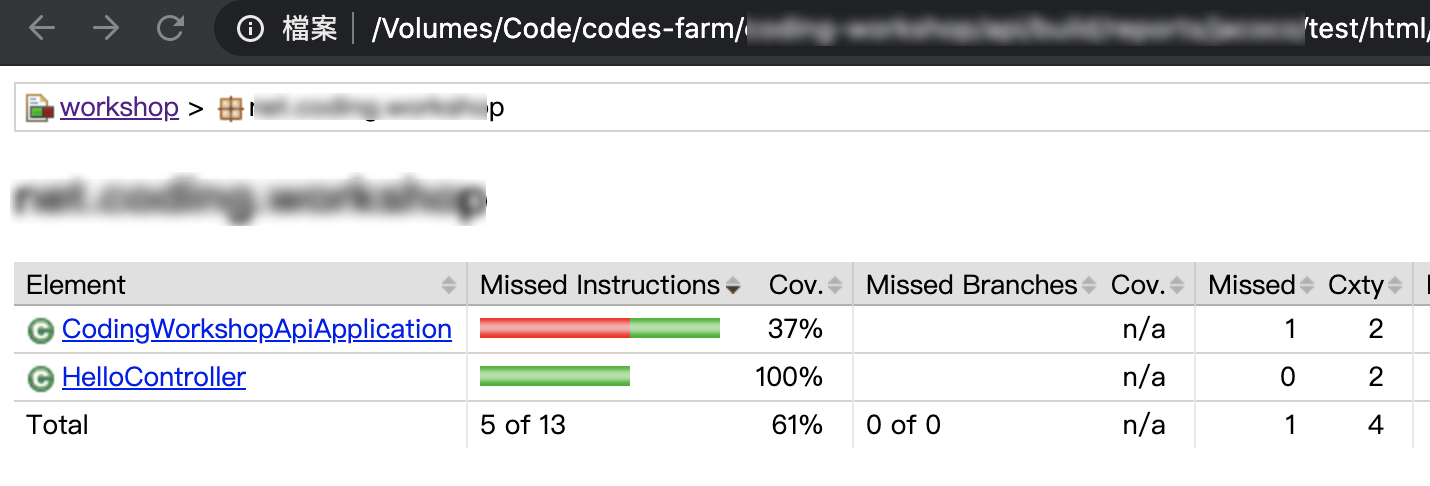

本地运行测试，将会在 build/reports/jacoco/test/html/ 生成 HTML 格式的覆盖率报告。
如果行覆盖率不达标，将会报错退出。

$ ./gradlew clean test

> Task :test
2021-04-06 16:08:03.346  INFO 13478 --- [extShutdownHook] o.s.s.concurrent.ThreadPoolTaskExecutor  : Shutting down ExecutorService 'applicationTaskExecutor'

> Task :jacocoTestCoverageVerification FAILED
[ant:jacocoReport] Rule violated for bundle workshop: lines covered ratio is 0.6, but expected minimum is 0.8

FAILURE: Build failed with an exception.

$ open build/reports/jacoco/test/html/index.html

持续集成

pipeline {
  agent any
  stages {
    stage('检出') {
      steps {
        checkout([
          $class: 'GitSCM',
          branches: [[name: '*']],
          userRemoteConfigs: [[url: env.GIT_REPO_URL, credentialsId: env.CREDENTIALS_ID]]
        ])
      }
    }
    stage('测试') {
      agent {
        docker {
          image 'adoptopenjdk:11-jdk-hotspot'
          args '-v /root/.gradle/:/root/.gradle/ -v /root/.m2/:/root/.m2/'
          reuseNode true
        }
      }
      steps {
        sh './gradlew test'
      }
      post {
        // 不管成功失败，都收集简易测试结果
        always {
          junit 'build/test-results/**/*.xml'
        }
        // 成功时，才收集测试覆盖率报告
        success {
          codingHtmlReport(name: '测试覆盖率报告', tag: 'test', path: 'build/reports/jacoco/test/html', entryFile: 'index.html')
        }
      }
    }
  }
}
