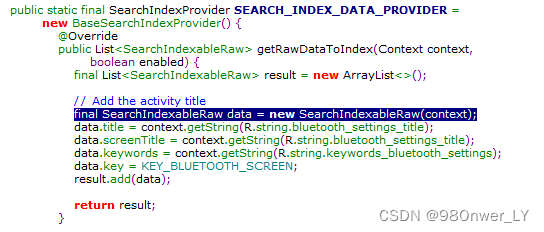

- 定义变量SEARCH_INDEX_DATA_PROVIDER，用来供Settings利用反射获取到相应的检索数据。

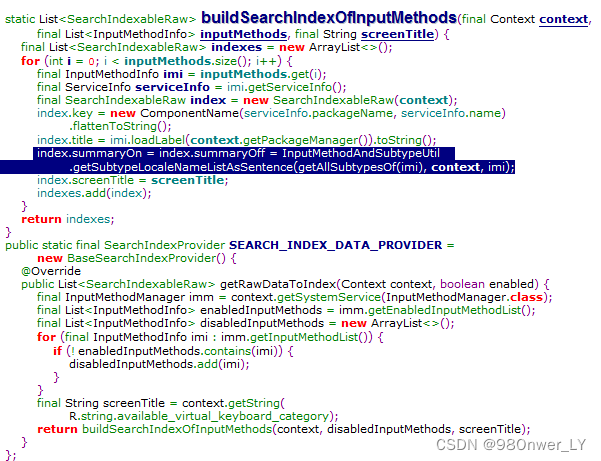

- 可根据不同的情况,分别实现getXmlResourcesToIndex, getRawDataToIndex, getNonIndexableKeys提供Indexable数据
SearchIndexableResource
nonIndexableKeys(List<String>)
SearchIndexableRaw
SearchIndexableResource-->SearchIndexableData数据结构
属性 | 定义 |
context | The context for the data. Will usually allow retrieving some resources. |
locale | The locale for the data |
enabled | Tells if the data will be included into the search results. This is application specific |
rank | The rank for the data. This is application specific |
key | The key for the data. This is application specific. Should be unique per data as the data should be able to be retrieved by the key. |
userId | The UserID for the data (in a multi user context). |
className | The class name associated with the data. Generally this is a Fragment class name forreferring where the data is coming from and for launching the associated Fragment for displaying the data. This is used only when the data is provided "locally". |
packageName | The package name for retrieving the icon associated with the data. |
iconResId | The icon resource ID associated with the data |
intentAction | The Intent action associated with the data. This is used when the{@link SearchIndexableData#className} is not relevant. |
intentTargetPackage | The Intent target package associated with the data. |
intentTargetClass | The Intent target class associated with the data. |
xmlResId[SearchIndexableResource] | Resource ID of the associated {@link android.preference.PreferenceScreen} XML file. |
SearchIndexableRaw
属性 | 定义 |
title | Title's raw data |
summaryOn | Summary's raw data when the data is "ON" |
summaryOff | Summary's raw data when the data is "OFF" |
entries | Entries associated with the raw data (when the data can have several values) |
keywords | Keywords' raw data |

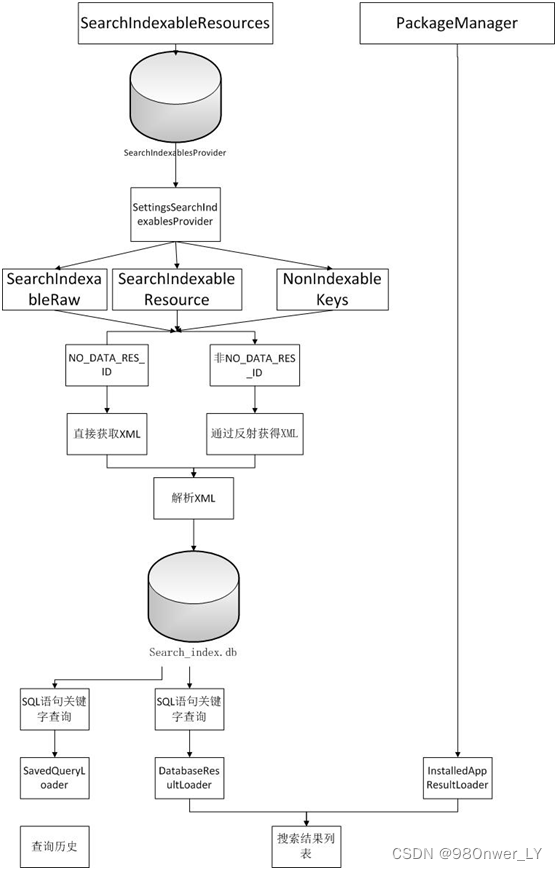

Indexing过程
