SparkSQL实战案例

1、需求分析

1.1、数据说明

每一列含义为：公司代码,年度,1月到12月的收入金额
burk,year,tsl01,tsl02,tsl03,tsl04,tsl05,tsl06,tsl07,tsl08,tsl09,tsl10,tsl11,tsl12
853101,2010,100200,25002,19440,20550,14990,17227,40990,28778,19088,29889,10990,20990
853101,2011,19446,20556,14996,17233,40996,28784,19094,28779,19089,29890,10991,20991
853101,2012,19447,20557,14997,17234,20560,15000,17237,28780,19090,29891,10992,20992
853101,2013,20560,15000,17237,41000,17234,20560,15000,17237,41000,29892,10993,20993
853101,2014,19449,20559,14999,17236,41000,28788,28786,19096,29897,41000,28788,20994
853101,2015,100205,25007,19445,20555,17236,40999,28787,19097,29898,29894,10995,20995
853101,2016,100206,25008,19446,20556,17237,41000,28788,19098,29899,29895,10996,20996
853101,2017,100207,25009,17234,20560,15000,17237,41000,15000,17237,41000,28788,20997
853101,2018,100208,25010,41000,28788,28786,19096,29897,28786,19096,29897,10998,20998
853101,2019,100209,25011,17236,40999,28787,19097,29898,28787,19097,29898,10999,20999
846271,2010,100210,25012,17237,41000,28788,19098,29899,28788,19098,29899,11000,21000
846271,2011,100211,25013,19451,20561,15001,17238,41001,28789,19099,29900,11001,21001
846271,2012,100212,100213,20190,6484,46495,86506,126518,166529,206540,246551,286562,326573
846271,2013,100213,100214,21297,5008,44466,83924,123382,162839,202297,241755,281213,320671
846271,2014,100214,100215,22405,3531,42436,81341,120245,159150,198055,236959,275864,314769
846271,2015,100215,100216,23512,2055,19096,29897,28786,19096,29897,41000,29892,308866
846271,2016,100216,100217,24620,579,38377,76175,28788,28786,19096,29897,41000,302964
846271,2017,100217,100218,25727,898,36347,73592,40999,28787,19097,29898,29894,297062
846271,2018,100218,100219,26835,2374,34318,71009,41000,28788,19098,29899,29895,291159
846271,2019,100219,100220,27942,3850,32288,68427,17237,41000,15000,17237,41000,285257

1.2、需求

1. 统计每个公司每年按月累计收入（行转列 --> sum窗口函数）
   输出结果：公司代码,年度,月份,当月收入,累计收入
2. 统计每个公司当月比上年同期增长率（行转列 --> lag窗口函数）
   输出结果：公司代码,年度,月度,增长率（当月收入/上年当月收入 - 1）

2、需求一

行列转换参考：行列转换
里面有详细的行列转换

import org.apache.spark.sql.expressions.Window
import org.apache.spark.sql.{Column, DataFrame, SparkSession}


object Demand1 {
  def main(args: Array[String]): Unit = {
    // 创建spark入口
    val spark: SparkSession = SparkSession
      .builder()
      .appName("Demand1")
      .master("local")
      .getOrCreate()

    // 加载数据文件
    val data: DataFrame = spark.read
      .schema("burk Int,year Int,tsl01 Int,tsl02 Int,tsl03 Int,tsl04 Int,tsl05 Int,tsl06 Int,tsl07 Int,tsl08 Int,tsl09 Int,tsl10 Int,tsl11 Int,tsl12 Int")
      .format("csv")
      .load("spark/data/explode/test.txt")


    // 导入隐式转换
    import org.apache.spark.sql.functions._
    import spark.implicits._

    // 行转列列名映射
    val columns: Column = map(
      expr("1"), $"tsl01",
      expr("2"), $"tsl02",
      expr("3"), $"tsl03",
      expr("4"), $"tsl04",
      expr("5"), $"tsl05",
      expr("6"), $"tsl06",
      expr("7"), $"tsl07",
      expr("8"), $"tsl08",
      expr("9"), $"tsl09",
      expr("10"), $"tsl10",
      expr("11"), $"tsl11",
      expr("12"), $"tsl12")

    data
      // 行转列
      .select($"burk", $"year", explode(columns) as Array("month", "income"))
      // 求按月累计收入
      .withColumn("inc_income", sum($"income") over Window.partitionBy($"burk", $"year").orderBy($"month"))

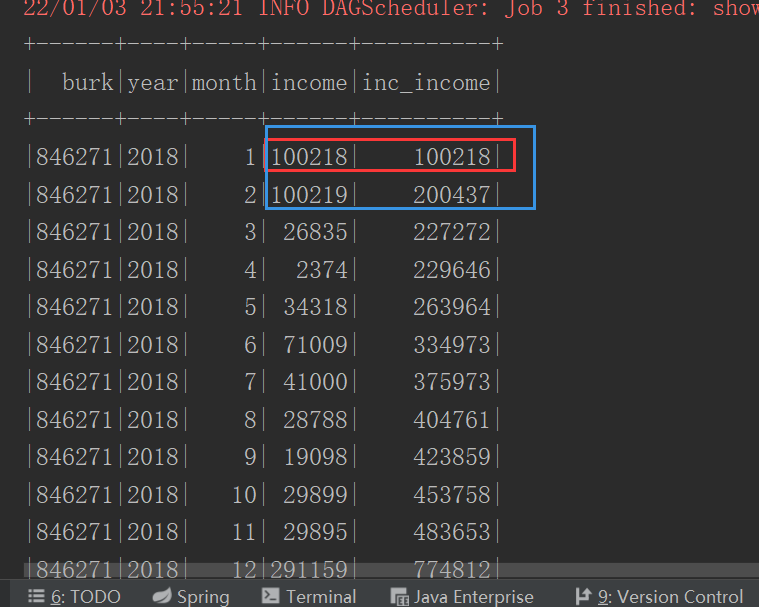

      .show(30)
  }
}

3、需求二

import org.apache.spark.sql.expressions.Window
import org.apache.spark.sql.{Column, DataFrame, SparkSession}


object Demand2 {
  def main(args: Array[String]): Unit = {
    // 创建spark入口
    val spark: SparkSession = SparkSession
      .builder()
      .appName("Demand2")
      .master("local")
      .getOrCreate()

    // 加载数据文件
    val data: DataFrame = spark.read
      .schema("burk Int,year Int,tsl01 Int,tsl02 Int,tsl03 Int,tsl04 Int,tsl05 Int,tsl06 Int,tsl07 Int,tsl08 Int,tsl09 Int,tsl10 Int,tsl11 Int,tsl12 Int")
      .format("csv")
      .load("spark/data/explode/test.txt")


    // 导入隐式转换
    import org.apache.spark.sql.functions._
    import spark.implicits._

    // 行转列列名映射
    val columns: Column = map(
      expr("1"), $"tsl01",
      expr("2"), $"tsl02",
      expr("3"), $"tsl03",
      expr("4"), $"tsl04",
      expr("5"), $"tsl05",
      expr("6"), $"tsl06",
      expr("7"), $"tsl07",
      expr("8"), $"tsl08",
      expr("9"), $"tsl09",
      expr("10"), $"tsl10",
      expr("11"), $"tsl11",
      expr("12"), $"tsl12")

    data
      // 行转列
      .select($"burk", $"year", explode(columns) as Array("month", "income"))
      // 求同一个月上一年销售额
      .withColumn("lastYear_month", lag($"income", 1, 0) over Window.partitionBy($"burk", $"month").orderBy($"year"))
      // 求同比增长p
      .withColumn("p", round(coalesce($"income" / $"lastYear_month" - 1, expr("0")), 5))

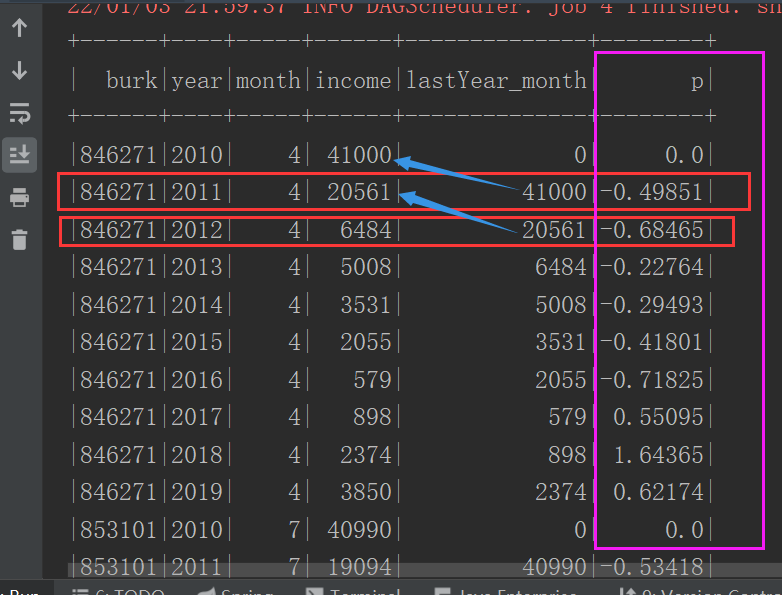

      .show(30)
  }
}
