一，抽象工厂模式

（1.假设这里有三个工厂 ：中国工厂，美国工厂，日本工厂
（2.中国工厂生产：中国香蕉，中国苹果
美国工厂生产：美国香蕉，美国苹果
日本工厂生产：日本香蕉，日本苹果

（3.将中国工厂 美国工厂 日本 工厂抽象出来
将中国香蕉 美国香蕉 日本香蕉抽象出来。苹果也抽象出来 得到抽象的香蕉和苹果。

二，抽象工厂模式图示

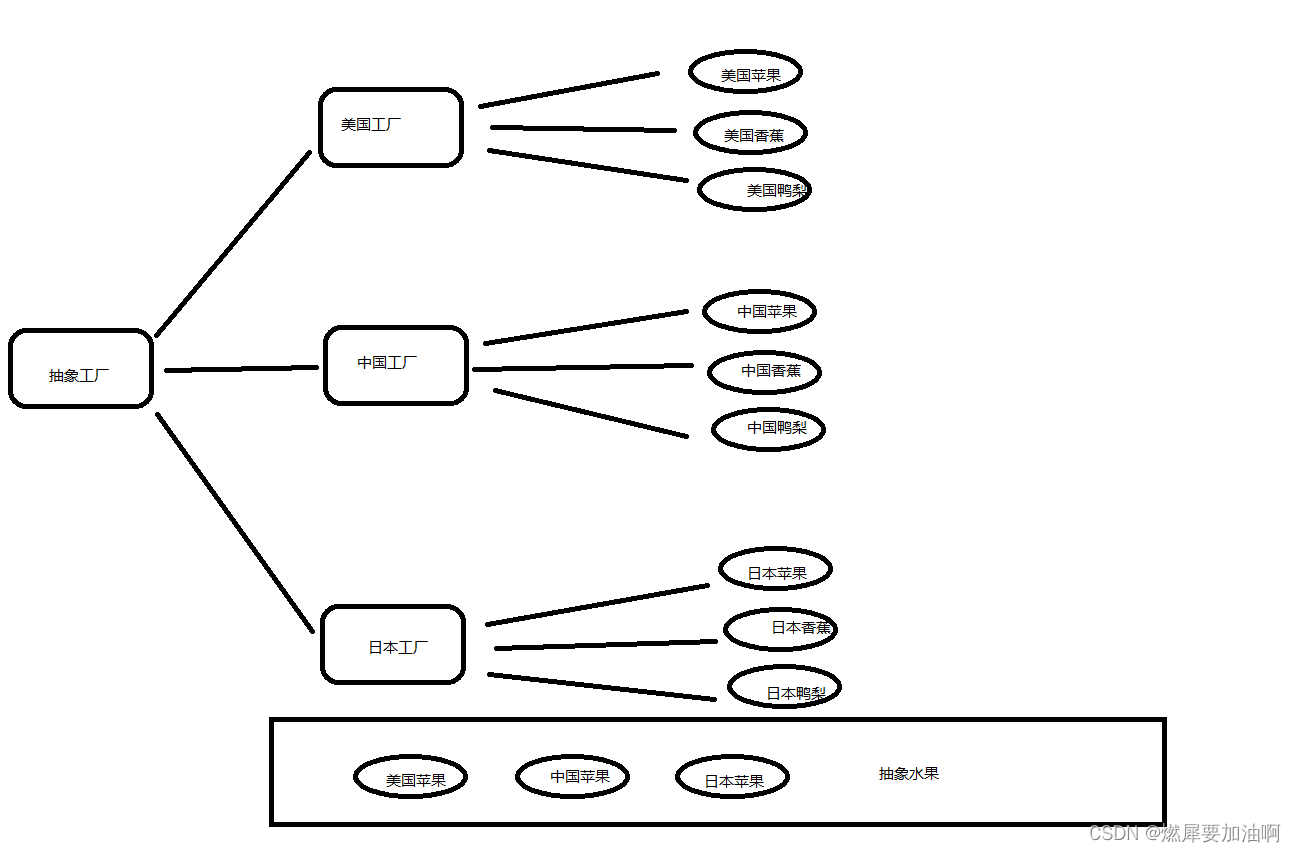

图1：

图2：

三,抽象工厂模式代码实现

#include <iostream>
using namespace std;

//抽象苹果
class AbstractApple
{
public:
	virtual void showName()=0;
	AbstractApple()
	{
		cout<<"*抽象苹果构造"<<endl;
	}
	~AbstractApple()
	{
		cout<<"*抽象苹果析构"<<endl;
	}
};
//抽象香蕉
class AbstractBanana
{
public:
	virtual void showName()=0;
	AbstractBanana()
	{
		cout<<"*抽象香蕉构造"<<endl;
	}
	~AbstractBanana()
	{
		cout<<"*抽象香蕉析构"<<endl;
	}
};


class ChinaApple :public AbstractApple
{
public:
	virtual void showName()
	{
		cout<<"i am Chinese apple"<<endl;
	}
	ChinaApple()
	{
		cout<<"中国苹果构造"<<endl;
	}
	~ChinaApple()
	{
		cout<<"中国苹果析构"<<endl;
	}
protected:
private:
};

class AmericApple :public AbstractApple
{
public:
	virtual void showName()
	{
		cout<<"i am American Apple"<<endl;
	}

	AmericApple()
	{
		cout<<"美国苹果构造"<<endl;
	}
	~AmericApple()
	{
		cout<<"美国苹果析构"<<endl;
	}
protected:
private:
};

class AmericBanana :public AbstractBanana
{
public:
	virtual void showName()
	{
		cout<<"i am American banana"<<endl;
	}

	AmericBanana()
	{
		cout<<"美国香蕉构造"<<endl;
	}
	~AmericBanana()
	{
		cout<<"美国香蕉析构"<<endl;
	}
protected:
private:
};

class ChinaBanana :public AbstractBanana
{
public:
	virtual void showName()
	{
		cout<<"i am Chinese banana"<<endl;
	}

	ChinaBanana()
	{
		cout<<"中国香蕉构造"<<endl;
	}
	~ChinaBanana()
	{
		cout<<"中国香蕉析构"<<endl;
	}
protected:
private:
};


//抽象工厂 针对产品转换
class AbstractFactory
{
public:
	virtual AbstractApple* CreateApple()=0;
	virtual AbstractBanana* CreateBanana()=0;

	AbstractFactory()
	{
		cout<<"*抽象工厂构造"<<endl;
	}
	~AbstractFactory()
	{
		cout<<"*抽象工厂析构"<<endl;
	}
};

class ChinaFactory:public AbstractFactory
{
public:
	virtual AbstractApple* CreateApple()
	{
		return new ChinaApple;
	};
	virtual AbstractBanana* CreateBanana()
	{
		return new ChinaBanana;
	};
	ChinaFactory()
	{
		cout<<"中国工厂构造"<<endl;
	}
	~ChinaFactory()
	{
		cout<<"中国工厂析构"<<endl;
	}
};

class AmericanFactory:public AbstractFactory
{
public:
	virtual AbstractApple* CreateApple()
	{
		return new AmericApple;
	};
	virtual AbstractBanana* CreateBanana()
	{
		return new AmericBanana;
	};
	AmericanFactory()
	{
		cout<<"美国工厂构造"<<endl;
	}
	~AmericanFactory()
	{
		cout<<"美国工厂析构"<<endl;
	}
};

int main()
{

	{
		AbstractFactory* t_factory = new ChinaFactory;
		AbstractApple* t_absApple = t_factory->CreateApple();
		AbstractBanana* t_absBanana = t_factory->CreateBanana();
		t_absApple->showName();
		t_absBanana->showName();
		delete t_absBanana;
		t_absBanana = nullptr;
		delete t_absApple;
		t_absApple = nullptr;
		delete t_factory;
		t_factory = nullptr;
	}
	cout<<"---------------------------"<<endl;
	{
		AbstractFactory* t_factory = new AmericanFactory;
		AbstractApple* t_absApple = t_factory->CreateApple();
		AbstractBanana* t_absBanana = t_factory->CreateBanana();
		t_absApple->showName();
		t_absBanana->showName();
		delete t_absBanana;
		t_absBanana = nullptr;
		delete t_absApple;
		t_absApple = nullptr;
		delete t_factory;
		t_factory = nullptr;
	}

	system("pause");
	return 0;
}

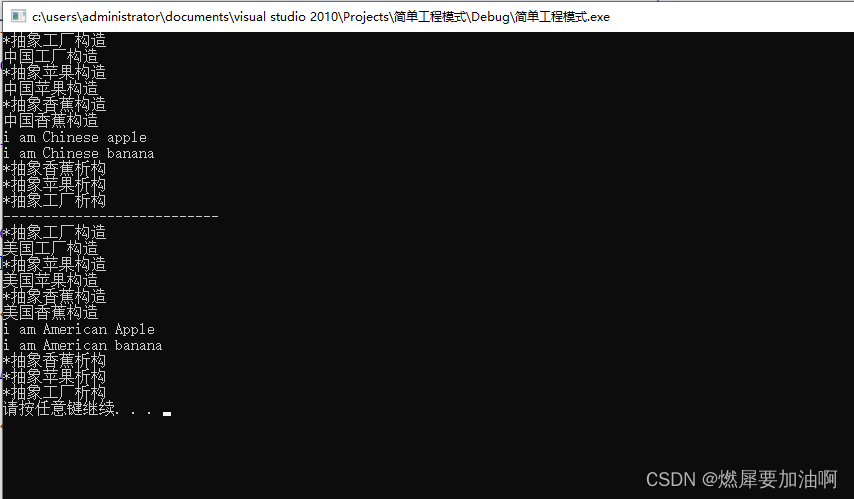

四，运行截图
