一：项目介绍
Java web实战项目中，采用了MVC，三层架构的设计模式，用到的技术有Java web+Servlet+mysql+jsp实现简单的增删改查，模糊查询等。（小项目，练手写的,没有美化，只实现了功能，可以自行美化）
本系统主要实现：帐户管理、取款机管理、用户查询、查统计等功能:
（1）登录页面：管理员账号登录，用户账号登录
（2）管理员界面：可以实现用户的增删改查，查询用户信息，销户等功能
（3）用户界面：用户可以查询余额，转账，取款等功能
开发语言:
Java,Html
开发工具:
Idea2019
数据库
Mysql
二：功能实现（部分）
01：项目结构
02：数据库设计
sql文件代码
SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;
-- ----------------------------
-- Table structure for bank
-- ----------------------------
DROP TABLE IF EXISTS `bank`;
CREATE TABLE `bank` (
`Bid` varchar(20) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL COMMENT '银行卡号',
`Bname` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '银行名（农行，邮政.......)',
`Bmoney` int(10) NULL DEFAULT NULL COMMENT '账户余额',
PRIMARY KEY (`Bid`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = latin1 COLLATE = latin1_swedish_ci ROW_FORMAT = Compact;
-- ----------------------------
-- Table structure for staff
-- ----------------------------
DROP TABLE IF EXISTS `staff`;
CREATE TABLE `staff` (
`Sid` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL COMMENT '系统管理员ID',
`Spwd` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '系统管理员密码',
PRIMARY KEY (`Sid`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = latin1 COLLATE = latin1_swedish_ci ROW_FORMAT = Compact;
-- ----------------------------
-- Table structure for user
-- ----------------------------
DROP TABLE IF EXISTS `user`;
CREATE TABLE `user` (
`Cid` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL COMMENT '客户ID',
`Cname` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '客户名字',
`Cpwd` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '客户密码',
`Bid` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '客户银行卡号',
`Cphone` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '客户电话',
PRIMARY KEY (`Cid`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = latin1 COLLATE = latin1_swedish_ci ROW_FORMAT = Compact;
SET FOREIGN_KEY_CHECKS = 1;

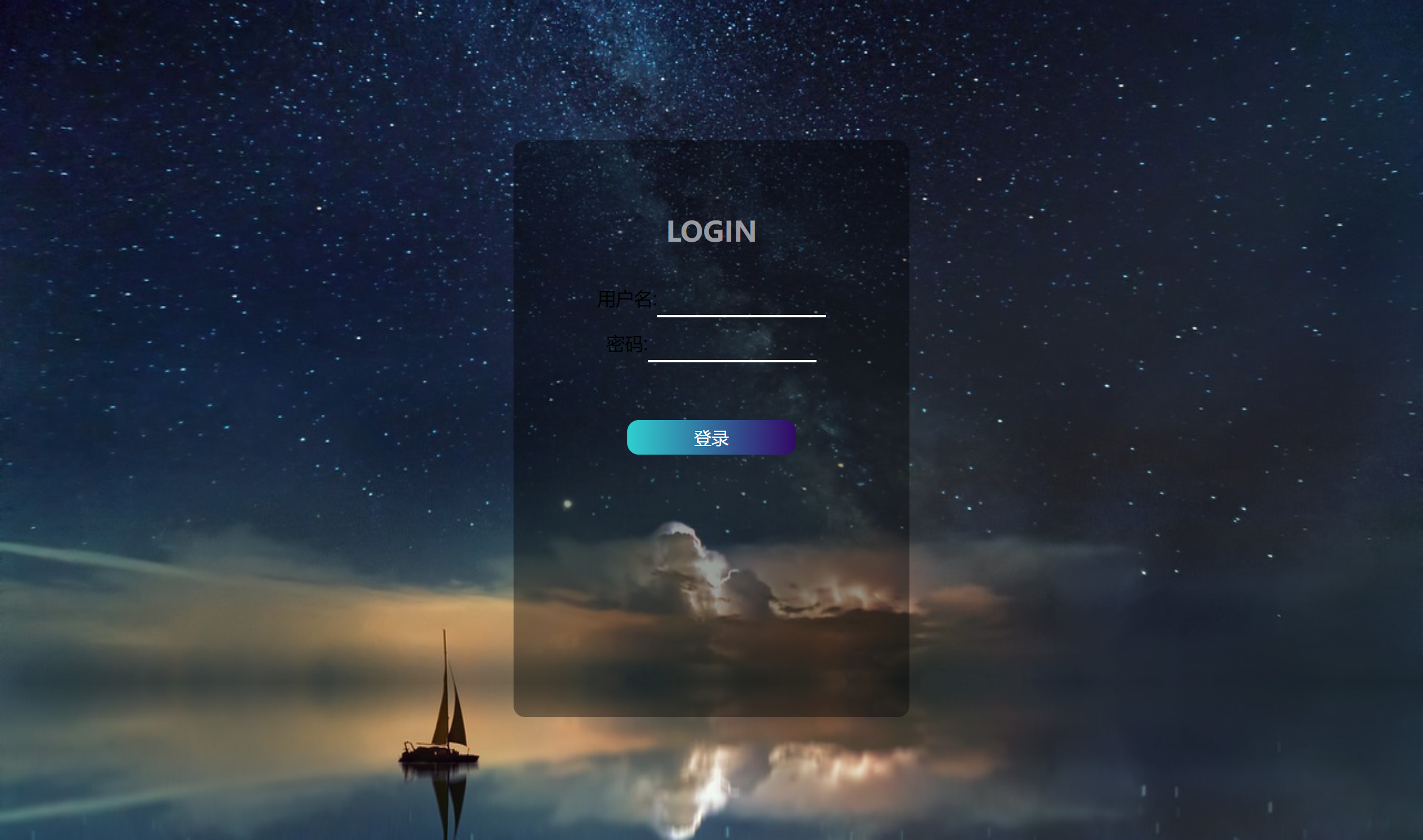

03：登录页面
index.html
<body >
<div id="login_box">
<h2>LOGIN</h2>
<div id="input_box">
<form action="login">
用户名:<input type="text" name="username"><br>
密码:<input type="text" name="password"><br>
<button>登录</button><br>
</form>
</div>
</div>
</body>用Servlet(login.java)进行拦截，处理信息
protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
req.setCharacterEncoding("utf-8");
String use=req.getParameter("username");
String pwd=req.getParameter("password");
resp.setContentType("text/html;chartset=UTF-8");
resp.setCharacterEncoding("utf-8");
IBankService bankService=new BankServiceImpl();
PrintWriter out=resp.getWriter();
int flag=bankService.login(use,pwd); //登录成功与否的一个标识
switch (flag){
case 1:
resp.sendRedirect("admin.jsp");
// req.getRequestDispatcher("admin.jsp").forward(req,resp);
break;
case 2:
req.setAttribute("cid",use);
req.getRequestDispatcher("user.jsp").forward(req,resp);
break;
default:
out.println("账号或者密码输入错误");
}
}
@Override
protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
super.doPost(req, resp);
}
04：管理员页面
<body>
<table border="2px">
<tr>
<th>用户姓名</th>
<th>用户账号</th>
<th>用户密码</th>
<th>银行卡号</th>
<th>用户电话</th>
<th>银行名字</th>
<th>账户余额</th>
<th>操作</th>
</tr>
<%
List<UserPojo> userPojos=(List<UserPojo>) request.getAttribute("userPojos");
for(UserPojo userpojo:userPojos){
%>
<tr>
<td><%=userpojo.getCname()%></td>
<td><%=userpojo.getCid()%></td>
<td><%=userpojo.getCpwd()%></td>
<td><%=userpojo.getBid()%></td>
<td><%=userpojo.getCphone()%></td>
<td><%=userpojo.getBname()%></td>
<td><%=userpojo.getBmoney()%></td>
<%-- 修改：先查询他的信息，后在信息基础上修改--%>
<td ><a href="delete?bid=<%=userpojo.getBid()%>">注销</a> <a href="selectOne?bid=<%=userpojo.getBid()%>">修改</a></td>
</tr>
<%
}
%>
</table>
<button><a href="add.jsp">新增</a></button>
</body>
05:用户界面
user.jsp（我没有美化，可自行把按钮分布再两边，再加一个background样式
<body>
<button> <a href="qu_kuan.jsp">取款</a> </button>
<button><a href="cun_kuan.jsp">存款</a></button>
<button><a href="zhuanzhang.jsp">转账</a></button>
<button><a href="cha_qian?cid=<%=request.getAttribute("cid")%>">查询余额</a></button>
<button>修改密码</button>
<button>退出系统</button>
</body>06：用户转账
zhuan_zhang.jsp
<body>
<button> <a href="qu_kuan.jsp">取款</a> </button>
<button><a href="cun_kuan.jsp">存款</a></button>
<button><a href="zhuanzhang.jsp">转账</a></button>
<button><a href="cha_qian?cid=<%=request.getAttribute("cid")%>">查询余额</a></button>
<button>修改密码</button>
<button>退出系统</button>
</body>servlet逻辑处理zhang_zhang.java
protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
req.setCharacterEncoding("utf-8");
String bid1=req.getParameter("bid1");
String bid2=req.getParameter("bid2");
String money=req.getParameter("money");
resp.setContentType("text/html;chartset=UTF-8");
resp.setCharacterEncoding("utf-8");
IBankService iBankService=new BankServiceImpl();
iBankService.zhuan_zhang(bid1,bid2,money);
resp.sendRedirect("success.jsp");
}
@Override
protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
super.doPost(req, resp);

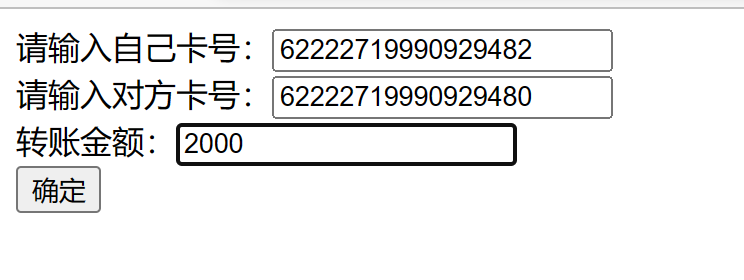

}转账前
转账

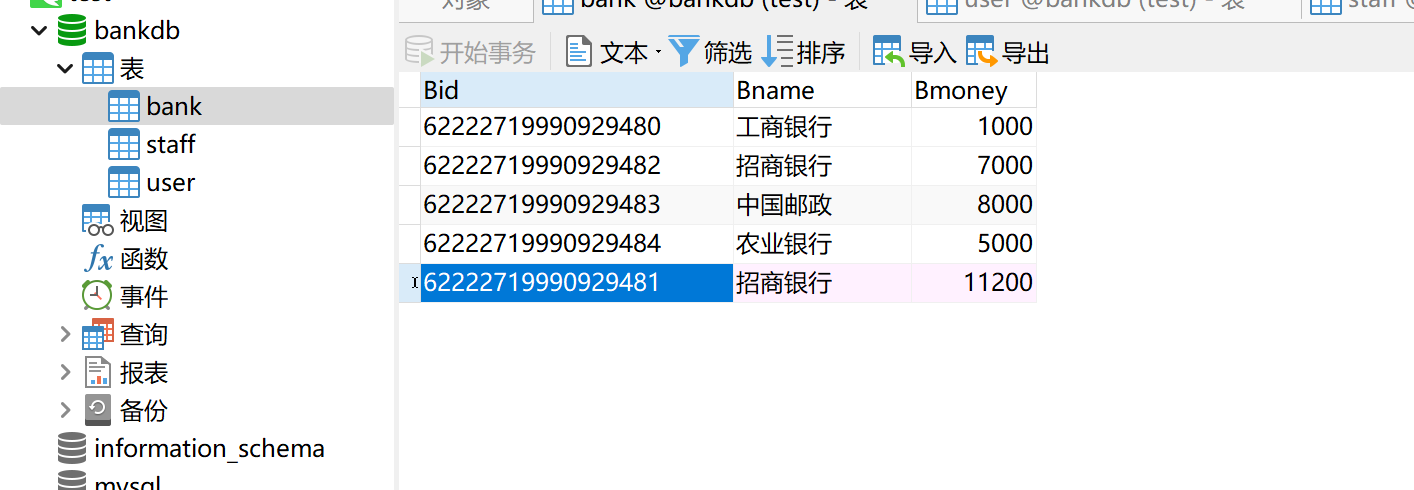

转账后
07：查询余额
<html>
<head>
<title>Title</title>
</head>
<body>
<h1>你的账户余额为</h1>
<%=request.getAttribute("money")%>
</body>
</html> protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
req.setCharacterEncoding("utf-8");
resp.setContentType("text/html;chartset=UTF-8");
resp.setCharacterEncoding("utf-8");
String cid=req.getParameter("cid");
IBankService iBankService=new BankServiceImpl();
String money = iBankService.select_money(cid);
req.setAttribute("money",money);
req.getRequestDispatcher("yu_er.jsp").forward(req,resp);
}
@Override
protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
super.doPost(req, resp);
}08：存款
protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
req.setCharacterEncoding("utf-8");
resp.setContentType("text/html;chartset=UTF-8");
resp.setCharacterEncoding("utf-8");
String cid=req.getParameter("cid");
String money=req.getParameter("money");
IBankService iBankService=new BankServiceImpl();
Boolean flag = iBankService.cu_kuan(cid, money);
if(flag){
resp.sendRedirect("success.jsp");
}else{
resp.sendRedirect("fail.jsp");
}
}<html>
<head>
<title>Title</title>
</head>
<body>
<h1>存款功能</h1>
<form action="Cun_kuan">
请输入id:<input type="text" name="cid"><br>
请输入存款金额:<input type="text" name="money"><br>
<input type="submit" value="确定">
</form>
</body>
</html>以上为部分代码
三：总结
项目过程中碰到的问题：
创建数据库时，有多表，怎么建立关联，实现连表查询
解决：可以在多表中，设置一个共同的属性，例如ID，用来连接各表
连表查询的数据（一张新表），怎么在浏览器中显示出来
解决：把连表查询得到的新表，根据新表，再建立一个实体类entity，用来存储新表中的内容
3.浏览器输入信息，在数据库中乱码
解决：在数据库连接url中加上编码格式jdbc:mysql://localhost:3306/bankdb?useUnicode=true&characterEncoding=utf8
4.在jsp页面，不使用表单，怎么向servlet传递数据
解决：可以用超链接，再用？....来实现数据传递，eg:<a href="delete?bid=<%=userpojo.getBid()%>">注销</a>
5.怎么把servlet中的List数据传递到jsp页面的table表单中
解决：在jsp中写java代码，用来实现循环
eg:
<table border="2px">
<tr>
<th>用户姓名</th>
<th>用户账号</th>
<th>用户密码</th>
<th>银行卡号</th>
<th>用户电话</th>
<th>银行名字</th>
<th>账户余额</th>
<th>操作</th>
</tr>
<%
List<UserPojo> userPojos=(List<UserPojo>) request.getAttribute("userPojos");
for(UserPojo userpojo:userPojos){
%>
<tr>
<td><%=userpojo.getCname()%></td>
<td><%=userpojo.getCid()%></td>
<td><%=userpojo.getCpwd()%></td>
<td><%=userpojo.getBid()%></td>
<td><%=userpojo.getCphone()%></td>
<td><%=userpojo.getBname()%></td>
<td><%=userpojo.getBmoney()%></td>
<%-- 修改：先查询他的信息，后在信息基础上修改--%>
<td ><a href="delete?bid=<%=userpojo.getBid()%>">注销</a> <a href="selectOne?bid=<%=userpojo.getBid()%>">修改</a></td>
</tr>
<%
}
%>
</table>6.点击button按钮时，怎么跳转到servlet中进行处理
解决：可以在button里再加一个超链接<a>，来跳转到servlet中进行数据处理
eg:<button><a href="add.jsp">新增</a></button>
<button><a href="delete?cid=<%=request.getAtrribute("Cid")>">删除</a></button>
