客户关系管理项目——公告模块设计

一模块需求细化

管理员可以负责公告的增删改查。所有的用户都具备公告的查阅功能。

具有公告权限的用户可以负责公告的发布，公告发布后所有的用户都需要查看。

每一个用户后可以显示所有未读公告的数量。

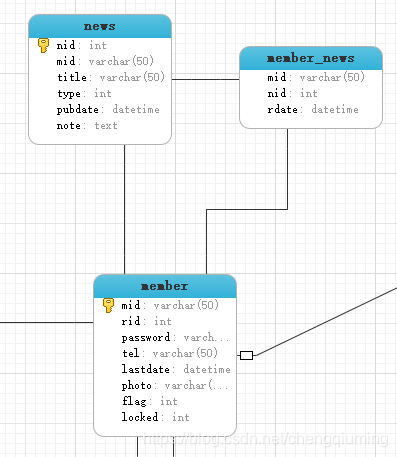

二模块相关数据库实现

输入表

公告表：news

公告阅读记录：member_news

输出表

公告表：news

三公告管理界面设计

1 添加公告管理页面

<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://www.ptpress.com.cn/c" %>
<%
   String path = request.getContextPath();
   String basePath = request.getScheme() + "://"
         + request.getServerName() + ":" + request.getServerPort()
         + path + "/";
   String addUrl = basePath + "pages/back/news/NewsServletBack/add" ;
%>
<html>
<head>
<base href="<%=basePath%>">
<title>CRM管理系统</title>
<jsp:include page="/pages/plugins/import_file.jsp"/>
<link href="css/select.css" rel="stylesheet" type="text/css" />
<script type="text/javascript" src="<%=basePath%>js/jquery.idTabs.min.js"></script>
<script type="text/javascript" src="<%=basePath%>js/select-ui.min.js"></script>
<script type="text/javascript" src="<%=basePath%>js/editor/kindeditor.js"></script>
<script type="text/javascript" src="<%=basePath%>js/pages/back/news/news_add.js"></script>
<script type="text/javascript">
   KE.show({
      id : 'news.note'
   });
</script>
</head>
<body>
   <div class="place">
      <span>位置：</span>
      <ul class="placeul">
         <li><a href="main.html" target="_top">首页</a></li>
         <li><a href="#">系统设置</a></li>
      </ul>
   </div>
   <div class="formbody">
      <div id="usual1" class="usual">
         <div class="itab">
            <ul>
               <li><a href="#tab1" class="selected">发布公告通知</a></li>
            </ul>
         </div>
         <div id="tab1" class="tabson">
            <div class="formtext">
               Hi，<b>${mid}</b>，欢迎您试用信息发布功能！
            </div>
            <form action="<%=addUrl%>" method="post" id="myform">
            <ul class="forminfo">
               <li><label>公告标题<b>*</b></label>
               <input id="news.title" name="news.title" type="text" class="dfinput" placeholder="请输入公告标题" style="width:518px;" /></li>
               <li><label>公告分类<b>*</b></label>
                  <div class="vocation">
                     <select class="select1" id="news.type" name="news.type">
                        <option value="0">普通通知</option>
                        <option value="1">重要通知</option>
                     </select>
                  </div></li>
               <li><label>通知内容<b>*</b></label>
                  <textarea name="news.note" id="news.note" style="width:700px;height:250px;visibility:hidden;"></textarea>
               </li>
               <li><label>&nbsp;
               </label><input name="" type="submit" class="btn" value="马上发布" /></li>
            </ul>
            </form>
         </div>
      </div>
   </div>
</body>
</html>

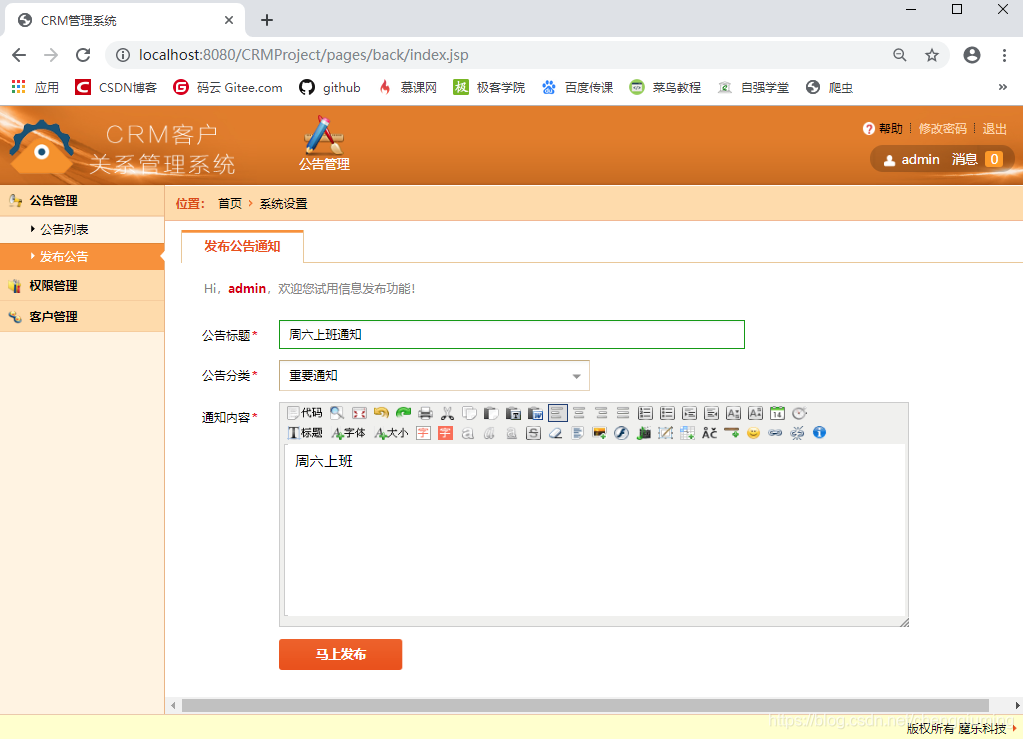

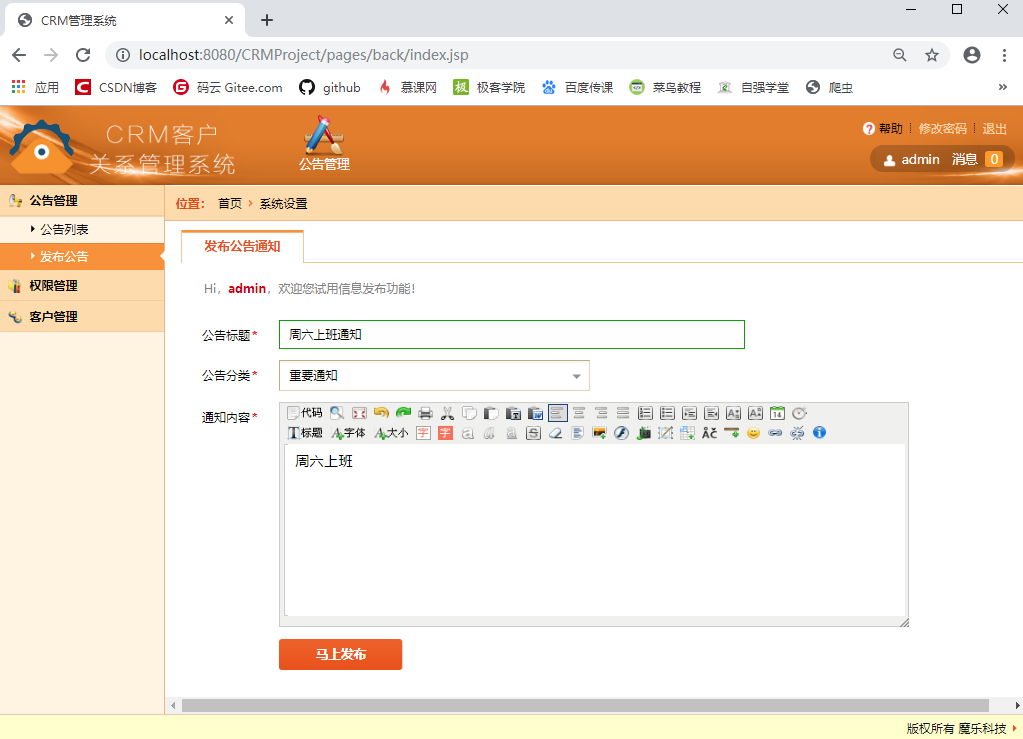

2 公告管理界面设计效果

3 公告列表页面

<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://www.ptpress.com.cn/c" %>
<%
   String path = request.getContextPath();
   String basePath = request.getScheme() + "://"
         + request.getServerName() + ":" + request.getServerPort()
         + path + "/";
%>
<html>
<head>
<base href="<%=basePath%>">
<title>CRM管理系统</title>
<jsp:include page="/pages/plugins/import_file.jsp"/>
<script type="text/javascript" src="js/pages/back/news/news_list.js"></script>
</head>
<body>
   <div class="place">
      <span>位置：</span>
      <ul class="placeul">
         <li><a href="main.html" target="_top">首页</a></li>
         <li><a href="#">公告列表</a></li>
      </ul>
   </div>

   <div class="rightinfo">

      <div class="tools">

         <ul class="toolbar">
            <c:if test="${allActions['12'] != null}">
               <li class="click" id="liButAdd"><span><img src="images/t01.png" /></span>添加</li>
            </c:if>
            <c:if test="${allActions['13'] != null}">
               <li class="click" id="liButEdit"><span><img src="images/t02.png" /></span>修改</li>
            </c:if>
            <c:if test="${allActions['14'] != null}">
               <li class="click" id="liButRm"><span><img src="images/t03.png" /></span>删除</li>
            </c:if>
         </ul>

      </div>

      <jsp:include page="/pages/plugins/split_page_plugin_search.jsp"/>
      <table class="tablelist">
         <thead>
            <tr>
               <th><input id="selAll" name="selAll" type="checkbox"/></th>
               <th>编号</th>
               <th>标题</th>
               <th>公告分类</th>
               <th>发布时间</th>
               <th>是否查看</th>
            </tr>
         </thead>
         <tbody>
            <c:if test="${allNewses != null}">
               <c:forEach items="${allNewses}" var="news">
                  <tr>
                     <td><input id="nid" name="nid" type="checkbox" value="${news.nid}" /></td>
                     <td>${news.nid}</td>
                     <c:if test="${allActions['33'] != null}">
                        <td><a href="<%=basePath%>/${allActions['33'].url}?news.nid=${news.nid}" target="rightFrame">
                           <c:if test="${unreadMap[news.nid]}">
                              <font color="red">[未读]</font>
                           </c:if>
                           ${news.title}</a></td>
                     </c:if>
                     <c:if test="${allActions['33'] == null}">
                        <td><c:if test="${unreadMap[news.nid]}">
                              <font color="red">[未读]</font>
                           </c:if>${news.title}</td>
                     </c:if>
                     <td>${news.type == 0 ? "普通通知" : "重要通知"}</td>
                     <td>${news.pubdate}</td>
                     <td>${unreadMap[news.nid] ? "未读" : 已查看}</td>
                  </tr>
               </c:forEach>
            </c:if>
         </tbody>
      </table>


      <jsp:include page="/pages/plugins/split_page_plugin_bar.jsp"/>


      <div class="tip">
         <div class="tiptop">
            <span>提示信息</span><a></a>
         </div>

         <div class="tipinfo">
            <span><img src="images/ticon.png" /></span>
            <div class="tipright">
               <p id="pMsg">是否确认对信息的修改 ？</p>
               <cite>如果是请点击确定按钮 ，否则请点取消。</cite>
            </div>
         </div>

         <div class="tipbtn">
            <input id="butSure" type="button" class="sure" value="确定" />&nbsp;
            <input id="butCancel" type="button" class="cancel" value="取消" />
         </div>
      </div>
   </div>
</body>
</html>

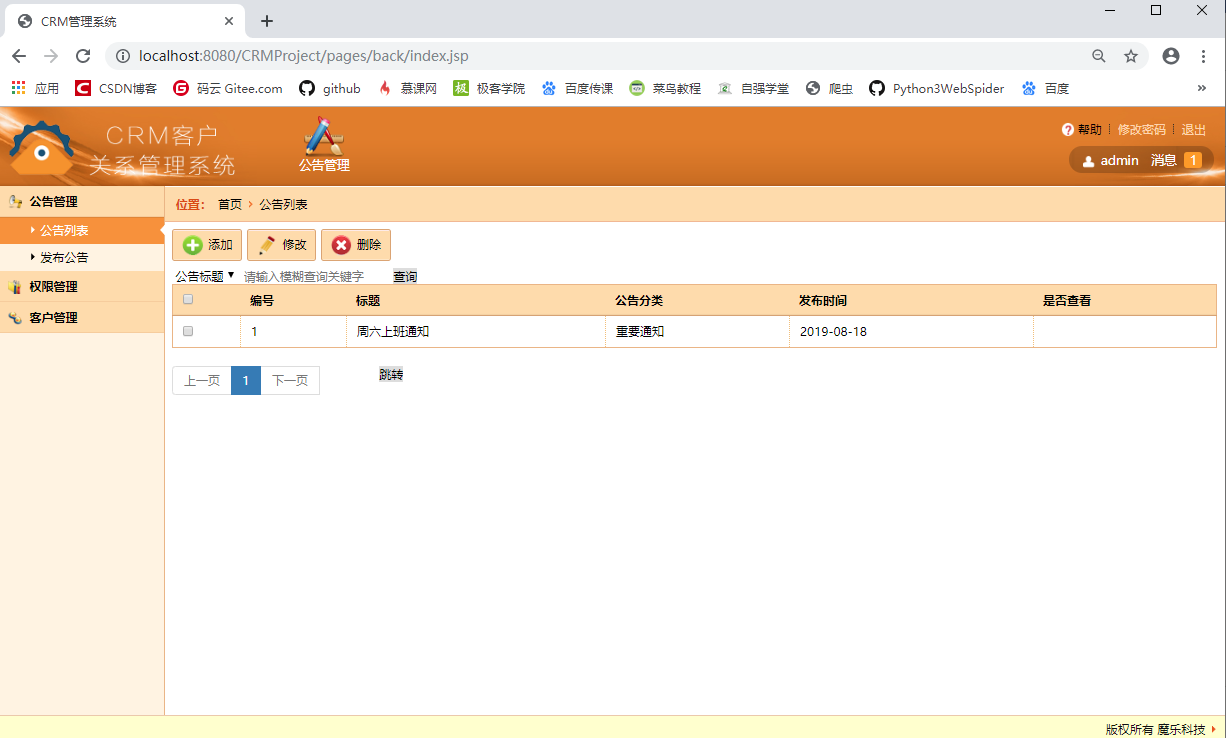

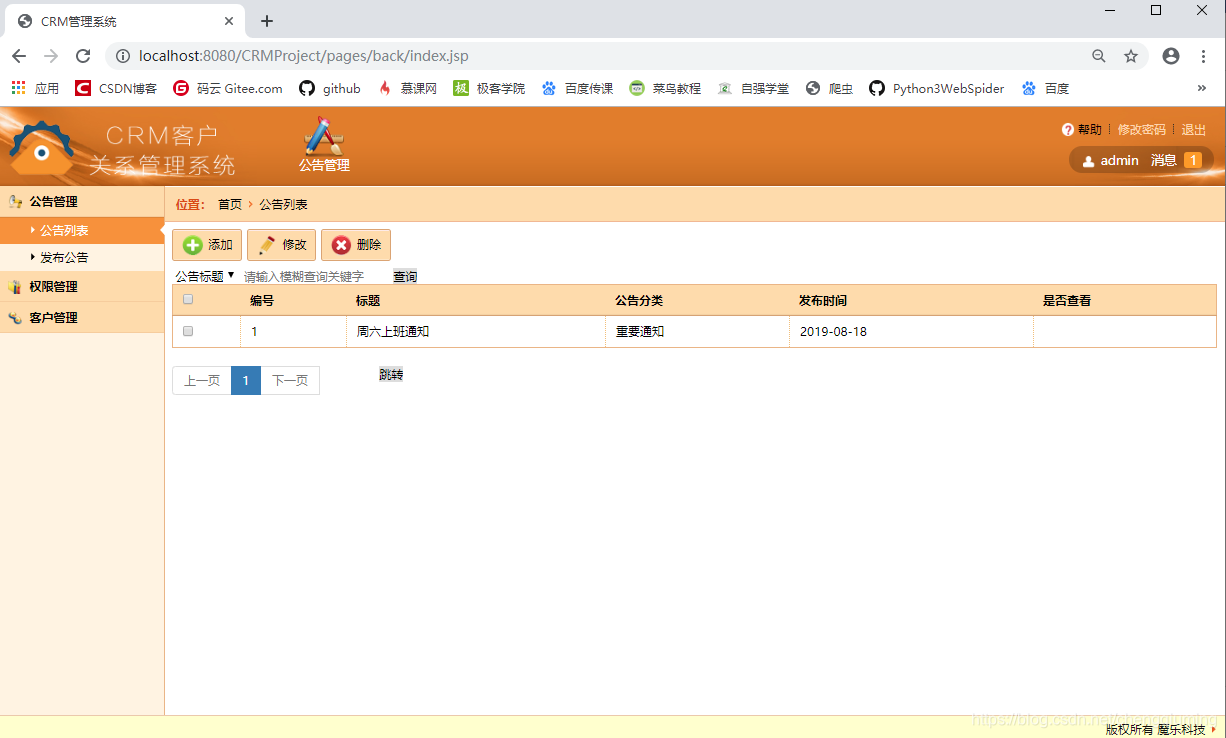

4 显示效果

四控制层实现

1 页面属性定义

news.add.page=/pages/back/news/news_add.jsp
news.add.servlet=/pages/back/news/NewsServletBack/addPre
news.list.page=/pages/back/news/news_list.jsp
news.list.servlet=/pages/back/news/NewsServletBack/list
news.show.page=/pages/back/news/news_show.jsp
news.edit.page=/pages/back/news/news_edit.jsp

2 控制层代码

package cn.mldn.crm.servlet.back;

import java.util.HashSet;
import java.util.Map;
import java.util.Set;

import javax.servlet.annotation.WebServlet;

import cn.mldn.crm.factory.ServiceFactory;
import cn.mldn.crm.vo.News;
import cn.mldn.util.BasepathUtil;
import cn.mldn.util.SplitUtil;

@SuppressWarnings("serial")
@WebServlet("/pages/back/news/NewsServletBack/*")
public class NewsServletBack extends AbstractCRMServlet {
   private News news = new News();

   public String editPre() {
      if (super.isAction(13)) {
         try {
            super.request.setAttribute(
                  "news",
                  ServiceFactory.getINewsServiceBackInstance().editPre(
                        super.getMid(), this.news.getNid()));
         } catch (Exception e) {
            e.printStackTrace();
         }
         return "news.edit.page";
      } else {
         return "error.page";
      }
   }

   public String rm() {
      if (super.isAction(14)) {
         String ids = super.getParameter("ids");
         Set<Integer> set = new HashSet<Integer>();
         String result[] = ids.split("\\|");
         for (int x = 0; x < result.length; x++) {
            set.add(Integer.parseInt(result[x]));
         }
         try {
            if (ServiceFactory.getINewsServiceBackInstance().rm(
                  super.getMid(), set)) {
               super.setMsgAndUrl("vo.rm.success", "news.list.servlet");
            } else {
               super.setMsgAndUrl("vo.rm.failure", "news.list.servlet");
            }
         } catch (Exception e) {
            e.printStackTrace();
            super.setMsgAndUrl("vo.rm.failure", "news.list.servlet");
         }
         return "forward.page";
      } else {
         return "error.page";
      }
   }

   public String edit() {
      if (super.isAction(13)) {
         this.news.getMember().setMid(super.getMid());
         try {
            if (ServiceFactory.getINewsServiceBackInstance()
                  .edit(this.news)) {
               super.setMsgAndUrl("vo.edit.success", "news.list.servlet");
            } else {
               super.setMsgAndUrl("vo.edit.failure", "news.list.servlet");
            }
         } catch (Exception e) {
            e.printStackTrace();
            super.setMsgAndUrl("vo.edit.failure", "news.list.servlet");
         }
      } else {
         return "error.page";
      }
      return "forward.page";
   }

   public String addPre() {
      if (super.isAction(12)) {
         return "news.add.page";
      } else {
         return "error.page";
      }
   }

   public String list() {
      if (super.isAction(11)) {
         SplitUtil su = super.handleSplitParam();
         try {
            Map<String, Object> map = ServiceFactory
                  .getINewsServiceBackInstance().listSplit(
                        super.getMid(), su.getColumn(),
                        su.getKeyWord(), su.getCurrentPage(),
                        su.getLineSize());
            super.getSession().setAttribute("unread", 0);
            super.request.setAttribute("allNewses", map.get("allNewses"));
            super.request.setAttribute("unreadMap", map.get("unreadMap"));
            super.request
                  .setAttribute("allRecorders", map.get("newsCount"));
            request.setAttribute("url", BasepathUtil.getPath(super.request)
                  + super.getPage("news.list.servlet"));
         } catch (Exception e) {
            e.printStackTrace();
         }
         return "news.list.page";
      } else {
         return "error.page";
      }
   }

   public String show() {
      if (super.isAction(33)) {
         try {
            super.request.setAttribute(
                  "news",
                  ServiceFactory.getINewsServiceBackInstance().show(
                        super.getMid(), this.news.getNid()));
         } catch (Exception e) {
            e.printStackTrace();
         }
         return "news.show.page";
      } else {
         return "error.page";
      }
   }

   public String add() {
      if (super.isAction(12)) {
         this.news.getMember().setMid(super.getMid());
         try {
            if (ServiceFactory.getINewsServiceBackInstance().add(this.news)) {
               super.setMsgAndUrl("vo.add.success", "news.add.servlet");
            } else {
               super.setMsgAndUrl("vo.add.failure", "news.add.servlet");
            }
         } catch (Exception e) {
            e.printStackTrace();
            super.setMsgAndUrl("vo.add.failure", "news.add.servlet");
         }
      } else {
         return "error.page";
      }
      return "forward.page";
   }

   public News getNews() {
      return news;
   }

   @Override
   public String getMarkTitle() {
      return "公告信息";
   }

   @Override
   public String getUploadDir() {
      return null;
   }

   @Override
   public String getDefaultColumn() {
      return "title";
   }

   @Override
   public String getColumntData() {
      return "公告标题:title|发布者:mid";
   }

}

五业务层实现

package cn.mldn.crm.service.back.impl;

import java.util.Date;
import java.util.HashMap;
import java.util.HashSet;
import java.util.Iterator;
import java.util.List;
import java.util.Map;
import java.util.Set;

import cn.mldn.crm.factory.DAOFactory;
import cn.mldn.crm.service.back.AbstractCRMServiceBack;
import cn.mldn.crm.service.back.INewsServiceBack;
import cn.mldn.crm.vo.MemberNews;
import cn.mldn.crm.vo.News;

public class NewsServiceBackImpl extends AbstractCRMServiceBack implements
      INewsServiceBack {

   @Override
   public boolean add(News vo) throws Exception {
      try {
         if (super.isAction(vo.getMember().getMid(), 12)) {
            vo.setPubdate(new Date()); // 发布日期设置为当前所在日期时间
            return DAOFactory
                  .getINewsDAOInstance(super.dbc.getConnection())
                  .doCreate(vo);
         }
         return false;
      } catch (Exception e) {
         throw e;
      } finally {
         this.dbc.close();
      }
   }

   @Override
   public Map<String, Object> listSplit(String mid, String column,
         String keyWord, int currentPage, int lineSize) throws Exception {
      try {
         Map<String, Object> map = new HashMap<String, Object>();
         if (super.isAction(mid, 11)) {
            List<News> all = DAOFactory.getINewsDAOInstance(
                  this.dbc.getConnection()).findAllSplit(column, keyWord,
                  currentPage, lineSize);
            if (all.size() > 0) {
               Set<Integer> set = new HashSet<Integer>();
               Iterator<News> iter = all.iterator();
               while (iter.hasNext()) {
                  set.add(iter.next().getNid());
               }
               map.put("unreadMap",
                     DAOFactory.getIMemberNewsDAOInstance(
                           super.dbc.getConnection()).findAllNotId(
                           mid, set));
            }
            map.put("allNewses", all);
            map.put("newsCount",
                  DAOFactory
                        .getINewsDAOInstance(this.dbc.getConnection())
                        .getAllCount(column, keyWord));

         }
         return map;
      } catch (Exception e) {
         throw e;
      } finally {
         this.dbc.close();
      }
   }

   @Override
   public News show(String mid, int nid) throws Exception {
      try {
         if (super.isAction(mid, 33)) {
            if (DAOFactory.getIMemberNewsDAOInstance(
                  super.dbc.getConnection()).getAllCountByMemberAndNews(
                  mid, nid) == 0) { // 没有读取过
               MemberNews vo = new MemberNews();
               vo.getMember().setMid(mid);
               vo.getNews().setNid(nid);
               vo.setRdate(new Date());
               DAOFactory.getIMemberNewsDAOInstance(
                     super.dbc.getConnection()).doCreate(vo);
            }

            return DAOFactory
                  .getINewsDAOInstance(super.dbc.getConnection())
                  .findById(nid);
         }
         return null;
      } catch (Exception e) {
         throw e;
      } finally {
         this.dbc.close();
      }
   }

   @Override
   public News editPre(String mid, int nid) throws Exception {
      try {
         if (super.isAction(mid, 13)) {
            return DAOFactory
                  .getINewsDAOInstance(super.dbc.getConnection())
                  .findById(nid);
         }
         return null;
      } catch (Exception e) {
         throw e;
      } finally {
         this.dbc.close();
      }
   }

   @Override
   public boolean edit(News vo) throws Exception {
      try {
         if (super.isAction(vo.getMember().getMid(), 13)) {
            return DAOFactory
                  .getINewsDAOInstance(super.dbc.getConnection())
                  .doUpdate(vo);
         }
         return false;
      } catch (Exception e) {
         throw e;
      } finally {
         this.dbc.close();
      }
   }

   @Override
   public boolean rm(String mid, Set<Integer> ids) throws Exception {
      try {
         if (ids.size() == 0) {
            return false;
         }
         if (super.isAction(mid, 14)) {
            return DAOFactory
                  .getINewsDAOInstance(super.dbc.getConnection())
                  .doRemove(ids);
         }
         return false;
      } catch (Exception e) {
         throw e;
      } finally {
         this.dbc.close();
      }
   }

}

六数据层实现

根据各业务层的的逻辑，实现自己的数据层实现。

原文链接：https://blog.csdn.net/chengqiuming/article/details/99701522
