本文使用ubuntu20.04版本操作系统

一、安装ROS Noetic

参考官方链接：

http://wiki.ros.org/cn/noetic/Installation/Ubuntu

参考链接

https://blog.csdn.net/Leslie___Cheung/article/details/109591426

https://blog.csdn.net/weixin_42525601/article/details/112198438

1.更新软件源

打开一个终端（快捷键 ctrl+Alt+t）

输入：

sudo gedit /etc/apt/sources.list

对于官网的源，不可以删掉，在下面添加这些源:

# 阿里源
deb http://mirrors.aliyun.com/ubuntu/ bionic main restricted universe multiverse
deb http://mirrors.aliyun.com/ubuntu/ bionic-security main restricted universe multiverse
deb http://mirrors.aliyun.com/ubuntu/ bionic-updates main restricted universe multiverse
deb http://mirrors.aliyun.com/ubuntu/ bionic-proposed main restricted universe multiverse
deb http://mirrors.aliyun.com/ubuntu/ bionic-backports main restricted universe multiverse
deb-src http://mirrors.aliyun.com/ubuntu/ bionic main restricted universe multiverse
deb-src http://mirrors.aliyun.com/ubuntu/ bionic-security main restricted universe multiverse
deb-src http://mirrors.aliyun.com/ubuntu/ bionic-updates main restricted universe multiverse
deb-src http://mirrors.aliyun.com/ubuntu/ bionic-proposed main restricted universe multiverse
deb-src http://mirrors.aliyun.com/ubuntu/ bionic-backports main restricted universe multiverse
#清华源
deb https://mirrors.tuna.tsinghua.edu.cn/ubuntu/ bionic main restricted universe multiverse
deb https://mirrors.tuna.tsinghua.edu.cn/ubuntu/ bionic-updates main restricted universe multiverse
deb https://mirrors.tuna.tsinghua.edu.cn/ubuntu/ bionic-backports main restricted universe multiverse
deb https://mirrors.tuna.tsinghua.edu.cn/ubuntu/ bionic-security main restricted universe multiverse
deb https://mirrors.tuna.tsinghua.edu.cn/ubuntu/ bionic-proposed main restricted universe multiverse
deb-src https://mirrors.tuna.tsinghua.edu.cn/ubuntu/ bionic main restricted universe multiverse
deb-src https://mirrors.tuna.tsinghua.edu.cn/ubuntu/ bionic-updates main restricted universe multiverse
deb-src https://mirrors.tuna.tsinghua.edu.cn/ubuntu/ bionic-backports main restricted universe multiverse
deb-src https://mirrors.tuna.tsinghua.edu.cn/ubuntu/ bionic-security main restricted universe multiverse
deb-src https://mirrors.tuna.tsinghua.edu.cn/ubuntu/ bionic-proposed main restricted universe multiverse
#中科大源
deb https://mirrors.ustc.edu.cn/ubuntu/ bionic main restricted universe multiverse
deb https://mirrors.ustc.edu.cn/ubuntu/ bionic-updates main restricted universe multiverse
deb https://mirrors.ustc.edu.cn/ubuntu/ bionic-backports main restricted universe multiverse
deb https://mirrors.ustc.edu.cn/ubuntu/ bionic-security main restricted universe multiverse
deb https://mirrors.ustc.edu.cn/ubuntu/ bionic-proposed main restricted universe multiverse
deb-src https://mirrors.ustc.edu.cn/ubuntu/ bionic main restricted universe multiverse
deb-src https://mirrors.ustc.edu.cn/ubuntu/ bionic-updates main restricted universe multiverse
deb-src https://mirrors.ustc.edu.cn/ubuntu/ bionic-backports main restricted universe multiverse
deb-src https://mirrors.ustc.edu.cn/ubuntu/ bionic-security main restricted universe multiverse
deb-src https://mirrors.ustc.edu.cn/ubuntu/ bionic-proposed main restricted universe multiverse

添加完后，保存并关闭该文档。

在终端输入：

sudo apt update
sudo apt upgrade

2.安装ROS

使用清华的镜像源：

sudo sh -c '. /etc/lsb-release && echo "deb http://mirrors.tuna.tsinghua.edu.cn/ros/ubuntu/ `lsb_release -cs` main" > /etc/apt/sources.list.d/ros-latest.list'

设置密钥：

sudo apt-key adv --keyserver 'hkp://keyserver.ubuntu.com:80' --recv-key C1CF6E31E6BADE8868B172B4F42ED6FBAB17C654

更新安装：

sudo apt update
sudo apt install ros-noetic-desktop-full

设置环境变量：

echo "source /opt/ros/noetic/setup.bash" >> ~/.bashrc
source ~/.bashrc

安装完成！！！！

3.测试ROS是否安装成功

下面测试一下ROS是否安装成功：

参考：

https://www.cnblogs.com/linuxAndMcu/p/10564875.html

https://blog.csdn.net/shanpenghui/article/details/89041359

在终端输入：

roscore

要新开启一个终端，运行turtlesim功能包，输入：

rosrun turtlesim turtlesim_node

再新开启一个终端，运行键盘控制，输入：

rosrun turtlesim turtle_teleop_key

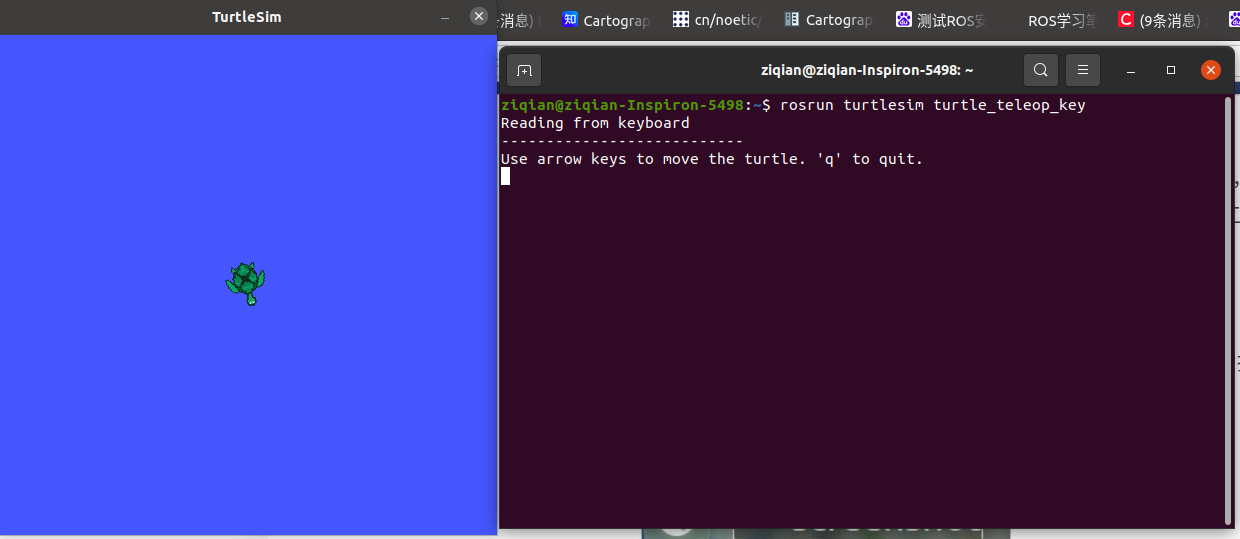

如果这些步骤能正常启动和小乌龟可以由键盘正常控制行走，就安装成功了，如下图：

二、安装Cartographer

官方链接：https://google-cartographer-ros.readthedocs.io/en/latest/

参考链接：cartographer安装教程及踩坑实录

1.先安装一些工具：wstool,rosdep和Ninja:

在终端输入：

sudo apt-get update
sudo apt-get install -y python3-wstool python3-rosdep ninja-build stow

2. 加入谷歌服务器域名

由于从google直接下载代码包可能会访问失败，所以需要做如下修改：

sudo gedit /etc/resolv.conf

将原有的nameserver这一行注释，并添加以下两行：

nameserver 8.8.8.8
nameserver 8.8.4.4

然后保存并关闭文件。（更改后，浏览器可能无法正常访问网页）

3.下载三个代码包

创建一个cartographer_ros 的工作空间，名字叫作 ‘catkin_ws‘：

mkdir catkin_ws
cd catkin_ws

wstool init src

由于我按照官方教程在使用wstool工具下载安装包时，使用命令

wstool merge -t src https://raw.githubusercontent.com/cartographer-project/cartographer_ros/master/cartographer_ros.rosinstall

会报错（访问被拒绝）。于是选择分别从git地址clone三个代码包：

  cd src
  git clone https://github.com/googlecartographer/cartographer_ros.git
  git clone https://github.com/googlecartographer/cartographer.git
  git clone https://github.com/ceres-solver/ceres-solver.git

使用以上方法可以下载成功

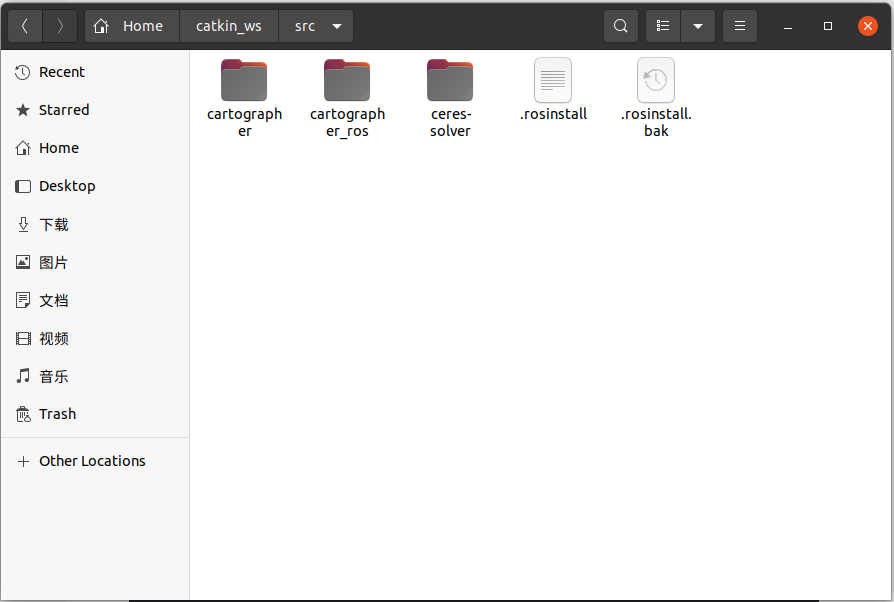

在src文件夹下面可以看到三个代码包

4.安装依赖项：

sudo rosdep init
rosdep update
rosdep install --from-paths src --ignore-src --rosdistro=${ROS_DISTRO} -y

执行完可能会报错，但是这个错误可以忽略不管。

安装abseil-cpp 库

继续输入以下命令：

src/cartographer/scripts/install_abseil.sh

sudo apt-get remove ros-${ROS_DISTRO}-abseil-cpp

5.编译链接

catkin_make_isolated --install --use-ninja

链接成功后，即可下载cartographer 例子数据包进行测试

6.下载cartographer 例子数据包

2D数据包下载的命令如下：

wget -P ~/Downloads https://storage.googleapis.com/cartographer-public-data/bags/backpack_2d/cartographer_paper_deutsches_museum.bag

3D数据包下载的命令如下：

wget -P ~/Downloads https://storage.googleapis.com/cartographer-public-data/bags/backpack_3d/with_intensities/b3-2016-04-05-14-14-00.bag

7. launch数据包

直接执行launch语句来run数据包，可能会报错，所以通常加一句：

source install_isolated/setup.bash

launch 2D：

roslaunch cartographer_ros demo_backpack_2d.launch bag_filename:=${HOME}/Downloads/cartographer_paper_deutsches_museum.bag

launch 3D:

roslaunch cartographer_ros demo_backpack_3d.launch bag_filename:=${HOME}/Downloads/b3-2016-04-05-14-14-00.bag

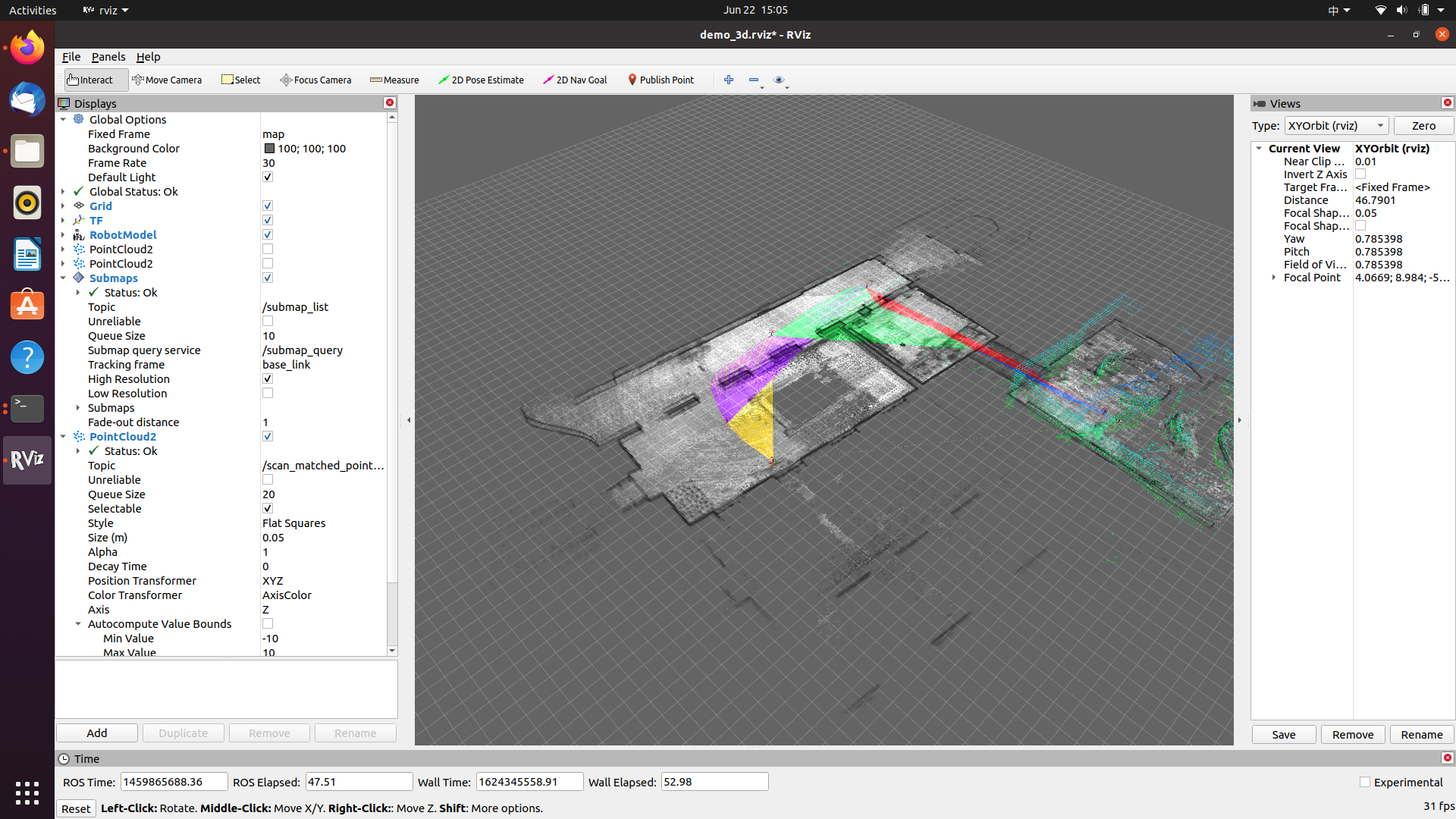

执行成功后，3D效果如下：

8.将服务器域名恢复原状

输入命令：

sudo gedit /etc/resolv.conf

将原来注释掉的nameserver这一行，把注释去掉

将后来加入的

nameserver 8.8.8.8
nameserver 8.8.4.4

注释起来。

这样，浏览器又可以正常访问网页了。
