SPI的配置和使用

@(MSP432P401R)

SPI的配置

在这里插入图片描述

SPI的API的使用

SPI_Transaction

在这里插入图片描述

count即帧数，传输到 SPI 总线上的最小单个数据单元称为 SPI 帧
txBuf即发送缓冲区
rxBuf即接收缓冲区
arg即自定义参数

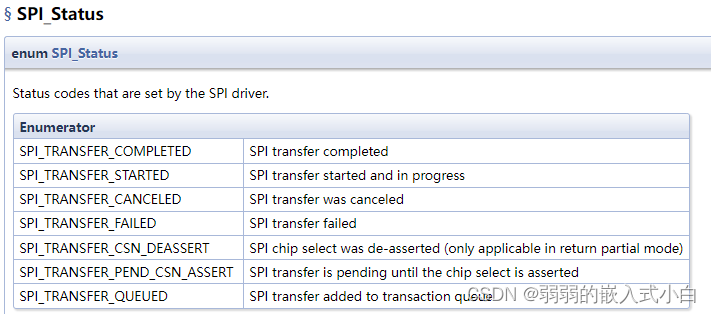

status即SPI状态
nextPtr即下一个指针，驱动程序内部使用

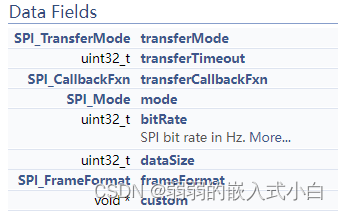

SPI参数

在这里插入图片描述

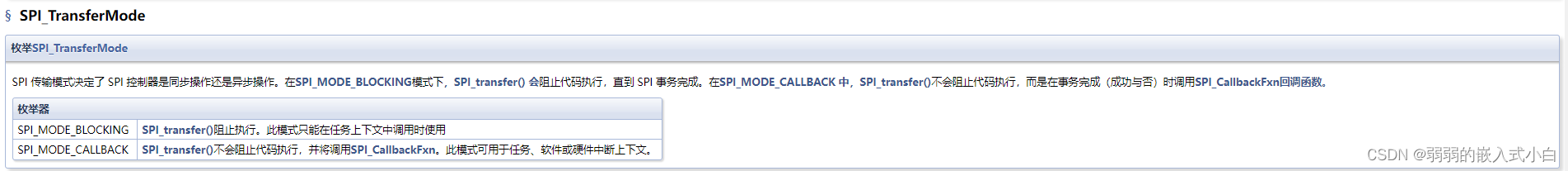

transferMode即传输模式
transferTimeout即传输超时时间
transferCallbackFxn即回调函数

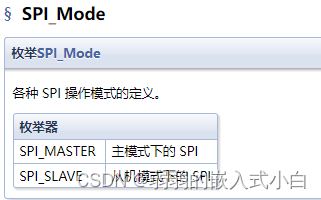

mode即SPI模式
bitRate即比特率
dataSize即数据帧的位数

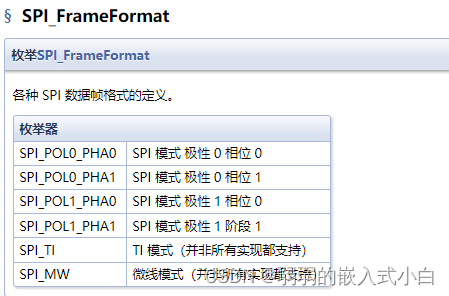

frameFormat即帧格式
custom即自定义参数

函数表（略）

全局配置（略）

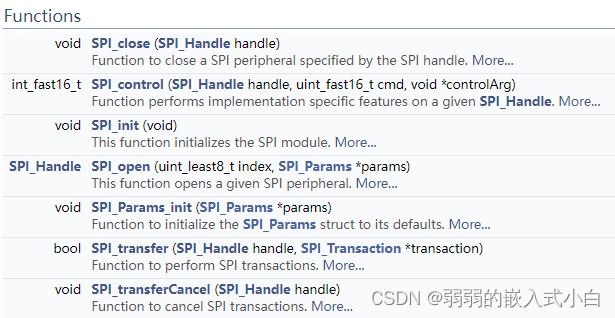

功能函数

在这里插入图片描述

重要函数

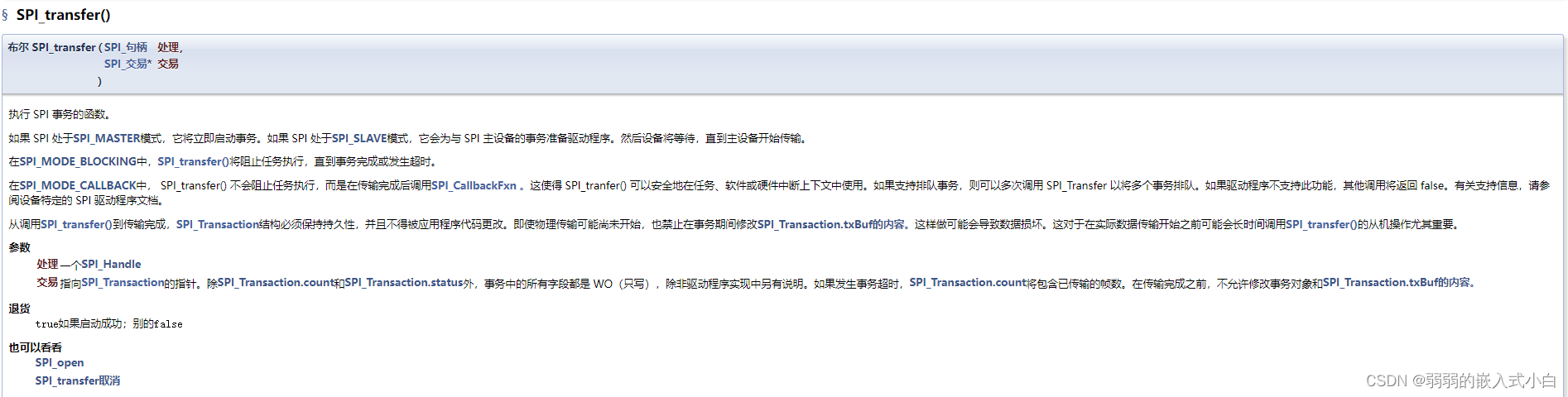

传输函数(发送/接收数据)
bool SPI_transfer(SPI_Handle handle,SPI_Transaction * transaction )

文档链接：
file:///D:/MSP%20SDK/simplelink_msp432p4_sdk_3_40_01_02/docs/tidrivers/doxygen/html/_s_p_i_8h.html#ab9ea76c6529d6076eee5e1c4a5a92c6f
https://blog.csdn.net/u010632165/article/details/109460814
https://blog.csdn.net/zangqihu/article/details/122626009?spm=1001.2101.3001.6650.7&utm_medium=distribute.pc_relevant.none-task-blog-2%7Edefault%7EBlogCommendFromBaidu%7Edefault-7-122626009-blog-109460814.pc_relevant_multi_platform_whitelistv2&depth_1-utm_source=distribute.pc_relevant.none-task-blog-2%7Edefault%7EBlogCommendFromBaidu%7Edefault-7-122626009-blog-109460814.pc_relevant_multi_platform_whitelistv2&utm_relevant_index=13

SPI驱动OLED（未成功）

//#include "msp.h"
#include <stdint.h>
/* Driver Header files */
#include <ti/drivers/SPI.h>
#include <ti/drivers/GPIO.h>
#include <ti/drivers/apps/LED.h>
/* Driver Configuration */
#include "ti_drivers_config.h"
/**
 * main.c
 */
SPI_Handle      spi;
SPI_Params      spiParams;
SPI_Transaction spiTransaction;
bool transferOK;
uint8_t receiveBuffer[100];
uint8_t F8x16[]=
{0x00,0x00,0x00,0x30,0x00,0x30,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//".",0
        /* (8 X 16 , 宋体 ) */
0x00,0x00,0x00,0x60,0x00,0x18,0x00,0x07,0xC0,0x00,0x38,0x00,0x04,0x00,0x00,0x00,//"/",1
        /* (8 X 16 , 宋体 ) */
0x00,0x00,0xE0,0x0F,0x10,0x10,0x08,0x20,0x08,0x20,0x10,0x10,0xE0,0x0F,0x00,0x00,//"0",2
        /* (8 X 16 , 宋体 ) */
0x00,0x00,0x00,0x00,0x10,0x20,0x10,0x20,0xF8,0x3F,0x00,0x20,0x00,0x20,0x00,0x00,//"1",3
        /* (8 X 16 , 宋体 ) */
0x00,0x00,0x70,0x30,0x08,0x28,0x08,0x24,0x08,0x22,0x08,0x21,0xF0,0x30,0x00,0x00,//"2",4
        /* (8 X 16 , 宋体 ) */
0x00,0x00,0x30,0x18,0x08,0x20,0x08,0x21,0x08,0x21,0x88,0x22,0x70,0x1C,0x00,0x00,//"3",5
        /* (8 X 16 , 宋体 ) */
0x00,0x00,0x00,0x06,0x80,0x05,0x40,0x24,0x30,0x24,0xF8,0x3F,0x00,0x24,0x00,0x24,//"4",6
        /* (8 X 16 , 宋体 ) */
0x00,0x00,0xF8,0x19,0x88,0x20,0x88,0x20,0x88,0x20,0x08,0x11,0x08,0x0E,0x00,0x00,//"5",7
        /* (8 X 16 , 宋体 ) */
0x00,0x00,0xE0,0x0F,0x10,0x11,0x88,0x20,0x88,0x20,0x90,0x20,0x00,0x1F,0x00,0x00,//"6",8
        /* (8 X 16 , 宋体 ) */
0x00,0x00,0x18,0x00,0x08,0x00,0x08,0x3E,0x88,0x01,0x68,0x00,0x18,0x00,0x00,0x00,//"7",9
        /* (8 X 16 , 宋体 ) */
0x00,0x00,0x70,0x1C,0x88,0x22,0x08,0x21,0x08,0x21,0x88,0x22,0x70,0x1C,0x00,0x00,//"8",10
        /* (8 X 16 , 宋体 ) */
0x00,0x00,0xF0,0x01,0x08,0x12,0x08,0x22,0x08,0x22,0x10,0x11,0xE0,0x0F,0x00,0x00,//"9",11
        /* (8 X 16 , 宋体 ) */

};
uint8_t F16x16[]=
{
0x08,0x00,0x08,0x80,0x08,0x40,0x08,0x20,0x08,0x18,0xF8,0x07,0x89,0x00,0x8E,0x00,
0x88,0x40,0x88,0x80,0x88,0x40,0x88,0x3F,0x08,0x00,0x08,0x00,0x08,0x00,0x00,0x00,//"方",0
/* (16 X 16 , 宋体 ) */

0x10,0x04,0x60,0x04,0x02,0x7C,0x0C,0x03,0xC0,0x80,0x00,0x60,0xF8,0x1F,0x88,0x80,
0x88,0x43,0x88,0x2C,0xFF,0x10,0x88,0x28,0x88,0x46,0xA8,0x81,0x18,0x80,0x00,0x00,//"波",1
/* (16 X 16 , 宋体 ) */
0x00,0x40,0x02,0x40,0x02,0x40,0xC2,0x7F,0x02,0x40,0x02,0x40,0x02,0x40,0xFE,0x7F,
0x82,0x40,0x82,0x40,0x82,0x40,0x82,0x40,0x82,0x40,0x02,0x40,0x00,0x40,0x00,0x00,//"正",2
/* (16 X 16 , 宋体 ) */

0x02,0x00,0xE2,0x43,0x22,0x82,0x22,0x42,0x3E,0x3E,0x00,0x00,0x08,0x21,0x88,0x71,
0x48,0x29,0x39,0x25,0x0E,0x23,0x08,0x21,0xC8,0x28,0x08,0x70,0x08,0x00,0x00,0x00,//"弦",3
/* (16 X 16 , 宋体 ) */
0x00,0x20,0x04,0x20,0x84,0x20,0x84,0x20,0x84,0x20,0x84,0x20,0x84,0x20,0x84,0x20,
0x84,0x20,0x84,0x20,0x84,0x20,0x84,0x20,0x84,0x20,0x04,0x20,0x00,0x20,0x00,0x00,//"三",4
/* (16 X 16 , 宋体 ) */

0x20,0x80,0x10,0x60,0xE8,0x1F,0x24,0x09,0x27,0x09,0x24,0x09,0x24,0x09,0xE4,0x7F,
0x24,0x09,0x34,0x09,0x2C,0x49,0x20,0x89,0xE0,0x7F,0x00,0x00,0x00,0x00,0x00,0x00,//"角",5
/* (16 X 16 , 宋体 ) */
};


uint32_t oled_pow(uint8_t m,uint8_t n);
void delay_ms(uint32_t ms);
//void User_SPICallback(SPI_Handle spi, SPI_Transaction *tran);
void OLED_Set_Pos_16x16(uint8_t x,uint8_t y);
void OLED_Set_Pos_8x16(uint8_t x,uint8_t y);
void OLED_Display_On(void);
void OLED_Display_Off(void);
void OLED_Clear(void);
void OLED_ShowChar(uint8_t x,uint8_t y,uint8_t chr);
void OLED_ShowNum_int(uint8_t x,uint8_t y,uint32_t num);
void OLED_ShowNum_float(uint8_t x,uint8_t y,uint8_t n,float num);
void OLED_ShowString(uint8_t x,uint8_t y,uint8_t *chr);
void OLED_ShowCHinese(uint8_t x,uint8_t y,uint8_t no);
void OLED_Init(void);

/**
 * main.c
 */
void *mainThread(void *arg0)
{
    GPIO_init();
    SPI_init();  // Initialize the SPI driver
    SPI_Params_init(&spiParams);  // Initialize SPI parameters
    //spiParams.transferMode=SPI_MODE_CALLBACK;
    spiParams.transferMode=SPI_MODE_BLOCKING;
    spiParams.transferTimeout=100000;
    //spiParams.transferCallbackFxn=User_SPICallback;
    spiParams.mode=SPI_MASTER;
    spiParams.dataSize=8;
    spiParams.frameFormat=SPI_POL0_PHA0;
    spiParams.bitRate=5000000;
      // 8-bit data size
    spi = SPI_open(CONFIG_SPI_0, &spiParams);
    if (spi == NULL)
    {
        while (1);  // SPI_open() failed
    }
    // Fill in transmitBuffer
    //GPIO_write(CONFIG_GPIO_3,CONFIG_GPIO_LED_ON);
    OLED_Init();
    OLED_ShowCHinese(8,1,0);
    GPIO_write(CONFIG_GPIO_3,CONFIG_GPIO_LED_ON);
    return (NULL);
}


//void User_SPICallback(SPI_Handle spi, SPI_Transaction *tran)
//{
//}

uint32_t oled_pow(uint8_t m,uint8_t n)
{
    uint32_t result=1;
    while(n--)result*=m;
    return result;
}

void delay_ms(uint32_t ms)
{
    uint16_t a;
    while(ms)
    {
        a=4000;
        while(a--);
        ms--;
    }
    return;
}


void OLED_Set_Pos_16x16(uint8_t x,uint8_t y)
{

    uint8_t CMD[6]={0x21,0x00+x,0x00+x+15,0x22,0x00+y,0x00+y+1};
    GPIO_write(CONFIG_GPIO_1,0);//CS
    GPIO_write(CONFIG_GPIO_0,0);//DC
    spiTransaction.count = 6;
    spiTransaction.txBuf = (void*)(CMD);
    //spiTransaction.rxBuf = (void *)receiveBuffer;
    transferOK = SPI_transfer(spi, &spiTransaction);
    if (!transferOK)
    {
        // Error in SPI or transfer already in progress.
        while (1);
    }
    GPIO_write(CONFIG_GPIO_1,1);//CS
}
void OLED_Set_Pos_8x16(uint8_t x,uint8_t y)
{

    uint8_t CMD[6]={0x21,0x00+x,0x00+x+7,0x22,0x00+y,0x00+y+1};
    GPIO_write(CONFIG_GPIO_1,0);//CS
    GPIO_write(CONFIG_GPIO_0,0);//DC
    spiTransaction.count = 6;
    spiTransaction.txBuf = (void*)(CMD);
    //spiTransaction.rxBuf = (void *)receiveBuffer;
    transferOK = SPI_transfer(spi, &spiTransaction);
    if (!transferOK)
    {
        // Error in SPI or transfer already in progress.
        while (1);
    }
    GPIO_write(CONFIG_GPIO_1,1);//CS
}
void OLED_Display_On(void)
{

    uint8_t CMD[3]={0x8D,0x14,0xAF};
    GPIO_write(CONFIG_GPIO_1,0);//CS
    GPIO_write(CONFIG_GPIO_0,0);//DC
    spiTransaction.count = 3;
    spiTransaction.txBuf = (void*)(CMD);
    //spiTransaction.rxBuf = (void *)receiveBuffer;
    transferOK = SPI_transfer(spi, &spiTransaction);
    if (!transferOK)
    {
        // Error in SPI or transfer already in progress.
        while (1);
    }
    GPIO_write(CONFIG_GPIO_1,1);//CS

}
void OLED_Display_Off(void)
{
    uint8_t CMD[3]={0x8D,0x10,0xAE};
    GPIO_write(CONFIG_GPIO_1,0);//CS
    GPIO_write(CONFIG_GPIO_0,0);//DC
    spiTransaction.count = 3;
    spiTransaction.txBuf = (void*)(CMD);
    //spiTransaction.rxBuf = (void *)receiveBuffer;
    transferOK = SPI_transfer(spi, &spiTransaction);
    if (!transferOK)
    {
        // Error in SPI or transfer already in progress.
        while (1);
    }
    GPIO_write(CONFIG_GPIO_1,1);//CS
}
void OLED_Clear(void)
{
    uint32_t i;
    uint8_t CMD[6]={0x21,0x00,0x7f,0x22,0x00,0x07};
    uint8_t DATA[128]={0x00};
    GPIO_write(CONFIG_GPIO_1,0);//CS
    GPIO_write(CONFIG_GPIO_0,0);//DC
    spiTransaction.count = 6;
    spiTransaction.txBuf = (void*)(CMD);
    //spiTransaction.rxBuf = (void *)receiveBuffer;
    transferOK = SPI_transfer(spi, &spiTransaction);
    if (!transferOK)
    {
        // Error in SPI or transfer already in progress.
        while (1);
    }
    GPIO_write(CONFIG_GPIO_1,1);//CS

    GPIO_write(CONFIG_GPIO_1,0);//CS
    GPIO_write(CONFIG_GPIO_0,1);//DC
    spiTransaction.count = 1024;
    spiTransaction.txBuf = (void*)(DATA);
    //spiTransaction.rxBuf = (void *)receiveBuffer;
    transferOK = SPI_transfer(spi, &spiTransaction);
    if (!transferOK)
    {
        // Error in SPI or transfer already in progress.
        while (1);
    }

    for(i=0;i<8;i++)
    {
        spiTransaction.count = 128;
        spiTransaction.txBuf = (void*)(DATA);
        //spiTransaction.rxBuf = (void *)receiveBuffer;
        transferOK = SPI_transfer(spi, &spiTransaction);
        if (!transferOK)
        {
            // Error in SPI or transfer already in progress.
            while (1);
        }
        delay_ms(30);
    } //更新显示

    GPIO_write(CONFIG_GPIO_1,1);//CS

}
void OLED_ShowChar(uint8_t x,uint8_t y,uint8_t chr)
{
    uint8_t c;
    c=chr-'.';
    if(x>127){x=0;y=y+2;}
    OLED_Set_Pos_8x16(x,y);
    GPIO_write(CONFIG_GPIO_1,0);//CS
    GPIO_write(CONFIG_GPIO_0,1);
    spiTransaction.count = 16;
    spiTransaction.txBuf = (void*)(F8x16+c*16);
    //spiTransaction.rxBuf = (void *)receiveBuffer;
    transferOK = SPI_transfer(spi, &spiTransaction);
    if (!transferOK)
    {
        // Error in SPI or transfer already in progress.
        while (1);
    }
    GPIO_write(CONFIG_GPIO_1,1);//CS
}
void OLED_ShowNum_int(uint8_t x,uint8_t y,uint32_t num)
{
    uint32_t t,temp,len;
    uint32_t Num=num;
    len=1;
    while(Num/10)
    {
        len++;
        Num=Num/10;
    }
    for(t=0;t<len;t++)
    {
        temp=(num/oled_pow(10,len-t-1))%10;
        OLED_ShowChar(x+8*t,y,temp+'0');//显示每一位

    }
}

显示1个浮点数数字（带小数）
x,y :起点坐标
n:显示的小数部分位数
num:数值
void OLED_ShowNum_float(uint8_t x,uint8_t y,uint8_t n,float num)
{
    uint8_t len;
    uint32_t Num1,Num2,Num_Float;
    float num1,num2;
    Num1=Num2=(int)num;
    OLED_ShowNum_int(x,y,Num1);//整数部分
    len=1;
    while(Num1/10)
    {
        len++;
        Num1=Num1/10;
    }
    OLED_ShowChar(x+len*8,y,'.');//小数点
    num1=num-Num2;
    num2=num1*oled_pow(10,n);
    //Num_Float=(int)((num-Num2)*oled_pow(10,n));
    Num_Float=(int)num2;
    OLED_ShowNum_int(x+(len+1)*8,y,Num_Float);//小数部分

}
/**
  * @brief   显示一个字符串
  * @param   x : uint8_t 起点列坐标
  * @param   y : uint8_t 起点行坐标
  * @param   chr : uint8_t *字符串指针
  * @retval  无
  */
void OLED_ShowString(uint8_t x,uint8_t y,uint8_t *chr)
{
    uint8_t j=0;
    while (chr[j]!='\0')
    {       OLED_ShowChar(x,y,chr[j]);
            x+=8;
            if(x>120){x=0;y+=2;}//下一行
            j++;
    }
}
void OLED_ShowCHinese(uint8_t x,uint8_t y,uint8_t no)
{
    OLED_Set_Pos_16x16(x,y);
    GPIO_write(CONFIG_GPIO_1,0);//CS
    GPIO_write(CONFIG_GPIO_0,1);
    spiTransaction.count = 32;
    spiTransaction.txBuf = (void*)(F16x16+no*32);
    //spiTransaction.rxBuf = (void *)receiveBuffer;
    transferOK = SPI_transfer(spi, &spiTransaction);
    if (!transferOK)
    {
        // Error in SPI or transfer already in progress.
        while (1);
    }
    GPIO_write(CONFIG_GPIO_1,1);//CS
}
void OLED_Init(void)
{

    GPIO_write(CONFIG_GPIO_2,1);
    ClockP_usleep(100000);
    GPIO_write(CONFIG_GPIO_2,0);
    ClockP_usleep(100000);
    GPIO_write(CONFIG_GPIO_2,1);

    uint8_t CMD1[]={0xAE,0x02,0x10,0x40,0x81,0xCF,0xA1,0xC8,0xA6,0xA8};
    uint8_t CMD2[]={0x3f,0xD3,0x00,0xD5,0x80,0xD9,0xF1,0xDA,0x12,0xDB};
    uint8_t CMD3[]={0x40,0x20,0x01,0x8D,0x14,0xA4,0xA6,0xAF,0xAF};
    GPIO_write(CONFIG_GPIO_1,0);//CS
    GPIO_write(CONFIG_GPIO_0,0);
    spiTransaction.count = 10;
    spiTransaction.txBuf = (void*)(CMD1);
    spiTransaction.rxBuf = (void *)receiveBuffer;
    transferOK = SPI_transfer(spi, &spiTransaction);
    if (!transferOK)
    {
        // Error in SPI or transfer already in progress.
        while (1);
    }
    spiTransaction.count = 10;
    spiTransaction.txBuf = (void*)(CMD2);
    spiTransaction.rxBuf = (void *)receiveBuffer;
    transferOK = SPI_transfer(spi, &spiTransaction);
     if (!transferOK)
     {
         // Error in SPI or transfer already in progress.
         while (1);
     }
     spiTransaction.count = 9;
     spiTransaction.txBuf = (void*)(CMD3);
     spiTransaction.rxBuf = (void *)receiveBuffer;
      transferOK = SPI_transfer(spi, &spiTransaction);
       if (!transferOK)
       {
           // Error in SPI or transfer already in progress.
           while (1);
       }
    GPIO_write(CONFIG_GPIO_1,1);//CS
    OLED_Clear();
}
