机械臂手眼标定主要是为了获取机械臂与相机之间的相对位姿关系。本文主要利用opencv中的calibrateHandEye()函数进行标定。
calibrateHandEye()函数

	#每个输入为多帧图像对应的变换矩阵的list->[array1,array2,...]
    R_cam2gripper,T_cam2gripper = calibrateHandEye(R_gripper2base,T_gripper2base,R_target2camera,T_target2camera):

注：从机械臂中读取到的机械臂末端位姿即Ts_end_to_base

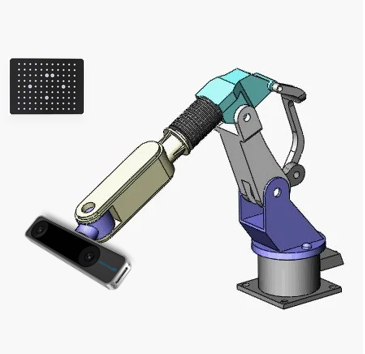

眼在手上

即相机被固定在机械臂末端，标定需要得到相机坐标系到机械臂末端坐标系的变换矩阵。

对于眼在手上的情况，calibrateHandEye()的输入输出参数为：

    """
    R_cam2gripper,T_cam2gripper = calibrateHandEye(R_gripper2base,T_gripper2base,R_target2camera,T_target2camera):
        R_gripper2base : R_end_to_base
        T_gripper2base : T_end_to_base
        R_target2camera : R_board_to_camera
        T_target2camera : T_board_to_camera
        R_cam2gripper : R_camera_to_end
        T_cam2gripper : T_camera_to_end
    """

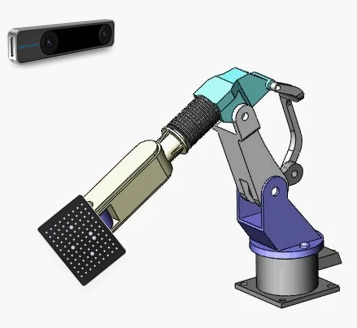

眼在手外

即相机被固定在世界坐标系中某个位置，标定需要得到相机坐标系到机械臂基座坐标系的变换矩阵。

对于眼在手上的情况，calibrateHandEye()的输入输出参数为：

    """
    R_cam2gripper,T_cam2gripper = calibrateHandEye(R_gripper2base,T_gripper2base,R_target2camera,T_target2camera):
        R_gripper2base : R_base_to_hand
        T_gripper2base : T_base_to_hand
        R_target2camera : R_board_to_camera
        T_target2camera : T_board_to_camera
        R_cam2gripper : R_camera_to_base
        T_cam2gripper : T_camera_to_base
    """

代码实现(以眼在手外为例)

marker_detect.py
检测标定板特征点像素坐标，生成对应标定板3D坐标，并计算Ts_board_to_camera。

import numpy as np
import time
import cv2
import cv2.aruco as aruco

# 设置相机参数
mtx = np.array([
        [916.28, 0, 650.7],
        [0, 916.088, 352.941],
        [0, 0, 1],
    ])

dist = np.array([0, 0, 0, 0, 0])

# 欧拉角转换为旋转矩阵
def eulerAnglesToRotationMatrix(theta):
    R_x = np.array([[1,0,0],
                    [0,np.cos(theta[0]),-np.sin(theta[0])],
                    [0,np.sin(theta[0]),np.cos(theta[0])]])

    R_y = np.array([[np.cos(theta[1]),0,np.sin(theta[2])],
                    #[0,-1,0],
                    [0, 1, 0],
                    [-np.sin(theta[1]),0,np.cos(theta[1])]])

    R_z = np.array([[np.cos(theta[2]),-np.sin(theta[2]),0],
                    [np.sin(theta[2]),np.cos(theta[2]),0],
                    [0, 0,1]])

    #return np.dot(np.dot(R_z,R_y),R_x)
    # combined rotation matrix
    R = np.dot(R_z, R_y.dot(R_x))
    return R




# 标定板特征点检测 input:image
# 将检测得到的特征点按照maker的id大小排序
def aruco_detect(frame):
    gray = cv2.cvtColor(frame, cv2.COLOR_BGR2GRAY)
    aruco_dict = aruco.Dictionary_get(aruco.DICT_6X6_250)
    parameters = aruco.DetectorParameters_create()
    '''
    detectMarkers(...)
        detectMarkers(image, dictionary[, corners[, ids[, parameters[, rejectedI
        mgPoints]]]]) -> corners, ids, rejectedImgPoints
    '''
    # lists of ids and the corners beloning to each id
    corners, ids, _ = aruco.detectMarkers(gray,
                                          aruco_dict,
                                          parameters=parameters)
    ids = ids.flatten()
    #将标定板上的标志按id排序，保证与3D点一一对应
    corners_sort = np.zeros((len(corners)*4,2),np.float16)

    ids_sort_idx = np.argsort(ids, -1)#xiao->da


    for i, idx in enumerate(ids_sort_idx):
        corner = corners[idx][0]
        #print(corner[0][0], corner[0][1])
        corners_sort[i * 4, 0] = corner[0][0]
        corners_sort[i * 4, 1] = corner[0][1]
        corners_sort[i * 4+1, 0] = corner[1][0]
        corners_sort[i * 4+1, 1] = corner[1][1]
        corners_sort[i * 4+2, 0] = corner[2][0]
        corners_sort[i * 4+2, 1] = corner[2][1]
        corners_sort[i * 4+3, 0] = corner[3][0]
        corners_sort[i * 4+3, 1] = corner[3][1]

    # 绘制特征点
    # for i,c in enumerate(corners_sort):
    #     print(c)
    #     cv2.putText(frame, str(i+1), (int(c[0]), int(c[1])), cv2.FONT_HERSHEY_SIMPLEX, 1, (0, 255, 0),
    #                 1, cv2.LINE_AA)
    #
    # cv2.imshow("frame", frame)
    # cv2.waitKey(0)
    # key = cv2.waitKey(1)

    return corners_sort

# 生成标定板3D坐标(marker从左到右，从上到下的顺序，每个marker左上角-右上角-右下角-左下角的顺序生成)
def generate_3D_point(grid_size,distance,size = (7,5)):
    point_n = size[0]*size[1]*4
    point_3d = np.zeros((point_n,3),np.float16)
    #print(point_3d.shape)
    for i in range(point_n):
        lu_idx = int(np.floor(i/4))*4
        #print(lu_idx)
        if i%4==0:
            point_3d[i,0] = np.floor(i/4)%5*(grid_size+distance)
            point_3d[i,1] = np.floor(i/(4*size[1]))*(grid_size+distance)
        if i%4==1:
            point_3d[i,0] = point_3d[lu_idx,0]+grid_size
            point_3d[i,1] = point_3d[lu_idx,1]
        if i%4==2:
            point_3d[i, 0] = point_3d[lu_idx, 0] + grid_size
            point_3d[i, 1] = point_3d[lu_idx, 1] + grid_size
        if i%4==3:
            point_3d[i, 0] = point_3d[lu_idx, 0]
            point_3d[i, 1] = point_3d[lu_idx, 1] + grid_size

    return point_3d

#grid_size：每个marker矩形的长度
#distance：marker之间的距离长度
#size:标定板marker的行数，列数 eg：(7,5)
def camera_calibrate(grid_size,distance,frame,size = (7,5)):
    w,h,c = frame.shape
    #生成标定板的3D point
    point_3d = generate_3D_point(grid_size, distance, size)
    #检测图片中标定板的2D point
    corners_2d = aruco_detect(frame)

    #转为统一数据类型
    point_3d = [point_3d.astype('float32')]
    corners_2d = [corners_2d.astype('float32')]
    # 利用3D和2D对应点计算变换矩阵
    (success, rotation_vector, translation_v) = cv2.solvePnP(np.array(point_3d), np.array(corners_2d), mtx, dist,flags=cv2.SOLVEPNP_ITERATIVE)
    rotation_v = cv2.Rodrigues(rotation_vector)[0]

    return rotation_v,translation_v

# 反投影误差
def calculate_rejection_error(corners_2d,point_3d,rotation_v,translation_v,camera_matrix,distortion_coefficient):

    total_error = 0
    for i in range(len(point_3d[0])):
        imgpoints2, _ = cv2.projectPoints(point_3d[0][i], np.array(rotation_v), np.array(translation_v), camera_matrix,
                                          distortion_coefficient)
        imgpoints2 = imgpoints2.flatten()
        # cv2.circle(frame, (int(imgpoints2[0]), int(imgpoints2[1])), 2, (255, 0, 0), 2)
        # cv2.circle(frame, (int(corners_2d[0][i, 0]), int(corners_2d[0][i, 1])), 2, (0, 0, 255), 2)
        error = cv2.norm(corners_2d[0][i, :], imgpoints2, cv2.NORM_L2)
        total_error += error
    #print("total error: ", total_error / len(point_3d))
    return total_error



if __name__ == '__main__':

    frame = cv2.imread("aruco.jpg", -1)

    rvec,tvec = camera_calibrate(10,1,frame)

calibrate.py
利用多帧的Ts_board_to_camera,Ts_hand_to_base标定得到Ts_camera_to_end

import numpy as np
import os
import cv2
import glob
import math
from marker_detect import camera_calibrate,aruco_detect,generate_3D_point,eulerAnglesToRotationMatrix
from quaternions import Quaternion as Quaternion
from scipy.spatial.transform import Rotation as R

#设置标定板尺寸信息 单位（mm）
grid_size = 12.6
offset = 1.4

# 设置相机参数

# 设置相机参数
mtx = np.array([
        [916.28, 0, 650.7],
        [0, 916.088, 352.941],
        [0, 0, 1],
    ])

dist = np.array([0, 0, 0, 0, 0])


# created by Leo Ma at ZJU, 2021.10.05
def get_Ts_board_in_camera(img_name):
    img = cv2.imread(img_name)
    if img is None:
        print("img read error!")
        return -1
    w,h,c = img.shape
    newcameramtx, roi = cv2.getOptimalNewCameraMatrix(mtx, dist, (w, h), 0, (w, h))  # 自由比例参数
    img = cv2.undistort(img, mtx, dist, None, newcameramtx)

    R_board_in_camera,T_board_in_camera = camera_calibrate(grid_size,offset,img)

    Ts_board_in_camera = np.zeros((4,4),np.float)
    Ts_board_in_camera[:3,:3] = R_board_in_camera
    Ts_board_in_camera[:3,3] = np.array(T_board_in_camera).flatten()
    Ts_board_in_camera[3,3] = 1
    return Ts_board_in_camera


def get_Ts_hand_in_base(file):
    if not os.path.exists(file):
        print("file not exist!")
        return -1
    with open(file,"r") as f:
        line = f.readline()
        Ts = line.split(" ")
        Ts = [float(i) for i in Ts]
        #R_hand_in_base= eulerAnglesToRotationMatrix(np.array(Ts[3:]))
        R_hand_in_base= R.from_euler('xyz',np.array(Ts[3:]),degrees=True).as_matrix()

        T_hand_in_base = Ts[:3]
        # R T拼接
        Ts_hand_in_base = np.zeros((4, 4), np.float)
        Ts_hand_in_base[:3, :3] = R_hand_in_base
        Ts_hand_in_base[:3, 3] = np.array(T_hand_in_base).flatten()
        Ts_hand_in_base[3, 3] = 1
    return Ts_hand_in_base

# 根据计算和读取到的Ts_board_to_camera,Ts_hand_to_base，利用calibrateHandEye标定得到变换矩阵
def calibrate_opencv(Ts_board_to_camera,Ts_hand_to_base):
    n = len(Ts_hand_to_base)

    R_base_to_hand = []
    T_base_to_hand = []
    R_board_to_camera = []
    T_board_to_camera = []

    R_hand_to_base = []
    T_hand_to_base = []
    R_camera_to_board = []
    T_camera_to_board = []


    for i in range(n):
        Ts_base_to_hand = np.linalg.inv(Ts_hand_to_base[i])
        R_base_to_hand.append(np.array(Ts_base_to_hand[:3,:3]))
        T_base_to_hand.append(np.array(Ts_base_to_hand[:3,3]))
        R_board_to_camera.append(np.array(Ts_board_to_camera[i][:3,:3]))
        T_board_to_camera.append(np.array(Ts_board_to_camera[i][:3,3]))

    print("R_base_to_hand:\n",R_base_to_hand)
    print("T_base_to_hand:\n",T_base_to_hand)
    print("R_board_to_camera:\n", R_board_to_camera)
    print("T_board_to_camera:\n", T_board_to_camera)
    """
    R_cam2gripper,T_cam2gripper = calibrateHandEye(R_gripper2base,T_gripper2base,R_target2camera,T_target2camera):
        R_gripper2base : R_base_to_hand
        T_gripper2base : T_base_to_hand
        R_target2camera : R_board_to_camera
        T_target2camera : T_board_to_camera
        R_cam2gripper : R_camera_to_base
        T_cam2gripper : T_camera_to_base
    """
    R_camera_to_base,T_camera_to_base = cv2.calibrateHandEye(R_base_to_hand,T_base_to_hand,R_board_to_camera,T_board_to_camera,method=cv2.CALIB_HAND_EYE_TSAI)

    #验证
    # Ts_camera_to_base = np.zeros((4, 4), np.float)
    # Ts_camera_to_base[:3, :3] = R_camera_to_base
    # Ts_camera_to_base[:3, 3] = np.array(T_camera_to_base).flatten()
    # Ts_camera_to_base[3, 3] = 1
    # print("-----------------验证-------------------")
    # print(np.dot(Ts_board_to_camera[0],np.dot(Ts_camera_to_base,np.linalg.inv(Ts_hand_to_base[0]))))
    # print(np.dot(Ts_board_to_camera[1], np.dot(Ts_camera_to_base, np.linalg.inv(Ts_hand_to_base[1]))))
    return R_camera_to_base,T_camera_to_base


# 生成Ts_board_to_camera,Ts_hand_to_base，调用calibrate_opencv
def calibrate(path):
    imgs_name = glob.glob(os.path.join(path,"*-Color.png"))
    files_name = glob.glob(os.path.join(path,"*.txt"))

    n_files = len(imgs_name)

    Ts_hand_in_base_all = []
    Ts_board_in_camera_all = []

    for i in range(n_files):
        file_name = str(i+1)+".txt"
        img_name = str(i+1)+"-Color.png"

        Ts_board_in_camera_all.append(get_Ts_board_in_camera(os.path.join(path,img_name)))
        Ts_hand_in_base_all.append(get_Ts_hand_in_base(os.path.join(path,file_name)))

    R_camera_to_base,T_camera_to_base = calibrate_opencv(Ts_board_in_camera_all,Ts_hand_in_base_all)
    return R_camera_to_base,T_camera_to_base



if __name__ == '__main__':
    #图片所在路径
    path = '..\\data\\'
    R_camera_to_base,T_camera_to_base = calibrate(path)
    print(T_camera_to_base)
    Ts_camera_to_base = np.vstack((np.hstack((R_camera_to_base,T_camera_to_base)),np.array([0,0,0,1])))
    #存储标定结果矩阵
    np.savetxt("calibration.txt", Ts_camera_to_base)
