Springboot新闻管理系统项目的实体类设计，登录功能，以及新闻分类分页显示

Springboot新闻管理系统项目的实体类设计，登录功能，以及新闻分类分页显示

一.Springboot框架搭建，基本配置

1.项目新建

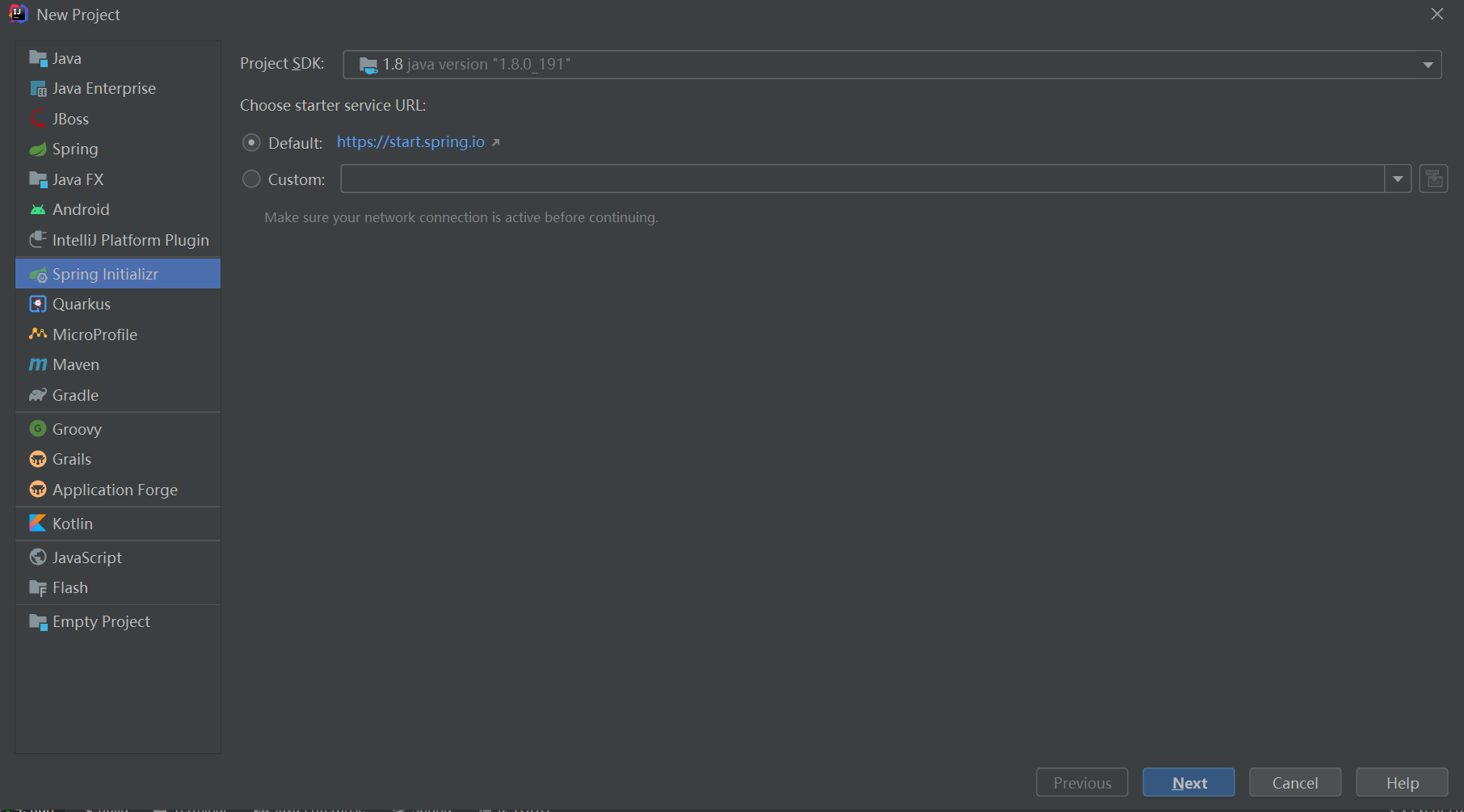

新建springboot项目，选择sdk
在这里插入图片描述

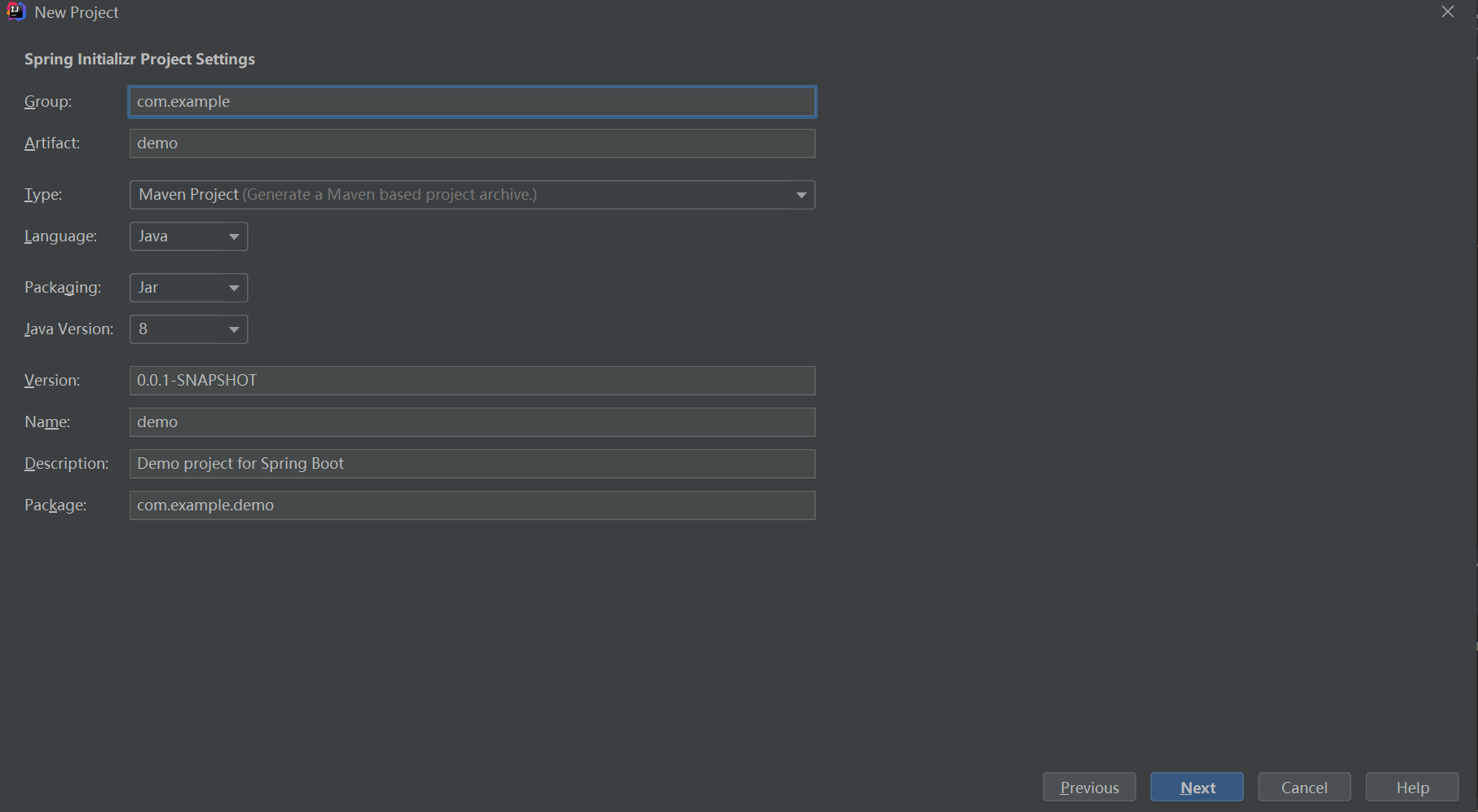

填写项目的基本信息
在这里插入图片描述

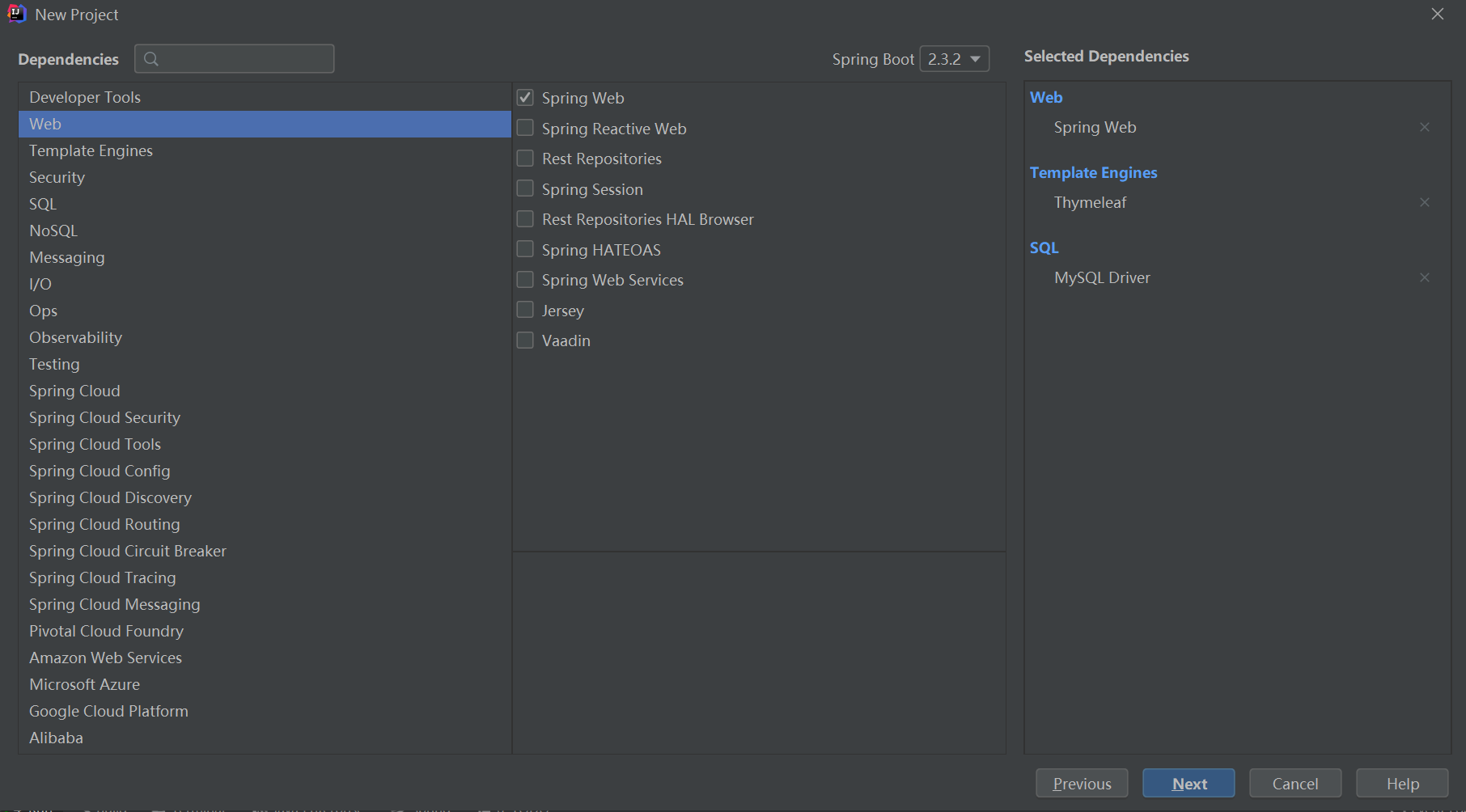

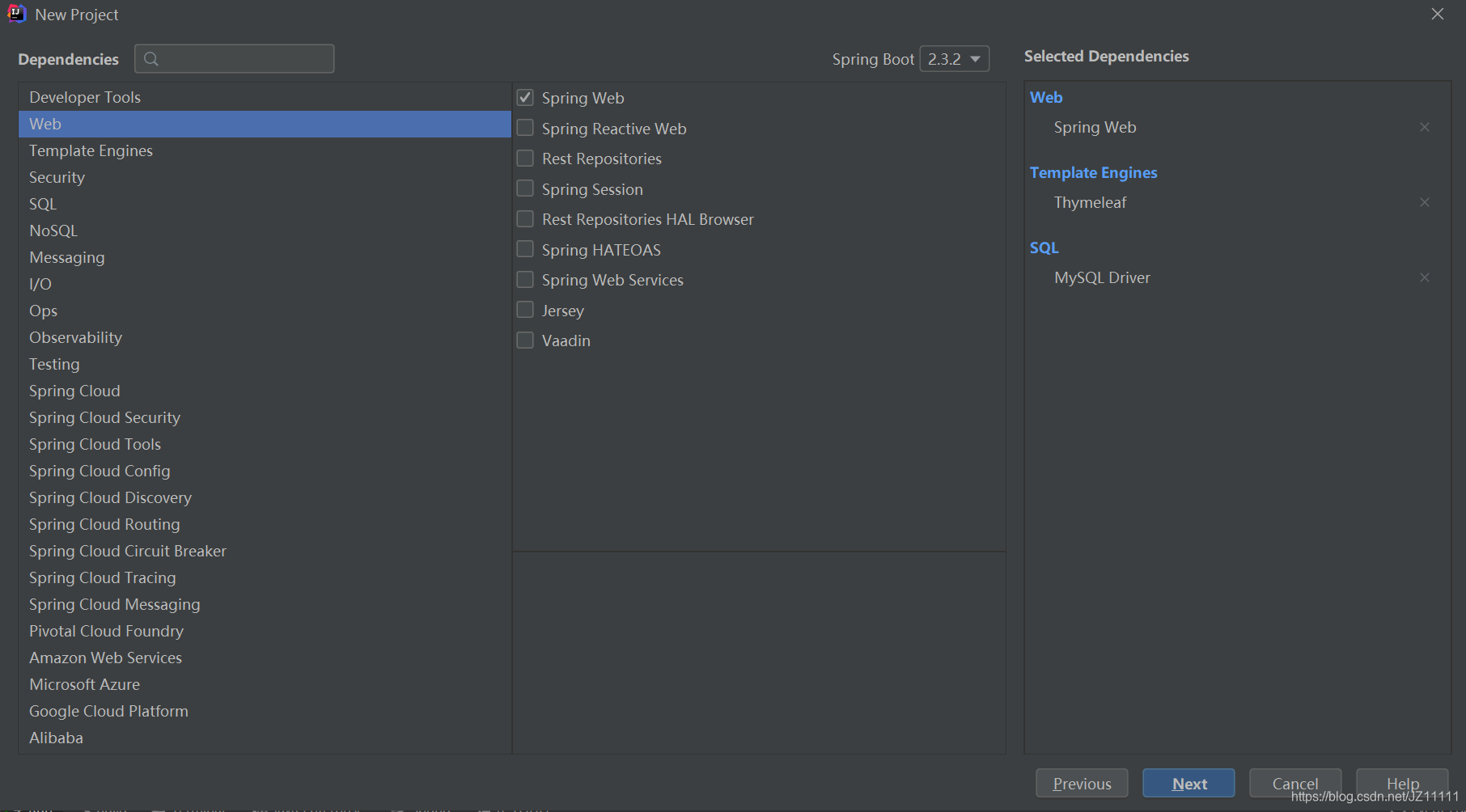

添加springboot工具
在这里插入图片描述

最后完成项目的创建

2.框架搭建以及基本配置

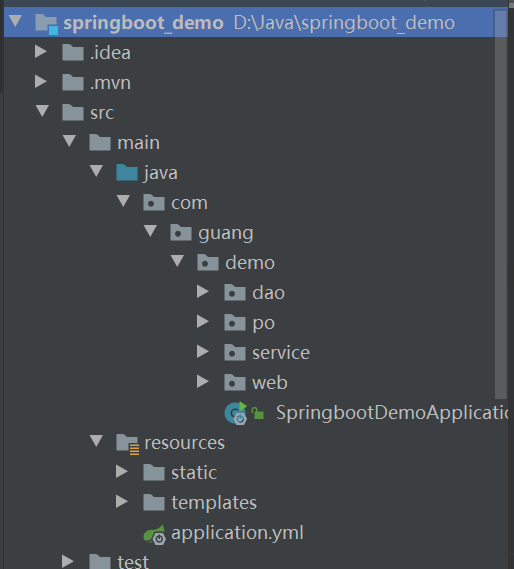

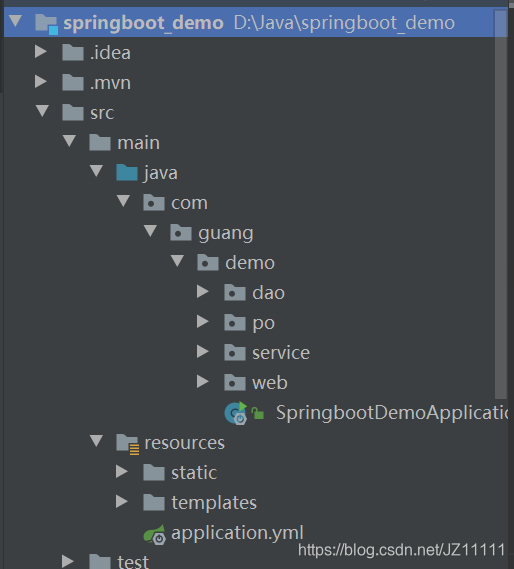

基本框架搭建：
在这里插入图片描述
pom.xml文件的配置

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.1.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.guang</groupId>
    <artifactId>demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>springboot_demo</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-aop</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>com.atlassian.commonmark</groupId>
            <artifactId>commonmark</artifactId>
            <version>0.10.0</version>
        </dependency>

        <dependency>
            <groupId>com.atlassian.commonmark</groupId>
            <artifactId>commonmark-ext-heading-anchor</artifactId>
            <version>0.10.0</version>
        </dependency>
        <dependency>
            <groupId>com.atlassian.commonmark</groupId>
            <artifactId>commonmark-ext-gfm-tables</artifactId>
            <version>0.10.0</version>
        </dependency>


        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.47</version>
            <!--<scope>runtime</scope>-->
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-validation</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.12</version>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

application.yml配置文件：

spring:
  datasource:
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql://localhost:3306/springboot?useSSL=false&useUnicode=true&characterEncoding=UTF-8&serverTimezone=Asia/Shanghai
    username: root
    password: 123456

  jpa:
    hibernate:
      ddl-auto: update
      use-new-id-generator-mappings: false
    show-sql: true

  thymeleaf:
    mode: HTML
  profiles:
    active: dev

二.实体类设计

1.User类

package com.guang.demo.po;

import lombok.Data;
import lombok.NoArgsConstructor;

import javax.persistence.*;
import java.util.ArrayList;
import java.util.Date;
import java.util.List;

@Data
@NoArgsConstructor
@Entity
@Table(name = "t_user")//自动创建数据库表
public class User {

    @Id      //主键标识
    @GeneratedValue(strategy = GenerationType.IDENTITY)//主键Id自增
    private Long id;

    private String nickname;
    private String username;
    private String password;
    private String email;
    private String avatar;
    private Integer type;

    @Temporal(TemporalType.TIMESTAMP)  //时间戳
    private Date createTime;

    @Temporal(TemporalType.TIMESTAMP)
    private Date updateTime;

    @OneToMany(mappedBy = "user")
    private List<News> newsList = new ArrayList<>();


}

2.Type类

package com.guang.demo.po;

import lombok.Data;
import lombok.NoArgsConstructor;

import javax.persistence.*;
import java.util.ArrayList;
import java.util.List;

@Data
@NoArgsConstructor
@Entity
@Table(name = "t_type")
public class Type {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;
    private String name;

    @OneToMany(mappedBy = "type")
    private List<News> news = new ArrayList<>();


}

3.News类

package com.guang.demo.po;
import lombok.Data;
import lombok.NoArgsConstructor;

import javax.persistence.*;
import java.util.Date;


@Data
@NoArgsConstructor
@Entity
@Table(name = "t_news")
public class News {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    private String title;

    @Basic(fetch = FetchType.LAZY)
    @Lob
    private String content;
    private String firstPicture;
    private String flags;
    private String views;
    private boolean appreciation;
    private boolean shareStatement;
    private boolean commentabled;
    private boolean published;
    private boolean recommend;


    @Temporal(TemporalType.TIMESTAMP)
    private Date createTime;

    @Temporal(TemporalType.TIMESTAMP)
    private Date updateTime;


    @ManyToOne
    private  Type type;

    @ManyToOne
    private  User user;

}

三.登录功能实现

1.dao层

package com.guang.demo.dao;


import com.guang.demo.po.User;
import org.springframework.data.jpa.repository.JpaRepository;

public interface UserRepository extends JpaRepository<User,Long> {
    //根据用户名称和密码查找用户
    User findByUsernameAndPassword(String username,String password);

}

2.service层

UserService:

package com.guang.demo.service;

import com.guang.demo.po.User;
import org.springframework.data.repository.query.Param;

public interface UserService {

    //确认用户名密码是否正确
    public User checkUsers(@Param("username") String username, @Param("password") String password);
}

UserServiceImpl:

package com.guang.demo.service;

import com.guang.demo.dao.UserRepository;
import com.guang.demo.po.User;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

@Service
public class UserServiceImpl implements UserService{
    @Autowired
    private UserRepository userRepository;

    @Override
    public User checkUsers(String username, String password) {
        return userRepository.findByUsernameAndPassword(username,password);
    }
}

3.web层

在web层下创建admin包，在admin下创建LoginController类

package com.guang.demo.web.admin;


import com.guang.demo.po.User;
import com.guang.demo.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.servlet.mvc.support.RedirectAttributes;

import javax.servlet.http.HttpSession;

@Controller
@RequestMapping("/admin")
public class LoginController {
    @Autowired
    private UserService userService;

    //跳转到用户登录界面
    @GetMapping
    public String loginPage(){
        return "admin/login";
    }

    //用户登录
    @PostMapping("/login")
    public String login(@RequestParam String username, @RequestParam String password,
                        HttpSession session, RedirectAttributes attributes){
        User user = userService.checkUsers(username, password);
        if (user!=null){
            user.setPassword(null);
            session.setAttribute("user",user);
            return "admin/index";
        }else {
            attributes.addFlashAttribute("message","用户名或密码错误！");
            return "redirect:/admin";
        }

    }

    //用户注销
    @GetMapping("/logout")
    public String logout(HttpSession session){
        session.removeAttribute("user");
        return "redirect:/admin";
    }

}

4.登录功能实现

打开浏览器输入网址：http://localhost:8080/admin

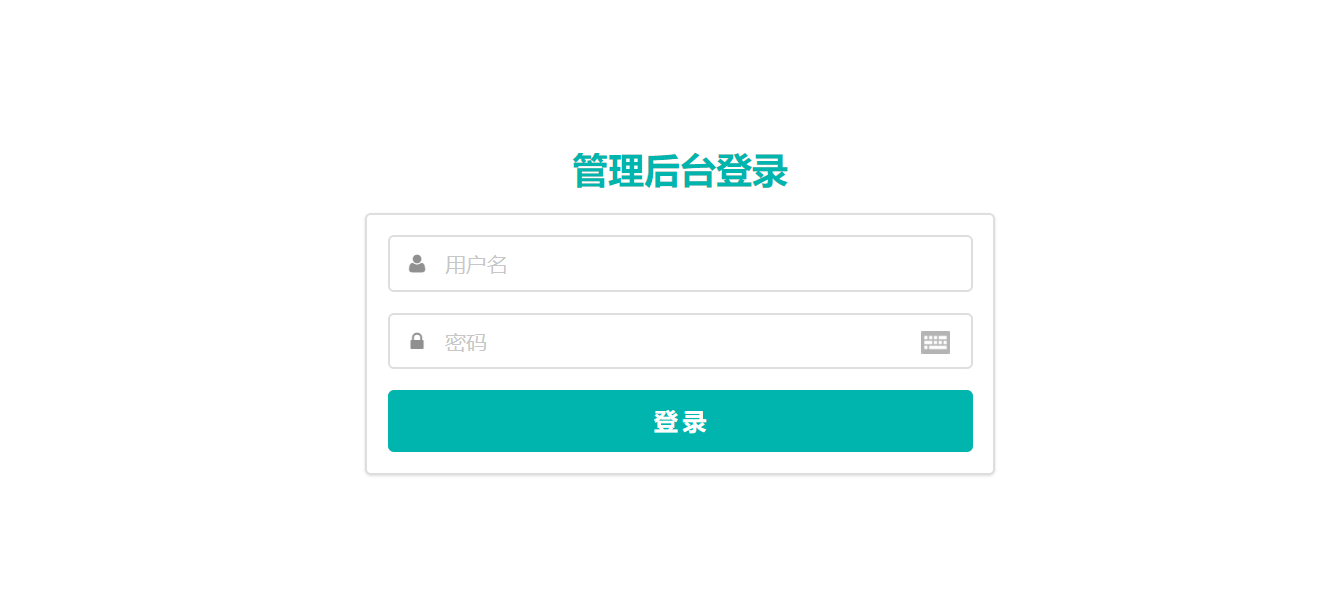

登录界面
在这里插入图片描述

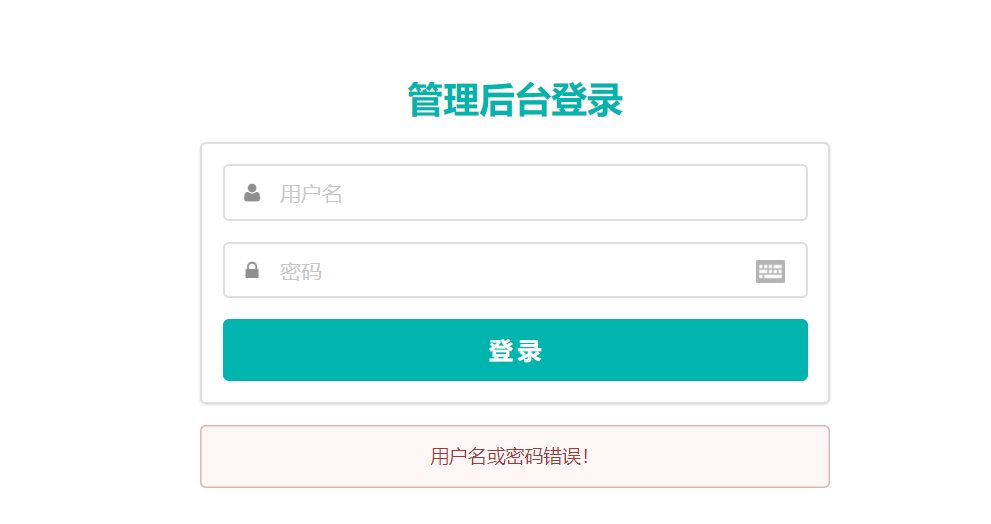

用户名或者密码错误：
在这里插入图片描述

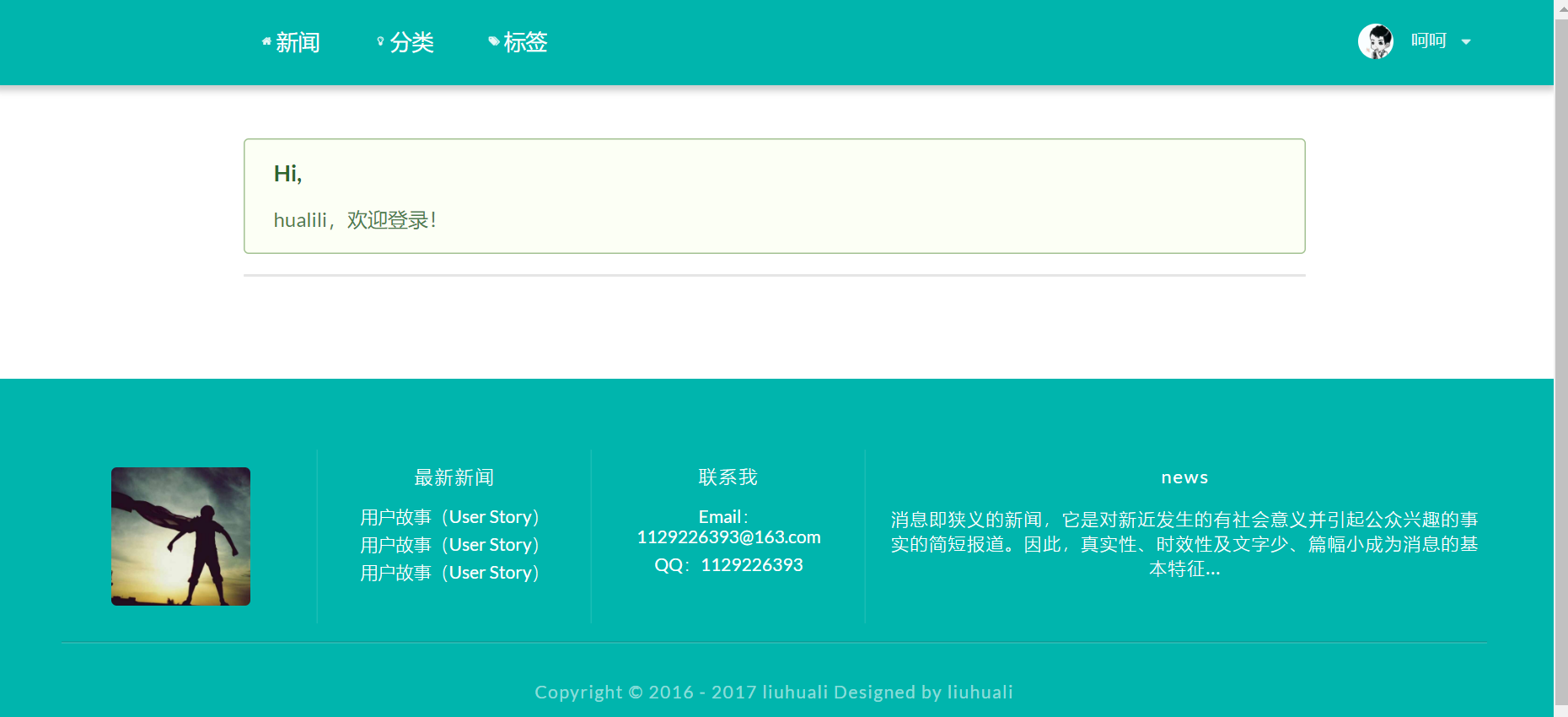

登录成功后会跳转到index界面
在这里插入图片描述

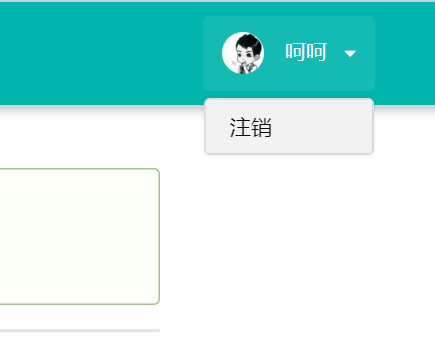

点击注销会注销用户信息，跳转会登录界面
在这里插入图片描述

四.分类分页显示

1.dao层

创建TypeRepository接口继承JRP

package com.guang.demo.dao;

import com.guang.demo.po.Type;
import org.springframework.data.jpa.repository.JpaRepository;


public interface TypeRepository extends JpaRepository<Type,Long> {

}

2.service层

TypeService：

package com.guang.demo.service;

import com.guang.demo.po.Type;
import org.springframework.data.domain.Page;
import org.springframework.data.domain.Pageable;

public interface TypeService {

    Page<Type> listType(Pageable pageable);
}

TypeServiceImpl：

package com.guang.demo.service;

import com.guang.demo.dao.TypeRepository;
import com.guang.demo.po.Type;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.domain.Page;
import org.springframework.data.domain.Pageable;
import org.springframework.stereotype.Service;

@Service
public class TypeServiceImpl implements TypeService{

    @Autowired
    private TypeRepository typeRepository;

    @Override
    public Page<Type> listType(Pageable pageable) {
        return typeRepository.findAll(pageable);
    }
}

3.web层

在admin包下创建TypeController类

package com.guang.demo.web.admin;

import com.guang.demo.service.TypeService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.domain.Pageable;
import org.springframework.data.domain.Sort;
import org.springframework.data.web.PageableDefault;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;


@Controller
@RequestMapping("/admin")
public class TypeController {

    @Autowired
    private TypeService typeService;

    //实现新闻分类分页功能
    @RequestMapping("/types")
    public String type(@PageableDefault(size = 3,sort = {"id"},direction = Sort.Direction.DESC)
                       Pageable pageable, Model model) {
        model.addAttribute("page",typeService.listType(pageable));
        return "admin/types";
    }

}

4.功能实现

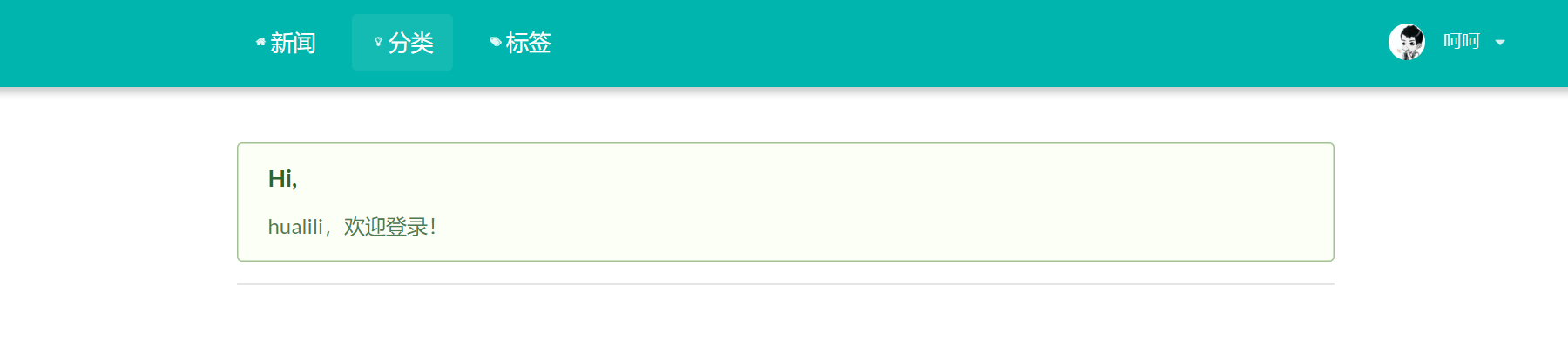

用户登录成功后，点击上方导航栏的分类标签
在这里插入图片描述

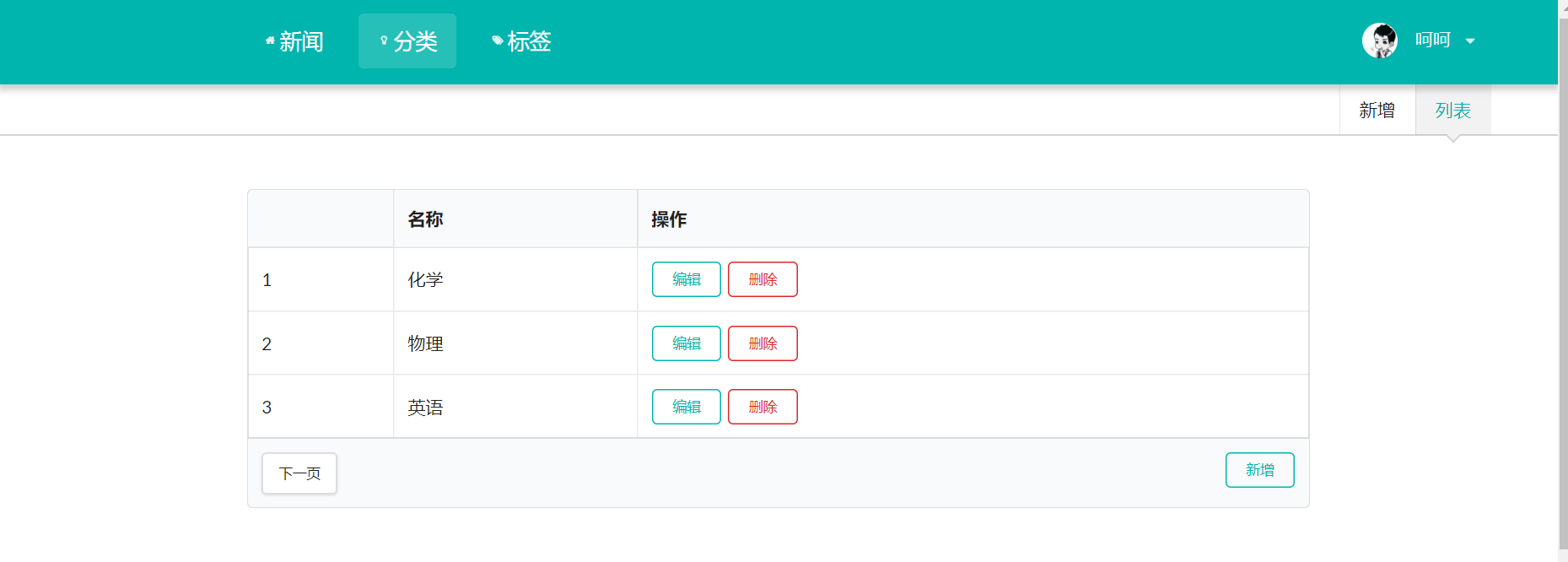

页面跳转到tpye界面，显示新闻分类信息
在这里插入图片描述

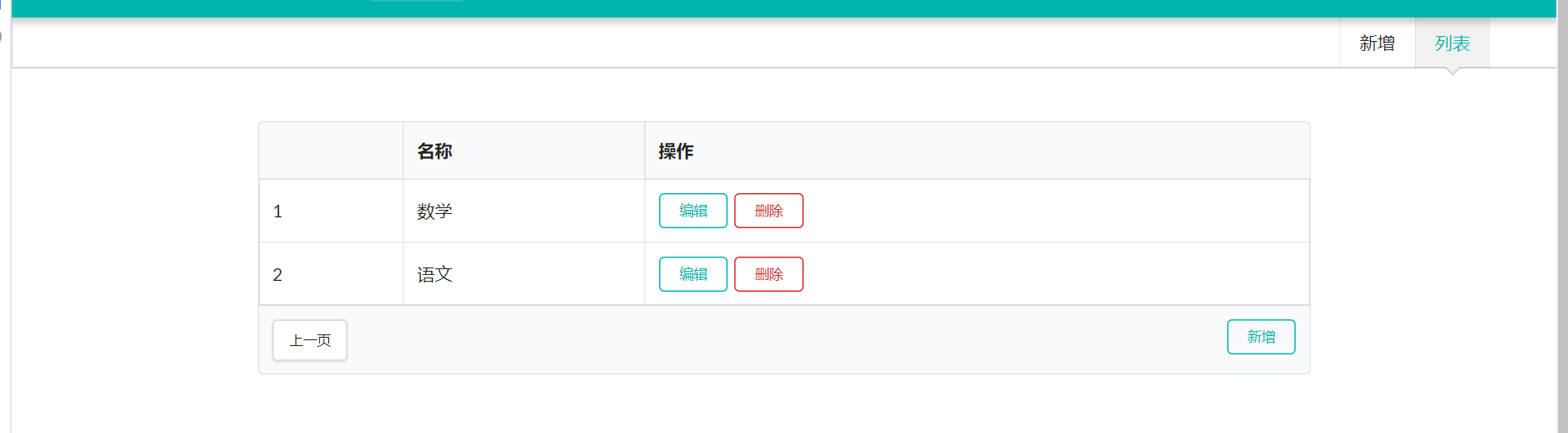

可以点击下一页，实现分页
在这里插入图片描述
