flask初级--------生成可视化界面，支持增删改查

1. 目录介绍

app------>后台管理界面
config------>flask配置文件
model------>连接数据库表，相当于将mysql中表里的字段一一对应的写入，不需要迁移
service------>创建属性，是否可增删改
util------>加载数据库配置及用sqlalchemy创建连接对象

2. 代码

app—>app.py

from flask_admin import Admin
from flask import Flask

from util import db_util
from service.save_blank import BView
app = Flask(__name__)

admin = Admin(app)

admin.add_view(BView(db_util.get_test_session(),name = u'学生表'))
if __name__ == '__main__':
    app.run()

config—>dev—>env.ini

[db_test]
mysql.host = 127.0.0.1
mysql.port = 3306
mysql.dbname = db_test
mysql.user = root
mysql.password = 123456
mysql.pool.size = 10
mysql.pool.timeout = 36000
mysql.pool.recycle = 60

model—>db_test.py

from sqlalchemy import Column, Date, DateTime, JSON, String, TIMESTAMP, Table, text
from sqlalchemy.dialects.mysql import BIGINT, INTEGER, MEDIUMTEXT, TINYINT, TINYTEXT
from sqlalchemy.ext.declarative import declarative_base

Base = declarative_base()
metadata = Base.metadata



class Student(Base):
    __tablename__ = 'student'
    sid = Column(INTEGER(11),primary_key=True)
    sname = Column(String(255))
    score = Column(INTEGER(11))
    joindate = Column(Date)

service—>save_blank.py

from model.db_test import Student

from flask_admin.contrib.sqla import ModelView
class BView(ModelView):
    # 常用属性
    can_create = True    # 是否创建
    can_edit = True          # 是否编辑
    can_delete = True    # 是否删

    column_labels = {"sname": "姓名"}

    def __init__(self, session, **kwargs):
        super(BView, self).__init__(Student, session, **kwargs)

util—>config_util.py

import os

BASE_DIR = os.path.dirname(os.path.dirname(os.path.abspath(__file__)))

import configparser

parser = configparser.ConfigParser()

package = os.environ.get('package', 'dev')
config_file = os.path.join(BASE_DIR, 'config' + os.path.sep + package + os.path.sep + 'env.ini')
parser.read(config_file)


# db_test,  读取ini配置文件中的数据库配置
def get_db_test_mysql_host():
    return parser.get('db_test', 'mysql.host').strip()


def get_db_test_mysql_port():
    port = parser.get('db_test', 'mysql.port').strip()
    return int(port)


def get_db_test_mysql_dbname():
    return parser.get('db_test', 'mysql.dbname').strip()


def get_db_test_mysql_user():
    return parser.get('db_test', 'mysql.user').strip()


def get_db_test_mysql_password():
    return parser.get('db_test', 'mysql.password').strip()


def get_db_test_mysql_pool_size():
    pool_size = parser.get('db_test', 'mysql.pool.size').strip()
    return int(pool_size)


def get_db_test_mysql_pool_timeout():
    pool_timeout = parser.get('db_test', 'mysql.pool.timeout').strip()
    return int(pool_timeout)


def get_db_test_mysql_pool_recycle():
    pool_recycle = parser.get('db_test', 'mysql.pool.recycle').strip()
    return int(pool_recycle)

util—>db_util.py

import os
import sys

BASE_DIR = os.path.dirname(os.path.dirname(os.path.abspath(__file__)))
sys.path.append(BASE_DIR)

from util import config_util
from sqlalchemy import create_engine        # 用sqlalchemy创建连接对象
from sqlalchemy.orm import sessionmaker     # 用sqlalchemy创建连接对象

# 实例化
db_test_db_host = config_util.get_db_test_mysql_host()
db_test_db_port = config_util.get_db_test_mysql_port()
db_test_db_name = config_util.get_db_test_mysql_dbname()
db_test_username = config_util.get_db_test_mysql_user()
db_test_password = config_util.get_db_test_mysql_password()
db_test_pool_size = config_util.get_db_test_mysql_pool_size()
db_test_pool_timeout = config_util.get_db_test_mysql_pool_timeout()
db_test_pool_recycle = config_util.get_db_test_mysql_pool_recycle()



# 连接数据库，创建session对象
def get_test_session():
    engine = create_engine(
        "mysql+pymysql://{}:{}@{}:{}/{}?charset=utf8mb4".format(db_test_username,
                                                             db_test_password,
                                                             db_test_db_host,
                                                             db_test_db_port,
                                                             db_test_db_name),
        encoding="utf-8",
        pool_size=db_test_pool_size,
        pool_timeout=db_test_pool_timeout,
        pool_recycle=db_test_pool_recycle,
        echo=False)
    Session = sessionmaker(bind=engine)
    session = Session()
    return session

3. 运行代码

运行app.py里的app.run()

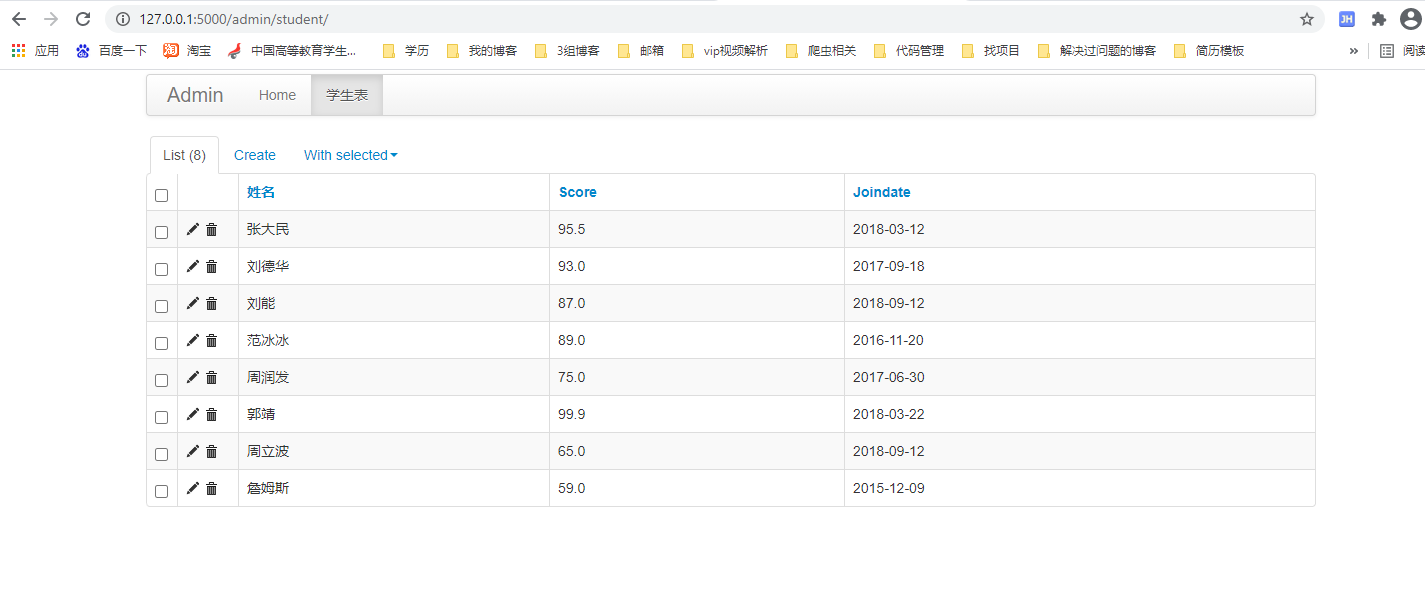

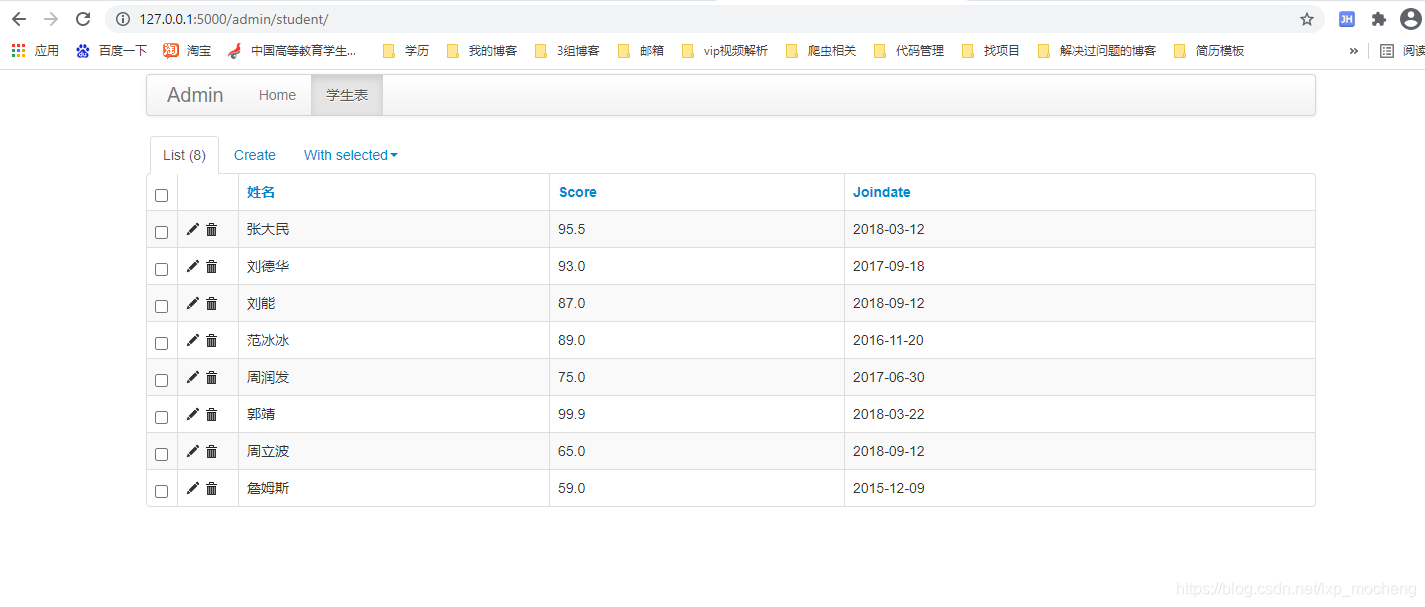

效果如下：
