序列检测：状态机和移位寄存器（Verilog）

RTL代码：

//实现序列1101
//状态机实现和移位寄存器两种方式实现

//状态机方式：
module fsm(
	input clk,
	input rst_n,
	input data_in,
	output reg flag
);

	reg [4:0]c_state;
	reg [4:0]n_state;

	parameter s0 = 5'b00001;
	parameter s1 = 5'b00010;
	parameter s2 = 5'b00100;
	parameter s3 = 5'b01000;
	parameter s4 = 5'b10000;

	always@(posedge clk or negedge rst_n)begin
		if(!rst_n)
			c_state <= s0;
		else
			c_state <= n_state;
	end

	always@(*)begin
		case(c_state)
			s0:begin
				if(data_in) n_state = s1;
				else n_state = s0;
			end
			s1:begin
				if(data_in) n_state = s2;
				else n_state = s0;
			end
			s2:begin
				if(data_in) n_state = s1;
				else n_state = s3;
			end
			s3:begin
				if(data_in) n_state = s4;
				else n_state = s0;
			end
			s4:begin
				if(data_in) n_state = s1;
				else n_state = s0;
			end
		endcase
	end

	always@(posedge clk or negedge rst_n)begin
		if(!rst_n)
			flag <= 1'b0;
		else if(n_state == s4)
			flag <= 1'b1;
		else
			flag <= 1'b0;
	end

endmodule



//移位寄存器方式：
module fsm(
	input clk,
	input rst_n,
	input data_in,
	output flag
);
	reg [3:0]data_r;
	parameter data = 4'b1101;

	always@(posedge clk or negedge rst_n)begin
		if(!rst_n)
			data_r <= 'd0;
		else
			data_r <= {data_r[2:0],data_in};
	end

	assign flag = (data_r == data)? 1'b1:1'b0;


endmodule

仿真代码：

`timescale 1ns / 1ps

module fsm_tb;

    reg clk;
    reg rst_n;
    reg data_in;
    wire flag;

    fsm fsm_inst(
	   .clk        (clk),
	   .rst_n      (rst_n),
	   .data_in    (data_in),
	   .flag       (flag)
);

    initial clk = 0;
    always#10 clk = ~clk;

    initial begin
        rst_n = 0;
        data_in = 0;
        #200;
        rst_n = 1;
    end

    reg [7:0]data;
    always@(posedge clk or negedge rst_n)begin
        if(!rst_n)
            data <= 8'b10110110;
        else
            data <= {data[6:0],data[7]};
    end

    always@(posedge clk or negedge rst_n)begin
        if(!rst_n)
            data_in <= 1'b0;
        else
            data_in <= data[7];
    end


endmodule

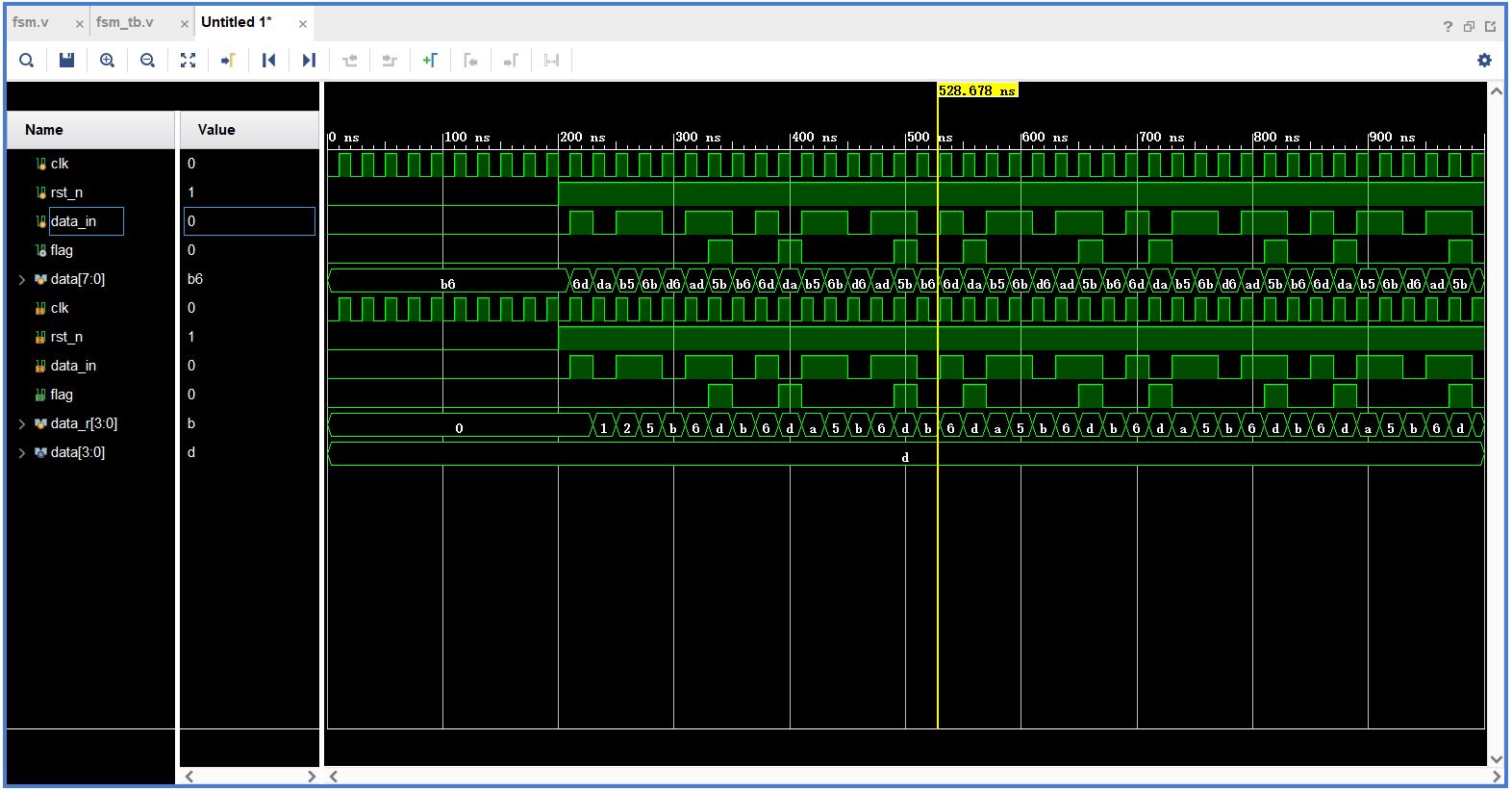

**仿真：**注意两种仿真结果的区别
