1. 概述

经过《粘包拆包样例 & DelimiterBasedFrameDecoder》，我们知道什么是粘包和拆包，以及通过DelimiterBasedFrameDecoder解决问题，但是DelimiterBasedFrameDecoder存在明显的缺点，就是发送的内容自身可能包含分割符，这样就会出现冲突，那么有没有更好的办法？

我们可以采用类型ntlv的形式来解决，消息按照内容长度和内容进行发送，接收端根据长度来决定要读取的内容字符串，如果不够一个完整信息，就继续等待，直至出现完整的信息。

2. 代码

2.1 MyMessageEncoder自定义编码器

继承MessageToByteEncoder，按长度和内容进行发送消息。长度是固定值，比如这里的int类型是4个字节长度，其值是内容的长度。

package com.netty.splitpacket;

import io.netty.buffer.ByteBuf;
import io.netty.channel.ChannelHandlerContext;
import io.netty.handler.codec.MessageToByteEncoder;

public class MyMessageEncoder extends MessageToByteEncoder<MyMessageProtocol> {
    @Override
    protected void encode(ChannelHandlerContext ctx, MyMessageProtocol msg, ByteBuf out) throws Exception {
        System.out.println("MyMessageEncoder encode 方法被调用");
        out.writeInt(msg.getLen());
        out.writeBytes(msg.getContent());
    }
}

2.2 MyMessageDecoder自定义解码器

package com.netty.splitpacket;

import io.netty.buffer.ByteBuf;
import io.netty.channel.ChannelHandlerContext;
import io.netty.handler.codec.ByteToMessageDecoder;

import java.util.List;

public class MyMessageDecoder extends ByteToMessageDecoder {

    int length = 0;

    @Override
    protected void decode(ChannelHandlerContext ctx, ByteBuf in, List<Object> out) throws Exception {
        System.out.println();
        System.out.println("MyMessageDecoder decode 被调用");
        //需要将得到二进制字节码-> MyMessageProtocol 数据包(对象)
        System.out.println(in);

        if(in.readableBytes() >= 4) {
            if (length == 0){
                length = in.readInt();
            }
            if (in.readableBytes() < length) {
                System.out.println("当前可读数据不够，继续等待。。");
                return;
            }
            byte[] content = new byte[length];
            if (in.readableBytes() >= length){
                in.readBytes(content);

                //封装成MyMessageProtocol对象，传递到下一个handler业务处理
                MyMessageProtocol messageProtocol = new MyMessageProtocol();
                messageProtocol.setLen(length);
                messageProtocol.setContent(content);
                out.add(messageProtocol);
            }
            length = 0;
        }
    }
}

2.3 自定义协议包

package com.netty.splitpacket;


/**
 * 自定义协议包
 */
public class MyMessageProtocol {

    //定义一次发送包体长度
    private int len;
    //一次发送包体内容
    private byte[] content;

    public int getLen() {
        return len;
    }

    public void setLen(int len) {
        this.len = len;
    }

    public byte[] getContent() {
        return content;
    }

    public void setContent(byte[] content) {
        this.content = content;
    }
}

2.4 服务端代码

MyServer：

package com.netty.splitpacket;


import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelPipeline;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioServerSocketChannel;

public class MyServer {
    public static void main(String[] args) throws Exception {

        EventLoopGroup bossGroup = new NioEventLoopGroup(1);
        EventLoopGroup workerGroup = new NioEventLoopGroup();
        try {
            ServerBootstrap serverBootstrap = new ServerBootstrap();
            serverBootstrap.group(bossGroup, workerGroup)
                    .channel(NioServerSocketChannel.class)
                    .childHandler(new ChannelInitializer<SocketChannel>() {
                        @Override
                        protected void initChannel(SocketChannel ch) throws Exception {
                            ChannelPipeline pipeline = ch.pipeline();
                            pipeline.addLast(new MyMessageDecoder());
                            pipeline.addLast(new MyServerHandler());
                        }
                    });

            System.out.println("netty server start。。");
            ChannelFuture channelFuture = serverBootstrap.bind(9000).sync();
            channelFuture.channel().closeFuture().sync();
        } finally {
            bossGroup.shutdownGracefully();
            workerGroup.shutdownGracefully();
        }
    }
}

服务器端初始化了一个自定义的解码器，会将读到的消息转为MyMessageProtocol类型。

MyServerHandler：

package com.netty.splitpacket;

import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.SimpleChannelInboundHandler;
import io.netty.util.CharsetUtil;


public class MyServerHandler extends SimpleChannelInboundHandler<MyMessageProtocol> {

    private int count;

    @Override
    protected void channelRead0(ChannelHandlerContext ctx, MyMessageProtocol msg) throws Exception {
        System.out.println("====服务端接收到消息如下====");
        System.out.println("长度=" + msg.getLen());
        System.out.println("内容=" + new String(msg.getContent(), CharsetUtil.UTF_8));

        System.out.println("服务端接收到消息包数量=" + (++this.count));
    }

    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
        cause.printStackTrace();
        ctx.close();
    }
}

2.5 客户端代码

MyClient：

package com.netty.splitpacket;


import io.netty.bootstrap.Bootstrap;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelPipeline;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioSocketChannel;

public class MyClient {
    public static void main(String[] args)  throws  Exception{

        EventLoopGroup group = new NioEventLoopGroup();

        try {
            Bootstrap bootstrap = new Bootstrap();
            bootstrap.group(group).channel(NioSocketChannel.class)
                    .handler(new ChannelInitializer<SocketChannel>() {
                        @Override
                        protected void initChannel(SocketChannel ch) throws Exception {
                            ChannelPipeline pipeline = ch.pipeline();
                            pipeline.addLast(new MyMessageEncoder());
                            pipeline.addLast(new MyClientHandler());
                        }
                    });

            System.out.println("netty client start。。");
            ChannelFuture channelFuture = bootstrap.connect("127.0.0.1", 9000).sync();
            channelFuture.channel().closeFuture().sync();
        }finally {
            group.shutdownGracefully();
        }
    }
}

客户端初始化了一个编码器，把发送的MyMessageProtocol对象进行编码，额外增加了长度信息。

MyClientHandler：

package com.netty.splitpacket;

import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.SimpleChannelInboundHandler;
import io.netty.util.CharsetUtil;

public class MyClientHandler extends SimpleChannelInboundHandler<MyMessageProtocol> {

    @Override
    public void channelActive(ChannelHandlerContext ctx) throws Exception {
        for(int i = 0; i< 2; i++) {
            String msg = "你好，我是张三！";
            //创建协议包对象
            MyMessageProtocol messageProtocol = new MyMessageProtocol();
            messageProtocol.setLen(msg.getBytes(CharsetUtil.UTF_8).length);
            messageProtocol.setContent(msg.getBytes(CharsetUtil.UTF_8));
            ctx.writeAndFlush(messageProtocol);
        }
    }

    @Override
    protected void channelRead0(ChannelHandlerContext ctx, MyMessageProtocol msg) throws Exception {

    }

    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
        cause.printStackTrace();
        ctx.close();
    }

}

2.6 执行

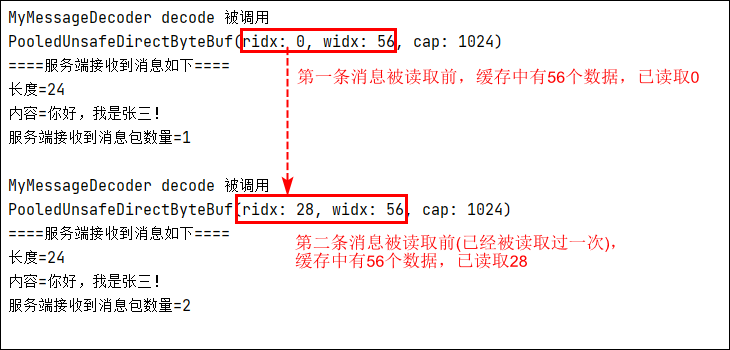

服务端：

从图中可以看到成功分割出了2条消息。

我们在代码中打印了缓存对象，显示了写、读的下标：

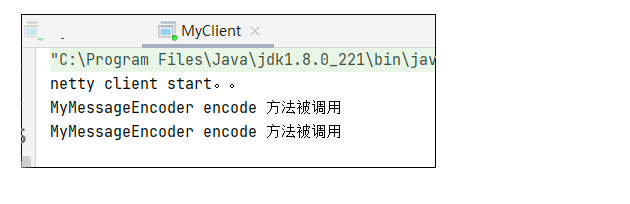

客户端：
