@SpringBootApplication
public class MyApplication {
public static void main(String[] args) {
SpringApplication.run(MyApplication.class, args);
}
} public ConfigurableApplicationContext run(String... args) {
long startTime = System.nanoTime();
DefaultBootstrapContext bootstrapContext = createBootstrapContext();
ConfigurableApplicationContext context = null;
configureHeadlessProperty();
SpringApplicationRunListeners listeners = getRunListeners(args);
listeners.starting(bootstrapContext, this.mainApplicationClass);
try {
ApplicationArguments applicationArguments = new DefaultApplicationArguments(args);
ConfigurableEnvironment environment = prepareEnvironment(listeners, bootstrapContext, applicationArguments);
configureIgnoreBeanInfo(environment);
Banner printedBanner = printBanner(environment);
context = createApplicationContext();
context.setApplicationStartup(this.applicationStartup);
prepareContext(bootstrapContext, context, environment, listeners, applicationArguments, printedBanner);
refreshContext(context);
afterRefresh(context, applicationArguments);
Duration timeTakenToStartup = Duration.ofNanos(System.nanoTime() - startTime);
if (this.logStartupInfo) {
new StartupInfoLogger(this.mainApplicationClass).logStarted(getApplicationLog(), timeTakenToStartup);
}
listeners.started(context, timeTakenToStartup);
callRunners(context, applicationArguments);
}
catch (Throwable ex) {
handleRunFailure(context, ex, listeners);
throw new IllegalStateException(ex);
}
try {
Duration timeTakenToReady = Duration.ofNanos(System.nanoTime() - startTime);
listeners.ready(context, timeTakenToReady);
}
catch (Throwable ex) {
handleRunFailure(context, ex, null);
throw new IllegalStateException(ex);
}
return context;
}在refreshContext(context);方法中会一直调到ServletWebServerApplicationContext类的onRefresh()方法中,其中createWebServer();就会开始创建tomcat容器，在该方法中会先找到容器中有哪一种的ServletWebServerFactory，再通过factory.getWebServer(getSelfInitializer())来创建容器
protected void onRefresh() {
super.onRefresh();
try {
createWebServer();
}
catch (Throwable ex) {
throw new ApplicationContextException("Unable to start web server", ex);
}
}private void createWebServer() {
WebServer webServer = this.webServer;
ServletContext servletContext = getServletContext();
if (webServer == null && servletContext == null) {
StartupStep createWebServer = this.getApplicationStartup().start("spring.boot.webserver.create");
ServletWebServerFactory factory = getWebServerFactory();
createWebServer.tag("factory", factory.getClass().toString());
this.webServer = factory.getWebServer(getSelfInitializer());
createWebServer.end();
getBeanFactory().registerSingleton("webServerGracefulShutdown",
new WebServerGracefulShutdownLifecycle(this.webServer));
getBeanFactory().registerSingleton("webServerStartStop",
new WebServerStartStopLifecycle(this, this.webServer));
}
else if (servletContext != null) {
try {
getSelfInitializer().onStartup(servletContext);
}
catch (ServletException ex) {
throw new ApplicationContextException("Cannot initialize servlet context", ex);
}
}
initPropertySources();
} protected ServletWebServerFactory getWebServerFactory() {
// Use bean names so that we don't consider the hierarchy
String[] beanNames = getBeanFactory().getBeanNamesForType(ServletWebServerFactory.class);
if (beanNames.length == 0) {
throw new ApplicationContextException("Unable to start ServletWebServerApplicationContext due to missing "
+ "ServletWebServerFactory bean.");
}
if (beanNames.length > 1) {
throw new ApplicationContextException("Unable to start ServletWebServerApplicationContext due to multiple "
+ "ServletWebServerFactory beans : " + StringUtils.arrayToCommaDelimitedString(beanNames));
}
return getBeanFactory().getBean(beanNames[0], ServletWebServerFactory.class);
}ServletWebServerFactory factory = getWebServerFactory();会拿到ServletWebServerFactory类型的bean,由上图可知,只能拿到一个,有多个的话会报错,并且先拿bean的名称再去创建bean也是为了避免不必要的创建bean.

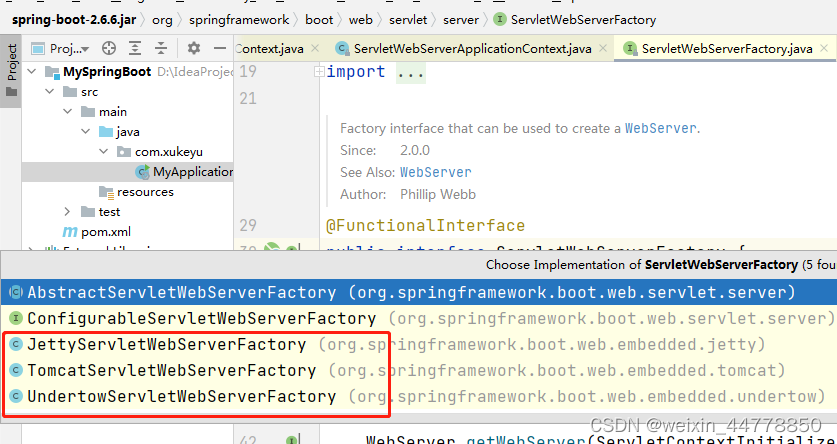

可以看到ServletWebServerFactory的实现类有Jetty、Tomcat和Undertow

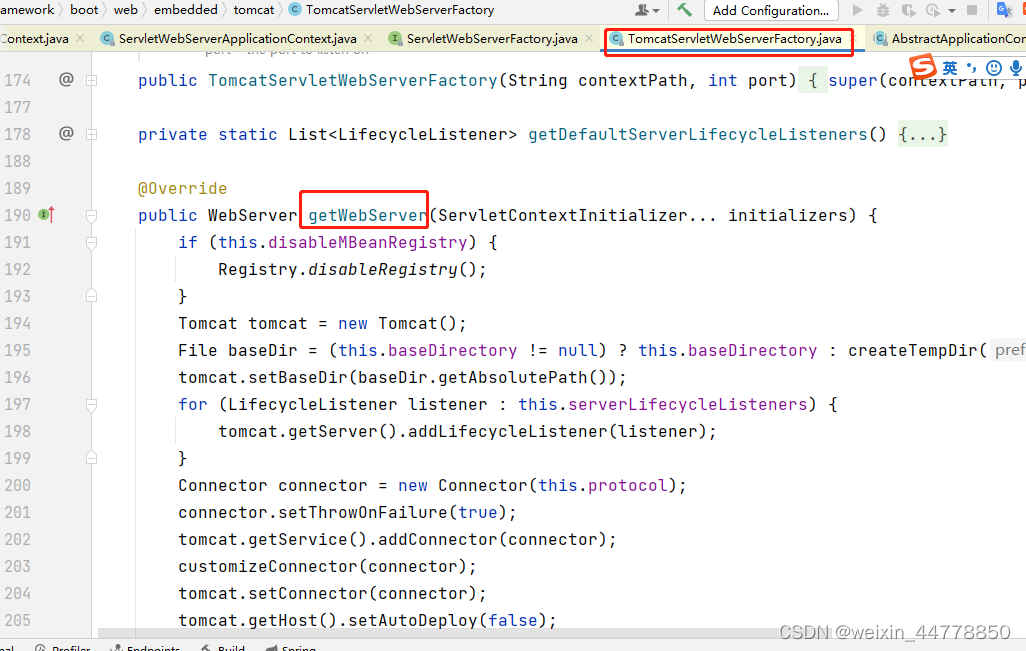

对于tomcat而言，会在TomcatServletWebServerFactory类的getWebServer()中去创建tomcat容器
因此，只需要确定为什么容器中会有TomcatServletWebServerFactory类型的bean,而没有JettyServletWebServerFactory类型的

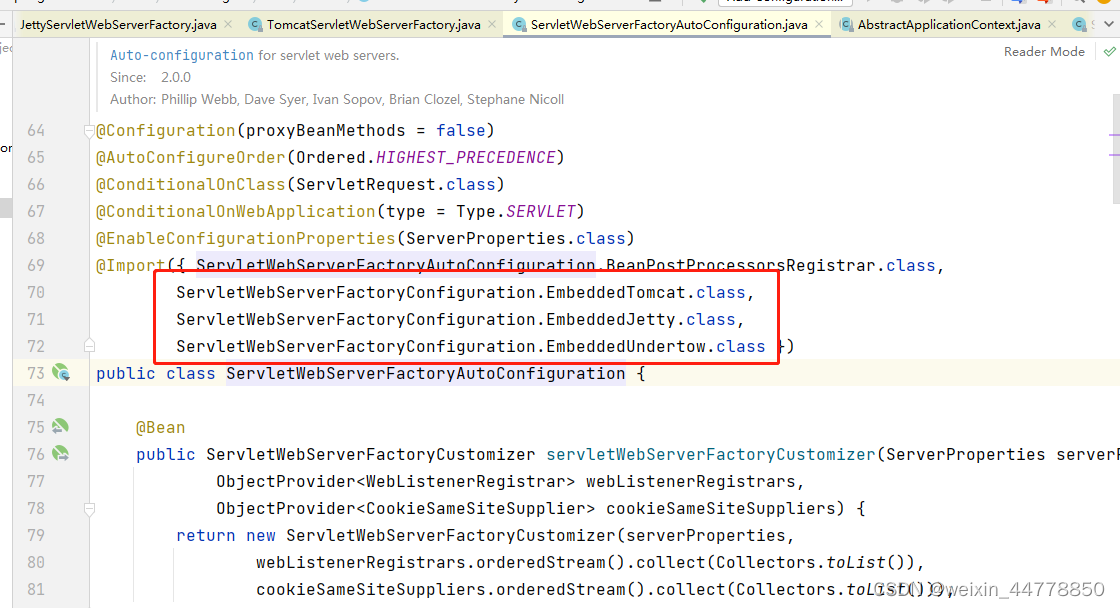

在ServletWebServerFactoryAutoConfiguration配置类中会去导入
ServletWebServerFactoryConfiguration.EmbeddedTomcat.class, ServletWebServerFactoryConfiguration.EmbeddedJetty.class, ServletWebServerFactoryConfiguration.EmbeddedUndertow.class
这三种类型的配置类

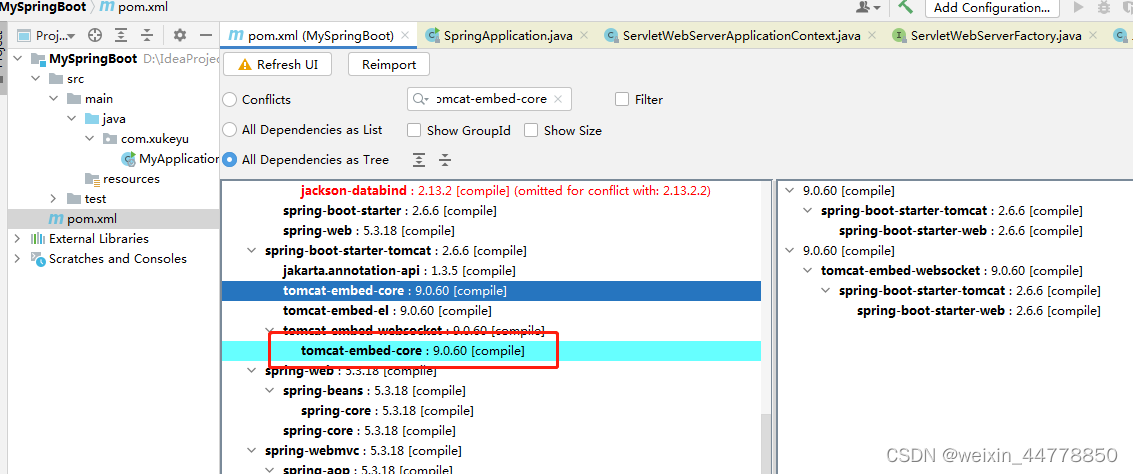

因为springboot的依赖中会自动引入tomcat的依赖 ，因此条件注解
@ConditionalOnClass({ Servlet.class, Tomcat.class, UpgradeProtocol.class })成立，而
对于Jetty，项目中是没有该依赖的，也就是说如果要使用Jetty需要在SpringBoot的依赖中排除tomcat的依赖引入Jetty相应的依赖才行
@Configuration(proxyBeanMethods = false)
@ConditionalOnClass({ Servlet.class, Tomcat.class, UpgradeProtocol.class })
@ConditionalOnMissingBean(value = ServletWebServerFactory.class, search = SearchStrategy.CURRENT)
static class EmbeddedTomcat {
@Bean
TomcatServletWebServerFactory tomcatServletWebServerFactory(
ObjectProvider<TomcatConnectorCustomizer> connectorCustomizers,
ObjectProvider<TomcatContextCustomizer> contextCustomizers,
ObjectProvider<TomcatProtocolHandlerCustomizer<?>> protocolHandlerCustomizers) {
TomcatServletWebServerFactory factory = new TomcatServletWebServerFactory();
factory.getTomcatConnectorCustomizers()
.addAll(connectorCustomizers.orderedStream().collect(Collectors.toList()));
factory.getTomcatContextCustomizers()
.addAll(contextCustomizers.orderedStream().collect(Collectors.toList()));
factory.getTomcatProtocolHandlerCustomizers()
.addAll(protocolHandlerCustomizers.orderedStream().collect(Collectors.toList()));
return factory;
}
}tomcatServletWebServerFactory()，方法的入参，spring会负责传入，用ObjectProvider包装一层是说容器中可以没有TomcatConnectorCustomizer类型的bean,否则的话就必须存在该类型的bean,若没有报错
@SpringBootApplication
public class MyApplication {
@Bean
public TomcatConnectorCustomizer tomcatConnectorCustomizer() {
return new TomcatConnectorCustomizer() {
@Override
public void customize(Connector connector) {
connector.setPort(8888);
}
};
}
public static void main(String[] args) {
SpringApplication.run(MyApplication.class, args);
}

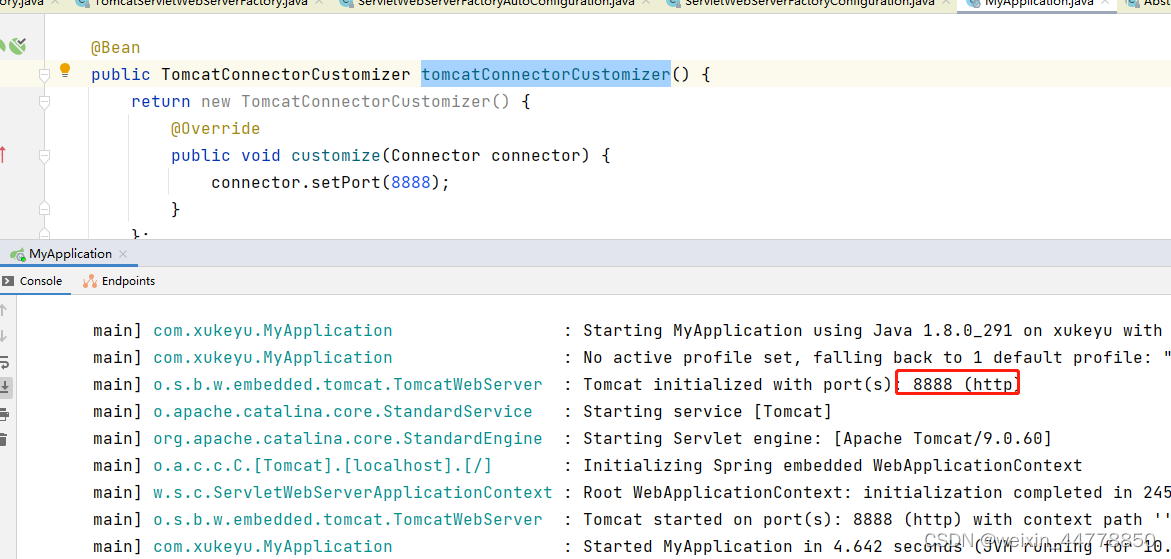

}默认是没有TomcatConnectorCustomizer的bean的，可以自定义一个，设置tomcat的启动端口

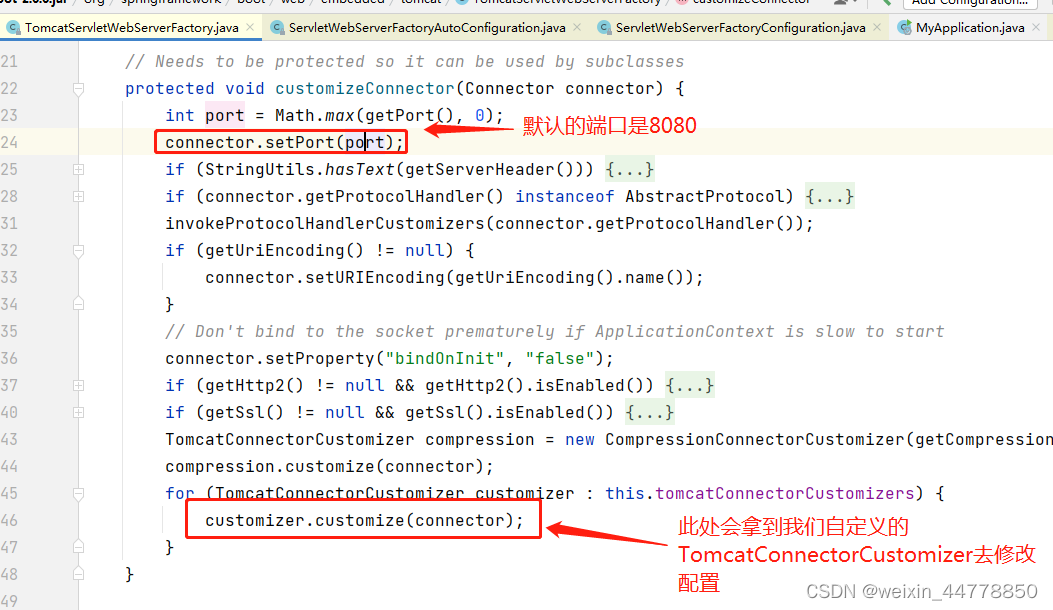

tomcat启动过程中会拿到 我们自定义的tomcatConnectorCustomizer这个bean从而去修改tomcat默认配置
但是通常我们也不会去这样修改tomcat的端口号，而是通过application.properties配置文件来修改，那么是怎么通过配置文件来修改端口号的呢?

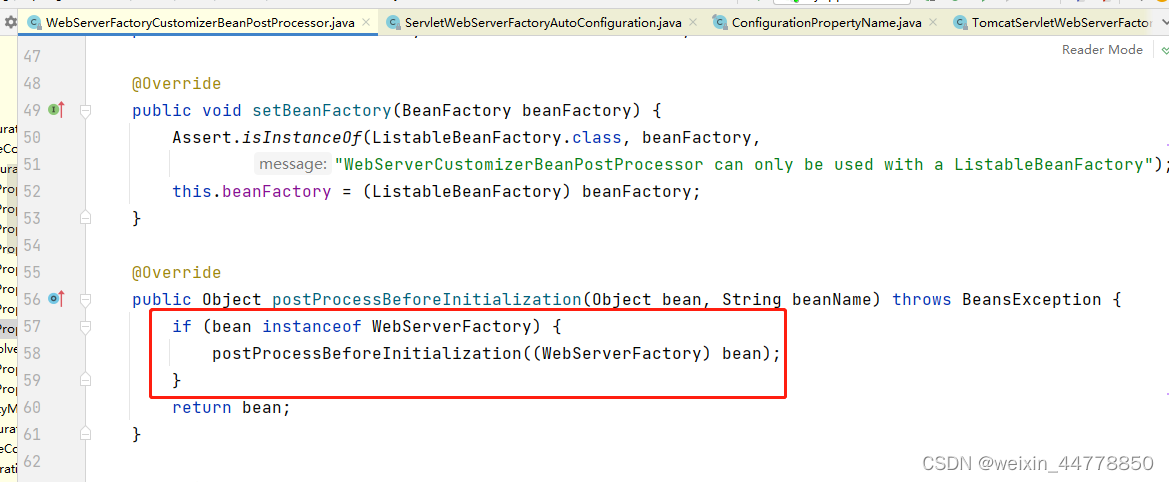

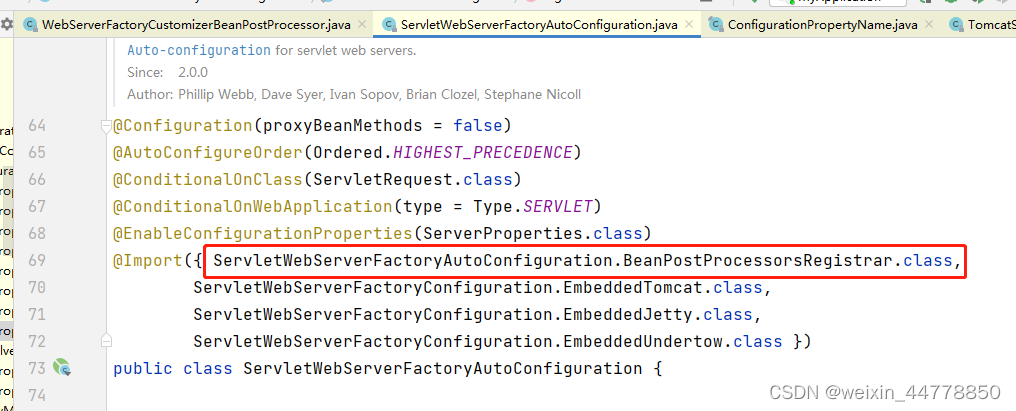

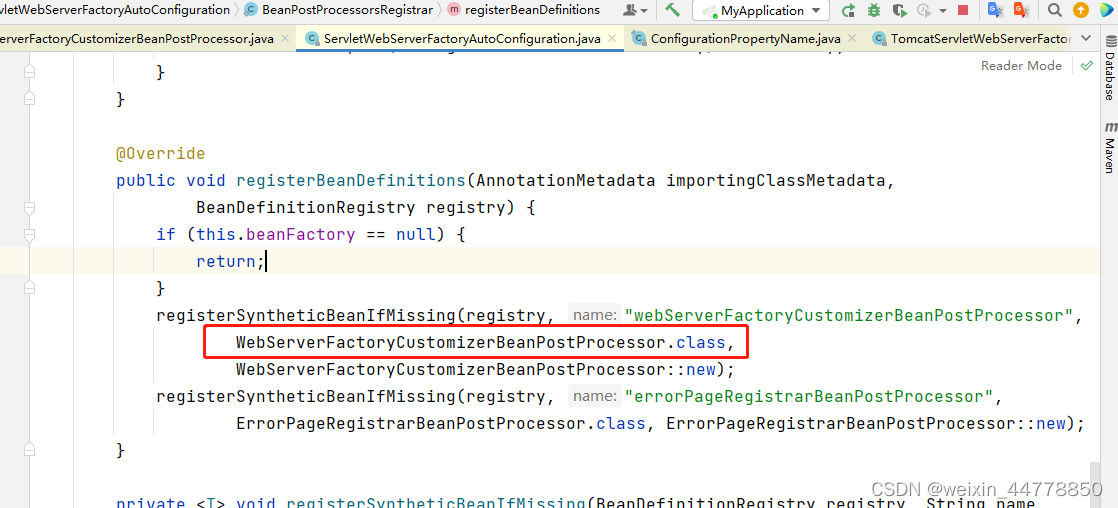

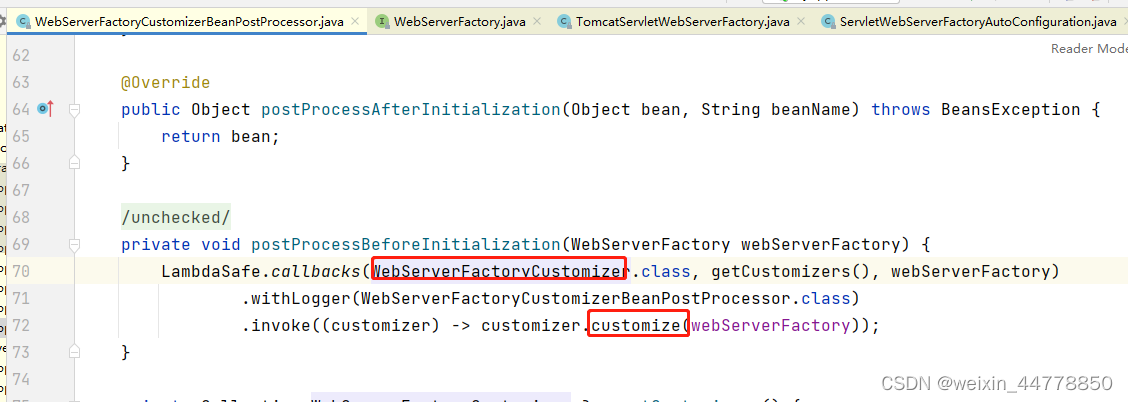

在ServletWebServerFactoryAutoConfiguration的配置类中会去导入一个BeanPostProcessorsRegistrar，而该Registrar会往容器中注入一个WebServerFactoryCustomizerBeanPostProcessor，该beanPostProcessor会在TomcatServletWebServerFactory初始化的时候修改其一些属性

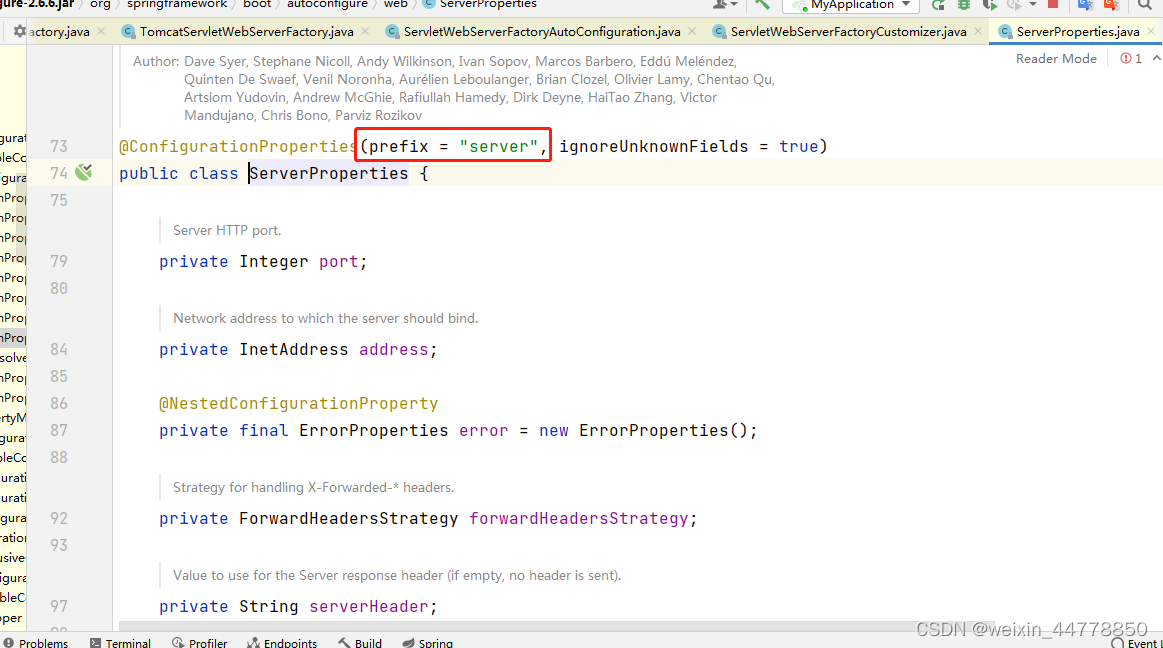

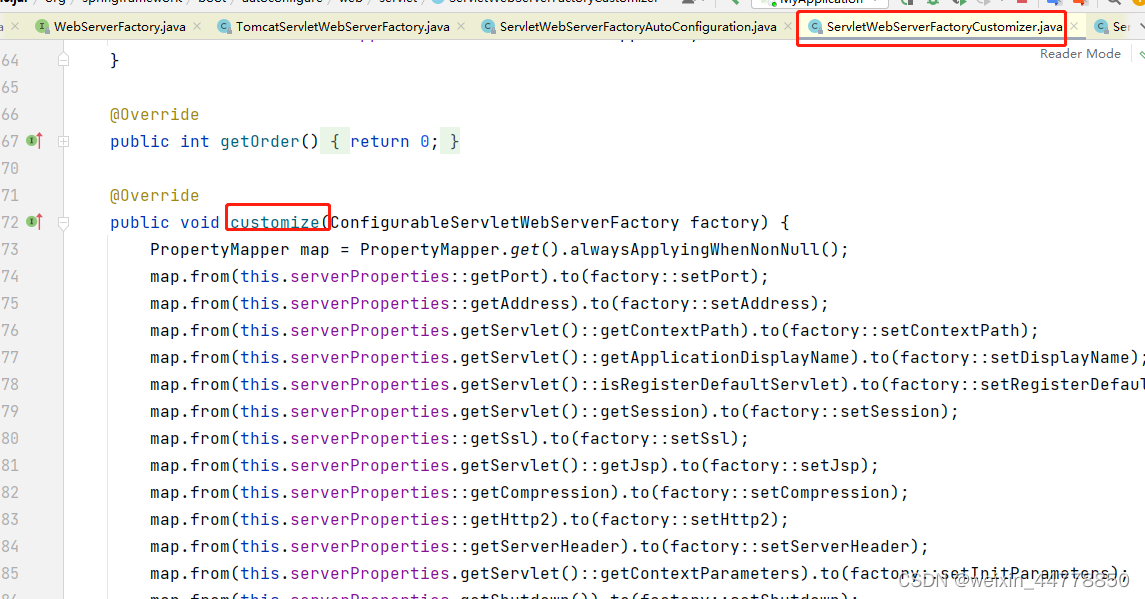

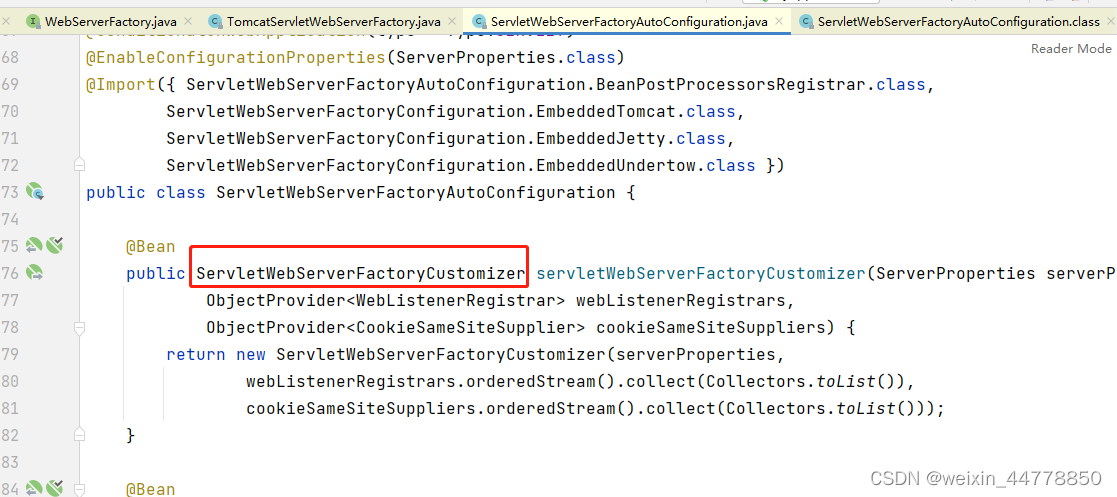

对tomcat属性进行修改的是ServletWebServerFactoryCustomizer中进行的，而该bean是在ServletWebServerFactoryAutoConfiguration自动配置类中导入的，而ServerProperties就是取的application.properties文件中以server开头的配置
@EnableConfigurationProperties(ServerProperties.class)注解的作用是让ServerProperties生效，也就是拿到配置文件中以server开头的配置，生成一个ServerProperties的对象
