SpringBoot集成Spring Security实现登录流程

前篇：https://blog.csdn.net/wwyywwsaber/article/details/123979279

登录验证码

使用kaptcha实现验证码

        <dependency>
            <groupId>com.github.axet</groupId>
            <artifactId>kaptcha</artifactId>
            <version>0.0.9</version>
        </dependency>

添加KaptchaConfig.java配置类

package com.gis.config;

import com.google.code.kaptcha.impl.DefaultKaptcha;
import com.google.code.kaptcha.util.Config;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.util.Properties;

@Configuration
public class KaptchaConfig {
    @Bean
    public DefaultKaptcha producer() {
        Properties properties = new Properties();
        properties.put("kaptcha.border", "no");
        properties.put("kaptcha.textproducer.font.color", "black");
        properties.put("kaptcha.textproducer.char.space", "5");
        Config config = new Config(properties);
        DefaultKaptcha defaultKaptcha = new DefaultKaptcha();
        defaultKaptcha.setConfig(config);
        return defaultKaptcha;
    }
}

修改LoginController.java代码

package com.gis.controller;
import com.gis.service.SysUserService;
import com.google.code.kaptcha.Constants;
import com.google.code.kaptcha.Producer;
import org.apache.tomcat.util.http.fileupload.IOUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import javax.imageio.ImageIO;
import javax.servlet.ServletOutputStream;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.awt.image.BufferedImage;

@RestController
@RequestMapping("/login")
public class LoginController {
    @Autowired
    private Producer producer;
    @Autowired
    SysUserService sysUserService;
    @GetMapping(value="/findAllUser")
    public Object findAllUser(){
        return sysUserService.findAll();
    }
    @GetMapping("/captcha.jpg")
    public void captcha(HttpServletRequest req, HttpServletResponse res) throws Exception{
        res.setHeader("Cache-Control", "no-store, no-cache");
        res.setContentType("image/jpeg");

        // 生成文字验证码
        String text = producer.createText();
        // 生成图片验证码
        BufferedImage image = producer.createImage(text);
        // 保存到验证码到 session
        req.getSession().setAttribute(Constants.KAPTCHA_SESSION_KEY, text);

        ServletOutputStream out = res.getOutputStream();
        ImageIO.write(image, "jpg", out);
        IOUtils.closeQuietly(out);
    }
}

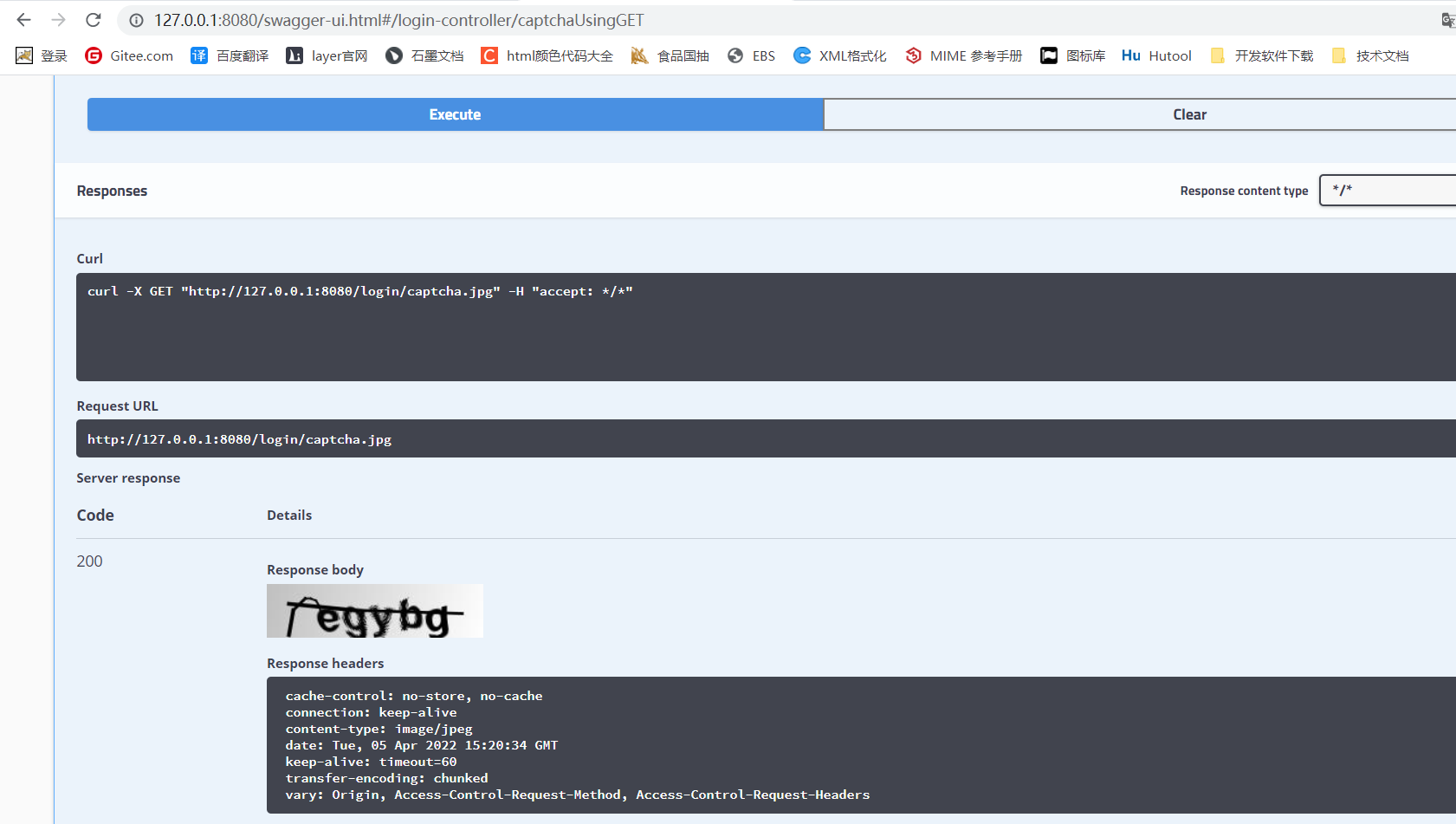

运行测试

集成Spring Security 和 JWT

Spring Security使用目的：验证，授权，攻击防护。

原理：创建大量的filter和interceptor来进行请求的验证和拦截，以此来达到安全的效果。

JWT(JSON Web Token)是Token令牌生成方案。

注意集成JWT时的坑：JAXB API是java EE 的API，java 9 .0开始引入了模块的概念，默认情况下，Java 9.0以上版本中将不再包含java EE 的Jar包！

一：添加依赖

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt</artifactId>
            <version>0.9.1</version>
        </dependency>
        <dependency>
            <groupId>javax.xml.bind</groupId>
            <artifactId>jaxb-api</artifactId>
            <version>2.3.0</version>
        </dependency>

 二：Swagger添加令牌参数

package com.gis.config;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.ParameterBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.schema.ModelRef;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;
import springfox.documentation.service.Parameter;

import java.util.ArrayList;
import java.util.List;

@Configuration
@EnableSwagger2
public class SwaggerConfig {

    @Bean
    public Docket createRestApi(){
        // 添加请求参数，我们这里把token作为请求头部参数传入后端
        ParameterBuilder parameterBuilder = new ParameterBuilder();
        List<Parameter> parameters = new ArrayList<Parameter>();
        parameterBuilder.name("token").description("令牌")
                .modelRef(new ModelRef("string")).parameterType("header").required(false).build();
        parameters.add(parameterBuilder.build());
        return new Docket(DocumentationType.SWAGGER_2).apiInfo(apiInfo()).select()
                .apis(RequestHandlerSelectors.any()).paths(PathSelectors.any())
                .build().globalOperationParameters(parameters);
    }

    private ApiInfo apiInfo(){
        return new ApiInfoBuilder().build();
    }

}

三：创建PasswordEncoder，使用java.security.MessageDigest加密密码

package com.gis.utils;

import java.security.MessageDigest;

/**
 * 密码加密
 */
public class PasswordEncoder {
    private final static String[] hexDigits = { "0", "1", "2", "3", "4", "5", "6", "7", "8", "9", "a", "b", "c", "d",
            "e", "f" };
    private final static String MD5 = "MD5";
    private final static String SHA = "SHA";

    private Object salt;
    private String algorithm;
    public PasswordEncoder(Object salt) {
        this(salt, MD5);
    }
    public PasswordEncoder(Object salt, String algorithm) {
        this.salt = salt;
        this.algorithm = algorithm;
    }
    /**
     * 密码加密
     * @param rawPass
     * @return
     */
    public String encode(String rawPass) {
        String result = null;
        try {
            MessageDigest md = MessageDigest.getInstance(algorithm);
            // 加密后的字符串
            result = byteArrayToHexString(md.digest(mergePasswordAndSalt(rawPass).getBytes("utf-8")));
        } catch (Exception ex) {
            ex.printStackTrace();
        }
        return result;
    }
    /**
     * 密码匹配验证
     * @param encPass 密文
     * @param rawPass 明文
     * @return
     */
    public boolean matches(String encPass, String rawPass) {
        String pass1 = "" + encPass;
        String pass2 = encode(rawPass);

        return pass1.equals(pass2);
    }
    private String mergePasswordAndSalt(String password) {
        if (password == null) {
            password = "";
        }

        if ((salt == null) || "".equals(salt)) {
            return password;
        } else {
            return password + "{" + salt.toString() + "}";
        }
    }
    /**
     * 转换字节数组为16进制字串
     *
     * @param b 字节数组
     * @return 16进制字串
     */
    private String byteArrayToHexString(byte[] b) {
        StringBuffer resultSb = new StringBuffer();
        for (int i = 0; i < b.length; i++) {
            resultSb.append(byteToHexString(b[i]));
        }
        return resultSb.toString();
    }

    /**
     * 将字节转换为16进制
     * @param b
     * @return
     */
    private static String byteToHexString(byte b) {
        int n = b;
        if (n < 0)
            n = 256 + n;
        int d1 = n / 16;
        int d2 = n % 16;
        return hexDigits[d1] + hexDigits[d2];
    }
}

四：创建密码工具类PasswordUtils ，提供密码匹配、密码加密功能

package com.gis.utils;
import java.util.UUID;
/**
 * 密码工具类
 */
public class PasswordUtils {
    /**
     * 匹配密码
     * @param salt 盐
     * @param rawPass 明文
     * @param encPass 密文
     * @return
     */
    public static boolean matches(String salt, String rawPass, String encPass) {
        return new PasswordEncoder(salt).matches(encPass, rawPass);
    }

    /**
     * 明文密码加密
     * @param rawPass 明文
     * @param salt
     * @return
     */
    public static String encode(String rawPass, String salt) {
        return new PasswordEncoder(salt).encode(rawPass);
    }

    /**
     * 获取加密盐
     * @return
     */
    public static String getSalt() {
        return UUID.randomUUID().toString().replaceAll("-", "").substring(0, 20);
    }
}

五：提供通过用户名称查询用户信息的接口

    <!-- sysUser.xml代码段-->
    <select id="findByName" parameterType="java.lang.String" resultMap="baseResultMap">
        select u.*, (select d.name from sys_dept d where d.id = u.dept_id) as deptName from
        sys_user u
        where u.name = #{name,jdbcType=VARCHAR}
    </select>

//SysUserDao接口抽象方法
SysUser findByName(String name);

//SysUserService接口抽象方法
SysUser findByName(String name);

//SysUserServiceImpl实现类实现方法
public SysUser findByName(String name) {
    return sysUserDao.findByName(name);
}

六：实现Spring Security的UserDetails 来定义自己的用户模型：JwtUserDetails

package com.gis.security;
import java.util.Collection;

import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.userdetails.UserDetails;

import com.fasterxml.jackson.annotation.JsonIgnore;

/**
 * 安全用户模型
 */
public class JwtUserDetails implements UserDetails {

    private static final long serialVersionUID = 1L;

    private String username;
    private String password;
    private String salt;
    private Collection<? extends GrantedAuthority> authorities;

    JwtUserDetails(String username, String password, String salt, Collection<? extends GrantedAuthority> authorities) {
        this.username = username;
        this.password = password;
        this.salt = salt;
        this.authorities = authorities;
    }

    @Override
    public String getUsername() {
        return username;
    }

    @JsonIgnore
    @Override
    public String getPassword() {
        return password;
    }

    public String getSalt() {
        return salt;
    }

    @Override
    public Collection<? extends GrantedAuthority> getAuthorities() {
        return authorities;
    }

    @JsonIgnore
    @Override
    public boolean isAccountNonExpired() {
        return true;
    }

    @JsonIgnore
    @Override
    public boolean isAccountNonLocked() {
        return true;
    }

    @JsonIgnore
    @Override
    public boolean isCredentialsNonExpired() {
        return true;
    }

    @JsonIgnore
    @Override
    public boolean isEnabled() {
        return true;
    }
}

 七：实现Spring Security 的UserDetailsService接口：UserDetailsServiceImpl

package com.gis.security;
import com.gis.bean.SysUser;
import com.gis.service.SysUserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.stereotype.Service;

/**
 * 用户登录认证信息查询
 */
@Service
public class UserDetailsServiceImpl implements UserDetailsService {
    @Autowired
    private SysUserService sysUserService;
    @Override
    public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
        SysUser user = sysUserService.findByName(username);
        if (user == null) {
            throw new UsernameNotFoundException("该用户不存在");
        }
        return new JwtUserDetails(user.getName(), user.getPassword(), user.getSalt(), null);
    }
}

八：JwtAuthenticationProvider继承DaoAuthenticationProvider重写密码比对逻辑

package com.gis.security;

import com.gis.utils.PasswordUtils;
import org.springframework.security.authentication.BadCredentialsException;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.authentication.dao.DaoAuthenticationProvider;
import org.springframework.security.core.AuthenticationException;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
/**
 * 身份验证提供者
 */
public class JwtAuthenticationProvider extends DaoAuthenticationProvider {
    public JwtAuthenticationProvider(UserDetailsService userDetailsService) {
        setUserDetailsService(userDetailsService);
    }
    @Override
    protected void additionalAuthenticationChecks(UserDetails userDetails, UsernamePasswordAuthenticationToken authentication)
            throws AuthenticationException {
        if (authentication.getCredentials() == null) {
            logger.debug("Authentication failed: no credentials provided");
            throw new BadCredentialsException(messages.getMessage("AbstractUserDetailsAuthenticationProvider.badCredentials", "Bad credentials"));
        }

        String presentedPassword = authentication.getCredentials().toString();
        String salt = ((JwtUserDetails) userDetails).getSalt();
        // 覆写密码验证逻辑
        if (!PasswordUtils.matches(salt,userDetails.getPassword(), presentedPassword)) {
            logger.debug("Authentication failed: password does not match stored value");
            throw new BadCredentialsException(messages.getMessage("AbstractUserDetailsAuthenticationProvider.badCredentials", "Bad credentials"));
        }
    }
}

九：JwtAuthenticatioToken继承UsernamePasswordAuthenticationToken实现自定义令牌对象

package com.gis.security;

import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.GrantedAuthority;

import java.util.Collection;

/**
 * 自定义令牌对象
 */
public class JwtAuthenticatioToken extends UsernamePasswordAuthenticationToken {
    private static final long serialVersionUID = 1L;
    private String token;

    public JwtAuthenticatioToken(Object principal, Object credentials){
        super(principal, credentials);
    }

    public JwtAuthenticatioToken(Object principal, Object credentials, String token){
        super(principal, credentials);
        this.token = token;
    }

    public JwtAuthenticatioToken(Object principal, Object credentials, Collection<? extends GrantedAuthority> authorities, String token) {
        super(principal, credentials, authorities);
        this.token = token;
    }

    public String getToken() {
        return token;
    }

    public void setToken(String token) {
        this.token = token;
    }

    public static long getSerialversionuid() {
        return serialVersionUID;
    }
}

十：创建令牌工具类：JwtTokenUtils，提供涉及令牌的功能

package com.gis.utils;
import java.io.Serializable;
import java.util.ArrayList;
import java.util.Date;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import javax.servlet.http.HttpServletRequest;
import com.gis.security.JwtAuthenticatioToken;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.GrantedAuthority;
import io.jsonwebtoken.Claims;
import io.jsonwebtoken.Jwts;
import io.jsonwebtoken.SignatureAlgorithm;

/**
 * JWT工具类
 */
public class JwtTokenUtils implements Serializable {

    private static final long serialVersionUID = 1L;

    /**
     * 用户名称
     */
    private static final String USERNAME = Claims.SUBJECT;
    /**
     * 创建时间
     */
    private static final String CREATED = "created";
    /**
     * 权限列表
     */
    private static final String AUTHORITIES = "authorities";
    /**
     * 密钥
     */
    private static final String SECRET = "abcdefgh";
    /**
     * 有效期12小时
     */
    private static final long EXPIRE_TIME = 12 * 60 * 60 * 1000;

    /**
     * 生成令牌
     *
     * @return 令牌
     */
    public static String generateToken(Authentication authentication) {
        Map<String, Object> claims = new HashMap<>(3);
        claims.put(USERNAME, SecurityUtils.getUsername(authentication));
        claims.put(CREATED, new Date());
        claims.put(AUTHORITIES, authentication.getAuthorities());
        return generateToken(claims);
    }

    /**
     * 从数据声明生成令牌
     *
     * @param claims 数据声明
     * @return 令牌
     */
    private static String generateToken(Map<String, Object> claims) {
        Date expirationDate = new Date(System.currentTimeMillis() + EXPIRE_TIME);
        return Jwts.builder().setClaims(claims).setExpiration(expirationDate).signWith(SignatureAlgorithm.HS512, SECRET).compact();
    }

    /**
     * 从令牌中获取用户名
     *
     * @param token 令牌
     * @return 用户名
     */
    public static String getUsernameFromToken(String token) {
        String username;
        try {
            Claims claims = getClaimsFromToken(token);
            username = claims.getSubject();
        } catch (Exception e) {
            username = null;
        }
        return username;
    }

    /**
     * 根据请求令牌获取登录认证信息
     * @param request
     * @return 用户名
     */
    public static Authentication getAuthenticationeFromToken(HttpServletRequest request) {
        Authentication authentication = null;
        // 获取请求携带的令牌
        String token = JwtTokenUtils.getToken(request);
        if(token != null) {
            // 请求令牌不能为空
            if(SecurityUtils.getAuthentication() == null) {
                // 上下文中Authentication为空
                Claims claims = getClaimsFromToken(token);
                if(claims == null) {
                    return null;
                }
                String username = claims.getSubject();
                if(username == null) {
                    return null;
                }
                if(isTokenExpired(token)) {
                    return null;
                }
                Object authors = claims.get(AUTHORITIES);
                List<GrantedAuthority> authorities = new ArrayList<GrantedAuthority>();
                authentication = new JwtAuthenticatioToken(username, null, authorities, token);
            } else {
                if(validateToken(token, SecurityUtils.getUsername())) {
                    // 如果上下文中Authentication非空，且请求令牌合法，直接返回当前登录认证信息
                    authentication = SecurityUtils.getAuthentication();
                }
            }
        }
        return authentication;
    }

    /**
     * 从令牌中获取数据声明
     *
     * @param token 令牌
     * @return 数据声明
     */
    private static Claims getClaimsFromToken(String token) {
        Claims claims;
        try {
            claims = Jwts.parser().setSigningKey(SECRET).parseClaimsJws(token).getBody();
        } catch (Exception e) {
            claims = null;
        }
        return claims;
    }

    /**
     * 验证令牌
     * @param token
     * @param username
     * @return
     */
    public static Boolean validateToken(String token, String username) {
        String userName = getUsernameFromToken(token);
        return (userName.equals(username) && !isTokenExpired(token));
    }

    /**
     * 刷新令牌
     * @param token
     * @return
     */
    public static String refreshToken(String token) {
        String refreshedToken;
        try {
            Claims claims = getClaimsFromToken(token);
            claims.put(CREATED, new Date());
            refreshedToken = generateToken(claims);
        } catch (Exception e) {
            refreshedToken = null;
        }
        return refreshedToken;
    }

    /**
     * 判断令牌是否过期
     *
     * @param token 令牌
     * @return 是否过期
     */
    public static Boolean isTokenExpired(String token) {
        try {
            Claims claims = getClaimsFromToken(token);
            Date expiration = claims.getExpiration();
            return expiration.before(new Date());
        } catch (Exception e) {
            return false;
        }
    }

    /**
     * 获取请求token
     * @param request
     * @return
     */
    public static String getToken(HttpServletRequest request) {
        String token = request.getHeader("Authorization");
        String tokenHead = "Bearer ";
        if(token == null) {
            token = request.getHeader("token");
        } else if(token.contains(tokenHead)){
            token = token.substring(tokenHead.length());
        }
        if("".equals(token)) {
            token = null;
        }
        return token;
    }

}

 十一：封装Spring Security 工具类：SecurityUtils

package com.gis.utils;

import com.gis.security.JwtAuthenticatioToken;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.web.authentication.WebAuthenticationDetailsSource;

import javax.servlet.http.HttpServletRequest;

public class SecurityUtils {
    /**
     * 系统登录认证
     */
    public static JwtAuthenticatioToken login(HttpServletRequest request, String username, String password, AuthenticationManager authenticationManager) {
        JwtAuthenticatioToken token = new JwtAuthenticatioToken(username, password);
        token.setDetails(new WebAuthenticationDetailsSource().buildDetails(request));
        // 执行登录认证过程
        Authentication authentication = authenticationManager.authenticate(token);
        // 认证成功存储认证信息到上下文
        SecurityContextHolder.getContext().setAuthentication(authentication);
        // 生成令牌并返回给客户端
        token.setToken(JwtTokenUtils.generateToken(authentication));
        return token;
    }

    /**
     * 获取令牌进行认证
     * @param request
     */
    public static void checkAuthentication(HttpServletRequest request) {
        // 获取令牌并根据令牌获取登录认证信息
        Authentication authentication = JwtTokenUtils.getAuthenticationeFromToken(request);
        // 设置登录认证信息到上下文
        SecurityContextHolder.getContext().setAuthentication(authentication);
    }

    /**
     * 获取当前用户名
     * @return
     */
    public static String getUsername() {
        String username = null;
        Authentication authentication = getAuthentication();
        if(authentication != null) {
            Object principal = authentication.getPrincipal();
            if(principal != null && principal instanceof UserDetails) {
                username = ((UserDetails) principal).getUsername();
            }
        }
        return username;
    }

    /**
     * 获取用户名
     * @return
     */
    public static String getUsername(Authentication authentication) {
        String username = null;
        if(authentication != null) {
            Object principal = authentication.getPrincipal();
            if(principal != null && principal instanceof UserDetails) {
                username = ((UserDetails) principal).getUsername();
            }
        }
        return username;
    }

    /**
     * 获取当前登录信息
     * @return
     */
    public static Authentication getAuthentication() {
        if(SecurityContextHolder.getContext() == null) {
            return null;
        }
        Authentication authentication = SecurityContextHolder.getContext().getAuthentication();
        return authentication;
    }
}

 十二：JwtAuthenticationFilter继承登录认证过滤器BasicAuthenticationFilter

package com.gis.security;

import com.gis.utils.SecurityUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.web.authentication.www.BasicAuthenticationFilter;

import javax.servlet.FilterChain;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

/**
 * 登录认证过滤器
 */
public class JwtAuthenticationFilter extends BasicAuthenticationFilter {
    @Autowired
    public JwtAuthenticationFilter(AuthenticationManager authenticationManager) {
        super(authenticationManager);
    }

    @Override
    protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain chain) throws IOException, ServletException, ServletException {
        // 获取token, 并检查登录状态
        SecurityUtils.checkAuthentication(request);
        chain.doFilter(request, response);
    }
}

十三：SpringBoot开启Spring Security：WebSecurityConfig

package com.gis.config;

import com.gis.security.JwtAuthenticationFilter;
import com.gis.security.JwtAuthenticationProvider;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.HttpMethod;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.method.configuration.EnableGlobalMethodSecurity;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;
import org.springframework.security.web.authentication.logout.HttpStatusReturningLogoutSuccessHandler;
/**
 * Spring Security配置
 */
@Configuration
@EnableWebSecurity	// 开启Spring Security
@EnableGlobalMethodSecurity(prePostEnabled = true)	// 开启权限注解，如：@PreAuthorize注解
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {

    @Autowired
    private UserDetailsService userDetailsService;

    @Override
    public void configure(AuthenticationManagerBuilder auth) throws Exception {
        // 使用自定义身份验证组件
        auth.authenticationProvider(new JwtAuthenticationProvider(userDetailsService));
    }

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        // 禁用 csrf, 由于使用的是JWT，我们这里不需要csrf
        http.cors().and().csrf().disable()
                .authorizeRequests()
                // 跨域预检请求
                .antMatchers(HttpMethod.OPTIONS, "/**").permitAll()
                // web jars
                .antMatchers("/webjars/**").permitAll()
                // 查看SQL监控（druid）
                .antMatchers("/druid/**").permitAll()
                // 首页和登录页面
                .antMatchers("/").permitAll()
                .antMatchers("/login").permitAll()
                // swagger
                .antMatchers("/swagger-ui.html").permitAll()
                .antMatchers("/swagger-resources/**").permitAll()
                .antMatchers("/v2/api-docs").permitAll()
                .antMatchers("/webjars/springfox-swagger-ui/**").permitAll()
                // 验证码
                .antMatchers("/captcha.jpg**").permitAll()
                // 其他所有请求需要身份认证
                .anyRequest().authenticated();
        // 退出登录处理器
        http.logout().logoutSuccessHandler(new HttpStatusReturningLogoutSuccessHandler());
        // token验证过滤器
        http.addFilterBefore(new JwtAuthenticationFilter(authenticationManager()), UsernamePasswordAuthenticationFilter.class);
    }

    @Bean
    @Override
    public AuthenticationManager authenticationManager() throws Exception {
        return super.authenticationManager();
    }

}

十四：提供非持久化对象，登录接口实现

package com.gis.vo;

import lombok.Data;

/**
 * 登录接口封装对象
 */
@Data
public class LoginBean {

    private String account;
    private String password;
    private String captcha;

}

package com.gis.controller;
import com.gis.bean.SysUser;
import com.gis.security.JwtAuthenticatioToken;
import com.gis.service.SysUserService;
import com.gis.utils.PasswordUtils;
import com.gis.utils.SecurityUtils;
import com.gis.vo.LoginBean;
import com.google.code.kaptcha.Constants;
import com.google.code.kaptcha.Producer;
import org.apache.tomcat.util.http.fileupload.IOUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

import javax.imageio.ImageIO;
import javax.servlet.ServletOutputStream;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.awt.image.BufferedImage;
import java.io.IOException;

@RestController
@RequestMapping("")
public class LoginController {
    @Autowired
    private Producer producer;
    @Autowired
    SysUserService sysUserService;
    @GetMapping(value="/findAllUser")
    public Object findAllUser(){
        return sysUserService.findAll();
    }
    @GetMapping("/captcha.jpg")
    public void captcha(HttpServletRequest req, HttpServletResponse res) throws Exception{
        res.setHeader("Cache-Control", "no-store, no-cache");
        res.setContentType("image/jpeg");

        // 生成文字验证码
        String text = producer.createText();
        System.out.println(text);
        // 生成图片验证码
        BufferedImage image = producer.createImage(text);
        // 保存到验证码到 session
        req.getSession().setAttribute(Constants.KAPTCHA_SESSION_KEY, text);

        ServletOutputStream out = res.getOutputStream();
        ImageIO.write(image, "jpg", out);
        IOUtils.closeQuietly(out);
    }
    /**
     * 登录接口
     */
    @PostMapping(value = "/login")
    public Object login(@RequestBody LoginBean loginBean, HttpServletRequest request) throws IOException {
        String username = loginBean.getAccount();
        String password = loginBean.getPassword();
        String captcha = loginBean.getCaptcha();
        // 从session中获取之前保存的验证码跟前台传来的验证码进行匹配
        Object kaptcha = request.getSession().getAttribute(Constants.KAPTCHA_SESSION_KEY);
        if(kaptcha == null){
            System.out.println("验证码已失效");
        }
        if(!captcha.equals(kaptcha)){
            System.out.println("验证码不正确");
        }
        // 用户信息
        SysUser user = sysUserService.findByName(username);
        // 账号不存在、密码错误
        if (user == null) {
            System.out.println("账号不存在");
        }
        if (!PasswordUtils.matches(user.getSalt(), password, user.getPassword())) {
            System.out.println("密码不正确");
        }
        // 账号锁定
        if (user.getStatus() == 0) {
            System.out.println("账号已被锁定,请联系管理员");
        }
        // 系统登录认证
        JwtAuthenticatioToken token = SecurityUtils.login(request, username, password, null);
        return token;
    }
}

总结：

  • 启动SpringBoot，Spring Security启动， 创建DaoAuthenticationProvider和BasicAuthenticationFilter的对象，前者为了提供验证身份，后者对请求进行过滤。
  • 当接收到请求后，会进入BasicAuthenticationFilter的doFilterInternal方法。在这里开始了登录认证。
版权声明：本文为wwyywwsaber原创文章，遵循CC 4.0 BY-SA版权协议，转载请附上原文出处链接和本声明。
