css实现立体阴影盒子——transform

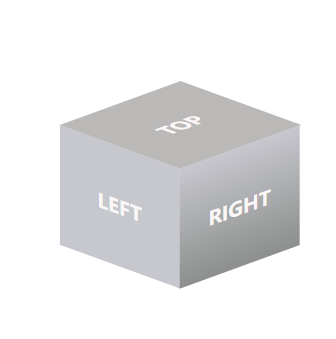

效果图如下:



首先设置body主要结构体,这里是三个div盒子,分别对应三个立体面

<div class="stage">
        <div class="container">
            <div id="left"><p>LEFT</p></div>
            <div id="top"><p>TOP</p></div>
            <div id="right"><p>RIGHT</p></div>
        </div>
    </div>

对立体面文字的样式设置:

P{
            color: rgb(252, 247, 247);
            font-weight: bold;
            text-align: center;
            padding-top: 40px;

        }

然后对左侧的样式设计:transform里面是两个属性(倾斜和位移)的合并

#left{
            background-color: rgb(199, 199, 206);
            width: 100px;
            height: 100px;
            transform: skew(0,20deg) translate(50%, 100%) ;

        }

右侧的样式基本差不多,但是背景用渐变(从上到下)来突出阴影的效果:

#right{
            background:linear-gradient(to bottom,rgb(199, 199, 206),rgb(140, 143, 140));
            width: 100px;
            height: 100px;


            transform:  skew(0,-20deg) translate(150%,-59%);

        }

上面的样式:rotate取负是逆时针旋转45°,缩放0.97,倾斜x轴是25°,y轴是25°,最后移动对象到指定位置。

#top{
            background-color: rgb(187, 184, 184);
            width: 100px;
            height: 100px;

            transform: rotate(-45deg) scale(0.97) skew(25deg,25deg) translate(140%,-40%);
        }

最后就完成啦
