Kafka源码阅读笔记
1. Server启动流程
/**
* Start up API for bringing up a single instance of the Kafka server.
* Instantiates the LogManager, the SocketServer and the request handlers - KafkaRequestHandlers
*/
def startup(): Unit = {
try {
info("starting")
if (isShuttingDown.get)
throw new IllegalStateException("Kafka server is still shutting down, cannot re-start!")
if (startupComplete.get)
return
val canStartup = isStartingUp.compareAndSet(false, true)
if (canStartup) {
brokerState.newState(Starting)
/* setup zookeeper */
initZkClient(time)
/* initialize features */
_featureChangeListener = new FinalizedFeatureChangeListener(featureCache, _zkClient)
if (config.isFeatureVersioningSupported) {
_featureChangeListener.initOrThrow(config.zkConnectionTimeoutMs)
}
/* Get or create cluster_id */
_clusterId = getOrGenerateClusterId(zkClient)
info(s"Cluster ID = $clusterId")
/* load metadata */
val (preloadedBrokerMetadataCheckpoint, initialOfflineDirs) = getBrokerMetadataAndOfflineDirs
/* check cluster id */
if (preloadedBrokerMetadataCheckpoint.clusterId.isDefined && preloadedBrokerMetadataCheckpoint.clusterId.get != clusterId)
throw new InconsistentClusterIdException(
s"The Cluster ID ${clusterId} doesn't match stored clusterId ${preloadedBrokerMetadataCheckpoint.clusterId} in meta.properties. " +
s"The broker is trying to join the wrong cluster. Configured zookeeper.connect may be wrong.")
/* generate brokerId */
config.brokerId = getOrGenerateBrokerId(preloadedBrokerMetadataCheckpoint)
logContext = new LogContext(s"[KafkaServer id=${config.brokerId}] ")
this.logIdent = logContext.logPrefix
// initialize dynamic broker configs from ZooKeeper. Any updates made after this will be
// applied after DynamicConfigManager starts.
config.dynamicConfig.initialize(zkClient)
/* start scheduler */
kafkaScheduler = new KafkaScheduler(config.backgroundThreads)
kafkaScheduler.startup()
/* create and configure metrics */
kafkaYammerMetrics = KafkaYammerMetrics.INSTANCE
kafkaYammerMetrics.configure(config.originals)
val jmxReporter = new JmxReporter()
jmxReporter.configure(config.originals)
val reporters = new util.ArrayList[MetricsReporter]
reporters.add(jmxReporter)
val metricConfig = KafkaServer.metricConfig(config)
val metricsContext = createKafkaMetricsContext()
metrics = new Metrics(metricConfig, reporters, time, true, metricsContext)
/* register broker metrics */
_brokerTopicStats = new BrokerTopicStats
quotaManagers = QuotaFactory.instantiate(config, metrics, time, threadNamePrefix.getOrElse(""))
notifyClusterListeners(kafkaMetricsReporters ++ metrics.reporters.asScala)
logDirFailureChannel = new LogDirFailureChannel(config.logDirs.size)
/* start log manager */
logManager = LogManager(config, initialOfflineDirs, zkClient, brokerState, kafkaScheduler, time, brokerTopicStats, logDirFailureChannel)
logManager.startup()
metadataCache = new MetadataCache(config.brokerId)
// Enable delegation token cache for all SCRAM mechanisms to simplify dynamic update.
// This keeps the cache up-to-date if new SCRAM mechanisms are enabled dynamically.
tokenCache = new DelegationTokenCache(ScramMechanism.mechanismNames)
credentialProvider = new CredentialProvider(ScramMechanism.mechanismNames, tokenCache)
// Create and start the socket server acceptor threads so that the bound port is known.
// Delay starting processors until the end of the initialization sequence to ensure
// that credentials have been loaded before processing authentications.
socketServer = new SocketServer(config, metrics, time, credentialProvider)
socketServer.startup(startProcessingRequests = false)
/* start replica manager */
brokerToControllerChannelManager = new BrokerToControllerChannelManagerImpl(metadataCache, time, metrics, config, threadNamePrefix)
replicaManager = createReplicaManager(isShuttingDown)
replicaManager.startup()
brokerToControllerChannelManager.start()
val brokerInfo = createBrokerInfo
val brokerEpoch = zkClient.registerBroker(brokerInfo)
// Now that the broker is successfully registered, checkpoint its metadata
checkpointBrokerMetadata(BrokerMetadata(config.brokerId, Some(clusterId)))
/* start token manager */
tokenManager = new DelegationTokenManager(config, tokenCache, time , zkClient)
tokenManager.startup()
/* start kafka controller */
kafkaController = new KafkaController(config, zkClient, time, metrics, brokerInfo, brokerEpoch, tokenManager, brokerFeatures, featureCache, threadNamePrefix)
kafkaController.startup()
adminManager = new AdminManager(config, metrics, metadataCache, zkClient)
/* start group coordinator */
// Hardcode Time.SYSTEM for now as some Streams tests fail otherwise, it would be good to fix the underlying issue
groupCoordinator = GroupCoordinator(config, zkClient, replicaManager, Time.SYSTEM, metrics)
groupCoordinator.startup()
/* start transaction coordinator, with a separate background thread scheduler for transaction expiration and log loading */
// Hardcode Time.SYSTEM for now as some Streams tests fail otherwise, it would be good to fix the underlying issue
transactionCoordinator = TransactionCoordinator(config, replicaManager, new KafkaScheduler(threads = 1, threadNamePrefix = "transaction-log-manager-"), zkClient, metrics, metadataCache, Time.SYSTEM)
transactionCoordinator.startup()
/* Get the authorizer and initialize it if one is specified.*/
authorizer = config.authorizer
authorizer.foreach(_.configure(config.originals))
val authorizerFutures: Map[Endpoint, CompletableFuture[Void]] = authorizer match {
case Some(authZ) =>
authZ.start(brokerInfo.broker.toServerInfo(clusterId, config)).asScala.map { case (ep, cs) =>
ep -> cs.toCompletableFuture
}
case None =>
brokerInfo.broker.endPoints.map { ep =>
ep.toJava -> CompletableFuture.completedFuture[Void](null)
}.toMap
}
val fetchManager = new FetchManager(Time.SYSTEM,
new FetchSessionCache(config.maxIncrementalFetchSessionCacheSlots,
KafkaServer.MIN_INCREMENTAL_FETCH_SESSION_EVICTION_MS))
/* start processing requests */
dataPlaneRequestProcessor = new KafkaApis(socketServer.dataPlaneRequestChannel, replicaManager, adminManager, groupCoordinator, transactionCoordinator,
kafkaController, zkClient, config.brokerId, config, metadataCache, metrics, authorizer, quotaManagers,
fetchManager, brokerTopicStats, clusterId, time, tokenManager, brokerFeatures, featureCache)
dataPlaneRequestHandlerPool = new KafkaRequestHandlerPool(config.brokerId, socketServer.dataPlaneRequestChannel, dataPlaneRequestProcessor, time,
config.numIoThreads, s"${SocketServer.DataPlaneMetricPrefix}RequestHandlerAvgIdlePercent", SocketServer.DataPlaneThreadPrefix)
socketServer.controlPlaneRequestChannelOpt.foreach { controlPlaneRequestChannel =>
controlPlaneRequestProcessor = new KafkaApis(controlPlaneRequestChannel, replicaManager, adminManager, groupCoordinator, transactionCoordinator,
kafkaController, zkClient, config.brokerId, config, metadataCache, metrics, authorizer, quotaManagers,
fetchManager, brokerTopicStats, clusterId, time, tokenManager, brokerFeatures, featureCache)
controlPlaneRequestHandlerPool = new KafkaRequestHandlerPool(config.brokerId, socketServer.controlPlaneRequestChannelOpt.get, controlPlaneRequestProcessor, time,
1, s"${SocketServer.ControlPlaneMetricPrefix}RequestHandlerAvgIdlePercent", SocketServer.ControlPlaneThreadPrefix)
}
Mx4jLoader.maybeLoad()
/* Add all reconfigurables for config change notification before starting config handlers */
config.dynamicConfig.addReconfigurables(this)
/* start dynamic config manager */
dynamicConfigHandlers = Map[String, ConfigHandler](ConfigType.Topic -> new TopicConfigHandler(logManager, config, quotaManagers, kafkaController),
ConfigType.Client -> new ClientIdConfigHandler(quotaManagers),
ConfigType.User -> new UserConfigHandler(quotaManagers, credentialProvider),
ConfigType.Broker -> new BrokerConfigHandler(config, quotaManagers))
// Create the config manager. start listening to notifications
dynamicConfigManager = new DynamicConfigManager(zkClient, dynamicConfigHandlers)
dynamicConfigManager.startup()
socketServer.startProcessingRequests(authorizerFutures)
brokerState.newState(RunningAsBroker)
shutdownLatch = new CountDownLatch(1)
startupComplete.set(true)
isStartingUp.set(false)
AppInfoParser.registerAppInfo(metricsPrefix, config.brokerId.toString, metrics, time.milliseconds())
info("started")
}
}
catch {
case e: Throwable =>
fatal("Fatal error during KafkaServer startup. Prepare to shutdown", e)
isStartingUp.set(false)
shutdown()
throw e
}
}
KafkaController#startup中为每一个server都会启动一个eventManager
/**
* Invoked when the controller module of a Kafka server is started up. This does not assume that the current broker
* is the controller. It merely registers the session expiration listener and starts the controller leader
* elector
*/
def startup() = {
zkClient.registerStateChangeHandler(new StateChangeHandler {
override val name: String = StateChangeHandlers.ControllerHandler
override def afterInitializingSession(): Unit = {
eventManager.put(RegisterBrokerAndReelect)
}
override def beforeInitializingSession(): Unit = {
val queuedEvent = eventManager.clearAndPut(Expire)
// Block initialization of the new session until the expiration event is being handled,
// which ensures that all pending events have been processed before creating the new session
queuedEvent.awaitProcessing()
}
})
eventManager.put(Startup)
eventManager.start()
}
Startup类型的ControllerEvent被放入到eventmanager中，被KafkaController#process方法调用
override def process(event: ControllerEvent): Unit = {
try {
event match {
case event: ……
case Startup =>
processStartup()
}
} catch {
case e: ControllerMovedException =>
info(s"Controller moved to another broker when processing $event.", e)
maybeResign()
case e: Throwable =>
error(s"Error processing event $event", e)
} finally {
updateMetrics()
}
}
private def processStartup(): Unit = {
zkClient.registerZNodeChangeHandlerAndCheckExistence(controllerChangeHandler)
elect()
}
elect就是尝试竞选controller,如果我们当前节点真的被选为controller(onControllerFailover()–故障转移)
/*
1.把controller的epoch号码+1
2.启动controller的channel manager用于接收请求
3.启动replica的状态机，监测replica是OnlineReplica还是OfflineReplica的状态。这里的offline是指该replica的broker已经挂掉。
4.启动partition的状态机，监测partition是OnlinePartition还是OfflinePartition。这里的offline是指该partion的leader已经挂掉。
5.启动自动的leader分配rebalance（如果启动设置）
*/
replicaStateMachine.startup()
partitionStateMachine.startup()
2. 日志操作
- kafka后台抽象的Log由若干个LogSegment组成。
- 每一个LogSegments都有一个baseOffset，是该logsegment第一条消息的偏移量。Server根据时间或者大小限制来创建新的LogSegment。
- Log是一个partition的一个replica的存储。
- 各个server的日志存储不一定相同，即使是相同的topic里面相同partion的副本，存储的起始offset也不相同。
后台维护线程
日志操作主要包含一下几个后台线程:
LogManager#startup
def startup(): Unit = {
/* Schedule the cleanup task to delete old logs */
if (scheduler != null) {
info("Starting log cleanup with a period of %d ms.".format(retentionCheckMs))
// 遍历所有Log。负责清理未压缩的日志，清除条件
// 1.日志超过保留时间 2.日志大小超过保留大小
scheduler.schedule("kafka-log-retention",
cleanupLogs _,
delay = InitialTaskDelayMs,
period = retentionCheckMs,
TimeUnit.MILLISECONDS)
info("Starting log flusher with a default period of %d ms.".format(flushCheckMs))
// 将超过写回限制时间且存在更新的Log写回磁盘。
// 调用JAVA NIO中的FileChannel中的force，该方法将负责将channel中的所有未未写入磁盘的内容写入磁盘。
scheduler.schedule("kafka-log-flusher",
flushDirtyLogs _,
delay = InitialTaskDelayMs,
period = flushCheckMs,
TimeUnit.MILLISECONDS)
// 向路径中写入当前的恢复点，避免在重启时需要重新恢复全部数据
scheduler.schedule("kafka-recovery-point-checkpoint",
checkpointLogRecoveryOffsets _,
delay = InitialTaskDelayMs,
period = flushRecoveryOffsetCheckpointMs,
TimeUnit.MILLISECONDS)
// 向日志目录写入当前存储的日志中的start offset。避免读到已经被删除的日志
scheduler.schedule("kafka-log-start-offset-checkpoint",
checkpointLogStartOffsets _,
delay = InitialTaskDelayMs,
period = flushStartOffsetCheckpointMs,
TimeUnit.MILLISECONDS)
// 清理已经被标记为删除的日志
scheduler.schedule("kafka-delete-logs", // will be rescheduled after each delete logs with a dynamic period
deleteLogs _,
delay = InitialTaskDelayMs,
unit = TimeUnit.MILLISECONDS)
}
if (cleanerConfig.enableCleaner)
cleaner.startup()
}
Log的flush会具体到某个segment的flush
/**
* Flush log segments for all offsets up to offset-1
*
* @param offset The offset to flush up to (non-inclusive); the new recovery point
*/
def flush(offset: Long): Unit = {
maybeHandleIOException(s"Error while flushing log for $topicPartition in dir ${dir.getParent} with offset $offset") {
if (offset <= this.recoveryPoint)
return
debug(s"Flushing log up to offset $offset, last flushed: $lastFlushTime, current time: ${time.milliseconds()}, " +
s"unflushed: $unflushedMessages")
for (segment <- logSegments(this.recoveryPoint, offset))
segment.flush()
lock synchronized {
checkIfMemoryMappedBufferClosed()
if (offset > this.recoveryPoint) {
this.recoveryPoint = offset
lastFlushedTime.set(time.milliseconds)
}
}
}
}
最终的操作会终止在FileRecord.java中实现，封装了JAVA NIO中FILE CHANNEL的常见操作
日志追加流程
- 最终channel.write是将MemoryRecords中的bytebuffer写入等到了磁盘
- MemoryRecords在kafka中的形态如下：
public class MemoryRecords extends AbstractRecords {
// 封装了NIO中的ByteBuffer
private final ByteBuffer buffer;
FileRecord#open 在打开文件的时候使用java.io的File类初始化该实例的channel
public class FileRecords extends AbstractRecords implements Closeable {
// 访问该文件的channel
private final FileChannel channel;
private volatile File file;
//在打开文件的时候使用java.io的File类初始化该实例的channel
public static FileRecords open(File file,
boolean mutable,
boolean fileAlreadyExists,
int initFileSize,
boolean preallocate) throws IOException {
FileChannel channel = openChannel(file, mutable, fileAlreadyExists, initFileSize, preallocate);
int end = (!fileAlreadyExists && preallocate) ? 0 : Integer.MAX_VALUE;
return new FileRecords(file, channel, 0, end, false);
}
//把内存中的记录追加到文件中
public int append(MemoryRecords records) throws IOException {
if (records.sizeInBytes() > Integer.MAX_VALUE - size.get())
throw new IllegalArgumentException("Append of size " + records.sizeInBytes() +
" bytes is too large for segment with current file position at " + size.get());
//底层实现就是channel.write(buffer)
int written = records.writeFullyTo(channel);
size.getAndAdd(written);
return written;
}
##MemoryRecords
public int writeFullyTo(GatheringByteChannel channel) throws IOException {
buffer.mark();
int written = 0;
while (written < sizeInBytes())
written += channel.write(buffer);
buffer.reset();
return written;
}
日志读取流程
FileRecords类提供了两种方式来读取日志文件：
- 采用NIO中的channel.read将内容读到NIO中的ByteBuffer里
- 采用NIO中fileChannel.transferTo将内容直接零拷贝到socketchannel中。注意，这一步，broker端既不对数据进行解压缩，而是将压缩数据直接发给客户端，让客户端进行解压缩。
第一种方式：
//##FileRecords.java
public ByteBuffer readInto(ByteBuffer buffer, int position) throws IOException {
Utils.readFully(channel, buffer, position + this.start);
//buffer从写入模式切换到了读出模式，返回
buffer.flip();
return buffer;
}
//##Utils.java
public static void readFully(FileChannel channel, ByteBuffer destinationBuffer, long position) throws IOException {
if (position < 0) {
throw new IllegalArgumentException("The file channel position cannot be negative, but it is " + position);
}
long currentPosition = position;
int bytesRead;
do {
bytesRead = channel.read(destinationBuffer, currentPosition);
currentPosition += bytesRead;
} while (bytesRead != -1 && destinationBuffer.hasRemaining());
}
第二种方式：在操作系统支持的情况下，该数据并不需要将源数据从内核态拷贝到用户态，再从用户态拷贝到内核态。
// ##FileRecords.java
@Override
public long writeTo(GatheringByteChannel destChannel, long offset, int length) throws IOException {
final long bytesTransferred;
if (destChannel instanceof TransportLayer) {
//写入传输层的socket
TransportLayer tl = (TransportLayer) destChannel;
bytesTransferred = tl.transferFrom(channel, position, count);
} else {
bytesTransferred = channel.transferTo(position, count, destChannel);
}
return bytesTransferred;
}
// ##PlaintextTransportLayer.java
public class PlaintextTransportLayer implements TransportLayer {
//实例保存的具体socket
private final SocketChannel socketChannel;
@Override
public long transferFrom(FileChannel fileChannel, long position, long count) throws IOException {
//NIO包方法，从filechannel零拷贝到socketchannel。
return fileChannel.transferTo(position, count, socketChannel);
}
3. 网络链接
kafka使用自己写的socket server，使用标准的reactor多线程模式。
启动流程如下：KafkaServer#startup下对socketServer#startup
/**
* Starts the socket server and creates all the Acceptors and the Processors. The Acceptors
* start listening at this stage so that the bound port is known when this method completes
* even when ephemeral ports are used. Acceptors and Processors are started if `startProcessingRequests`
* is true. If not, acceptors and processors are only started when [[kafka.network.SocketServer#startProcessingRequests()]]
* is invoked. Delayed starting of acceptors and processors is used to delay processing client
* connections until server is fully initialized, e.g. to ensure that all credentials have been
* loaded before authentications are performed. Incoming connections on this server are processed
* when processors start up and invoke [[org.apache.kafka.common.network.Selector#poll]].
*
* @param startProcessingRequests Flag indicating whether `Processor`s must be started.
*/
def startup(startProcessingRequests: Boolean = true): Unit = {
this.synchronized {
connectionQuotas = new ConnectionQuotas(config, time, metrics)
// qi
createControlPlaneAcceptorAndProcessor(config.controlPlaneListener)
createDataPlaneAcceptorsAndProcessors(config.numNetworkThreads, config.dataPlaneListeners)
if (startProcessingRequests) {
this.startProcessingRequests()
}
}
}
// ## 创建控制层Acceptor和Processor
private def createControlPlaneAcceptorAndProcessor(endpointOpt: Option[EndPoint]): Unit = {
endpointOpt.foreach { endpoint =>
connectionQuotas.addListener(config, endpoint.listenerName)
val controlPlaneAcceptor = createAcceptor(endpoint, ControlPlaneMetricPrefix)
val controlPlaneProcessor = newProcessor(nextProcessorId, controlPlaneRequestChannelOpt.get, connectionQuotas, endpoint.listenerName, endpoint.securityProtocol, memoryPool)
controlPlaneAcceptorOpt = Some(controlPlaneAcceptor)
controlPlaneProcessorOpt = Some(controlPlaneProcessor)
val listenerProcessors = new ArrayBuffer[Processor]()
listenerProcessors += controlPlaneProcessor
controlPlaneRequestChannelOpt.foreach(_.addProcessor(controlPlaneProcessor))
nextProcessorId += 1
controlPlaneAcceptor.addProcessors(listenerProcessors, ControlPlaneThreadPrefix)
info(s"Created control-plane acceptor and processor for endpoint : ${endpoint.listenerName}")
}
}
// ## 数据数据层Acceptor和Processor
private def createDataPlaneAcceptorsAndProcessors(dataProcessorsPerListener: Int,
endpoints: Seq[EndPoint]): Unit = {
endpoints.foreach { endpoint =>
connectionQuotas.addListener(config, endpoint.listenerName)
val dataPlaneAcceptor = createAcceptor(endpoint, DataPlaneMetricPrefix)
addDataPlaneProcessors(dataPlaneAcceptor, endpoint, dataProcessorsPerListener)
dataPlaneAcceptors.put(endpoint, dataPlaneAcceptor)
info(s"Created data-plane acceptor and processors for endpoint : ${endpoint.listenerName}")
}
}
// ## 创建acceptor
private def createAcceptor(endPoint: EndPoint, metricPrefix: String) : Acceptor = {
val sendBufferSize = config.socketSendBufferBytes
val recvBufferSize = config.socketReceiveBufferBytes
val brokerId = config.brokerId
new Acceptor(endPoint, sendBufferSize, recvBufferSize, brokerId, connectionQuotas, metricPrefix)
}
// ## 创建并添加数据层Processers
private def addDataPlaneProcessors(acceptor: Acceptor, endpoint: EndPoint, newProcessorsPerListener: Int): Unit = {
val listenerName = endpoint.listenerName
val securityProtocol = endpoint.securityProtocol
val listenerProcessors = new ArrayBuffer[Processor]()
for (_ <- 0 until newProcessorsPerListener) {
val processor = newProcessor(nextProcessorId, dataPlaneRequestChannel, connectionQuotas, listenerName, securityProtocol, memoryPool)
listenerProcessors += processor
dataPlaneRequestChannel.addProcessor(processor)
nextProcessorId += 1
}
listenerProcessors.foreach(p => dataPlaneProcessors.put(p.id, p))
acceptor.addProcessors(listenerProcessors, DataPlaneThreadPrefix)
}
Aceptor线程核心是一段循环代码，负责处理新加入的连接
while (isRunning) {
try {
// 阻塞查询需要处理的连接事件
val ready = nioSelector.select(500)
if (ready > 0) {
val keys = nioSelector.selectedKeys()
val iter = keys.iterator()
while (iter.hasNext && isRunning) {
try {
val key = iter.next
iter.remove()
if (key.isAcceptable) {
// 该方法调用processor.accept来接收新connection
accept(key).foreach { socketChannel =>
// Assign the channel to the next processor (using round-robin) to which the
// channel can be added without blocking. If newConnections queue is full on
// all processors, block until the last one is able to accept a connection.
var retriesLeft = synchronized(processors.length)
var processor: Processor = null
do {
retriesLeft -= 1
processor = synchronized {
// adjust the index (if necessary) and retrieve the processor atomically for
// correct behaviour in case the number of processors is reduced dynamically
currentProcessorIndex = currentProcessorIndex % processors.length
processors(currentProcessorIndex)
}
currentProcessorIndex += 1
} while (!assignNewConnection(socketChannel, processor, retriesLeft == 0))
}
} else
throw new IllegalStateException("Unrecognized key state for acceptor thread.")
} catch {
case e: Throwable => error("Error while accepting connection", e)
}
}
}
}
Processor相当于netty中workergroup中的线程，链接建立以后，channel被交给Processor，负责相应之后需要处理的读写。Processor主流程如下：
while (isRunning) {
try {
// setup any new connections that have been queued up
configureNewConnections()
// register any new responses for writing
processNewResponses()
poll()
processCompletedReceives()
processCompletedSends()
processDisconnected()
closeExcessConnections()
} catch { ……
处理接收的逻辑如下：
while (isRunning) {
try {
// setup any new connections that have been queued up
configureNewConnections()
// register any new responses for writing
processNewResponses()
poll()
processCompletedReceives() // 处理接收
processCompletedSends()
processDisconnected()
closeExcessConnections()
} catch {……
// ##processCompletedReceives()处理接收内部实际是将消息发给channel,requestChannel.sendRequest(req)
/** Send a request to be handled, potentially blocking until there is room in the queue for the request */
def sendRequest(request: RequestChannel.Request): Unit = {
requestQueue.put(request)
}
// ## KafkaRequestHandler线程主要方法#run中主要是从requestQueue中取请求
requestChannel.receiveRequest(300)
/** Get the next request or block until specified time has elapsed */
def receiveRequest(timeout: Long): RequestChannel.BaseRequest =
requestQueue.poll(timeout, TimeUnit.MILLISECONDS)
Clients端底层使用java的java.nio.channels的SocketChannel。分别封装了PlaintextTransportLayer和SslTransportLayer.同样也使用了nio的selector。
- 第一步：要找到所有准备就绪的SelectionKey
- 第二步：对所有准备就绪的key按着情况处理
第一步：Selector#poll,中需要找到key
Set<SelectionKey> readyKeys = this.nioSelector.selectedKeys();
第二步：处理key
**
* handle any ready I/O on a set of selection keys
* @param selectionKeys set of keys to handle
* @param isImmediatelyConnected true if running over a set of keys for just-connected sockets
* @param currentTimeNanos time at which set of keys was determined
*/
void pollSelectionKeys(Set<SelectionKey> selectionKeys,
boolean isImmediatelyConnected,
long currentTimeNanos) {
for (SelectionKey key : determineHandlingOrder(selectionKeys)) {
KafkaChannel channel = channel(key);
try {
/* complete any connections that have finished their handshake (either normally or immediately) */
if (isImmediatelyConnected || key.isConnectable()) {
// 处理TCP链接完成事件
if (channel.finishConnect()) {
……
} else {
continue;
}
}
/* if channel is not ready finish prepare */
if (channel.isConnected() && !channel.ready()) {
channel.prepare();
if (channel.ready()) {
long readyTimeMs = time.milliseconds();
boolean isReauthentication = channel.successfulAuthentications() > 1;
if (isReauthentication) {
sensors.successfulReauthentication.record(1.0, readyTimeMs);
if (channel.reauthenticationLatencyMs() == null)
log.warn(
"Should never happen: re-authentication latency for a re-authenticated channel was null; continuing...");
else
sensors.reauthenticationLatency
.record(channel.reauthenticationLatencyMs().doubleValue(), readyTimeMs);
} else {
sensors.successfulAuthentication.record(1.0, readyTimeMs);
if (!channel.connectedClientSupportsReauthentication())
sensors.successfulAuthenticationNoReauth.record(1.0, readyTimeMs);
}
log.debug("Successfully {}authenticated with {}", isReauthentication ?
"re-" : "", channel.socketDescription());
}
}
if (channel.ready() && channel.state() == ChannelState.NOT_CONNECTED)
channel.state(ChannelState.READY);
Optional<NetworkReceive> responseReceivedDuringReauthentication = channel.pollResponseReceivedDuringReauthentication();
responseReceivedDuringReauthentication.ifPresent(receive -> {
long currentTimeMs = time.milliseconds();
addToCompletedReceives(channel, receive, currentTimeMs);
});
//if channel is ready and has bytes to read from socket or buffer, and has no
//previous completed receive then read from it
if (channel.ready() && (key.isReadable() || channel.hasBytesBuffered()) && !hasCompletedReceive(channel)
&& !explicitlyMutedChannels.contains(channel)) {
attemptRead(channel);
}
if (channel.hasBytesBuffered()) {
//this channel has bytes enqueued in intermediary buffers that we could not read
//(possibly because no memory). it may be the case that the underlying socket will
//not come up in the next poll() and so we need to remember this channel for the
//next poll call otherwise data may be stuck in said buffers forever. If we attempt
//to process buffered data and no progress is made, the channel buffered status is
//cleared to avoid the overhead of checking every time.
keysWithBufferedRead.add(key);
}
/* if channel is ready write to any sockets that have space in their buffer and for which we have data */
long nowNanos = channelStartTimeNanos != 0 ? channelStartTimeNanos : currentTimeNanos;
try {
// 处理发送事件
attemptWrite(key, channel, nowNanos);
} catch (Exception e) {
sendFailed = true;
throw e;
}
/* cancel any defunct sockets */
if (!key.isValid())
close(channel, CloseMode.GRACEFUL);
} catch (Exception e) {……
}
}
4. Producer

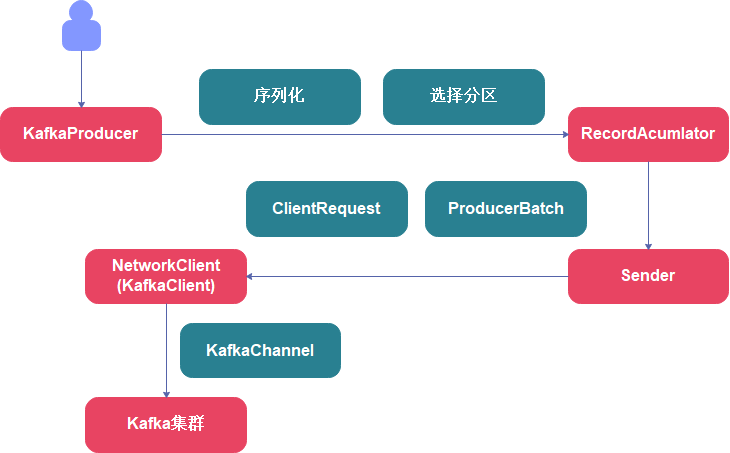

KafkaProducer把消息放到本地消息队列，然后后台有一个发送线程Sender不停的循环,把消息发给Kafka集群
/**
* Implementation of asynchronously send a record to a topic.
*/
private Future<RecordMetadata> doSend(ProducerRecord<K, V> record, Callback callback) {
TopicPartition tp = null;
try {
throwIfProducerClosed();
// first make sure the metadata for the topic is available
long nowMs = time.milliseconds();
ClusterAndWaitTime clusterAndWaitTime;
try {
clusterAndWaitTime = waitOnMetadata(record.topic(), record.partition(), nowMs, maxBlockTimeMs);
} catch (KafkaException e) {
if (metadata.isClosed())
throw new KafkaException("Producer closed while send in progress", e);
throw e;
}
nowMs += clusterAndWaitTime.waitedOnMetadataMs;
long remainingWaitMs = Math.max(0, maxBlockTimeMs - clusterAndWaitTime.waitedOnMetadataMs);
Cluster cluster = clusterAndWaitTime.cluster;
byte[] serializedKey;
try {
// 序列化key
serializedKey = keySerializer.serialize(record.topic(), record.headers(), record.key());
} catch (ClassCastException cce) {
throw new SerializationException("Can't convert key of class " + record.key().getClass().getName() +
" to class " + producerConfig.getClass(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG).getName() +
" specified in key.serializer", cce);
}
byte[] serializedValue;
try {
// 序列化value
serializedValue = valueSerializer.serialize(record.topic(), record.headers(), record.value());
} catch (ClassCastException cce) {
throw new SerializationException("Can't convert value of class " + record.value().getClass().getName() +
" to class " + producerConfig.getClass(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG).getName() +
" specified in value.serializer", cce);
}
// 构造分区
int partition = partition(record, serializedKey, serializedValue, cluster);
tp = new TopicPartition(record.topic(), partition);
setReadOnly(record.headers());
Header[] headers = record.headers().toArray();
int serializedSize = AbstractRecords.estimateSizeInBytesUpperBound(apiVersions.maxUsableProduceMagic(),
compressionType, serializedKey, serializedValue, headers);
ensureValidRecordSize(serializedSize);
long timestamp = record.timestamp() == null ? nowMs : record.timestamp();
if (log.isTraceEnabled()) {
log.trace("Attempting to append record {} with callback {} to topic {} partition {}", record, callback, record.topic(), partition);
}
// producer callback will make sure to call both 'callback' and interceptor callback
Callback interceptCallback = new InterceptorCallback<>(callback, this.interceptors, tp);
if (transactionManager != null && transactionManager.isTransactional()) {
transactionManager.failIfNotReadyForSend();
}
// 真正把本地消息发送给RecordAccumulator
RecordAccumulator.RecordAppendResult result = accumulator.append(tp, timestamp, serializedKey,
serializedValue, headers, interceptCallback, remainingWaitMs, true, nowMs);
if (result.abortForNewBatch) {
int prevPartition = partition;
partitioner.onNewBatch(record.topic(), cluster, prevPartition);
partition = partition(record, serializedKey, serializedValue, cluster);
tp = new TopicPartition(record.topic(), partition);
if (log.isTraceEnabled()) {
log.trace("Retrying append due to new batch creation for topic {} partition {}. The old partition was {}", record.topic(), partition, prevPartition);
}
// producer callback will make sure to call both 'callback' and interceptor callback
interceptCallback = new InterceptorCallback<>(callback, this.interceptors, tp);
result = accumulator.append(tp, timestamp, serializedKey,
serializedValue, headers, interceptCallback, remainingWaitMs, false, nowMs);
}
if (transactionManager != null && transactionManager.isTransactional())
transactionManager.maybeAddPartitionToTransaction(tp);
if (result.batchIsFull || result.newBatchCreated) {
log.trace("Waking up the sender since topic {} partition {} is either full or getting a new batch", record.topic(), partition);
this.sender.wakeup();
}
return result.future;
// handling exceptions and record the errors;
// for API exceptions return them in the future,
// for other exceptions throw directly
} catch (ApiException e) {……
5.Consumer
使用KafkaConsumer需要先订阅(substribe)topic,再通过poll方法进行消息拉取。
Consumer，是一个单线程机制，包括和coordinator通讯，rebalance, heartbeat等，都是在单线程的poll函数里面。也因此，在consumer的代码中不需要任何锁。
public class KafkaConsumer<K, V> implements Consumer<K, V> {
private final String clientId;
private final Optional<String> groupId;
private final ConsumerCoordinator coordinator; // 消费者协调器，负责和服务器端GroupCoodinator通信
private final Deserializer<K> keyDeserializer;
private final Deserializer<V> valueDeserializer;
private final Fetcher<K, V> fetcher; // 负责组织拉取消息的请求，以及处理返回。
private final ConsumerInterceptors<K, V> interceptors;
private final Time time;
private final ConsumerNetworkClient client; // 负责消费者的网络IO,在NetworkClient之上进行封装
private final SubscriptionState subscriptions; // 管理此消费者订阅的主题分区，记录消息的各种状态
private final ConsumerMetadata metadata;
private final long retryBackoffMs;
private final long requestTimeoutMs;
private final int defaultApiTimeoutMs;
private volatile boolean closed = false;
private List<ConsumerPartitionAssignor> assignors; // 分区分配策略
}
KafkaConsumer内部的几个重要组件：
- SubScriptionState来保存消费的状态；
- ConsumerCoordinator负责和GroupCoordinator通讯，例如在leader选举，入组，分区分配等过程。
- ConsumerNetworkClient是对NetworkClient的封装，如果你是从producer看过来的，想必对NetworkClient十分了解，他对nio的组件进行封装，实现网络IO。
- PartitionAssignor，这是分区分配策略，在进行分区分配的时候会用到。
- Fetcher负责组织拉取消息的请求，以及处理返回。
- 不过需要注意它并不做网络IO，网络IO还是由ConsumerNetworkClient完成。它其实对应生产者中的Sender。
启动过程
consumer = new KafkaConsumer<>(props);//构造一个KafkaConsumer
consumer.subscribe(Arrays.asList(topicName));//提交之
ConsumerRecords<String, byte[]> records = consumer.poll(100);//接收之
构造过程，配置自己的client.id和group.id然后配置各种个样的参数
String clientId = config.getString("client.id");
if (clientId.isEmpty()) {//clientId如果找不到，则利用AtomicInteger自增
clientId = "consumer-" + CONSUMER_CLIENT_ID_SEQUENCE.getAndIncrement();
}
this.clientId = clientId;
String groupId = config.getString("group.id");
消息拉取
这是消息拉取的入口方法，他会从上次消费的位置拉取消息，也可以手动指定消费位置。入参是阻塞的时长，如果有消息将会立即返回，否则会阻塞到超时，如果没有数据则返回空的数据集合。
private ConsumerRecords<K, V> poll(final Timer timer, final boolean includeMetadataInTimeout) {
acquireAndEnsureOpen(); // 1. 确保本对象是单线程进入，这是因为KafkaConsumer非线程安全。
try {
this.kafkaConsumerMetrics.recordPollStart(timer.currentTimeMs());
// 2. 检查是否订阅了topic
if (this.subscriptions.hasNoSubscriptionOrUserAssignment()) {
throw new IllegalStateException("Consumer is not subscribed to any topics or assigned any partitions");
}
// 3. 进入主循环，条件是没有超时
do {
client.maybeTriggerWakeup();
if (includeMetadataInTimeout) {
// try to update assignment metadata BUT do not need to block on the timer for join group
updateAssignmentMetadataIfNeeded(timer, false);
} else {
while (!updateAssignmentMetadataIfNeeded(time.timer(Long.MAX_VALUE), true)) {
log.warn("Still waiting for metadata");
}
}
// 4. 拉取一次消息。pollForFetches
final Map<TopicPartition, List<ConsumerRecord<K, V>>> records = pollForFetches(timer);
if (!records.isEmpty()) {
// before returning the fetched records, we can send off the next round of fetches
// and avoid block waiting for their responses to enable pipelining while the user
// is handling the fetched records.
//
// NOTE: since the consumed position has already been updated, we must not allow
// wakeups or any other errors to be triggered prior to returning the fetched records.
if (fetcher.sendFetches() > 0 || client.hasPendingRequests()) {
client.transmitSends();
}
return this.interceptors.onConsume(new ConsumerRecords<>(records));
}
} while (timer.notExpired());
return ConsumerRecords.empty();
} finally {
release();
this.kafkaConsumerMetrics.recordPollEnd(timer.currentTimeMs());
}
}
- 通过acquireAndEnsureOpen()确保本对象是单线程进入，这是因为KafkaConsumer非线程安全。
- 检查是否订阅了topic
- 进入主循环，条件是没有超时
- 在主循环中通过pollForFetches()拉取一次消息。这个方法中先检查是否经存在拉取过的未加工消息，这是因为上一轮次拉取做了提前拉取处理。有可能已经拉取回消息等待处理。如果没有已拉取未加工数据，则准备新的拉取请求，网络IO拉取消息，加工拉取回来的数据。
- 如果上一步拉取到消息，并不会立即返回，而是再一次触发消息拉取，并且使用的是非阻塞方式，调用client.pollNoWakeup()。这样做的目的是，提前网络IO，把消息拉取请求发出去。在网络IO的同时，消息数据返回给consumer的调用者进行业务处理。这样做到了并行处理，提高了效率。等下次调用KafkaConsumer进行poll，当进行到第4步时，有可能直接返回了上轮次提前拉取到的消息，从而省去了网络IO时间。
pollForFetches()方法:
这个方法完成了从服务端拉取消息的动作，这个过程主要使用了Fetcher和ConsumerNetworkClient两个组件。Fetcher负责准备好拉取消息的request、处理response，并且把消息转化为对调用者友好的格式。ConsumerNetworkClient负责把请求发送出去，接收返回，也就是网络IO工作。
**
* @throws KafkaException if the rebalance callback throws exception
*/
private Map<TopicPartition, List<ConsumerRecord<K, V>>> pollForFetches(Timer timer) {
long pollTimeout = coordinator == null ? timer.remainingMs() :
Math.min(coordinator.timeToNextPoll(timer.currentTimeMs()), timer.remainingMs());
// if data is available already, return it immediately
final Map<TopicPartition, List<ConsumerRecord<K, V>>> records = fetcher.fetchedRecords();
if (!records.isEmpty()) {
return records;
}
// send any new fetches (won't resend pending fetches)
fetcher.sendFetches();
// We do not want to be stuck blocking in poll if we are missing some positions
// since the offset lookup may be backing off after a failure
// NOTE: the use of cachedSubscriptionHashAllFetchPositions means we MUST call
// updateAssignmentMetadataIfNeeded before this method.
if (!cachedSubscriptionHashAllFetchPositions && pollTimeout > retryBackoffMs) {
pollTimeout = retryBackoffMs;
}
log.trace("Polling for fetches with timeout {}", pollTimeout);
Timer pollTimer = time.timer(pollTimeout);
client.poll(pollTimer, () -> {
// since a fetch might be completed by the background thread, we need this poll condition
// to ensure that we do not block unnecessarily in poll()
return !fetcher.hasAvailableFetches();
});
timer.update(pollTimer.currentTimeMs());
return fetcher.fetchedRecords();
}
主要流程是如下四步：
- 1、查看是否已经存在拉取回来未加工的消息原始数据，有的话立即调用fetcher.fetchedRecords()加工，然后返回。
- 2、如果没有未加工的原始数据，那么调用fetcher.sendFetches()准备拉取请求。
- 3、通过ConsumerNetworkClient发送拉取请求。
- 4、加工拉取回的原始数据，返回。
版权声明：本文为weixin_45723348原创文章，遵循CC 4.0 BY-SA版权协议，转载请附上原文出处链接和本声明。
