eclipse创建activiti项目,mysql作数据库

准备：eclipse已成功安装activiti插件，MySQL

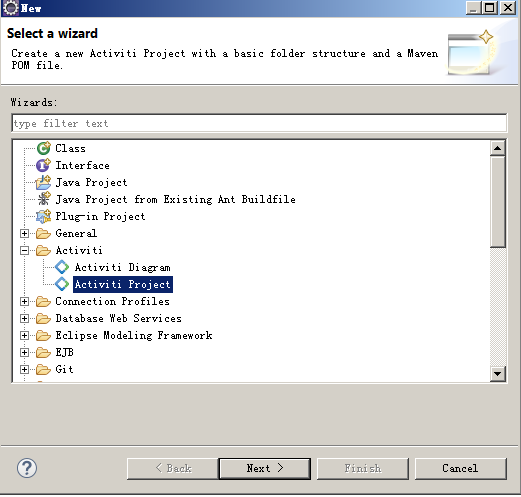

1.新建activiti项目

2.新建activiti diagram与设置配置文件

项目结构如下：

pom.xml，这里我用的是mysql

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>activitiTest</groupId>
	<artifactId>activitiTest</artifactId>
	<packaging>jar</packaging>
	<version>0.0.1-SNAPSHOT</version>
	<name>activitiTest Maven Webapp</name>
	<url>http://maven.apache.org</url>
	<properties>
		<activiti-version>5.17.0</activiti-version>

	</properties>
	<dependencies>
		<dependency>
			<groupId>junit</groupId>
			<artifactId>junit</artifactId>
			<version>4.11</version>
			<scope>test</scope>
		</dependency>
		<dependency>
			<groupId>org.activiti</groupId>
			<artifactId>activiti-engine</artifactId>
			<version>${activiti-version}</version>
			<scope>test</scope>
		</dependency>

		<dependency>
			<groupId>org.activiti</groupId>
			<artifactId>activiti-bpmn-converter</artifactId>
			<version>${activiti-version}</version>
		</dependency>
		<dependency>
			<groupId>org.activiti</groupId>
			<artifactId>activiti-bpmn-model</artifactId>
			<version>${activiti-version}</version>
		</dependency>
		<dependency>
			<groupId>org.activiti</groupId>
			<artifactId>activiti-bpmn-layout</artifactId>
			<version>${activiti-version}</version>
		</dependency>
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<version>5.1.36</version>
		</dependency>
	</dependencies>
	<build>
		<finalName>activitiTest</finalName>
	</build>
</project>

activiti.cfg.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
				http://www.springframework.org/schema/beans/spring-beans.xsd">

	<bean id="processEngineConfiguration"
		class="org.activiti.engine.impl.cfg.StandaloneInMemProcessEngineConfiguration">
		<property name="databaseType" value="mysql"></property>
		<property name="jdbcDriver" value="com.mysql.jdbc.Driver"></property>
		<property name="jdbcUrl"
			value="jdbc:mysql://localhost:3306/activititest?useUnicode=true&amp;characterEncoding=utf-8"></property>
		<property name="jdbcUsername" value="root"></property>
		<property name="jdbcPassword" value="******"></property>
		<property name="databaseSchemaUpdate" value="true" />
		<property name="jobExecutorActivate" value="false" />
		<property name="history" value="full" />
	</bean>
</beans>

注意：在xml配置文件中配置数据库URL时，要使用&的转义字符也就是&amp；

有时xml报错，可能是依赖包版本变更，换一个版本；可能排版问题，使用快捷键ctrl+shift+F，自动排版

3.右键项目->create deployment artifact，右键bpmn->activiti->generate unit test，右键项目->Run As->JUnit Test

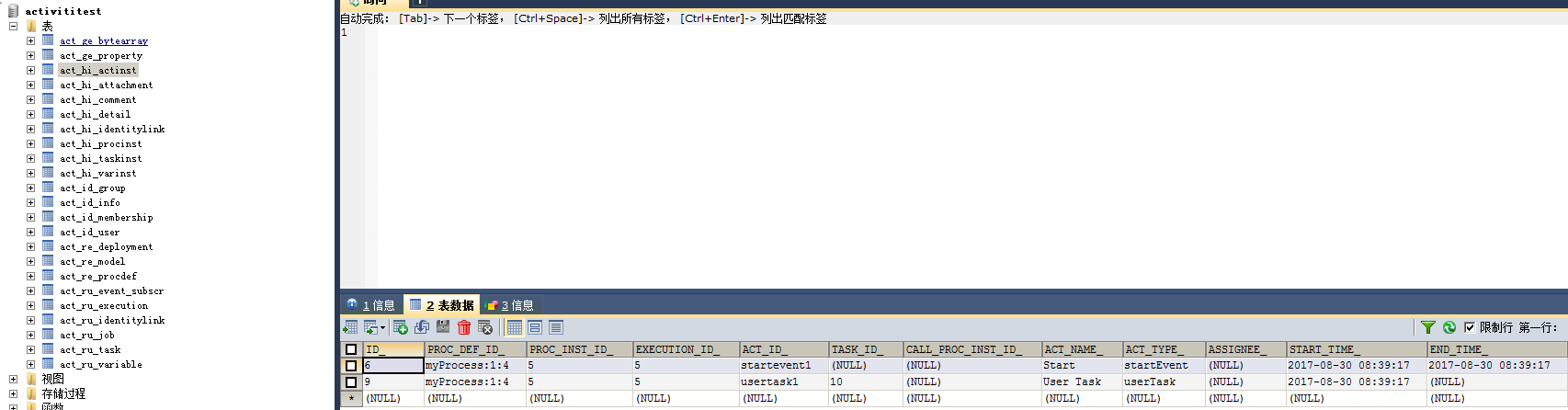

在数据库内能看到流程数据：

这里用的是SQLyog工具。
