Linux Kernel aarch64 Crypto原理和框架介绍

快速链接:
.
??? 个人博客笔记导读目录(全部) ???


相关推荐:
The Armv8 Cryptographic Extension在Linux Kernel中的应用
Armv8 Cryptographic Extension介绍
Linux kernel内核调用crypto算法的方法
Linux Kernel aarch64的ARM-CE aes-ecb的底层代码解析


说明:在无特别的说明下，本文讲述得都是armv8-aarch64体系、linux kernel 4.14 arm64软件环境！

1、Linux的aarch64 crypto配置介绍

开启ARM-CE或ARM-Neon，编译aes-glue.c文件，aes-glue.c是Linux kernel crypto aarch32/64下ARM-CE或ARM-NEON加解密调用的顶级文件。

• CONFIG_CRYPTO_AES_ARM64_CE_BLK
• CONFIG_CRYPTO_AES_ARM64_NEON_BLK

注意，如果开启的是ARM-CE，则加入USE_V8_CRYPTO_EXTENSIONS宏定义

在aes-glue.c中，使用USE_V8_CRYPTO_EXTENSIONS宏控制的底层aes的链接.

#ifdef USE_V8_CRYPTO_EXTENSIONS
#define MODE			"ce"
#define PRIO			300
#define aes_setkey		ce_aes_setkey
#define aes_expandkey		ce_aes_expandkey
#define aes_ecb_encrypt		ce_aes_ecb_encrypt
#define aes_ecb_decrypt		ce_aes_ecb_decrypt
#define aes_cbc_encrypt		ce_aes_cbc_encrypt
#define aes_cbc_decrypt		ce_aes_cbc_decrypt
#define aes_ctr_encrypt		ce_aes_ctr_encrypt
#define aes_xts_encrypt		ce_aes_xts_encrypt
#define aes_xts_decrypt		ce_aes_xts_decrypt
MODULE_DESCRIPTION("AES-ECB/CBC/CTR/XTS using ARMv8 Crypto Extensions");
#else
#define MODE			"neon"
#define PRIO			200
#define aes_setkey		crypto_aes_set_key
#define aes_expandkey		crypto_aes_expand_key
#define aes_ecb_encrypt		neon_aes_ecb_encrypt
#define aes_ecb_decrypt		neon_aes_ecb_decrypt
#define aes_cbc_encrypt		neon_aes_cbc_encrypt
#define aes_cbc_decrypt		neon_aes_cbc_decrypt
#define aes_ctr_encrypt		neon_aes_ctr_encrypt
#define aes_xts_encrypt		neon_aes_xts_encrypt
#define aes_xts_decrypt		neon_aes_xts_decrypt
MODULE_DESCRIPTION("AES-ECB/CBC/CTR/XTS using ARMv8 NEON");
MODULE_ALIAS_CRYPTO("ecb(aes)");
MODULE_ALIAS_CRYPTO("cbc(aes)");
MODULE_ALIAS_CRYPTO("ctr(aes)");
MODULE_ALIAS_CRYPTO("xts(aes)");
#endif

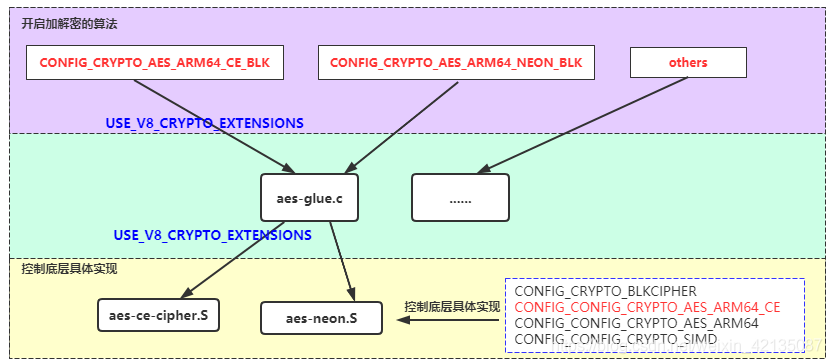

在Kconfig中可以看出，在开启CONFIG_CRYPTO_AES_ARM64_CE_BLK或CONFIG_CRYPTO_AES_ARM64_NEON_BLK，还需要再次选择底层的算法。

config CRYPTO_AES_ARM64_CE_BLK
	tristate "AES in ECB/CBC/CTR/XTS modes using ARMv8 Crypto Extensions"
	depends on KERNEL_MODE_NEON
	select CRYPTO_BLKCIPHER
	select CRYPTO_AES_ARM64_CE
	select CRYPTO_AES_ARM64
	select CRYPTO_SIMD
config CRYPTO_AES_ARM64_NEON_BLK
	tristate "AES in ECB/CBC/CTR/XTS modes using NEON instructions"
	depends on KERNEL_MODE_NEON
	select CRYPTO_BLKCIPHER
	select CRYPTO_AES_ARM64
	select CRYPTO_AES
	select CRYPTO_SIMD

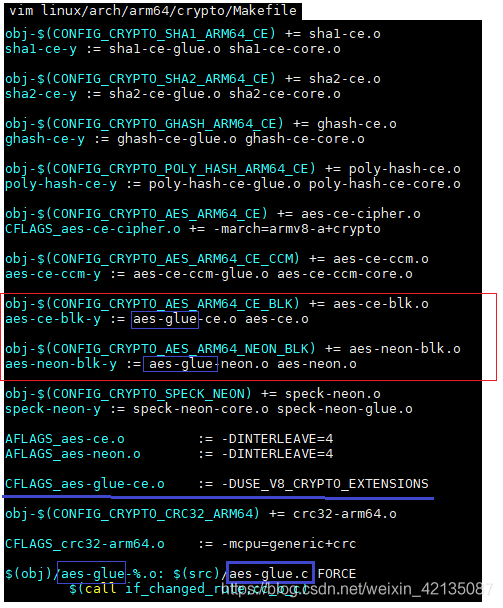

如选择ARM-CE的aes，除了打开CONFIG_CRYPTO_AES_ARM64_CE_BLK，还需要再次开启CONFIG_CRYPTO_AES_ARM64_CE，编译aes-ce-cipher.S，该文件实现了ARM-CE的底层逻辑;

obj-$(CONFIG_CRYPTO_AES_ARM64_CE) += aes-ce-cipher.o
CFLAGS_aes-ce-cipher.o += -march=armv8-a+crypto

如选择ARM-NEON的aes，除了打开CONFIG_CRYPTO_AES_ARM64_NEON_BLK，不需要在额外增加别的宏了，因为在aes-neon.S中已经实现了ARM-NEON的底层逻辑;

obj-$(CONFIG_CRYPTO_AES_ARM64_NEON_BLK) += aes-neon-blk.o
aes-neon-blk-y := aes-glue-neon.o aes-neon.o

2、Linux的aarch64 crypto的总结：

（1）、开启ARM-CE

如果开启ARM-CE，则需要打开：
CONFIG_CRYPTO_AES_ARM64_CE_BLK
CONFIG_CRYPTO_AES_ARM64_CE

接口实现：aes-glue.c
底层实现：aes-modes.S

接口形式:

#define MODE			"ce"
（同步）
.cra_name		= "__ecb-aes-" MODE,
.cra_name		= "__cbc-aes-" MODE,
.cra_name		= "__ctr-aes-" MODE,
.cra_name		= "__xts-aes-" MODE,
（异步）
.cra_driver_name	= "ecb-aes-" MODE,
.cra_driver_name	= "cbc-aes-" MODE,
.cra_driver_name	= "ctr-aes-" MODE,
.cra_driver_name	= "xts-aes-" MODE,

（2）、开启ARM-NEON

如果开启ARM-NEON，则需要打开：
CONFIG_CRYPTO_AES_ARM64_NEON_BLK

接口实现：aes-glue.c
底层实现：aes-neon.S

接口形式:

#define MODE			"neon"
（同步）
.cra_name		= "__ecb-aes-" MODE,
.cra_name		= "__cbc-aes-" MODE,
.cra_name		= "__ctr-aes-" MODE,
.cra_name		= "__xts-aes-" MODE,
（异步）
.cra_driver_name	= "ecb-aes-" MODE,
.cra_driver_name	= "cbc-aes-" MODE,
.cra_driver_name	= "ctr-aes-" MODE,
.cra_driver_name	= "xts-aes-" MODE,

（3）、纯软实现

如果以上都不开，则走纯软实现

接口实现:
linux/crypto$ ls ecb.c cbc.c ctr.c xts.c
cbc.c ctr.c ecb.c xts.c

接口形式:

.name = "ecb",
.name = "cbc",
.name = "ctr",
.name = "xts",

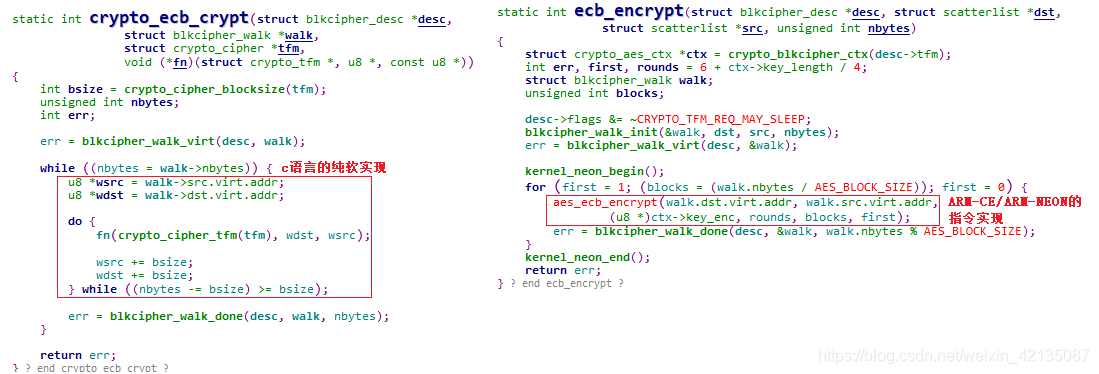

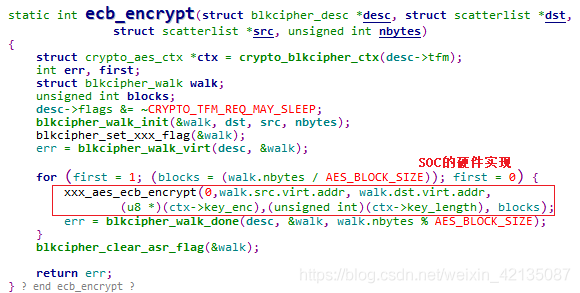

3、比较硬件实现和纯软实现

其实如果是芯片SOC的实现，方法也类似：
