Linux缺页中断处理

缺页中断处理

do_page_fault
	->__do_page_fault
		->handle_mm_fault
			->__handle_mm_fault
				->handle_pte_fault
					->do_fault               //文件页  mmap方式访问
					->do_anonymous_page      //匿名页
					->do_swap_page           //在swap中
					->do_wp_page             //写时复制

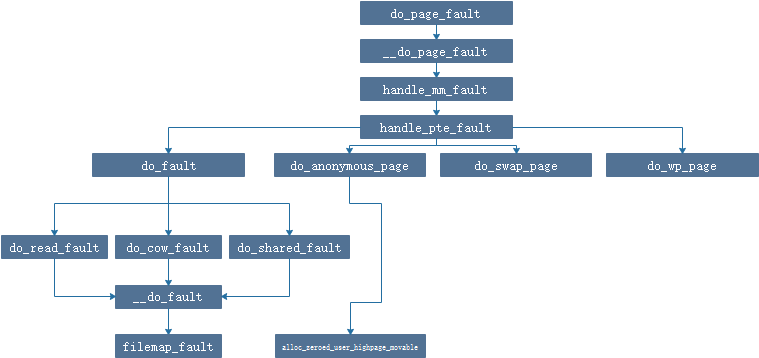

在这里插入图片描述

do_page_fault处理流程


static int __kprobes do_page_fault(unsigned long addr, unsigned int esr,
				   struct pt_regs *regs)
{
	struct task_struct *tsk;
	struct mm_struct *mm;
	int fault, sig, code;
	unsigned long vm_flags = VM_READ | VM_WRITE | VM_EXEC;
	unsigned int mm_flags = FAULT_FLAG_ALLOW_RETRY | FAULT_FLAG_KILLABLE;

	tsk = current;
	mm  = tsk->mm;

	/* Enable interrupts if they were enabled in the parent context. */
	if (interrupts_enabled(regs))
		local_irq_enable();

	/*
	 * If we're in an interrupt or have no user context, we must not take
	 * the fault.
	 */
	/*
	 * 这里要区分内核线程和用户线程的内核态
	 * 内核线程不会出现缺页异常;
	 * 用户线程的内核态可能会出现缺页异常,比如copy_to_user等
	 */
	if (in_atomic() || !mm)  /* mm = NULL 表示为单纯的内核线程  */
		goto no_context;

	/* 设置用户态标志 */
	if (user_mode(regs))
		mm_flags |= FAULT_FLAG_USER;

	/* 设置 写 执行标志 */
	if (esr & ESR_LNX_EXEC) {
		vm_flags = VM_EXEC;
	} else if ((esr & ESR_ELx_WNR) && !(esr & ESR_ELx_CM)) {
		vm_flags = VM_WRITE;
		mm_flags |= FAULT_FLAG_WRITE;
	}

	/*
	 * As per x86, we may deadlock here. However, since the kernel only
	 * validly references user space from well defined areas of the code,
	 * we can bug out early if this is from code which shouldn't.
	 */
	if (!down_read_trylock(&mm->mmap_sem)) {
		if (!user_mode(regs) && !search_exception_tables(regs->pc))
			goto no_context;
retry:
		down_read(&mm->mmap_sem);  /* 睡眠等待锁释放 */
	} else {
		/*
		 * The above down_read_trylock() might have succeeded in which
		 * case, we'll have missed the might_sleep() from down_read().
		 */
		might_sleep();
#ifdef CONFIG_DEBUG_VM
		if (!user_mode(regs) && !search_exception_tables(regs->pc))
			goto no_context;
#endif
	}

	fault = __do_page_fault(mm, addr, mm_flags, vm_flags, tsk);

	/*
	 * If we need to retry but a fatal signal is pending, handle the
	 * signal first. We do not need to release the mmap_sem because it
	 * would already be released in __lock_page_or_retry in mm/filemap.c.
	 */
	if ((fault & VM_FAULT_RETRY) && fatal_signal_pending(current))
		return 0;

	/*
	 * Major/minor page fault accounting is only done on the initial
	 * attempt. If we go through a retry, it is extremely likely that the
	 * page will be found in page cache at that point.
	 */

	perf_sw_event(PERF_COUNT_SW_PAGE_FAULTS, 1, regs, addr);
	if (mm_flags & FAULT_FLAG_ALLOW_RETRY) {
		if (fault & VM_FAULT_MAJOR) {
			tsk->maj_flt++;
			perf_sw_event(PERF_COUNT_SW_PAGE_FAULTS_MAJ, 1, regs,
				      addr);
		} else {
			tsk->min_flt++;
			perf_sw_event(PERF_COUNT_SW_PAGE_FAULTS_MIN, 1, regs,
				      addr);
		}
		if (fault & VM_FAULT_RETRY) {
			/*
			 * Clear FAULT_FLAG_ALLOW_RETRY to avoid any risk of
			 * starvation.
			 */
			mm_flags &= ~FAULT_FLAG_ALLOW_RETRY;
			goto retry;
		}
	}
	/* 释放信号量 */
	up_read(&mm->mmap_sem);

	/*
	 * Handle the "normal" case first - VM_FAULT_MAJOR / VM_FAULT_MINOR
	 */
	 /* 没有异常,正常处理完成 */
	if (likely(!(fault & (VM_FAULT_ERROR | VM_FAULT_BADMAP |
			      VM_FAULT_BADACCESS))))
		return 0;

	/*
	 * If we are in kernel mode at this point, we have no context to
	 * handle this fault with.
	 */
	if (!user_mode(regs))
		goto no_context;

	if (fault & VM_FAULT_OOM) {
		/*
		 * We ran out of memory, call the OOM killer, and return to
		 * userspace (which will retry the fault, or kill us if we got
		 * oom-killed).
		 */
		pagefault_out_of_memory();  /* 进行OOM处理,然后返回 */
		return 0;
	}

	/* 处理信号错误 */
	if (fault & VM_FAULT_SIGBUS) {
		/*
		 * We had some memory, but were unable to successfully fix up
		 * this page fault.
		 */
		sig = SIGBUS;
		code = BUS_ADRERR;
	} else {
		/*
		 * Something tried to access memory that isn't in our memory
		 * map.
		 */
		sig = SIGSEGV;
		code = fault == VM_FAULT_BADACCESS ?
			SEGV_ACCERR : SEGV_MAPERR;
	}
	/* 用户模式下错误处理,通过给用户进程发信号:SIGBUS/SIGSEGV */
	__do_user_fault(tsk, addr, esr, sig, code, regs);
	return 0;

no_context:
	__do_kernel_fault(mm, addr, esr, regs);
	return 0;
}

__do_page_fault

static int __do_page_fault(struct mm_struct *mm, unsigned long addr,
			   unsigned int mm_flags, unsigned long vm_flags,
			   struct task_struct *tsk)
{
	struct vm_area_struct *vma;
	int fault;

	/* 在缺页中断处理中,地址必须是映射过的,即可以找到vma */
	vma = find_vma(mm, addr);
	fault = VM_FAULT_BADMAP;
	if (unlikely(!vma))
		goto out;
	if (unlikely(vma->vm_start > addr))
		goto check_stack;

	/*
	 * Ok, we have a good vm_area for this memory access, so we can handle
	 * it.
	 */
good_area:
	/*
	 * Check that the permissions on the VMA allow for the fault which
	 * occurred. If we encountered a write or exec fault, we must have
	 * appropriate permissions, otherwise we allow any permission.
	 */
	/*
	 * 检查权限是否匹配
	 */
	if (!(vma->vm_flags & vm_flags)) {
		fault = VM_FAULT_BADACCESS;
		goto out;
	}

	return handle_mm_fault(mm, vma, addr & PAGE_MASK, mm_flags);

check_stack:
	if (vma->vm_flags & VM_GROWSDOWN && !expand_stack(vma, addr))
		goto good_area;
out:
	return fault;
}

handle_mm_fault

int handle_mm_fault(struct mm_struct *mm, struct vm_area_struct *vma,
		    unsigned long address, unsigned int flags)
{
	int ret;

	__set_current_state(TASK_RUNNING);

	count_vm_event(PGFAULT);
	mem_cgroup_count_vm_event(mm, PGFAULT);

	/* do counter updates before entering really critical section. */
	check_sync_rss_stat(current);

	/*
	 * Enable the memcg OOM handling for faults triggered in user
	 * space.  Kernel faults are handled more gracefully.
	 */
	if (flags & FAULT_FLAG_USER)
		mem_cgroup_oom_enable();

	ret = __handle_mm_fault(mm, vma, address, flags);

	if (flags & FAULT_FLAG_USER) {
		mem_cgroup_oom_disable();
                /*
                 * The task may have entered a memcg OOM situation but
                 * if the allocation error was handled gracefully (no
                 * VM_FAULT_OOM), there is no need to kill anything.
                 * Just clean up the OOM state peacefully.
                 */
                if (task_in_memcg_oom(current) && !(ret & VM_FAULT_OOM))
                        mem_cgroup_oom_synchronize(false);
	}

	return ret;
}

__handle_mm_fault


static int __handle_mm_fault(struct mm_struct *mm, struct vm_area_struct *vma,
			     unsigned long address, unsigned int flags)
{
	pgd_t *pgd;
	pud_t *pud;
	pmd_t *pmd;
	pte_t *pte;

	if (unlikely(is_vm_hugetlb_page(vma)))
		return hugetlb_fault(mm, vma, address, flags);

	pgd = pgd_offset(mm, address);      /* 获取当前address在当前进程页表项PGD页面目录项 */
	pud = pud_alloc(mm, pgd, address);  /* 获取当前address在当前进程对应PUD页表目录项 */
	if (!pud)
		return VM_FAULT_OOM;
	pmd = pmd_alloc(mm, pud, address);

	......

	/*
	 * A regular pmd is established and it can't morph into a huge pmd
	 * from under us anymore at this point because we hold the mmap_sem
	 * read mode and khugepaged takes it in write mode. So now it's
	 * safe to run pte_offset_map().
	 */
	pte = pte_offset_map(pmd, address);   /* 根据address从pmd中获取pte指针 */

	/* */
	return handle_pte_fault(mm, vma, address, pte, pmd, flags);
}

handle_pte_fault


static int handle_pte_fault(struct mm_struct *mm,
		     struct vm_area_struct *vma, unsigned long address,
		     pte_t *pte, pmd_t *pmd, unsigned int flags)
{
	pte_t entry;
	spinlock_t *ptl;

	/*
	 * some architectures can have larger ptes than wordsize,
	 * e.g.ppc44x-defconfig has CONFIG_PTE_64BIT=y and CONFIG_32BIT=y,
	 * so READ_ONCE or ACCESS_ONCE cannot guarantee atomic accesses.
	 * The code below just needs a consistent view for the ifs and
	 * we later double check anyway with the ptl lock held. So here
	 * a barrier will do.
	 */
	entry = *pte;
	barrier();

	if (!pte_present(entry)) {   /* pte对应的物理页不在内存中 */
		if (pte_none(entry)) {   /* pte页表项内容为空,同时pte对应物理页面也不存在 */
			if (vma->vm_ops) {
				/* vm_ops->fault可以区分是匿名也还还是文件页!!!! */
				if (likely(vma->vm_ops->fault))
					return do_fault(mm, vma, address, pte,
							pmd, flags, entry);  /* 文件缺页异常 */
			}
			return do_anonymous_page(mm, vma, address,
						 pte, pmd, flags);       /* 匿名页缺页异常 */
		}
		return do_swap_page(mm, vma, address,
					pte, pmd, flags, entry);     /* pte非空,但是页面不在内存中,即在swap中 */
	}

	/* 下面都是物理页面存在的情况 */
	if (pte_protnone(entry))
		return do_numa_page(mm, vma, address, entry, pte, pmd);

	ptl = pte_lockptr(mm, pmd);
	spin_lock(ptl);
	if (unlikely(!pte_same(*pte, entry)))
		goto unlock;
	if (flags & FAULT_FLAG_WRITE) {   /* 对只读属性的页面产生写异常,触发写时复制缺页中断 。硬件的PTE表可写 & 软件PTE表不可写 */
		if (!pte_write(entry))
			return do_wp_page(mm, vma, address,
					pte, pmd, ptl, entry);
		entry = pte_mkdirty(entry);
	}
	entry = pte_mkyoung(entry);
	if (ptep_set_access_flags(vma, address, pte, entry, flags & FAULT_FLAG_WRITE)) {
		update_mmu_cache(vma, address, pte);  /* pte内容发生变化,需要把新的内容写入pte页表项中,并且刷新TLB和cache */
	} else {
		/*
		 * This is needed only for protection faults but the arch code
		 * is not yet telling us if this is a protection fault or not.
		 * This still avoids useless tlb flushes for .text page faults
		 * with threads.
		 */
		if (flags & FAULT_FLAG_WRITE)
			flush_tlb_fix_spurious_fault(vma, address);
	}
unlock:
	pte_unmap_unlock(pte, ptl);
	return 0;
}

文件页(mmap访问)缺页中断的处理

do_read_fault
	->__do_fault
		->filemap_fault
static int do_read_fault(struct mm_struct *mm, struct vm_area_struct *vma,
		unsigned long address, pmd_t *pmd,
		pgoff_t pgoff, unsigned int flags, pte_t orig_pte)
{
	struct page *fault_page;
	spinlock_t *ptl;
	pte_t *pte;
	int ret = 0;

	/*
	 * Let's call ->map_pages() first and use ->fault() as fallback
	 * if page by the offset is not ready to be mapped (cold cache or
	 * something).
	 */
	if (vma->vm_ops->map_pages && fault_around_bytes >> PAGE_SHIFT > 1) {
		pte = pte_offset_map_lock(mm, pmd, address, &ptl);
		do_fault_around(vma, address, pte, pgoff, flags);
		if (!pte_same(*pte, orig_pte))
			goto unlock_out;
		pte_unmap_unlock(pte, ptl);
	}

	/* 创建page cache的页面实际操作 */
	ret = __do_fault(vma, address, pgoff, flags, NULL, &fault_page);
	if (unlikely(ret & (VM_FAULT_ERROR | VM_FAULT_NOPAGE | VM_FAULT_RETRY)))
		return ret;

	pte = pte_offset_map_lock(mm, pmd, address, &ptl);
	if (unlikely(!pte_same(*pte, orig_pte))) {
		pte_unmap_unlock(pte, ptl);
		unlock_page(fault_page);
		page_cache_release(fault_page);
		return ret;
	}
	/* 生成新的PTE Entry设置到硬件页表项中 */
	do_set_pte(vma, address, fault_page, pte, false, false);
	unlock_page(fault_page);
unlock_out:
	pte_unmap_unlock(pte, ptl);
	return ret;
}
static int __do_fault(struct vm_area_struct *vma, unsigned long address,
			pgoff_t pgoff, unsigned int flags,
			struct page *cow_page, struct page **page)
{
	struct vm_fault vmf;
	int ret;

	vmf.virtual_address = (void __user *)(address & PAGE_MASK);
	vmf.pgoff = pgoff;
	vmf.flags = flags;
	vmf.page = NULL;
	vmf.cow_page = cow_page;

	ret = vma->vm_ops->fault(vma, &vmf);
	if (unlikely(ret & (VM_FAULT_ERROR | VM_FAULT_NOPAGE | VM_FAULT_RETRY)))
		return ret;
	if (!vmf.page)
		goto out;

	if (unlikely(PageHWPoison(vmf.page))) {
		if (ret & VM_FAULT_LOCKED)
			unlock_page(vmf.page);
		page_cache_release(vmf.page);
		return VM_FAULT_HWPOISON;
	}

	if (unlikely(!(ret & VM_FAULT_LOCKED)))
		lock_page(vmf.page);
	else
		VM_BUG_ON_PAGE(!PageLocked(vmf.page), vmf.page);

 out:
	*page = vmf.page;
	return ret;
}

int filemap_fault(struct vm_area_struct *vma, struct vm_fault *vmf)
{
	int error;
	struct file *file = vma->vm_file;
	struct address_space *mapping = file->f_mapping;
	struct file_ra_state *ra = &file->f_ra;
	struct inode *inode = mapping->host;
	pgoff_t offset = vmf->pgoff;
	struct page *page;
	loff_t size;
	int ret = 0;

	/* 这里需要注意,如果文件页的大小被改变了,触发异常信号处理 */
	size = round_up(i_size_read(inode), PAGE_CACHE_SIZE);
	if (offset >= size >> PAGE_CACHE_SHIFT)
		return VM_FAULT_SIGBUS;

	/*
	 * Do we have something in the page cache already?
	 */
	/* 不会设置mark_page_accessed */
	page = find_get_page(mapping, offset);
	if (likely(page) && !(vmf->flags & FAULT_FLAG_TRIED)) {
		/*
		 * We found the page, so try async readahead before
		 * waiting for the lock.
		 */
		/* 尝试触发readahead */
		do_async_mmap_readahead(vma, ra, file, page, offset);
	} else if (!page) {
		/* No page in the page cache at all */
		do_sync_mmap_readahead(vma, ra, file, offset);
		count_vm_event(PGMAJFAULT);
		mem_cgroup_count_vm_event(vma->vm_mm, PGMAJFAULT);
		ret = VM_FAULT_MAJOR;
retry_find:
		page = find_get_page(mapping, offset);
		if (!page)  /* 仍然失败 */
			goto no_cached_page;
	}

	/*
	 * 查找成功流程,先锁住该页,再判断是否是最新。
	 * 如果设置了Uptodate,则查找成功;如果未设置Uptodate,则触发再次读,然后wait_on_page_locked
	 */
	/* 锁住该页 */
	if (!lock_page_or_retry(page, vma->vm_mm, vmf->flags)) {
		page_cache_release(page);
		return ret | VM_FAULT_RETRY;
	}

	/* Did it get truncated? */
	if (unlikely(page->mapping != mapping)) {
		unlock_page(page);
		put_page(page);
		goto retry_find;
	}
	VM_BUG_ON_PAGE(page->index != offset, page);

	/*
	 * We have a locked page in the page cache, now we need to check
	 * that it's up-to-date. If not, it is going to be due to an error.
	 */
	/* 不是最新页,与后备处理器不一致.什么页面是清除uptodata标志的???? */
	if (unlikely(!PageUptodate(page)))
		goto page_not_uptodate;

	/* 页面是最新的 */
	/*
	 * Found the page and have a reference on it.
	 * We must recheck i_size under page lock.
	 */
	size = round_up(i_size_read(inode), PAGE_CACHE_SIZE);
	if (unlikely(offset >= size >> PAGE_CACHE_SHIFT)) {
		unlock_page(page);
		page_cache_release(page);
		return VM_FAULT_SIGBUS;
	}

	vmf->page = page;
	return ret | VM_FAULT_LOCKED;

no_cached_page:
	/*
	 * We're only likely to ever get here if MADV_RANDOM is in
	 * effect.
	 */
	error = page_cache_read(file, offset);

	/*
	 * The page we want has now been added to the page cache.
	 * In the unlikely event that someone removed it in the
	 * meantime, we'll just come back here and read it again.
	 */
	if (error >= 0)
		goto retry_find;

	/*
	 * An error return from page_cache_read can result if the
	 * system is low on memory, or a problem occurs while trying
	 * to schedule I/O.
	 */
	if (error == -ENOMEM)
		return VM_FAULT_OOM;
	return VM_FAULT_SIGBUS;

page_not_uptodate:
	/*
	 * Umm, take care of errors if the page isn't up-to-date.
	 * Try to re-read it _once_. We do this synchronously,
	 * because there really aren't any performance issues here
	 * and we need to check for errors.
	 */
	ClearPageError(page);
	error = mapping->a_ops->readpage(file, page);  /* 再次读该页 */
	if (!error) {
		wait_on_page_locked(page);  /* 等待页解锁,这个地方会睡眠??? 除非上面是一个同步读,保证这里会成功 ????*/
		if (!PageUptodate(page))    /* 再次判断页是否是最新的 */
			error = -EIO;
	}
	page_cache_release(page);  /* count-- */

	/* 读取成功的情况下,再次查找该页 */
	if (!error || error == AOP_TRUNCATED_PAGE)
		goto retry_find;

	/* Things didn't work out. Return zero to tell the mm layer so. */
	shrink_readahead_size_eio(file, ra);
	return VM_FAULT_SIGBUS;
}

匿名页缺页中断的处理

页面会设置为PG_SwapBacked、PG_uptodate、PG_Active。


static int do_anonymous_page(struct mm_struct *mm, struct vm_area_struct *vma,
		unsigned long address, pte_t *page_table, pmd_t *pmd,
		unsigned int flags)
{
	struct mem_cgroup *memcg;
	struct page *page;
	spinlock_t *ptl;
	pte_t entry;

	pte_unmap(page_table);

	/* Check if we need to add a guard page to the stack */
	if (check_stack_guard_page(vma, address) < 0)
		return VM_FAULT_SIGSEGV;

	/* Use the zero-page for reads */
	/* 如果是分配只读属性的页面,使用一个zeroed的全局页面empty_zero_page */
	if (!(flags & FAULT_FLAG_WRITE) && !mm_forbids_zeropage(mm)) {
		entry = pte_mkspecial(pfn_pte(my_zero_pfn(address),
						vma->vm_page_prot));
		page_table = pte_offset_map_lock(mm, pmd, address, &ptl);
		if (!pte_none(*page_table))
			goto unlock;
		goto setpte;
	}

	/* 为vma准备反向映射条件
	 * 检查此vma能与前后的vma进行合并吗,如果可以,则使用能够合并的那个vma的anon_vma,如果不能够合并,则申请一个空闲的anon_vma
	 * 新建一个anon_vma_chain
	 * 将avc->anon_vma指向获得的vma(这个vma可能是新申请的空闲的anon_vma,也可能是获取到的可以合并的vma的anon_vma),avc->vma指向vma,并把avc加入到vma的anon_vma_chain中
	 */

	/* Allocate our own private page. */
	if (unlikely(anon_vma_prepare(vma)))
		goto oom;

	/*
	 * 如果页面是可写的,分配掩码是__GFP_MOVABLE|__GFP_WAIT|__GFP_IO|__GFP_FS|__GFP_HARDWALL|__GFP_HIGHMEM。
	 * 最终调用alloc_pages,优先使用高端内存
	 */
	page = alloc_zeroed_user_highpage_movable(vma, address);
	if (!page)
		goto oom;
	/*
	 * The memory barrier inside __SetPageUptodate makes sure that
	 * preceeding stores to the page contents become visible before
	 * the set_pte_at() write.
	 */
	/* 默认设置页面PG_uptodate标志 */
	__SetPageUptodate(page);

	if (mem_cgroup_try_charge(page, mm, GFP_KERNEL, &memcg))
		goto oom_free_page;

	entry = mk_pte(page, vma->vm_page_prot);
	if (vma->vm_flags & VM_WRITE)
		entry = pte_mkwrite(pte_mkdirty(entry));

	page_table = pte_offset_map_lock(mm, pmd, address, &ptl);
	if (!pte_none(*page_table))
		goto release;

	/* 增加系统中匿名页面统计计数,计数类型是MM_ANONPAGES */
	inc_mm_counter_fast(mm, MM_ANONPAGES);

	/* 逆向映射相关,设置PG_SwapBacked标志,表示可以swap;_mapcount=0 */
	page_add_new_anon_rmap(page, vma, address);

	mem_cgroup_commit_charge(page, memcg, false);
	/* 一般设置为SetPageActive,等待满足一定数量后加入active LRU  */
	lru_cache_add_active_or_unevictable(page, vma);
setpte:
	/* 将entry设置到PTE硬件中 */
	set_pte_at(mm, address, page_table, entry);

	/* No need to invalidate - it was non-present before */
	update_mmu_cache(vma, address, page_table);
unlock:
	pte_unmap_unlock(page_table, ptl);
	return 0;
release:
	mem_cgroup_cancel_charge(page, memcg);
	page_cache_release(page);
	goto unlock;
oom_free_page:
	page_cache_release(page);
oom:
	return VM_FAULT_OOM;
}

Swap页缺页中断的处理

写时复制页缺页中断的处理


版权声明:本文为weixin_42318651原创文章,遵循CC 4.0 BY-SA版权协议,转载请附上原文出处链接和本声明。
