Cisco Packet Tracer 6.2sv静态路由配置

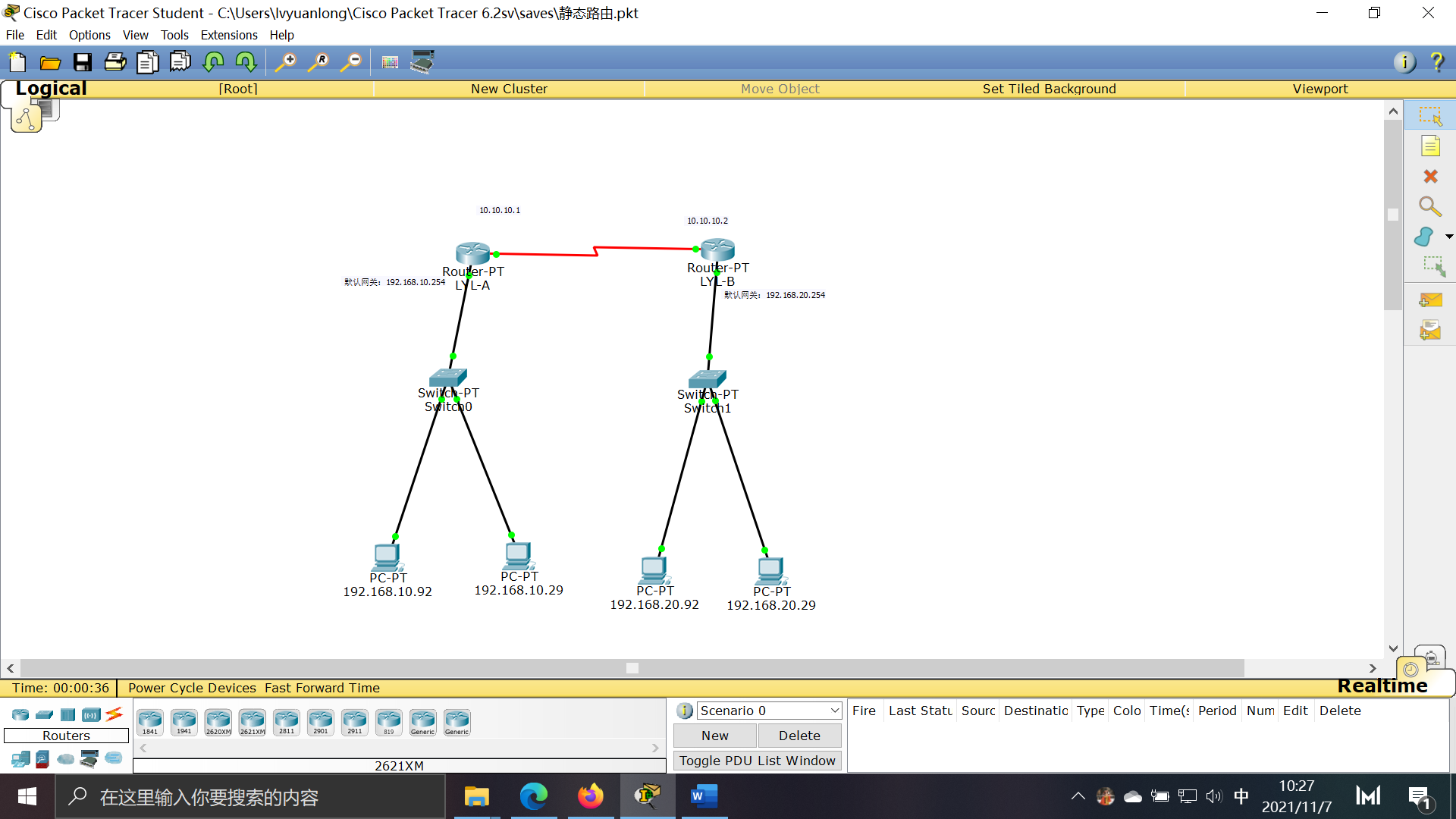

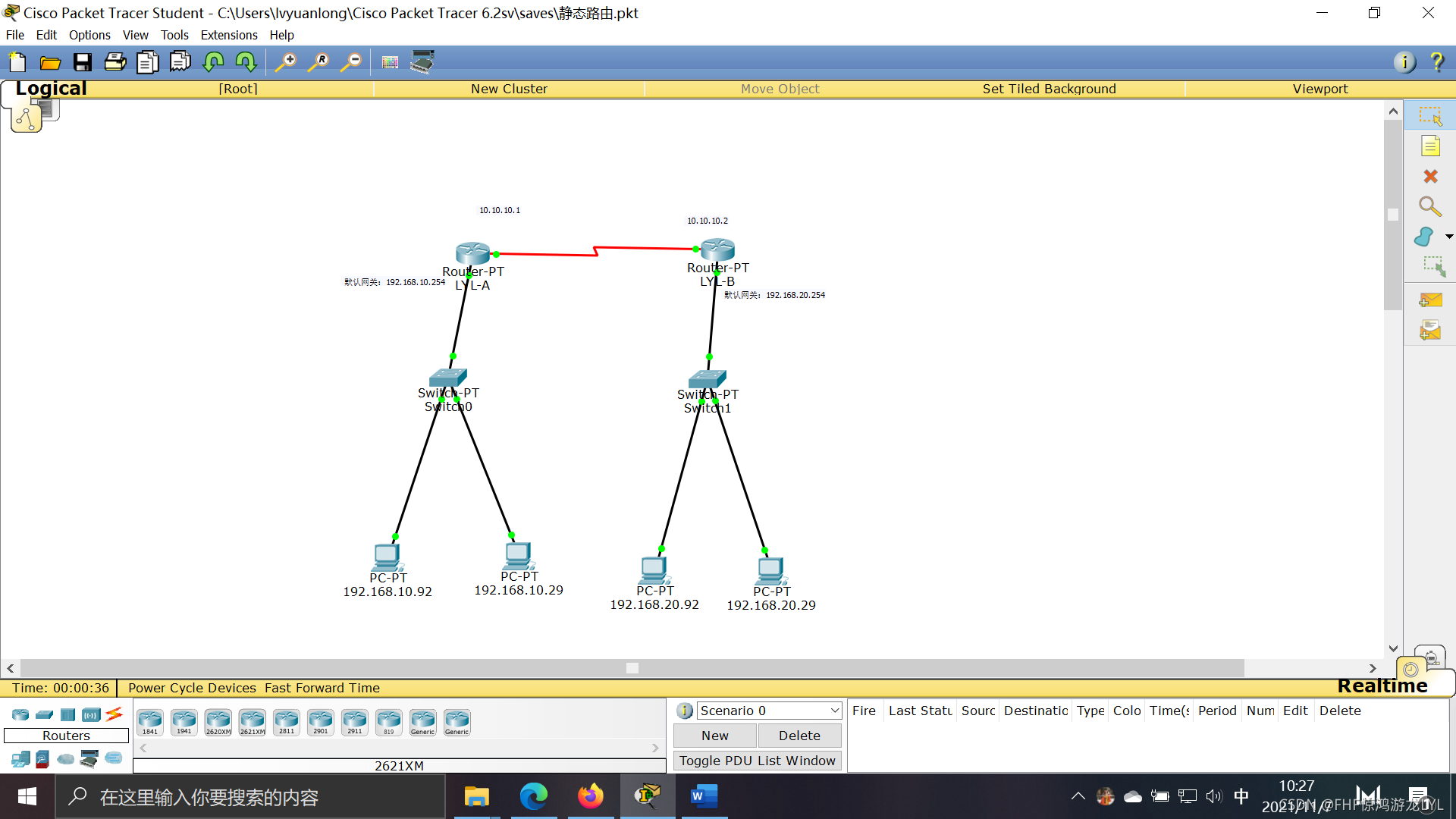

1.实验拓扑图

2.配置路由器LYL-A

Router(config)#hostname LYL-A
LYL-A(config)#interface serial 2/0
LYL-A(config-if)#ip address 10.10.10.1 255.255.255.0
LYL-A(config-if)#no shutdown
%LINK-5-CHANGED: Interface Serial2/0, changed state to down
LYL-A(config-if)#exit
LYL-A(config)#interface fastEthernet 0/0
LYL-A(config-if)#ip address 192.168.10.254 255.255.255.0
LYL-A(config-if)#no shutdown
LYL-A(config-if)#
%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

LYL-A(config-if)#exit
LYL-A(config)#ip route 192.168.20.0 255.255.255.0 10.10.10.2

3.配置路由器LYL-B

Router(config)#hostname LYL-B
LYL-B(config)#interface serial 2/0
LYL-B(config-if)#ip address 10.10.10.2 255.255.255.0
LYL-B(config-if)#no shutdown
LYL-B(config-if)#
%LINK-5-CHANGED: Interface Serial2/0, changed state to up

LYL-B(config-if)#exit
LYL-B(config)#
%LINEPROTO-5-UPDOWN: Line protocol on Interface Serial2/0, changed state to up

LYL-B(config)#interface fastEthernet 0/0
LYL-B(config-if)#ip address 192.168.20.254 255.255.255.0
LYL-B(config-if)#no shutdown

LYL-B(config-if)#
%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

LYL-B(config-if)#exit
LYL-B(config)#ip route 192.168.10.0 255.255.255.0 10.10.10.1

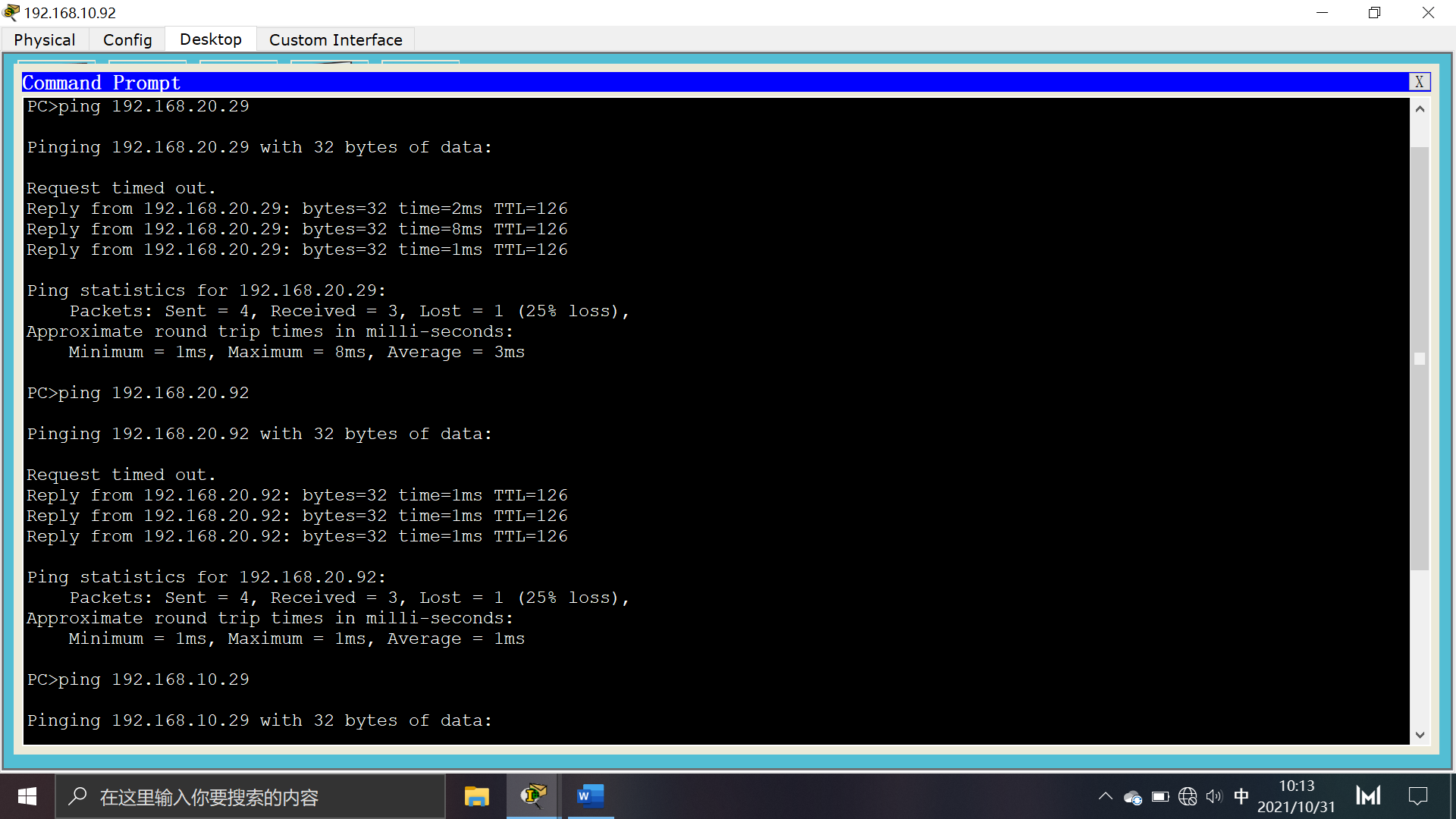

4.测试是否联通
