记录Vue3+ts+ElementPlus 多层级表头动态表格创建

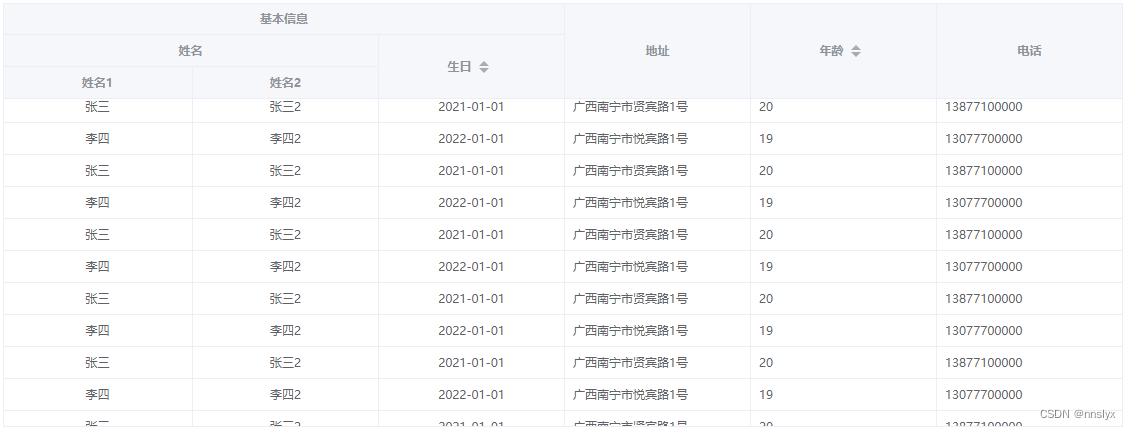

     因为工作需要，需要一个如上图（不确定层级的）多层级表头的表格，搜索网上的方法，多为vue2+element-ui的方法，查到的vue3+Element-plus的方法仅为建立两层级表格，经借鉴大神方法并修改成功，供自己留存，大神略过。

一、创建动态表格组件 DynamicTable.vue

代码如下：

<template>
  <el-table
    :data="tableData"
    :height="tableHeight"
    style="width: 100%"
    size="small"
  >
    <template v-for="item in tableHeader">
      <MyTableColumn
        v-if="item.children && item.children.length"
        :coloumnHeader="item"
      ></MyTableColumn>
      <el-table-column
        v-else
        :label="item.label"
        :prop="item.prop"
        :sortable="item.sort"
        header-align="center"
        :align="item.align"
        :width="item.width"
      ></el-table-column>
    </template>
  </el-table>
</template>

<script setup lang="ts">
import MyTableColumn from "./MyTableColumn.vue";
//其中 tableHeight 是为了控制表格高度，非必需
const props = defineProps(["tableData", "tableHeader", "tableHeight"]);
</script>
<style scoped lang="scss"></style>

二，创建表格列的组件 MyTableColumn.vue

    代码如下，通过调用组件自身的方法，递归循环。

<template>
  <el-table-column :label="coloumnHeader.label" header-align="center">
    <template v-for="item in coloumnHeader.children">
      <MyTableColumn
        v-if="item.children && item.children.length"
        :coloumnHeader="item"
      ></MyTableColumn>
      <el-table-column
        v-else
        :label="item.label"
        :prop="item.prop"
        :sortable="item.sort"
        header-align="center"
        :align="item.align"
        :width="item.width"
      ></el-table-column>
    </template>
  </el-table-column>
</template>

<script setup lang="ts">
const props = defineProps(["coloumnHeader"]);
</script>
<style scoped lang="scss"></style>

三、使用动态表格组件

<template>

  <DynamicTable
    ref="dataTableRef"
    :style="{ height: tableHeight + 'px' }"
    :tableHeight="tableHeight"
    :tableData="tableData"
    :tableHeader="tableHeader"
  ></DynamicTable>

</template>
<script setup lang="ts">

import DynamicTable from "@/components/DynamicTable.vue";

import { ref, reactive, onMounted, nextTick} from "vue";

//表格的高度
const tableHeight = ref(0);

// 静态表格表头及数据
const tableHeader = reactive([
  {
    label: "基本信息",
    children: [
      {
        label: "姓名",
        children: [
          {
            label: "姓名1",
            prop: "name",
            align: "center",
          },
          {
            label: "姓名2",
            prop: "namet",
            align: "center",
          },
        ],
      },
      {
        label: "生日",
        sort: true,
        prop: "birth",
        align: "center",
      },
    ],
  },
  { label: "地址", sort: false, prop: "address", align: "left" },
  {
    label: "年龄",
    sort: true,
    prop: "age",
  },
  {
    label: "电话",
    sort: false,
    prop: "phone",
  },
]);

const tableData = reactive([
  {
    name: "张三",
    namet: "张三2",
    address: "广西南宁市贤宾路1号",
    birth: "2021-01-01",
    age: 20,
    phone: "13877100000",
  },
  {
    name: "李四",
    namet: "李四2",
    birth: "2022-01-01",
    address: "广西南宁市悦宾路1号",
    age: 19,
    phone: "13077700000",
  },

]);

onMounted(() => {
  nextTick(() => {
    tableHeight.value = window.innerHeight - (51 + 30 + 1) + 3 - 154;
  });
});
</script>
<style scoped lang="scss">

</style>

至此，该功能完成，加载后端数据可实现多层级（理论上无限级）表头的动态创建。

本文参考了 https://www.cnblogs.com/caohuiyuan/p/15246265.html 的内容，特向原作者致谢。
