1、数据库准备
1.1 创建数据库
DROP database IF EXISTS `learn_mybatis`;
CREATE database `learn_mybatis` DEFAULT CHARACTER SET utf8 COLLATE utf8_general_ci;
USE `learn_mybatis`;
1.2 创建数据表
DROP TABLE IF EXISTS `tbl_0302_city`;
DROP TABLE IF EXISTS `tbl_0302_provice`;
CREATE TABLE `tbl_0302_provice` (
`provice_id` int(11) NOT NULL AUTO_INCREMENT COMMENT '省份编号',
`provice_name` varchar(20) NOT NULL COMMENT '省份名称',
PRIMARY KEY (`provice_id`)
) ENGINE=InnoDB AUTO_INCREMENT=7 DEFAULT CHARSET=utf8 COMMENT='省份信息表';
INSERT INTO `tbl_0302_provice` VALUES ('1', '湖北');
INSERT INTO `tbl_0302_provice` VALUES ('2', '湖南');
INSERT INTO `tbl_0302_provice` VALUES ('3', '北京');
INSERT INTO `tbl_0302_provice` VALUES ('4', '香港');
INSERT INTO `tbl_0302_provice` VALUES ('5', '新疆');
INSERT INTO `tbl_0302_provice` VALUES ('6', '上海');
CREATE TABLE `tbl_0302_city` (
`city_id` int(11) NOT NULL AUTO_INCREMENT COMMENT '城市编号',
`city_provice_id` int(11) NOT NULL COMMENT '所属省份',
`city_name` varchar(20) NOT NULL COMMENT '城市名称',
PRIMARY KEY (`city_id`),
KEY `city_provice_id` (`city_provice_id`),
CONSTRAINT `tbl_0302_city_ibfk_1` FOREIGN KEY (`city_provice_id`) REFERENCES `tbl_0302_provice`
(`provice_id`) ON DELETE CASCADE ON UPDATE CASCADE
) ENGINE=InnoDB AUTO_INCREMENT=99 DEFAULT CHARSET=utf8 COMMENT='城市信息表';
INSERT INTO `tbl_0302_city` VALUES ('1', '1', '武汉');
INSERT INTO `tbl_0302_city` VALUES ('2', '1', '黄石');
INSERT INTO `tbl_0302_city` VALUES ('3', '1', '十堰');
INSERT INTO `tbl_0302_city` VALUES ('4', '1', '宜昌');
INSERT INTO `tbl_0302_city` VALUES ('5', '1', '襄阳');
INSERT INTO `tbl_0302_city` VALUES ('6', '1', '鄂州');
INSERT INTO `tbl_0302_city` VALUES ('7', '1', '荆门');
INSERT INTO `tbl_0302_city` VALUES ('8', '1', '孝感');
INSERT INTO `tbl_0302_city` VALUES ('9', '1', '荆州');
INSERT INTO `tbl_0302_city` VALUES ('10', '1', '黄冈');
INSERT INTO `tbl_0302_city` VALUES ('11', '1', '咸宁');
INSERT INTO `tbl_0302_city` VALUES ('12', '1', '随州');
INSERT INTO `tbl_0302_city` VALUES ('13', '1', '恩施');
INSERT INTO `tbl_0302_city` VALUES ('14', '1', '仙桃');
INSERT INTO `tbl_0302_city` VALUES ('15', '1', '潜江');
INSERT INTO `tbl_0302_city` VALUES ('16', '1', '天门');
INSERT INTO `tbl_0302_city` VALUES ('17', '1', '神农架');
INSERT INTO `tbl_0302_city` VALUES ('18', '2', '长沙');
INSERT INTO `tbl_0302_city` VALUES ('19', '2', '株洲');
INSERT INTO `tbl_0302_city` VALUES ('20', '2', '湘潭');
INSERT INTO `tbl_0302_city` VALUES ('21', '2', '衡阳');
INSERT INTO `tbl_0302_city` VALUES ('22', '2', '邵阳');
INSERT INTO `tbl_0302_city` VALUES ('23', '2', '岳阳');
INSERT INTO `tbl_0302_city` VALUES ('24', '2', '常德');
INSERT INTO `tbl_0302_city` VALUES ('25', '2', '张家界');
INSERT INTO `tbl_0302_city` VALUES ('26', '2', '益阳');
INSERT INTO `tbl_0302_city` VALUES ('27', '2', '郴州');
INSERT INTO `tbl_0302_city` VALUES ('28', '2', '永州');
INSERT INTO `tbl_0302_city` VALUES ('29', '2', '怀化');
INSERT INTO `tbl_0302_city` VALUES ('30', '2', '娄底');
INSERT INTO `tbl_0302_city` VALUES ('31', '2', '湘西');
INSERT INTO `tbl_0302_city` VALUES ('32', '3', '东城');
INSERT INTO `tbl_0302_city` VALUES ('33', '3', '西城');
INSERT INTO `tbl_0302_city` VALUES ('34', '3', '朝阳');
INSERT INTO `tbl_0302_city` VALUES ('35', '3', '丰台');
INSERT INTO `tbl_0302_city` VALUES ('36', '3', '石景山');
INSERT INTO `tbl_0302_city` VALUES ('37', '3', '海淀');
INSERT INTO `tbl_0302_city` VALUES ('38', '3', '门头沟');
INSERT INTO `tbl_0302_city` VALUES ('39', '3', '房山');
INSERT INTO `tbl_0302_city` VALUES ('40', '3', '通州');
INSERT INTO `tbl_0302_city` VALUES ('41', '3', '顺义');
INSERT INTO `tbl_0302_city` VALUES ('42', '3', '昌平');
INSERT INTO `tbl_0302_city` VALUES ('43', '3', '大兴');
INSERT INTO `tbl_0302_city` VALUES ('44', '3', '平谷');
INSERT INTO `tbl_0302_city` VALUES ('45', '3', '怀柔');
INSERT INTO `tbl_0302_city` VALUES ('46', '3', '密云');
INSERT INTO `tbl_0302_city` VALUES ('47', '3', '延庆');
INSERT INTO `tbl_0302_city` VALUES ('48', '4', '中西区');
INSERT INTO `tbl_0302_city` VALUES ('49', '4', '东区');
INSERT INTO `tbl_0302_city` VALUES ('50', '4', '九龙城区');
INSERT INTO `tbl_0302_city` VALUES ('51', '4', '观塘区');
INSERT INTO `tbl_0302_city` VALUES ('52', '4', '南区');
INSERT INTO `tbl_0302_city` VALUES ('53', '4', '深水埗区');
INSERT INTO `tbl_0302_city` VALUES ('54', '4', '黄大仙区');
INSERT INTO `tbl_0302_city` VALUES ('55', '4', '湾仔区');
INSERT INTO `tbl_0302_city` VALUES ('56', '4', '油尖旺区');
INSERT INTO `tbl_0302_city` VALUES ('57', '4', '离岛区');
INSERT INTO `tbl_0302_city` VALUES ('58', '4', '葵青区');
INSERT INTO `tbl_0302_city` VALUES ('59', '4', '北区');
INSERT INTO `tbl_0302_city` VALUES ('60', '4', '西贡区');
INSERT INTO `tbl_0302_city` VALUES ('61', '4', '沙田区');
INSERT INTO `tbl_0302_city` VALUES ('62', '4', '屯门区');
INSERT INTO `tbl_0302_city` VALUES ('63', '4', '大埔区');
INSERT INTO `tbl_0302_city` VALUES ('64', '4', '荃湾区');
INSERT INTO `tbl_0302_city` VALUES ('65', '4', '元朗区');
INSERT INTO `tbl_0302_city` VALUES ('66', '5', '乌鲁木齐');
INSERT INTO `tbl_0302_city` VALUES ('67', '5', '克拉玛依');
INSERT INTO `tbl_0302_city` VALUES ('68', '5', '吐鲁番');
INSERT INTO `tbl_0302_city` VALUES ('69', '5', '哈密');
INSERT INTO `tbl_0302_city` VALUES ('70', '5', '昌吉');
INSERT INTO `tbl_0302_city` VALUES ('71', '5', '博尔塔拉');
INSERT INTO `tbl_0302_city` VALUES ('72', '5', '巴音郭楞');
INSERT INTO `tbl_0302_city` VALUES ('73', '5', '阿克苏');
INSERT INTO `tbl_0302_city` VALUES ('74', '5', '克孜勒苏');
INSERT INTO `tbl_0302_city` VALUES ('75', '5', '喀什');
INSERT INTO `tbl_0302_city` VALUES ('76', '5', '和田');
INSERT INTO `tbl_0302_city` VALUES ('77', '5', '伊犁');
INSERT INTO `tbl_0302_city` VALUES ('78', '5', '塔城');
INSERT INTO `tbl_0302_city` VALUES ('79', '5', '阿勒泰');
INSERT INTO `tbl_0302_city` VALUES ('80', '5', '石河子');
INSERT INTO `tbl_0302_city` VALUES ('81', '5', '阿拉尔');
INSERT INTO `tbl_0302_city` VALUES ('82', '5', '图木舒克');
INSERT INTO `tbl_0302_city` VALUES ('83', '5', '五家渠');
INSERT INTO `tbl_0302_city` VALUES ('84', '5', '北屯');
INSERT INTO `tbl_0302_city` VALUES ('85', '6', '黄浦区');
INSERT INTO `tbl_0302_city` VALUES ('86', '6', '徐汇区');
INSERT INTO `tbl_0302_city` VALUES ('87', '6', '长宁区');
INSERT INTO `tbl_0302_city` VALUES ('88', '6', '静安区');
INSERT INTO `tbl_0302_city` VALUES ('89', '6', '普陀区');
INSERT INTO `tbl_0302_city` VALUES ('90', '6', '虹口区');
INSERT INTO `tbl_0302_city` VALUES ('91', '6', '杨浦区');
INSERT INTO `tbl_0302_city` VALUES ('92', '6', '嘉定区');
INSERT INTO `tbl_0302_city` VALUES ('93', '6', '浦东新区');
INSERT INTO `tbl_0302_city` VALUES ('94', '6', '金山区');
INSERT INTO `tbl_0302_city` VALUES ('95', '6', '松江区');
INSERT INTO `tbl_0302_city` VALUES ('96', '6', '青浦区');
INSERT INTO `tbl_0302_city` VALUES ('97', '6', '奉贤区');
INSERT INTO `tbl_0302_city` VALUES ('98', '6', '崇明区');

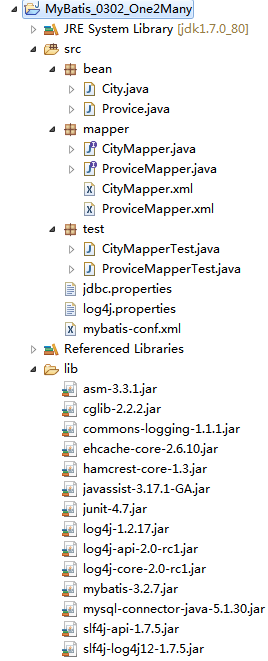

2、工程搭建
2.1 创建一个java项目工程2.2 加入相关依赖文件（如：mybatis框架、mysql驱动、junit单元测试、log4j日志）2.3 搭建完成的项目结构如下
3、结构内容
配置文件3个，分别为
mybatis-conf.xml，mybatis的主配置文件；
jdbc.properties，数据库连接的配置；
log4j.properties，配置日志输出的
3.1 mybatis的主配置文件（mybatis-conf.xml）
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd" >
<configuration>
<properties resource="jdbc.properties" />
<settings>
<setting name="lazyLoadingEnabled" value="true"/><!-- 启用延迟加机制 -->
<setting name="aggressiveLazyLoading" value="false"/><!-- 不使用积极加载关联的属性 -->
</settings>
<typeAliases>
<package name="bean"/>
</typeAliases>
<environments default="development">
<environment id="development">
<transactionManager type="JDBC" />
<dataSource type="POOLED">
<property name="driver" value="${jdbc.driver}" />
<property name="url" value="${jdbc.url}" />
<property name="username" value="${jdbc.username}" />
<property name="password" value="${jdbc.password}" />
</dataSource>
</environment>
</environments>
<mappers>
<mapper resource="mapper/CityMapper.xml"/>
<mapper resource="mapper/ProviceMapper.xml"/>
</mappers>
</configuration>
3.2 jdbc配置文件（jdbc.properties）
jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/learn_mybatis
jdbc.username=root
jdbc.password=root
3.3 log4j的配置文件（log4j.properties）
log4j.rootLogger=DEBUG, stdout,logfile
log4j.logger.java.sql.ResultSet=INFO
log4j.logger.org.apache=INFO
log4j.logger.java.sql.Connection=DEBUG
log4j.logger.java.sql.Statement=DEBUG
log4j.logger.java.sql.PreparedStatement=DEBUG
#控制台日志
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.Target=System.out
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=[%p][%t][%d{yyyy-MM-dd HH\:mm\:ss}][%C] - %m%n
#普通文件日志
log4j.appender.logfile=org.apache.log4j.RollingFileAppender
#log4j.appender.logfile=org.apache.log4j.FileAppender
log4j.appender.logfile.File=logs/err.log
log4j.appender.logfile.MaxFileSize=5MB
#输出日志，如果换成DEBUG表示输出DEBUG以上级别日志
log4j.appender.logfile.Threshold=ALL
log4j.appender.logfile.layout=org.apache.log4j.PatternLayout
log4j.appender.logfile.layout.ConversionPattern=[%p][%t][%d{yyyy-MM-dd HH\:mm\:ss}][%C] - %m%n
bean包文件2个，City和Provice实体类
3.4 bean包下的City.java文件
package bean;
/**
* 城市信息表<br/>
* create by LINKSINKE on 2020/4/9
*/
public class City {
private Integer cityId;// 城市编号
private String cityName;// 城市名称
private Provice provice;// 一对一关联，采用对象关联
public City() { }
public City(Integer cityId, String cityName) {
super();
this.cityId = cityId;
this.cityName = cityName;
}
@Override
public String toString() {
return "City [cityId=" + cityId + ", cityName="
+ cityName + ", provice=" + provice + "]";
}
// getter and setter methods
public Provice getProvice() { return provice; }
public void setProvice(Provice provice) { this.provice = provice; }
public Integer getCityId() { return cityId; }
public void setCityId(Integer cityId) { this.cityId = cityId; }
public String getCityName() { return cityName; }
public void setCityName(String cityName) { this.cityName = cityName; }
}
3.5 bean包下的Provice.java文件
package bean;
import java.util.List;
/**
* 省份信息表<br/>
* create by LINKSINKE on 2020/4/9
*/
public class Provice {
private Integer proviceId;// 省份编号
private String proviceName;// 省份名称
private List<City> cities;// 一对多关联，采用集合来关联
public Provice() { }
public Provice(Integer proviceId, String proviceName) {
super();
this.proviceId = proviceId;
this.proviceName = proviceName;
}
@Override
public String toString() {
return "Provice [proviceId=" + proviceId + ", proviceName="
+ proviceName + ", cities=" + cities + "]";
}
// getter and setter methods
public List<City> getCities() { return cities; }
public void setCities(List<City> cities) { this.cities = cities; }
public Integer getProviceId() { return proviceId; }
public void setProviceId(Integer proviceId) { this.proviceId = proviceId; }
public String getProviceName() { return proviceName; }
public void setProviceName(String proviceName) { this.proviceName = proviceName; }
}
mapper包，有接口类和映射文件一起4个
3.6 mapper包下的CityMapper接口类
package mapper;
import java.util.List;
import bean.City;
public interface CityMapper {
/**
* 按照指定的编号查找城市信息（包含城市归属于的城市名称） <br/>
* by\嵌套结果查询
* @param cid 指定编号
* @return 城市信息
*/
public City getCity01(Integer cid);
/**
* 按照指定的编号查找城市信息（包含城市归属于的城市名称） <br/>
* by\ProviceMapper.xml
* @param cid 指定编号
* @return 城市信息
*/
public City getCity02(Integer cid);
/**
* 查询所有城市
* @return 所有的城市信息（包含城市所属于那个省份的）
*/
public List<City> findAll();
/**
* 查询指定的城市
* @param cid 城市编号
* @return 城市信息
*/
public City findCityById (Integer cid);
/**
* 添加城市信息
* @param city 城市信息
* @return 受影响的行数（0为失败，1为成功）
*/
public int add(City city);
/**
* 修改某个城市信息
* @param city 城市信息
* @return 是否修改成功（false为失败，true为成功）
*/
public boolean update(City city);
/**
* 删除某个城市信息
* @param cid 城市编号
* @return 是否删除成功（false为失败，true为成功）
*/
public boolean delete(Integer cid);
}
3.7 和CityMapper接口相关的映射文件CityMapper.xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="mapper.CityMapper">
<!-- 一对一关联方式1：by==>嵌套结果：使用嵌套结果映射 -->
<resultMap type="City" id="cityResultMap01">
<id property="cityId" column="city_id" javaType="int" jdbcType="INTEGER" />
<result property="cityName" column="city_name" javaType="string" jdbcType="VARCHAR" />
<association property="provice" column="city_provice_id" javaType="Provice" jdbcType="INTEGER">
<id property="proviceId" column="provice_id" javaType="int" jdbcType="INTEGER" />
<result property="proviceName" column="provice_name" javaType="string" jdbcType="VARCHAR" />
</association>
</resultMap>
<select id="getCity01" parameterType="int" resultMap="cityResultMap01">
select * from tbl_0302_city as city join tbl_0302_provice as provice on city.city_provice_id = provice.provice_id and city_id = #{cityid}
</select>
<!-- 一对一关联方式2：by==>嵌套查询：通过ProviceMapper.xml里的映射语句实现 -->
<resultMap type="City" id="cityResultMap02">
<id property="cityId" column="city_id" javaType="int" jdbcType="INTEGER" />
<result property="cityName" column="city_name" javaType="string" jdbcType="VARCHAR" />
<association property="provice" column="city_provice_id" javaType="Provice" jdbcType="INTEGER" select="mapper.ProviceMapper.findProviceById" />
</resultMap>
<select id="getCity02" parameterType="int" resultMap="cityResultMap02">
select * from tbl_0302_city where city_id = #{cityid}
</select>
<!-- 查询所有的城市信息 -->
<select id="findAll" parameterType="int" resultMap="cityResultMap02">
select city_id cityId,city_name cityName,city_provice_id city_provice_id from tbl_0302_city
</select>
<!-- 通过省份编号获取城市信息 -->
<select id="findCityByProviceId" parameterType="int" resultType="City">
select city_id cityId,city_name cityName,city_provice_id city_provice_id from tbl_0302_city where city_provice_id = #{cityid}
</select>
<!-- 添加 -->
<insert id="add" parameterType="City" useGeneratedKeys="true" keyColumn="city_id" keyProperty="cityId">
insert into tbl_0302_city(city_provice_id,city_name) values(#{provice.proviceId},#{cityName})
</insert>
<!-- 修改 -->
<update id="update" parameterType="City">
update `tbl_0302_city` set `city_name` = #{cityName},`city_provice_id` = #{provice.proviceId} where city_id = #{cityId}
</update>
<!-- 删除 -->
<delete id="delete" parameterType="int">
delete from `tbl_0302_city` where city_id = #{asfds}
</delete>
</mapper>
3.8 mapper包下的ProviceMapper接口类
package mapper;
import java.util.List;
import bean.Provice;
public interface ProviceMapper {
/**
* 按照指定的编号查找省份信息（包含省份里面的城市）<br/>
* by\嵌套映射
* @param pid 省份编号
* @return 省份信息
*/
public Provice getProvice01(Integer pid);
/**
* 按照指定的编号查找省份信息（包含省份里面的城市）<br/>
* by\CityMapper.xml
* @param pid 编号
* @return 省份信息
*/
public Provice getProvice02(Integer pid);
/**
* 查询所有省份
* @return 所有的省份信息（包含省份里面的所有城市）
*/
public List<Provice> findAll();
/**
* 查询指定的省份
* @param pid 省份编号
* @return 省份信息
*/
public Provice findProviceById(Integer pid);
/**
* 添加省份信息
* @param provice 省份信息
* @return 受影响的行数
*/
public int add(Provice provice);
/**
* 修改某个省份信息
* @param provice 省份信息
* @return 是否修改成功（false为失败，true为成功）
*/
public boolean update(Provice provice);
/**
* 删除某个省份信息
* @param pid 省份编号
* @return 是否删除成功（false为失败，true为成功）
*/
public boolean delete(Integer pid);
}
3.9 和ProviceMapper接口相关的映射文件ProviceMapper.xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="mapper.ProviceMapper">
<!-- 一对多关联方式1：by==>嵌套结果：使用嵌套结果映射 -->
<resultMap type="Provice" id="proviceResultMap01">
<id property="proviceId" column="provice_id" javaType="int" jdbcType="INTEGER" />
<result property="proviceName" column="provice_name" javaType="string" jdbcType="VARCHAR" />
<!-- ofType：在反向select中使用,并且是collection中的属性 -->
<collection property="cities" ofType="City" column="provice_id">
<id property="cityId" column="city_id" javaType="int" jdbcType="INTEGER" />
<result property="cityName" column="city_name" javaType="string" jdbcType="VARCHAR" />
</collection>
</resultMap>
<select id="getProvice01" parameterType="int" resultMap="proviceResultMap01">
select * from tbl_0302_provice as provice join tbl_0302_city as city on city.city_provice_id = provice.provice_id and provice_id = #{proviceid}
</select>
<!-- 一对多关联方式2：by==>嵌套查询：通过CityMapper.xml里的映射语句实现 -->
<resultMap type="Provice" id="proviceResultMap02">
<id property="proviceId" column="provice_id" javaType="int" jdbcType="INTEGER" />
<result property="proviceName" column="provice_name" javaType="string" jdbcType="VARCHAR" />
<!-- ofType：在反向select中使用,并且是collection中的属性 -->
<collection property="cities" ofType="City" column="provice_id" select="mapper.CityMapper.findCityByProviceId" />
</resultMap>
<select id="getProvice02" parameterType="int" resultMap="proviceResultMap02">
select * from tbl_0302_provice where provice_id = #{proviceid}
</select>
<!-- 查询所有的省份信息 -->
<select id="findAll" resultMap="proviceResultMap02">
select * from tbl_0302_provice as provice
</select>
<!-- 通过省份编号获取省份信息 -->
<select id="findProviceById" parameterType="int" resultType="Provice">
select provice_id proviceId,provice_name proviceName from tbl_0302_provice where provice_id = #{proviceId}
</select>
<!-- 添加 -->
<insert id="add" parameterType="Provice" useGeneratedKeys="true" keyProperty="proviceId" keyColumn="provice_id">
insert into tbl_0302_provice(provice_name) values(#{proviceName})
</insert>
<!-- 修改 -->
<update id="update" parameterType="Provice">
update `tbl_0302_provice` set `provice_name` = #{proviceName} where `provice_id` = #{proviceId}
</update>
<!-- 删除 -->
<delete id="delete" parameterType="int">
delete from `tbl_0302_provice` where `provice_id` = #{adsfdsf}
</delete>
</mapper>
test包下的两个测试类
3.10 测试类CityMapperTest
package test;
import java.io.IOException;
import java.io.InputStream;
import java.util.List;
import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import org.junit.Before;
import org.junit.Test;
import bean.City;
import bean.Provice;
import mapper.CityMapper;
import mapper.ProviceMapper;
public class CityMapperTest {
private static SqlSessionFactory sqlSessionFactory;
@Before
public void init() {
InputStream inputStream;
try {
inputStream = Resources.getResourceAsStream("mybatis-conf.xml");
sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);
} catch (IOException e) {
e.printStackTrace();
}
}
// 关联查询方式一：查询指定的城市（含城市归属的省份）
@Test
public void testGetCity01() {
SqlSession session = sqlSessionFactory.openSession();
CityMapper mapper = session.getMapper(CityMapper.class);
City city = mapper.getCity01(10);
session.close();
System.out.println(city);
}
// 关联查询方式二：查询指定的城市（含城市归属的省份）
@Test
public void testGetCity02() {
SqlSession session = sqlSessionFactory.openSession();
CityMapper mapper = session.getMapper(CityMapper.class);
City city = mapper.getCity02(10);
session.close();
// System.out.println(String.format("城市信息=>[编号:%d,名称:%s,所属的省份:%s]",city.getCityId(),
// city.getCityName(),city.getProvice().getProviceName()));
System.out.println(city);
}
// 查询所有的城市（含城市归属的省份）
@Test
public void testFindAllCity() {
SqlSession session = sqlSessionFactory.openSession();
CityMapper mapper = session.getMapper(CityMapper.class);
List<City> lis = mapper.findAll();
session.close();
for (City city : lis) {
System.out.println(city);
}
}
// 添加城市信息
@Test
public void testAddCity() {
SqlSession session = sqlSessionFactory.openSession();
CityMapper cMapper = session.getMapper(CityMapper.class);
ProviceMapper pMapper = session.getMapper(ProviceMapper.class);
City city = new City(null, "测试区01");
city.setProvice(pMapper.findProviceById(1));// 设置关联
int rows = cMapper.add(city);
session.commit();
session.close();
System.out.println(rows == 0 ? "添加失败" : "添加成功");
System.out.println(city);
}
// 修改城市信息（城市名称、所属的省份）
@Test
public void testUpdate() {
SqlSession session = sqlSessionFactory.openSession();
CityMapper cMapper = session.getMapper(CityMapper.class);
ProviceMapper pMapper = session.getMapper(ProviceMapper.class);
// 准备省份
Provice provice = pMapper.findProviceById(1);
System.out.println("准备的省份信息：" + provice);
// 修改城市编号为100的
City city = cMapper.getCity01(100);
city.setProvice(provice);// 设置新的所属省份
System.out.println("要修改的城市信息：" + city);
boolean isUpdate = cMapper.update(city);
session.commit();
System.out.println(isUpdate ? "修改成功" : "修改失败");
System.out.println(cMapper.getCity01(100));
session.close();
}
// 删掉某个城市
@Test
public void testDelete() {
SqlSession session = sqlSessionFactory.openSession();
CityMapper cMapper = session.getMapper(CityMapper.class);
// 删除城市编号为100的
boolean isDelete = cMapper.delete(100);
session.commit();
System.out.println(isDelete ? "删除成功" : "删除失败");
session.close();
}
}
3.11 测试类ProviceMapperTest
package test;
import java.io.IOException;
import java.io.InputStream;
import java.util.List;
import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import org.junit.Before;
import org.junit.Test;
import bean.Provice;
import mapper.ProviceMapper;
public class ProviceMapperTest {
private static SqlSessionFactory sqlSessionFactory;
@Before
public void init() {
InputStream inputStream;
try {
inputStream = Resources.getResourceAsStream("mybatis-conf.xml");
sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);
} catch (IOException e) {
e.printStackTrace();
}
}
// 关联查询方式一：查询指定省份（含省份下的城市）
@Test
public void getProvice01() {
SqlSession session = sqlSessionFactory.openSession();
ProviceMapper mapper = session.getMapper(ProviceMapper.class);
Provice provice = mapper.getProvice01(1);
session.close();
System.out.println("城市数量共：" + provice.getCities().size());
System.out.println(provice);
}
// 关联查询方式二：查询指定的省份（含省份下的城市）
@Test
public void getProvice02() {
SqlSession session = sqlSessionFactory.openSession();
ProviceMapper mapper = session.getMapper(ProviceMapper.class);
Provice provice = mapper.getProvice02(1);
session.close();
System.out.println("城市数量共：" + provice.getCities().size());
System.out.println(provice);
}
// 查询所有的省份（含省份下的城市）
@Test
public void testFindAllProvice() {
SqlSession session = sqlSessionFactory.openSession();
ProviceMapper mapper = session.getMapper(ProviceMapper.class);
List<Provice> lis = mapper.findAll();
session.close();
for (Provice provice : lis) {
System.out.println(provice);
}
}
// 添加省份
@Test
public void testAddProvice() {
SqlSession session = sqlSessionFactory.openSession();
ProviceMapper mapper = session.getMapper(ProviceMapper.class);
Provice provice = new Provice(null, "测试省份01");
int rows = mapper.add(provice);
session.commit();
session.close();
System.out.println(rows == 0 ? "添加失败" : "添加成功");
System.out.println(provice);
}
// 修改省份
@Test
public void testUpdate() {
SqlSession session = sqlSessionFactory.openSession();
ProviceMapper mapper = session.getMapper(ProviceMapper.class);
Provice provice = mapper.findProviceById(7);
provice.setProviceName("省份测试中11...");
boolean isUpdate = mapper.update(provice);
session.commit();
System.out.println(isUpdate ? "修改成功" : "修改失败");
System.out.println(mapper.findProviceById(7));
session.close();
}
// 删除省份
@Test
public void testDelete() {
SqlSession session = sqlSessionFactory.openSession();
ProviceMapper mapper = session.getMapper(ProviceMapper.class);
// 删除省份编号为7
boolean isDelete = mapper.delete(7);
session.commit();
System.out.println(isDelete ? "删除成功" : "删除失败");
session.close();
}
}
版权声明：本文为qq_29001539原创文章，遵循CC 4.0 BY-SA版权协议，转载请附上原文出处链接和本声明。
