spring源码

环境搭建

maven依赖

<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-context</artifactId>
    <version>5.2.8.RELEASE</version>
</dependency>

简单的一个Student类

package lean.bean;

public class Student {
    String name;
    int id;

    public Student() {
        System.out.println("Student被创建。。。。");
    }

    @Override
    public String toString() {
        return "Student{" +
                "name='" + name + '\'' +
                ", id=" + id +
                '}';
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }
}

spring的配置文件：spring.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd">
<bean id="stu1" class="lean.bean.Student"/>
</beans>

测试的main函数

package lean;

import lean.bean.Student;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;


public class Main {
    public static void main(String[] args) {
        ApplicationContext context = new ClassPathXmlApplicationContext("spring.xml");
        Student stu1 = context.getBean("stu1",Student.class);
        System.out.println(stu1);
    }
}

源码调用过程

废话不多说直接上spring ioc创建流程
ClassPathXmlApplicationContext 这个类是饿汉式加载的，即创建这个类的时候就会加载配置文件中的所有的bean。
下面是进入该类的构造器：

public ClassPathXmlApplicationContext(String configLocation) throws BeansException {
   this(new String[] {configLocation}, true, null);
}

从代码可以看出，构造器又调用了一个构造器，如下。
该构造器核心是

public ClassPathXmlApplicationContext(
      String[] configLocations, boolean refresh, @Nullable ApplicationContext parent)
      throws BeansException {

   super(parent); //调用父对象进行初始化
   setConfigLocations(configLocations);
   if (refresh) { //默认传入的是true，即直接加载bean
      refresh(); //该函数是如何加载bean的核心
   }
}

refresh()如下

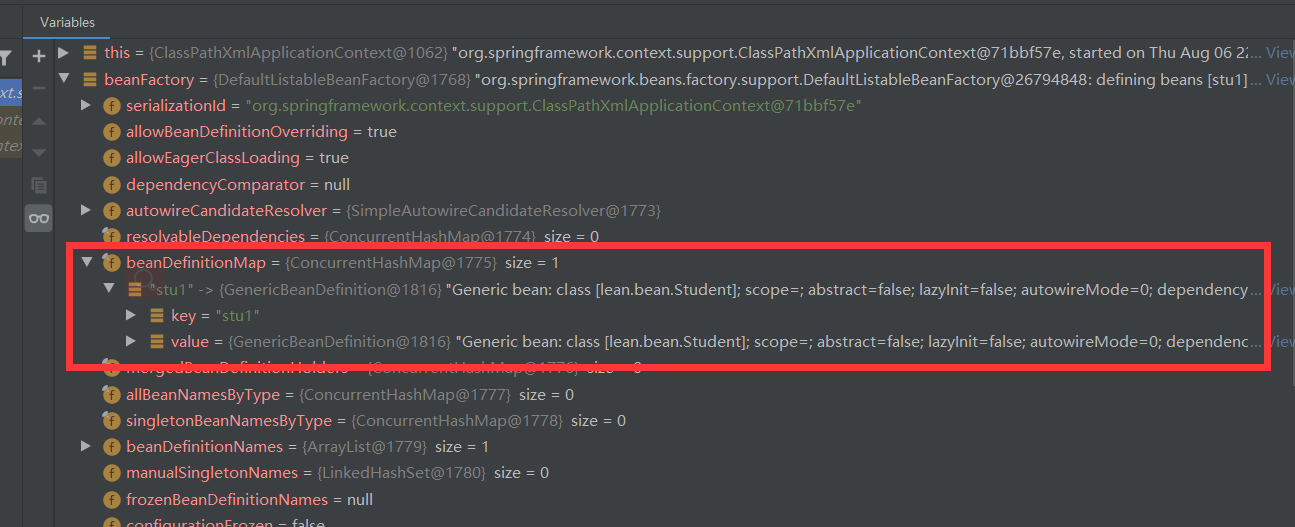

在2处执行完之后，得到的beanFactory中的属性如下：其中的beanDefinitionMap中记录了从配置文件spring.xml中读取到的bean的配置信息。

public void refresh() throws BeansException, IllegalStateException {
   synchronized (this.startupShutdownMonitor) {
      // Prepare this context for refreshing.
      prepareRefresh(); //1. 预处理

      // Tell the subclass to refresh the internal bean factory.
      ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory(); //2. 得到一个beanFactory，用来创建bean，该步骤解析了spring.xml文件

      // Prepare the bean factory for use in this context.
      prepareBeanFactory(beanFactory); //3. 预处理beanFactory

      try {
         // Allows post-processing of the bean factory in context subclasses.
         postProcessBeanFactory(beanFactory); // 4. beanFactory的后置处理器

         // Invoke factory processors registered as beans in the context.
         invokeBeanFactoryPostProcessors(beanFactory); //5. 注册后置处理器，注册spring自己用到的组件

         // Register bean processors that intercept bean creation.
         registerBeanPostProcessors(beanFactory); //6.注册拦截bean创建的bean处理器。

         // Initialize message source for this context.
         initMessageSource(); //7. 初始化消息源，国际化相关

         // Initialize event multicaster for this context.
         initApplicationEventMulticaster(); //8. 初始化事件转发器，因为在bean的生命周期可能有很多事件，因此需要事件转发器

         // Initialize other special beans in specific context subclasses.
         onRefresh(); //9. 初始化特定上下文子类中的其他特殊bean。一般留给子类创建

         // Check for listener beans and register them.
         registerListeners(); //10.注册监听器

         // Instantiate all remaining (non-lazy-init) singletons.
         finishBeanFactoryInitialization(beanFactory); //11.初始化非懒加载的bean，所有的bean都是单例模式

         // Last step: publish corresponding event.
         finishRefresh();
      }

      catch (BeansException ex) {
         if (logger.isWarnEnabled()) {
            logger.warn("Exception encountered during context initialization - " +
                  "cancelling refresh attempt: " + ex);
         }

         // Destroy already created singletons to avoid dangling resources.
         destroyBeans();

         // Reset 'active' flag.
         cancelRefresh(ex);

         // Propagate exception to caller.
         throw ex;
      }

      finally {
         // Reset common introspection caches in Spring's core, since we
         // might not ever need metadata for singleton beans anymore...
         resetCommonCaches();
      }
   }
}

上面的第11步骤是初始化所有单实例bean的函数，如下：
该函数是AbstractApplicationContext的函数

/**
 * Finish the initialization of this context's bean factory,
 * initializing all remaining singleton beans.
 */
protected void finishBeanFactoryInitialization(ConfigurableListableBeanFactory beanFactory) {
   // Initialize conversion service for this context.
   // 为此上下文初始化转换服务，内部用到的，暂时不管
   if (beanFactory.containsBean(CONVERSION_SERVICE_BEAN_NAME) &&
         beanFactory.isTypeMatch(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class)) {
      beanFactory.setConversionService(
            beanFactory.getBean(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class));
   }

   // Register a default embedded value resolver if no bean post-processor
   // (such as a PropertyPlaceholderConfigurer bean) registered any before:
   // at this point, primarily for resolution in annotation attribute values.
   // 看翻译，也是内部用到的
   if (!beanFactory.hasEmbeddedValueResolver()) {
      beanFactory.addEmbeddedValueResolver(strVal -> getEnvironment().resolvePlaceholders(strVal));
   }

   // Initialize LoadTimeWeaverAware beans early to allow for registering their transformers early.
   String[] weaverAwareNames = beanFactory.getBeanNamesForType(LoadTimeWeaverAware.class, false, false);
   for (String weaverAwareName : weaverAwareNames) {
      getBean(weaverAwareName);
   }

   // Stop using the temporary ClassLoader for type matching.
   beanFactory.setTempClassL/oader(null); //设置临时的类加载器

   // Allow for caching all bean definition metadata, not expecting further changes.
   beanFactory.freezeConfiguration(); //冻结配置，不希望修改

   // Instantiate all remaining (non-lazy-init) singletons.
   beanFactory.preInstantiateSingletons(); //！！**预初始化所有单实例**
}

preInstantiateSingletons函数如下，该函数是DefaultListableBeanFactory类的方法。注意，又是一个bean工厂

@Override
public void preInstantiateSingletons() throws BeansException {
	// 看到logger可以跳过了，哈哈，因为是一些日志记录，无关紧要
   if (logger.isTraceEnabled()) {
      logger.trace("Pre-instantiating singletons in " + this);
   }

   // Iterate over a copy to allow for init methods which in turn register new bean definitions.
   // While this may not be part of the regular factory bootstrap, it does otherwise work fine.
   List<String> beanNames = new ArrayList<>(this.beanDefinitionNames); // 获取到需要创建的所有bean的name

   // Trigger initialization of all non-lazy singleton beans...
   // 按照顺序创建bean
   for (String beanName : beanNames) {
   // 拿到bean的定义，该定义是从xml配置文件中读取到的 beanName即为bean中定义的id
      RootBeanDefinition bd = getMergedLocalBeanDefinition(beanName);
      // 当bean不是抽象的且是单例的且不是懒加载的才创建
      if (!bd.isAbstract() && bd/.isSingleton() && !bd.isLazyInit()) {
         if (isFactoryBean(beanName)) { // 如果是工厂bean。工厂bean是用来创建别的bean的bean，可以在xml中配置，工厂bean需要实现FactoryBean接口
            Object bean = getBean(FACTORY_BEAN_PREFIX + beanName);
            if (bean instanceof FactoryBean) {
               FactoryBean<?> factory = (FactoryBean<?>) bean;
               boolean isEagerInit;
               if (System.getSecurityManager() != null && factory instanceof SmartFactoryBean) {
                  isEagerInit = AccessController.doPrivileged(
                        (PrivilegedAction<Boolean>) ((SmartFactoryBean<?>) factory)::isEagerInit,
                        getAccessControlContext());
               }
               else {
                  isEagerInit = (factory instanceof SmartFactoryBean &&
                        ((SmartFactoryBean<?>) factory).isEagerInit());
               }
               if (isEagerInit) {
                  getBean(beanName);
               }
            }
         }
         else { //不是工厂bean，创建
            getBean(beanName); //bean的创建细节
         }
      }
   }

   // Trigger post-initialization callback for all applicable beans...
   for (String beanName : beanNames) {
      Object singletonInstance = getSingleton(beanName);
      if (singletonInstance instanceof SmartInitializingSingleton) {
         SmartInitializingSingleton smartSingleton = (SmartInitializingSingleton) singletonInstance;
         if (System.getSecurityManager() != null) {
            AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
               smartSingleton.afterSingletonsInstantiated();
               return null;
            }, getAccessControlContext());
         }
         else {
            smartSingleton.afterSingletonsInstantiated();
         }
      }
   }
}

getBean函数如下：
又调用了doGetBean

@Override
public Object getBean(String name) throws BeansException {
   return doGetBean(name, null, null, false);
}

doGetBean函数，所有的getBean调用

/**
 * Return an instance, which may be shared or independent, of the specified bean.
 * @param name the name of the bean to retrieve
 * @param requiredType the required type of the bean to retrieve
 * @param args arguments to use when creating a bean instance using explicit arguments
 * (only applied when creatingg a new instance as opposed to retrieving an existing one)
 * @param typeCheckOnly whether the instance is obtained for a type check,
 * not for actual use
 * @return an instance of the bean
 * @throws BeansException if the bean could not be created
 */
protected <T> T doGetBean(
      String name, @Nullable Class<T> requiredType, @Nullable Object[] args, boolean typeCheckOnly)
      throws BeansException {

   String beanName = transformedBeanName(name); //bean名
   Object bean; //最终需要返回的bean

   // Eagerly check singleton cache for manually registered singletons.
   // 先检查缓冲中有没有手动注册的单例bean，第一次创建没有
   Object sharedInstance = getSingleton(beanName);
   if (sharedInstance != null && args == null) {//如果已经创建
      if (logger.isTraceEnabled()) {
         if (isSingletonCurrentlyInCreation(beanName)) {
            logger.trace("Returning eagerly cached instance of singleton bean '" + beanName +
                  "' that is not fully initialized yet - a consequence of a circular reference");
         }
         else {
            logger.trace("Returning cached instance of singleton bean '" + beanName + "'");
         }
      }
      bean = getObjectForBeanInstance(sharedInstance, name, beanName, null);//直接拿到bean
   }

   else { //没有创建过
      // Fail if we're already creating this bean instance:
      // We're assumably within a circular reference.
      if (isPrototypeCurrentlyInCreation(beanName)) {
         throw new BeanCurrentlyInCreationException(beanName);
      }

      // Check if bean definition exists in this factory. // 检查bean定义是否在工厂中
      BeanFactory parentBeanFactory = getParentBeanFactory(); //
      if (parentBeanFactory != null && !containsBeanDefinition(beanName)) {
         // Not found -> check parent.
         String nameToLookup = originalBeanName(name);
         if (parentBeanFactory instanceof AbstractBeanFactory) {
            return ((AbstractBeanFactory) parentBeanFactory).doGetBean(
                  nameToLookup, requiredType, args, typeCheckOnly);
         }
         else if (args != null) {
            // Delegation to parent with explicit args.
            return (T) parentBeanFactory.getBean(nameToLookup, args);
         }
         else if (requiredType != null) {
            // No args -> delegate to standard getBean method.
            return parentBeanFactory.getBean(nameToLookup, requiredType);
         }
         else {
            return (T) parentBeanFactory.getBean(nameToLookup);
         }
      }

      if (!typeCheckOnly) { //传递过来的就是一个false
         markBeanAsCreated(beanName); //标记为已经创建
      }

      try {
         RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);//得到bean的定义信息
         checkMergedBeanDefinition(mbd, beanName, args);

         // Guarantee initialization of beans that the current bean depends on.
         String[] dependsOn = mbd.getDependsOn(); //拿到依赖的bean
         if (dependsOn != null) {
            for (String dep : dependsOn) { //先创建依赖的bean
               if (isDependent(beanName, dep)) {
                  throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                        "Circular depends-on relationship between '" + beanName + "' and '" + dep + "'");
               }
               registerDependentBean(dep, beanName);
               try {
                  getBean(dep);
               }
               catch (NoSuchBeanDefinitionException ex) {
                  throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                        "'" + beanName + "' depends on missing bean '" + dep + "'", ex);
               }
            }
         }

         // Create bean instance.
         if (mbd.isSingleton()) { //如果是单例的
         // getSingleton用来创建bean
            sharedInstance = getSingleton(beanName, () -> {
               try {
               // 该方法创建bean
                  return createBean(beanName, mbd, args);
               }
               catch (BeansException ex) {
                  // Explicitly remove instance from singleton cache: It might have been put there
                  // eagerly by the creation process, to allow for circular reference resolution.
                  // Also remove any beans that received a temporary reference to the bean.
                  destroySingleton(beanName);
                  throw ex;
               }
            });
            bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
         }

         else if (mbd.isPrototype()) {
            // It's a prototype -> create a new instance.
            Object prototypeInstance = null;
            try {
               beforePrototypeCreation(beanName);
               prototypeInstance = createBean(beanName, mbd, args);
            }
            finally {
               afterPrototypeCreation(beanName);
            }
            bean = getObjectForBeanInstance(prototypeInstance, name, beanName, mbd);
         }

         else {
            String scopeName = mbd.getScope();
            if (!StringUtils.hasLength(scopeName)) {
               throw new IllegalStateException("No scope name defined for bean ´" + beanName + "'");
            }
            Scope scope = this.scopes.get(scopeName);
            if (scope == null) {
               throw new IllegalStateException("No Scope registered for scope name '" + scopeName + "'");
            }
            try {
               Object scopedInstance = scope.get(beanName, () -> {
                  beforePrototypeCreation(beanName);
                  try {
                  //
                     return createBean(beanName, mbd, args);
                  }
                  finally {
                     afterPrototypeCreation(beanName);
                  }
               });
               bean = getObjectForBeanInstance(scopedInstance, name, beanName, mbd);
            }
            catch (IllegalStateException ex) {
               throw new BeanCreationException(beanName,
                     "Scope '" + scopeName + "' is not active for the current thread; consider " +
                     "defining a scoped proxy for this bean if you intend to refer to it from a singleton",
                     ex);
            }
         }
      }
      catch (BeansException ex) {
         cleanupAfterBeanCreationFailure(beanName);
         throw ex;
      }
   }

   // Check if required type matches the type of the actual bean instance.
   if (requiredType != null && !requiredType.isInstance(bean)) {
      try {
         T convertedBean = getTypeConverter().convertIfNecessary(bean, requiredType);
         if (convertedBean == null) {
            throw new BeanNotOfRequiredTypeException(name, requiredType, bean.getClass());
         }
         return convertedBean;
      }
      catch (TypeMismatchException ex) {
         if (logger.isTraceEnabled()) {
            logger.trace("Failed to convert bean '" + name + "' to required type '" +
                  ClassUtils.getQualifiedName(requiredType) + "'", ex);
         }
         throw new BeanNotOfRequiredTypeException(name, requiredType, bean.getClass());
      }
   }
   return (T) bean; //强制类型转换为需要的bean
}

createBean(beanName, mbd, args)方法如下：

/**
 * Central method of this class: creates a bean instance,
 * populates the bean instance, applies post-processors, etc.
 * @see #doCreateBean
 */
@Override
protected Object createBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
      throws BeanCreationException {

   if (logger.isTraceEnabled()) {
      logger.trace("Creating instance of bean '" + beanName + "'");
   }
   RootBeanDefinition mbdToUse = mbd;

   // Make sure bean class is actually resolved at this point, and
   // clone the bean definition in case of a dynamically resolved Class
   // which cannot be stored in the shared merged bean definition.
   Class<?> resolvedClass = resolveBeanClass(mbd, beanName);
   if (resolvedClass != null && !mbd.hasBeanClass() && mbd.getBeanClassName() != null) {
      mbdToUse = new RootBeanDefinition(mbd);
      mbdToUse.setBeanClass(resolvedClass);
   }

   // Prepare method overrides.
   try {
      mbdToUse.prepareMethodOverrides();
   }
   catch (BeanDefinitionValidationException ex) {
      throw new BeanDefinitionStoreException(mbdToUse.getResourceDescription(),
            beanName, "Validation of method overrides failed", ex);
   }

   try {
      // Give BeanPostProcessors a chance to return a proxy instead of the target bean instance.
      Object bean = resolveBeforeInstantiation(beanName, mbdToUse);
      if (bean != null) {
         return bean;
      }
   }
   catch (Throwable ex) {
      throw new BeanCreationException(mbdToUse.getResourceDescription(), beanName,
            "BeanPostProcessor before instantiation of bean failed", ex);
   }

   try {
   // 创建bean
      Object beanInstance = doCreateBean(beanName, mbdToUse, args);
      if (logger.isTraceEnabled()) {
         logger.trace("Finished creating instance of bean '" + beanName + "'");
      }
      return beanInstance;
   }
   catch (BeanCreationException | ImplicitlyAppearedSingletonException ex) {
      // A previously detected exception with proper bean creation context already,
      // or illegal singleton state to be communicated up to DefaultSingletonBeanRegistry.
      throw ex;
   }
   catch (Throwable ex) {
      throw new BeanCreationException(
            mbdToUse.getResourceDescription(), beanName, "Unexpected exception during bean creation", ex);
   }
}

doCreateBean方法如下：

/**
 * Actually create the specified bean. Pre-creation processing has already happened
 * at this point, e.g. checking {@code postProcessBeforeInstantiation} callbacks.
 * <p>Differentiates between default bean instantiation, use of a
 * factory method, and autowiring a constructor.
 * @param beanName the name of the bean
 * @param mbd the merged bean definition for the bean
 * @param args explicit arguments to use for constructor or factory method invocation
 * @return a new instance of the bean
 * @throws BeanCreationException if the bean could not be created
 * @see #instantiateBean
 * @see #instantiateUsingFactoryMethod
 * @see #autowireConstructor
 */
protected Object doCreateBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
      throws BeanCreationException {

   // Instantiate the bean.
   BeanWrapper instanceWrapper = null;
   if (mbd.isSingleton()) {
      instanceWrapper = this.factoryBeanInstanceCache.remove(beanName);
   }
   if (instanceWrapper == null) { //创建bean实例
      instanceWrapper = createBeanInstance(beanName, mbd, args);
   }
   Object bean = instanceWrapper.getWrappedInstance();
   Class<?> beanType = instanceWrapper.getWrappedClass();
   if (beanType != NullBean.class) {
      mbd.resolvedTargetType = beanType;
   }

   // Allow post-processors to modify the merged bean definition.
   synchronized (mbd.postProcessingLock) {
      if (!mbd.postProcessed) {
         try {
            applyMergedBeanDefinitionPostProcessors(mbd, beanType, beanName);
         }
         catch (Throwable ex) {
            throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                  "Post-processing of merged bean definition failed", ex);
         }
         mbd.postProcessed = true;
      }
   }

   // Eagerly cache singletons to be able to resolve circular references
   // even when triggered by lifecycle interfaces like BeanFactoryAware.
   boolean earlySingletonExposure = (mbd.isSingleton() && this.allowCircularReferences &&
         isSingletonCurrentlyInCreation(beanName));
   if (earlySingletonExposure) {
      if (logger.isTraceEnabled()) {
         logger.trace("Eagerly caching bean '" + beanName +
               "' to allow for resolving potential circular references");
      }
      addSingletonFactory(beanName, () -> getEarlyBeanReference(beanName, mbd, bean));
   }

   // Initialize the bean instance.
   Object exposedObject = bean;
   try {
      populateBean(beanName, mbd, instanceWrapper);
      exposedObject = initializeBean(beanName, exposedObject, mbd);
   }
   catch (Throwable ex) {
      if (ex instanceof BeanCreationException && beanName.equals(((BeanCreationException) ex).getBeanName())) {
         throw (BeanCreationException) ex;
      }
      else {
         throw new BeanCreationException(
               mbd.getResourceDescription(), beanName, "Initialization of bean failed", ex);
      }
   }

   if (earlySingletonExposure) {
      Object earlySingletonReference = getSingleton(beanName, false);
      if (earlySingletonReference != null) {
         if (exposedObject == bean) {
            exposedObject = earlySingletonReference;
         }
         else if (!this.allowRawInjectionDespiteWrapping && hasDependentBean(beanName)) {
            String[] dependentBeans = getDependentBeans(beanName);
            Set<String> actualDependentBeans = new LinkedHashSet<>(dependentBeans.length);
            for (String dependentBean : dependentBeans) {
               if (!removeSingletonIfCreatedForTypeCheckOnly(dependentBean)) {
                  actualDependentBeans.add(dependentBean);
               }
            }
            if (!actualDependentBeans.isEmpty()) {
               throw new BeanCurrentlyInCreationException(beanName,
                     "Bean with name '" + beanName + "' has been injected into other beans [" +
                     StringUtils.collectionToCommaDelimitedString(actualDependentBeans) +
                     "] in its raw version as part of a circular reference, but has eventually been " +
                     "wrapped. This means that said other beans do not use the final version of the " +
                     "bean. This is often the result of over-eager type matching - consider using " +
                     "'getBeanNamesForType' with the 'allowEagerInit' flag turned off, for example.");
            }
         }
      }
   }

   // Register bean as disposable.
   try {
      registerDisposableBeanIfNecessary(beanName, bean, mbd);
   }
   catch (BeanDefinitionValidationException ex) {
      throw new BeanCreationException(
            mbd.getResourceDescription(), beanName, "Invalid destruction signature", ex);
   }

   return exposedObject;
}

createBeanInstance 方法：

/**
 * Create a new instance for the specified bean, using an appropriate instantiation strategy:
 * factory method, constructor autowiring, or simple instantiation.
 * @param beanName the name of the bean
 * @param mbd the bean definition for the bean
 * @param args explicit arguments to use for constructor or factory method invocation
 * @return a BeanWrapper for the new instance
 * @see #obtainFromSupplier
 * @see #instantiateUsingFactoryMethod
 * @see #autowireConstructor
 * @see #instantiateBean
 */
protected BeanWrapper createBeanInstance(String beanName, RootBeanDefinition mbd, @Nullable Object[] args) {
   // Make sure bean class is actually resolved at this point.
   Class<?> beanClass = resolveBeanClass(mbd, beanName);

   if (beanClass != null && !Modifier.isPublic(beanClass.getModifiers()) && !mbd.isNonPublicAccessAllowed()) {
      throw new BeanCreationException(mbd.getResourceDescription(), beanName,
            "Bean class isn't public, and non-public access not allowed: " + beanClass.getName());
   }

   Supplier<?> instanceSupplier = mbd.getInstanceSupplier();
   if (instanceSupplier != null) {
      return obtainFromSupplier(instanceSupplier, beanName);
   }

   if (mbd.getFactoryMethodName() != null) {
      return instantiateUsingFactoryMethod(beanName, mbd, args);
   }

   // Shortcut when re-creating the same bean...
   boolean resolved = false;
   boolean autowireNecessary = false;
   if (args == null) {
      synchronized (mbd.constructorArgumentLock) {
         if (mbd.resolvedConstructorOrFactoryMethod != null) {
            resolved = true;
            autowireNecessary = mbd.constructorArgumentsResolved;
         }
      }
   }
   if (resolved) {
      if (autowireNecessary) {
         return autowireConstructor(beanName, mbd, null, null);
      }
      else {
         return instantiateBean(beanName, mbd);
      }
   }

   // Candidate constructors for autowiring?
   Constructor<?>[] ctors = determineConstructorsFromBeanPostProcessors(beanClass, beanName);
   if (ctors != null || mbd.getResolvedAutowireMode() == AUTOWIRE_CONSTRUCTOR ||
         mbd.hasConstructorArgumentValues() || !ObjectUtils.isEmpty(args)) {
      return autowireConstructor(beanName, mbd, ctors, args);
   }

   // Preferred constructors for default construction?
   ctors = mbd.getPreferredConstructors();
   if (ctors != null) {
      return autowireConstructor(beanName, mbd, ctors, null);
   }

   // No special handling: simply use no-arg constructor.
   // 因为Student没有配置使用固定的构造函数，因此使用默认的构造函数
   return instantiateBean(beanName, mbd);
}

instantiateBean方法如下：

/**
 * Instantiate the given bean using its default constructor.
 * @param beanName the name of the bean
 * @param mbd the bean definition for the bean
 * @return a BeanWrapper for the new instance
 */
protected BeanWrapper instantiateBean(String beanName, RootBeanDefinition mbd) {
   try {
      Object beanInstance;
      if (System.getSecurityManager() != null) {
         beanInstance = AccessController.doPrivileged(
               (PrivilegedAction<Object>) () -> getInstantiationStrategy().instantiate(mbd, beanName, this),
               getAccessControlContext());
      }
      else {
      // 好了，又调用获取到的实例策略的创建实例的方法
         beanInstance = getInstantiationStrategy().instantiate(mbd, beanName, this);
      }
      BeanWrapper bw = new BeanWrapperImpl(beanInstance);
      initBeanWrapper(bw);
      return bw;
   }
   catch (Throwable ex) {
      throw new BeanCreationException(
            mbd.getResourceDescription(), beanName, "Instantiation of bean failed", ex);
   }
}

SimpleInstantiationStrategy：instantiatef方法如下：

@Override
public Object instantiate(RootBeanDefinition bd, @Nullable String beanName, BeanFactory owner) {
   // Don't override the class with CGLIB if no overrides.
   if (!bd.hasMethodOverrides()) {
      Constructor<?> constructorToUse;
      synchronized (bd.constructorArgumentLock) {
         constructorToUse = (Constructor<?>) bd.resolvedConstructorOrFactoryMethod;
         if (constructorToUse == null) {
            final Class<?> clazz = bd.getBeanClass();
            if (clazz.isInterface()) {
               throw new BeanInstantiationException(clazz, "Specified class is an interface");
            }
            try {
               if (System.getSecurityManager() != null) {
                  constructorToUse = AccessController.doPrivileged(
                        (PrivilegedExceptionAction<Constructor<?>>) clazz::getDeclaredConstructor);
               }
               else {
               // 获取默认的构造器
                  constructorToUse = clazz.getDeclaredConstructor();
               }
               bd.resolvedConstructorOrFactoryMethod = constructorToUse;
            }
            catch (Throwable ex) {
               throw new BeanInstantiationException(clazz, "No default constructor found", ex);
            }
         }
      }
      //使用BeanUtils创建bean实例
      return BeanUtils.instantiateClass(constructorToUse);
   }
   else {
      // Must generate CGLIB subclass.
      return instantiateWithMethodInjection(bd, beanName, owner);
   }
}

BeanUtils的instantiateClass方法

/**
 * Convenience method to instantiate a class using the given constructor.
 * <p>Note that this method tries to set the constructor accessible if given a
 * non-accessible (that is, non-public) constructor, and supports Kotlin classes
 * with optional parameters and default values.
 * @param ctor the constructor to instantiate
 * @param args the constructor arguments to apply (use {@code null} for an unspecified
 * parameter, Kotlin optional parameters and Java primitive types are supported)
 * @return the new instance
 * @throws BeanInstantiationException if the bean cannot be instantiated
 * @see Constructor#newInstance
 */
public static <T> T instantiateClass(Constructor<T> ctor, Object... args) throws BeanInstantiationException {
   Assert.notNull(ctor, "Constructor must not be null");
   try {
      ReflectionUtils.makeAccessible(ctor);//保证构造函数可以访问
      // 判断是否是kotlin的构造函数
      if (KotlinDetector.isKotlinReflectPresent() && KotlinDetector.isKotlinType(ctor.getDeclaringClass())) {
         return KotlinDelegate.instantiateClass(ctor, args);
      }
      else {
         Class<?>[] parameterTypes = ctor.getParameterTypes();
         Assert.isTrue(args.length <= parameterTypes.length, "Can't specify more arguments than constructor parameters");
         Object[] argsWithDefaultValues = new Object[args.length];
         for (int i = 0 ; i < args.length; i++) {
            if (args[i] == null) {
               Class<?> parameterType = parameterTypes[i];
               argsWithDefaultValues[i] = (parameterType.isPrimitive() ? DEFAULT_TYPE_VALUES.get(parameterType) : null);
            }
            else {
               argsWithDefaultValues[i] = args[i];
            }
         }
         //调用构造函数的newInstance方法，这里用到了反射
         return ctor.newInstance(argsWithDefaultValues);
      }
   }
   catch (InstantiationException ex) {
      throw new BeanInstantiationException(ctor, "Is it an abstract class?", ex);
   }
   catch (IllegalAccessException ex) {
      throw new BeanInstantiationException(ctor, "Is the constructor accessible?", ex);
   }
   catch (IllegalArgumentException ex) {
      throw new BeanInstantiationException(ctor, "Illegal arguments for constructor", ex);
   }
   catch (InvocationTargetException ex) {
      throw new BeanInstantiationException(ctor, "Constructor threw exception", ex.getTargetException());
   }
}

再往下：终于调用到了自己写的构造函数

public Student() {
    System.out.println("Student被创建。。。。");
}

getSingleton函数如下：

/**
 * Return the (raw) singleton object registered under the given name,
 * creating and registering a new one if none registered yet.
 * @param beanName the name of the bean
 * @param singletonFactory the ObjectFactory to lazily create the singleton
 * with, if necessary
 * @return the registered singleton object
 */
public Object getSingleton(String beanName, ObjectFactory<?> singletonFactory) {
   Assert.notNull(beanName, "Bean name must not be null");
   synchronized (this.singletonObjects) {
      Object singletonObject = this.singletonObjects.get(beanName);
      if (singletonObject == null) {
         if (this.singletonsCurrentlyInDestruction) {
            throw new BeanCreationNotAllowedException(beanName,
                  "Singleton bean creation not allowed while singletons of this factory are in destruction " +
                  "(Do not request a bean from a BeanFactory in a destroy method implementation!)");
         }
         if (logger.isDebugEnabled()) {
            logger.debug("Creating shared instance of singleton bean '" + beanName + "'");
         }
         beforeSingletonCreation(beanName); //创建之前的处理
         boolean newSingleton = false;
         boolean recordSuppressedExceptions = (this.suppressedExceptions == null);
         if (recordSuppressedExceptions) {
            this.suppressedExceptions = new LinkedHashSet<>();
         }
         try {
         	//创建bean
            singletonObject = singletonFactory.getObject();
            newSingleton = true;
         }
         catch (IllegalStateException ex) {
            // Has the singleton object implicitly appeared in the meantime ->
            // if yes, proceed with it since the exception indicates that state.
            singletonObject = this.singletonObjects.get(beanName);
            if (singletonObject == null) {
               throw ex;
            }
         }
         catch (BeanCreationException ex) {
            if (recordSuppressedExceptions) {
               for (Exception suppressedException : this.suppressedExceptions) {
                  ex.addRelatedCause(suppressedException);
               }
            }
            throw ex;
         }
         finally {
            if (recordSuppressedExceptions) {
               this.suppressedExceptions = null;
            }
            afterSingletonCreation(beanName);
         }
         if (newSingleton) {
         // 添加创建的bean
            addSingleton(beanName, singletonObject);
         }
      }
      return singletonObject;
   }
}

addSingleton方法

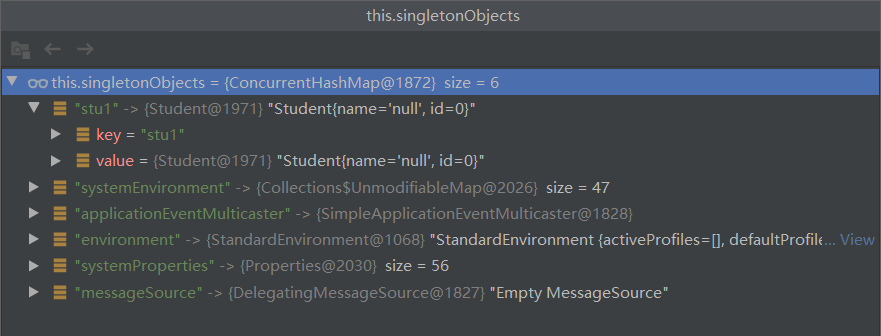

可以看到，创建出来的bean被保存在DefaultSingletonBeanRegistry类中的singletonObjects属性中，ioc容器之一，保存单实例bean的地方

/** Cache of singleton objects: bean name to bean instance. */
private final Map<String, Object> singletonObjects = new ConcurrentHashMap<>(256);

/**
 * Add the given singleton object to the singleton cache of this factory.
 * <p>To be called for eager registration of singletons.
 * @param beanName the name of the bean
 * @param singletonObject the singleton object
 */
protected void addSingleton(String beanName, Object singletonObject) {
   synchronized (this.singletonObjects) {
      this.singletonObjects.put(beanName, singletonObject);
      this.singletonFactories.remove(beanName);
      this.earlySingletonObjects.remove(beanName);
      this.registeredSingletons.add(beanName);
   }
}

好了，看到这里是不是对ioc容器的初始化有了一定的了解呢？其中最后一个函数还没研究完，如果觉得有用的话就点个赞吧，我会更新的。
未完待续…
