非极大值抑制算法（Non-maximum suppression, NMS）的本质是搜索局部极大值，抑制非极大值元素。
2. 3邻域情况下NMS的实现

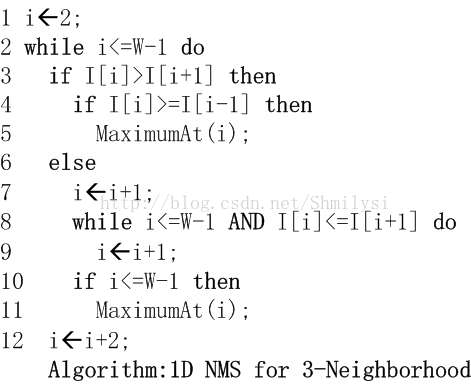

3邻域情况下的NMS即判断一维数组I[W]的元素I[i](2<=i<=W-1)是否大于其左邻元素I[i-1]和右邻元素I[i+1]，算法流程如下图所示：
a. 算法流程3-5行判断当前元素是否大于其左邻与右邻元素，如符合条件，该元素即为极大值点。对于极大值点I[i]，已知I[i]>I[i+1]，故无需对i+1位置元素做进一步处理，直接跳至i+2位置，对应算法流程第12行。
b. 若元素I[i]不满足算法流程第3行判断条件，将其右邻I[i+1]作为极大值候选，对应算法流程第7行。采用单调递增的方式向右查找，直至找到满足I[i]>I[i+1]的元素，若i<=W-1，该点即为极大值点，对应算法流程第10-11行。
3. NMS在物体检测中的应用
物体检测中应用NMS算法的主要目的是消除多余（交叉重复）的窗口，找到最佳物体检测位置。
如上图所示，人脸检测中，虽然每个窗口均检测到人脸，但仅需给出一个最有可能表征人脸的窗口。
4. 算法程序
function pickLocate = nms(boxes, overlap)
% Non-maximum suppression.
% In object detect algorithm, select high score detections and skip windows
% covered by a previously selected detection.
%
% input – boxes : object detect windows.
% xMin yMin xMax yMax score.
% overlap : suppression threshold.
% output – pickLocate : number of local maximum score.
boxes = double(boxes);
if isempty(boxes)
pickLocate = [];
else
xMin = boxes(:, 1);
yMin = boxes(:, 2);
xMax = boxes(:, 3);
yMax = boxes(:, 4);
s = boxes(:, end);
% area of every detected windows.
area = (xMax – xMin + 1) .* (yMax – yMin + 1);
% sort detected windows based on the score.
[vals, I] = sort(s);
pickLocate = [];
while ~isempty(I)
last = length(I);
i = I(last);
pickLocate = [pickLocate; i];
suppress = [last];
for pos = 1 : last – 1
j = I(pos);
% covered area.
xx1 = max(xMin(i), xMin(j));
yy1 = max(yMin(i), yMin(j));
xx2 = min(xMax(i), xMax(j));
yy2 = min(yMax(i), yMax(j));
w = xx2 – xx1 + 1;
h = yy2 – yy1 + 1;
if ((w > 0) && (h > 0))
% compute overlap.
o = w * h / min(area(i), area(j));
if (o > overlap)
suppress = [suppress; pos];
end
end
% xx1 = max(x1(i), x1(I(1:last-1)));
% yy1 = max(y1(i), y1(I(1:last-1)));
% xx2 = min(x2(i), x2(I(1:last-1)));
% yy2 = min(y2(i), y2(I(1:last-1)));
% w = max(0.0, xx2-xx1+1);
% h = max(0.0, yy2-yy1+1);
% inter = w.*h;
% o = inter ./ (area(i) + area(I(1:last-1)) – inter);
% saving the windows which o less than threshold.
% I = I(o <= overlap);
end
I(suppress) = [];
end
end
