安装依赖
npm install echarts --save

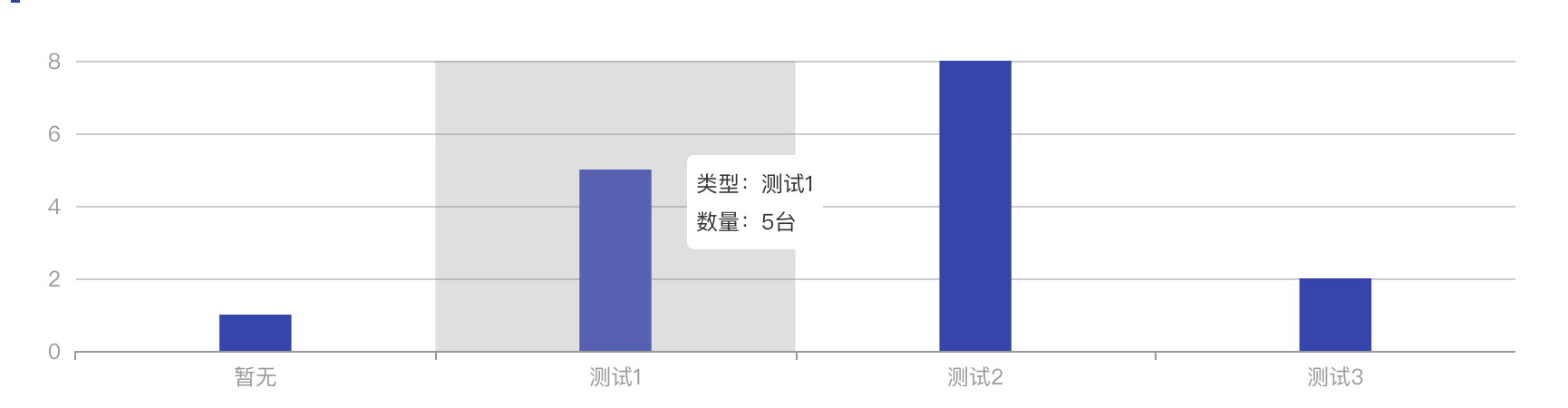

项目需要的是柱状图,如图
组件
<ChartBar
id="chart-bar"
optionsData={echarts}
width={880}
height={300}
/>
组件内容,全粘过来了
import {useEffect} from 'react';
import echarts from 'echarts/lib/echarts';
import 'echarts/lib/chart/bar';
import 'echarts/lib/component/tooltip';
import 'echarts/lib/component/title';
const ChartBar = props => {
const {optionsData = null, id = 'default-id', width = 600, height = 200} = props;
useEffect(() => {
let xData = [];
let yData = [];
optionsData && optionsData.map(item => {
if (item.code === null) {
item.code = '暂无';
}
xData.push(item.code);
yData.push(item.count);
});
const option = {
color: ['#3541AF'],
title: '',
grid: {
left: '8%',
right: '0',
containLabel: true
},
tooltip: {
trigger: 'axis',
backgroundColor: '#fff',
axisPointer: {
type: 'shadow'
},
formatter: function (params) {
let res = `<div style="color: #333333;">类型:${params[0].name}</div>`
+ `<div style="color: #333333;">数量:${params[0].value}台</div>`;
return res;
}
},
xAxis: {
data: xData,
axisLine: {
lineStyle: {
color: '#999999'
}
},
axisLabel: {
textStyle: {
color: '#999999'
}
}
},
yAxis: {
axisLine: {
lineStyle: {
color: '#fff'
}
},
axisLabel: {
textStyle: {
color: '#999999'
}
}
},
series: [{
type: 'bar',
barWidth: '20%',
data: yData
}]
};
const chart = echarts.init(document.getElementById(id));
chart.setOption(option);
}, [optionsData]);
return (
<div id={id} style={{width: width, height: height}}>222</div>
);
};
export default ChartBar;
然后就可以了,具体需要什么样的echarts去官网学习,如果没有出来,一定是写的有问题,代码不会骗人!
