一、概述

1、通灵之术

通灵之术：在《火影忍者》中，通灵之术，属于时空间忍术的一种。

如下图，可以召唤通灵兽。

那么，"通灵之术"，在Java领域，代表什么意思呢？

就是将正在运行的JVM当中的class进行导出。

借助Java Agent将class文件从JVM当中导出。

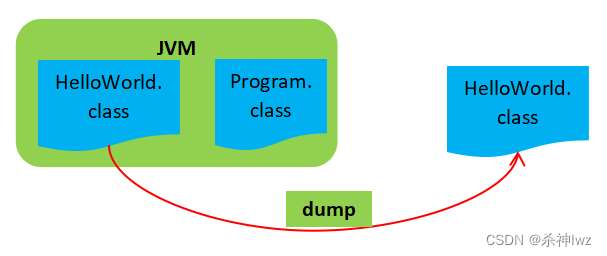

HelloWorld.class在JVM中运行，通过Java Agent把 HelloWorld.class从JVM中下载出来。

2、Java Agent

曾经有一篇文章《Retrieving .class files from a running app》，最初是发表在Sun公司的网站，后来转移到了Oracle的网站，再后来就从Oracle网站消失了。

Sometimes it is better to dump .class files of generated/modified classes for off-line debugging - for example, we may want to view such classes using tools like jclasslib.

===============================================================

ClassDumpAgent.java

import java.lang.instrument.Instrumentation;
import java.lang.instrument.UnmodifiableClassException;
import java.util.ArrayList;
import java.util.List;

/**
 * This is a java.lang.instrument agent to dump .class files
 * from a running Java application.
 */
public class ClassDumpAgent {

    public static void premain(String agentArgs, Instrumentation inst) {
        agentmain(agentArgs, inst);
    }

    /**
     *
     * @param agentArgs:输出路径/正则表达式
     * @param inst:JVM传参
     */
    @SuppressWarnings("rawtypes")
	public static void agentmain(String agentArgs, Instrumentation inst) {
        System.out.println("agentArgs: " + agentArgs);
        ClassDumpUtils.parseArgs(agentArgs);
        inst.addTransformer(new ClassDumpTransformer(), true);
        // by the time we are attached, the classes to be
        // dumped may have been loaded already.
        // So, check for candidates in the loaded classes.
        Class[] classes = inst.getAllLoadedClasses();
        List<Class> candidates = new ArrayList<>();
        for (Class c : classes) {
            String className = c.getName();

            // 第一步,排除法:不考虑JDK自带的类
            if (className.startsWith("java")) continue;
            if (className.startsWith("javax")) continue;
            if (className.startsWith("jdk")) continue;
            if (className.startsWith("sun")) continue;
            if (className.startsWith("com.sun")) continue;

            // 第二步,筛选法:只留下感兴趣的类（正则表达式匹配）
            boolean isModifiable = inst.isModifiableClass(c);
            boolean isCandidate = ClassDumpUtils.isCandidate(className);
            if (isModifiable && isCandidate) {
                candidates.add(c);
            }

            // 不重要:打印调试信息
            String message = String.format("[DEBUG] Loaded Class: %s ---> Modifiable: %s, Candidate: %s", className, isModifiable, isCandidate);
            System.out.println(message);
        }
        try {
            // 第三步,将具体的class进行dump操作
            // if we have matching candidates, then retransform those classes
            // so that we will get callback to transform.
            if (!candidates.isEmpty()) {
                inst.retransformClasses(candidates.toArray(new Class[0]));

                // 不重要:打印调试信息
                String message = String.format("[DEBUG] candidates size: %d", candidates.size());
                System.out.println(message);
            }
        }
        catch (UnmodifiableClassException ignored) {
        }
    }
}

ClassDumpTransformer.java

import java.lang.instrument.ClassFileTransformer;
import java.security.ProtectionDomain;

public class ClassDumpTransformer implements ClassFileTransformer {

    @SuppressWarnings("rawtypes")
	public byte[] transform(ClassLoader loader,
                            String className,
                            Class redefinedClass,
                            ProtectionDomain protDomain,
                            byte[] classBytes) {
        // check and dump .class file
        if (ClassDumpUtils.isCandidate(className)) {
            ClassDumpUtils.dumpClass(className, classBytes);
        }

        // we don't mess with .class file, just return null
        return null;
    }

}

ClassDumpUtils.java

import java.io.File;
import java.io.FileOutputStream;
import java.util.regex.Pattern;

public class ClassDumpUtils {

    // directory where we would write .class files
	// .class 输出路径
    private static String dumpDir;
    // classes with name matching this pattern will be dumped
    // 正则表达式
    private static Pattern classes;

    // parse agent args of the form arg1=value1,arg2=value2
    public static void parseArgs(String agentArgs) {
        if (agentArgs != null) {
            String[] args = agentArgs.split(",");
            for (String arg : args) {
                String[] tmp = arg.split("=");
                if (tmp.length == 2) {
                    String name = tmp[0];
                    String value = tmp[1];
                    if (name.equals("dumpDir")) {
                        dumpDir = value;
                    }
                    else if (name.equals("classes")) {
                        classes = Pattern.compile(value);
                    }
                }
            }
        }
        if (dumpDir == null) {
            dumpDir = ".";
        }
        if (classes == null) {
            classes = Pattern.compile(".*");
        }
        System.out.println("[DEBUG] dumpDir: " + dumpDir);
        System.out.println("[DEBUG] classes: " + classes);
    }

    public static boolean isCandidate(String className) {
        // ignore array classes
        if (className.charAt(0) == '[') {
            return false;
        }
        // convert the class name to external name
        className = className.replace('/', '.');
        // check for name pattern match
        return classes.matcher(className).matches();
    }

    public static void dumpClass(String className, byte[] classBuf) {
        try {
            // create package directories if needed
            className = className.replace("/", File.separator);
            StringBuilder buf = new StringBuilder();
            buf.append(dumpDir);
            buf.append(File.separatorChar);
            int index = className.lastIndexOf(File.separatorChar);
            if (index != -1) {
                String pkgPath = className.substring(0, index);
                buf.append(pkgPath);
            }
            String dir = buf.toString();
            new File(dir).mkdirs();
            // write .class file
            String fileName = dumpDir + File.separator + className + ".class";
            FileOutputStream fos = new FileOutputStream(fileName);
            fos.write(classBuf);
            fos.close();
            System.out.println("[DEBUG] FileName: " + fileName);
        }
        catch (Exception ex) {
            ex.printStackTrace();
        }
    }

}

manifest.txt

Premain-Class: ClassDumpAgent
Agent-Class: ClassDumpAgent
Can-Redefine-Classes: true
Can-Retransform-Classes: true

注意：在结尾处添加一个空行。

===>编译打包

把上面文件放到同目录下，进行编译，打包生成classdumper.jar文件。

1、进行编译
javac src/ClassDump*.java
2、在Windows操作系统，如果遇到错误: 编码GBK的不可映射字符
3、可以添加-encoding选项:
javac -encoding UTF-8 src/ClassDump*.java
4、生成jar文件
jar -cvfm classdumper.jar manifest.txt ClassDump*.class

3、测试代码

HelloWorld.java

public class HelloWorld {

	public static int add(int a,int b) {
		return a + b;
	}

	public static int sub(int a,int b) {
		return a - b;
	}

}

Program.java---->测试启动程序

import java.lang.management.ManagementFactory;
import java.util.Random;
import java.util.concurrent.TimeUnit;

public class Program {

	public static void main(String[] args) throws InterruptedException {

		//打印进程ID
		String runningMxName = ManagementFactory.getRuntimeMXBean().getName();
		System.out.println(runningMxName);

		int count = 600;
		for (int i = 0; i < count; i++) {
			String info = String.format("|%03d| %s remains %03d seconds", i,runningMxName,(count - i));
			System.out.println(info);

			Random rand = new Random(System.currentTimeMillis());
			int a = rand.nextInt(10);
			int b = rand.nextInt(10);

			boolean flag = rand.nextBoolean();
			String message;
			if (flag) {
				message = String.format("a + b = %d", HelloWorld.add(a, b));
			}else {
				message = String.format("a - b = %d", HelloWorld.sub(a, b));
			}

			System.out.println(message);
			TimeUnit.SECONDS.sleep(1);
		}
	}

}

此测试代码，可以编译运行，可以在idea/eclipse中运行。

4、Tools Attach

将一个Agent Jar与一个正在运行的java程序建立联系，需要用到Attach机制：

Agent Jar ---> Tools Attach ---> JAVA运行程序(JVM)

与Attach机制相关的类，定义在tools.jar文件:
JDK_HOME/lib/tools.jar

Attach.java-->启动需要传3个参数：

<pid> <agent-jar-full-path> [<agent-args>]

进程ID agent打包jar全路径参数:.class出力路径,正则表达式限制.class条件

import com.sun.tools.attach.VirtualMachine;

/**
 * Simple attach-on-demand client tool
 * that loads the given agent into the given Java process.
 */
public class Attach {

    public static void main(String[] args) throws Exception {
        if (args.length < 2) {
            System.out.println("usage: java Attach <pid> <agent-jar-full-path> [<agent-args>]");
            System.exit(1);
        }
        // JVM is identified by process id (pid).
        VirtualMachine vm = VirtualMachine.attach(args[0]);
        String agentArgs = (args.length > 2) ? args[2] : null;
        // load a specified agent onto the JVM
        vm.loadAgent(args[1], agentArgs);
        vm.detach();
        System.out.println("complete");
    }
}

此Attach代码，可以编译运行，也可以在idea/eclipse中运行。

需要引入jar包JDK_HOME/lib/tools.jar

编译

# 编译（Linux)
$ javac -cp "${JAVA_HOME}/lib/tools.jar":. Attach.java

# 编译（MINGW64)
$ javac -cp "${JAVA_HOME}/lib/tools.jar"\;. Attach.java

# 编译（Windows)
$ javac -cp "%JAVA_HOME%/lib/tools.jar";. Attach.java

运行

# 运行（Linux)
java -cp "${JAVA_HOME}/lib/tools.jar":. Attach <pid> <full-path-of-classdumper.jar> dumpDir=<dir>,classes=<name-pattern>

# 运行（MINGW64)
java -cp "${JAVA_HOME}/lib/tools.jar"\;. Attach <pid> <full-path-of-classdumper.jar> dumpDir=<dir>,classes=<name-pattern>

# 运行（Windows)
java -cp "%JAVA_HOME%/lib/tools.jar";. Attach <pid> <full-path-of-classdumper.jar> dumpDir=<dir>,classes=<name-pattern>

示例：

# 运行(Windows)
java -cp "%JAVA_HOME%/lib/tools.jar";. Attach <pid> D:/dev/classdumper.jar dumpDir=D:/dev/out,classes=lwz\.HelloWorld

eclipse中 右键--->Run As--->Run Configurations...--->Arguments--->Program arguments:

输入:<pid> D:/dev/classdumper.jar dumpDir=D:/dev/out,classes=lwz\.HelloWorld

-----------------------------------------------------------------------------

<pid>为：Program.java---->测试启动程序，日志中进程ID，如下则是：3696

3696@MS-SKYFSYTUHFPM
|000| 3696@MS-SKYFSYTUHFPM remains 600 seconds
a + b = 9
|001| 3696@MS-SKYFSYTUHFPM remains 599 seconds
a - b = 0
|002| 3696@MS-SKYFSYTUHFPM remains 598 seconds
a - b = 2

-----------------------------------------------------------------------------

测试过程中遇到的问题：

D:\dev\javaAgent\out>java -cp "%JAVA_HOME%/lib/tools.jar";. Attach 16716 D:/dev/classdumper.jar dumpDir=D:/dev/out,classes=lwz\.HelloWorld
java.util.ServiceConfigurationError: com.sun.tools.attach.spi.AttachProvider: Provider sun.tools.attach.WindowsAttachProvider could not be instantiated
Exception in thread "main" com.sun.tools.attach.AttachNotSupportedException: no providers installed
        at com.sun.tools.attach.VirtualMachine.attach(VirtualMachine.java:203)
        at Attach.main(Attach.java:15)

解决方式：${JAVA_HOME}/jre/bin/attach.dll 文件没有找到，将这个文件复制到${JAVA_HOME}/bin/目录下即可；前提是${JAVA_HOME}/bin/目录已经加入到操作系统的path环境变量下；

5、总结

第一点，主要功能。从功能的角度来讲，是如何从一个正在运行的JVM当中将某一个class文件导出到磁盘上。
第二点，实现方式。从实现方式上来说，是借助于Java Agent和正则表达式（区配类名）来实现功能。
第三点，注意事项。在Java 8的环境下，想要将Agent Jar加载到一个正在运行的JVM当中，需要用到tools.jar。

天下事有难易乎？为之，则难者亦易矣；不为，则易者亦难矣。

今天多学一份本事，明天少说一句求人的话。
