1、向ketstone注册服务
（1）创建cinder块存储服务目录，块存储需要两个版本volumev2和volumev3

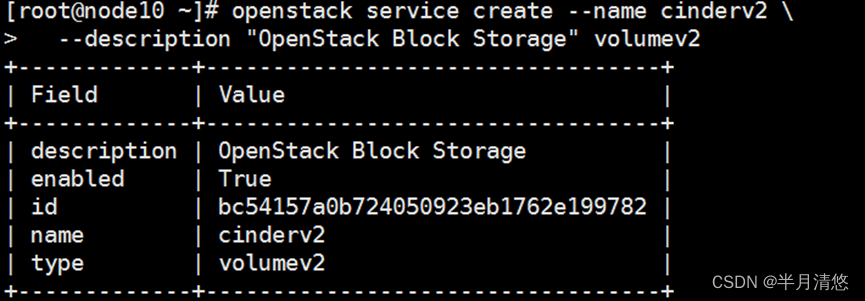

# openstack service create --name cinderv2\
--description"OpenStack Block Storage"volumev2

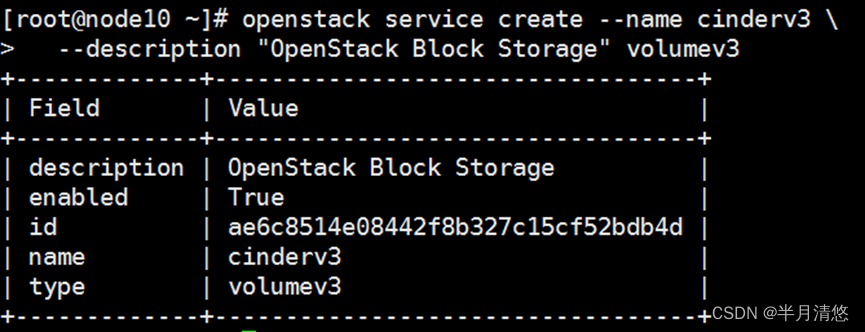

# openstack service create --name cinderv3\
--description"OpenStack Block Storage"volumev3
（2）创建块存储服务API访问点
#v2版本

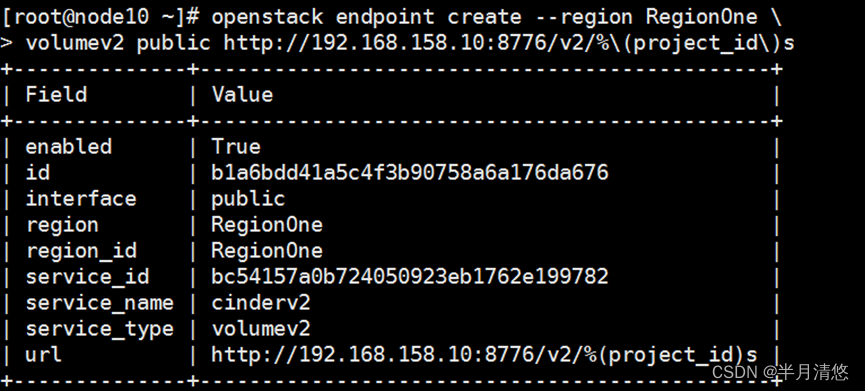

# openstack endpoint create --region RegionOne\
volumev2 public http://controller:8776/v2/%\(project_id\)s

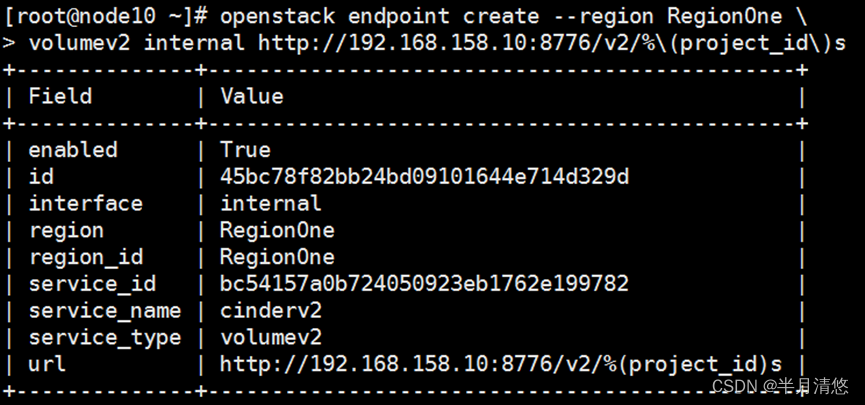

# openstack endpoint create --region RegionOne\
volumev2 internal http://controller:8776/v2/%\(project_id\)s

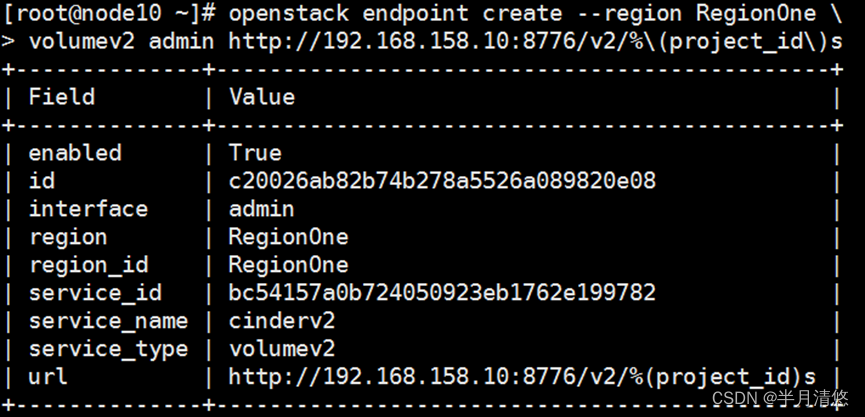

# openstack endpoint create --region RegionOne\
volumev2 admin http://controller:8776/v2/%\(project_id\)s
#v3版本

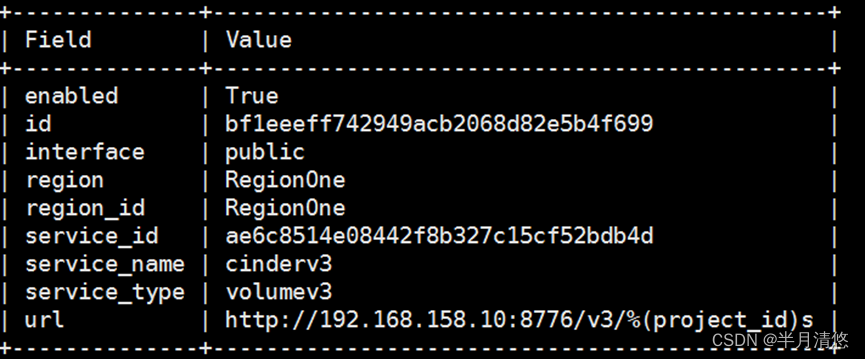

# openstack endpoint create --region RegionOne\
Volumev3 public http://controller:8776/v3/%\(project_id\)s

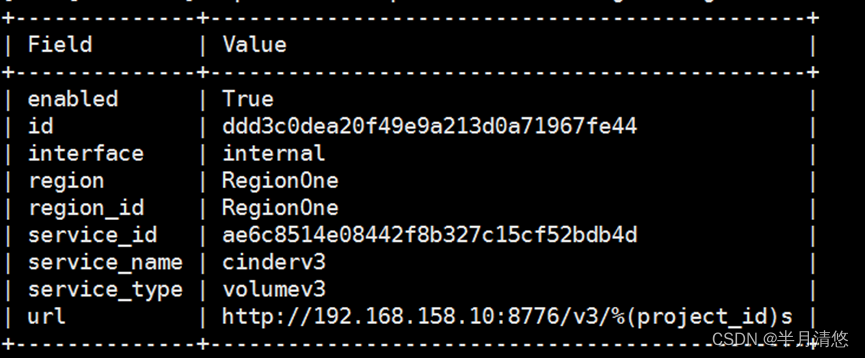

# openstack endpoint create --region RegionOne\
Volumev3 internal http://controller:8776/v3/%\(project_id\)s

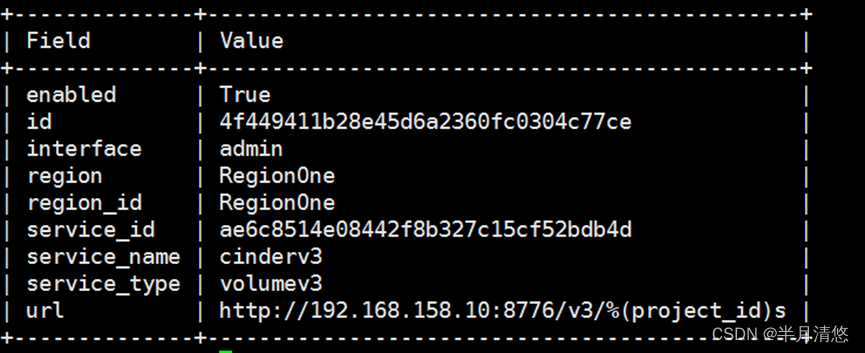

# openstack endpoint create --region RegionOne\
Volumev3 admin http://controller:8776/v3/%\(project_id\)s
2、修改cinder配置文件
（1）编辑/etc/cinder/cinder.conf
[database]
connection = mysql+pymysql://cinder:cinder@controller/cinder
[DEFAULT]
transport_url =rabbit://openstack:openstack@controller
auth_strategy =keystone
[keystone_authtoken]
www_authenticate_uri =http://controller:5000
auth_url =http://controller:5000
memcached_servers =controller:11211
auth_type =password
project_domain_id =default
user_domain_id =default
project_name =service
username =cinder
password =cinder
#配置程序锁，防止资源争抢
[oslo_concurrency]
lock_path =/var/lib/cinder/tmp
（2）配置控制节点/etc/nova/nova.conf，支持cinder
[cinder]
os_region_name =RegionOne
#重启nova-api
# systemctlrestartopenstack-nova-api.service
3、同步数据库数据
# su -s /bin/sh -c"cinder-manage db sync"cinder
4、启动并设置开机自启
# systemctlenableopenstack-cinder-api.service\
openstack-cinder-scheduler.service
# systemctlstartopenstack-cinder-api.service\
openstack-cinder-scheduler.service
5、安装和配置存储节点
此配置可以单独部署一个节点，实验在计算节点上安装即可。
（1）创建卷组
# vgcreate cinder-volumes /dev/sdb
（2）安装和配置组件
#编辑/etc/cinder/cinder.conf
[database]
connection =mysql+pymysql://cinder:cinder@controller/cinder
[DEFAULT]
transport_url =rabbit://openstack:openstack@controller
auth_strategy =keystone
enabled_backends =lvm
glance_api_servers =http://controller:9292
[keystone_authtoken]
auth_uri =http://controller:5000
auth_url =http://controller:5000
memcached_servers =controller:11211
auth_type =password
project_domain_id =default
user_domain_id =default
project_name =service
username =cinder
password =cinder
#配置逻辑卷项，配置文件中没有则添加
# lio实现iscsi的一种管理方式，iscsi是一种基于因特网及SCSI-3协议下的存储技术。
[lvm]
volume_driver =cinder.volume.drivers.lvm.LVMVolumeDriver
volume_group =cinder-volumes
iscsi_protocol =iscsi
iscsi_helper =lioadm
[oslo_concurrency]
lock_path = /var/lib/cinder/tmp
（3）启动管理服务
# systemctlenableopenstack-cinder-volume.service target.service
# systemctlstartopenstack-cinder-volume.service target.service
# systemctlrestartopenstack-cinder-api.service\
openstack-cinder-scheduler.service

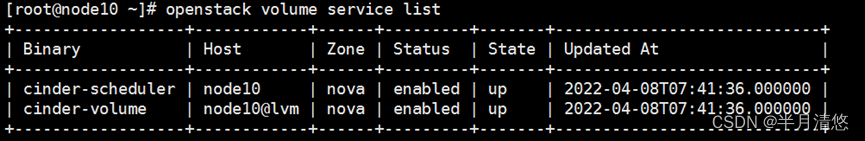

（4）验证
# openstack volume service list
