https://blog.csdn.net/ITOMG/article/details/89673593(先看这个,理解sknet)
https://zhuanlan.zhihu.com/p/59690223(再看这个,原作者大局上的理解)
https://github.com/implus/PytorchInsight(pytorch实现)

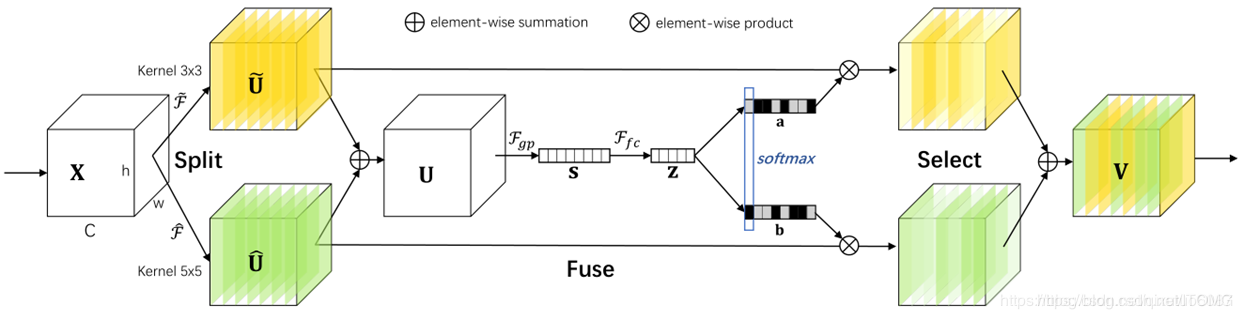

对照下面的图像及代码基本就能理解他是怎么实现的
class Bottleneck(nn.Module):
expansion = 4
def __init__(self, inplanes, planes, stride=1, downsample=None):
super(Bottleneck, self).__init__()
self.conv1 = conv1x1(inplanes, planes)
self.bn1 = nn.BatchNorm2d(planes)
self.conv2 = conv3x3(planes, planes, stride)
self.bn2 = nn.BatchNorm2d(planes)
self.conv2g = conv3x3(planes, planes, stride, groups = 32)
self.bn2g = nn.BatchNorm2d(planes)
self.conv3 = conv1x1(planes, planes * self.expansion)
self.bn3 = nn.BatchNorm2d(planes * self.expansion)
self.relu = nn.ReLU(inplace=True)
self.downsample = downsample
self.stride = stride
self.avg_pool = nn.AdaptiveAvgPool2d(1)
self.conv_fc1 = nn.Conv2d(planes, planes//16, 1, bias=False)
self.bn_fc1 = nn.BatchNorm2d(planes//16)
self.conv_fc2 = nn.Conv2d(planes//16, 2 * planes, 1, bias=False)
self.D = planes
def forward(self, x):
identity = x
out = self.conv1(x)
out = self.bn1(out)
out = self.relu(out)
d1 = self.conv2(out)
d1 = self.bn2(d1)
d1 = self.relu(d1)
d2 = self.conv2g(out)
d2 = self.bn2g(d2)
d2 = self.relu(d2)
d = self.avg_pool(d1) + self.avg_pool(d2)
d = F.relu(self.bn_fc1(self.conv_fc1(d)))
d = self.conv_fc2(d)
d = torch.unsqueeze(d, 1).view(-1, 2, self.D, 1, 1)
d = F.softmax(d, 1)
d1 = d1 * d[:, 0, :, :, :].squeeze(1)
d2 = d2 * d[:, 1, :, :, :].squeeze(1)
d = d1 + d2
out = self.conv3(d)
out = self.bn3(out)
if self.downsample is not None:
identity = self.downsample(x)
out += identity
out = self.relu(out)
return out
pytorch源码的实现好像与原文不太一样
第一个不同:
原文一个卷积是3*3,另一个尺度的卷积是3*3,dilation为2。
但是作者在实现的时候使用了groups,没有使用dilation,具体原因不明,具体如conv2g。
self.conv2 = conv3x3(planes, planes, stride)
self.bn2 = nn.BatchNorm2d(planes)
self.conv2g = conv3x3(planes, planes, stride, groups = 32)
self.bn2g = nn.BatchNorm2d(planes)
第二个不同:
论文中是压缩提取模块,用的全连接的方式,但代码中他使用了2个1*1的卷积。
self.conv_fc1 = nn.Conv2d(planes, planes//16, 1, bias=False)
self.bn_fc1 = nn.BatchNorm2d(planes//16)
self.conv_fc2 = nn.Conv2d(planes//16, 2 * planes, 1, bias=False)
