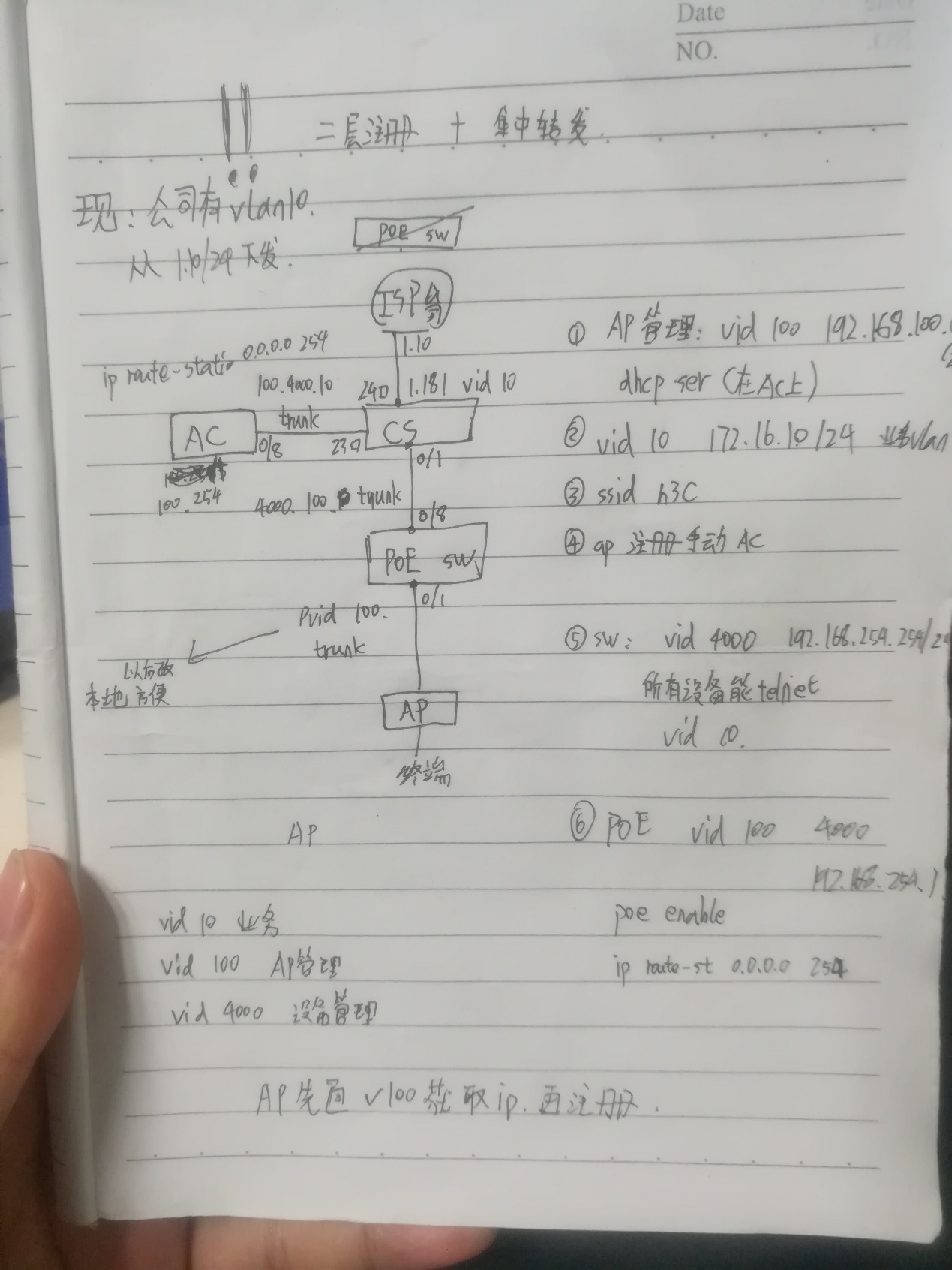

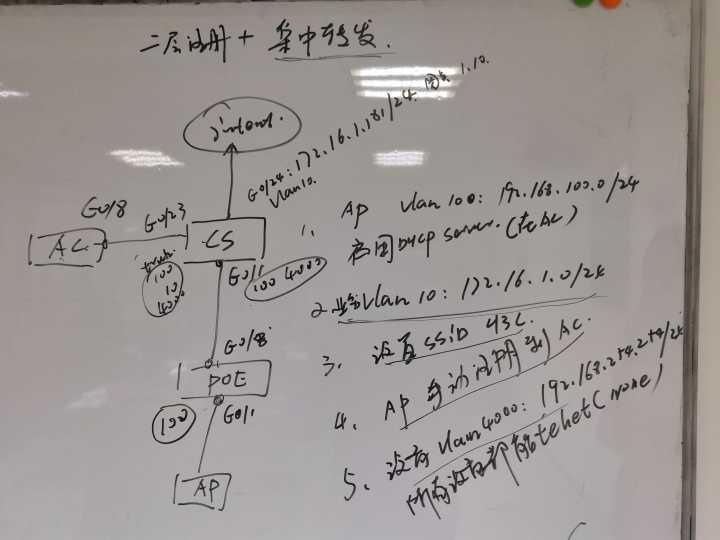

[AC]
[AC]
[AC]dis cu
#
version 7.1.064, Release 5221P02
#
sysname AC
#
telnet server enable
#
irf mac-address persistent timer
irf auto-update enable
irf auto-merge enable
irf member 1 priority 1
#
dhcp enable
#
password-recovery enable
#
vlan 1
#
vlan 10
description 业务vlan
#
vlan 100
description AP管理vlan
#
vlan 4000
description 设备管理vlan
#
irf-port 1
#
dhcp server ip-pool apguanli
gateway-list 192.168.100.254
network 192.168.100.0 mask 255.255.255.0
#
wlan service-template 1
ssid h3c
service-template enable
#
interface NULL0
#
interface Vlan-interface1
ip address 192.168.0.100 255.255.255.0
#
interface Vlan-interface100
description AP管理vlan
ip address 192.168.100.254 255.255.255.0
#
interface Vlan-interface4000
description 设备管理vlan
ip address 192.168.254.254 255.255.255.0
#
interface GigabitEthernet1/0/1
port link-mode bridge
#
interface GigabitEthernet1/0/2
port link-mode bridge
#
interface GigabitEthernet1/0/3
port link-mode bridge
#
interface GigabitEthernet1/0/4
port link-mode bridge
#
interface GigabitEthernet1/0/5
port link-mode bridge
#
interface GigabitEthernet1/0/6
port link-mode bridge
#
interface GigabitEthernet1/0/7
port link-mode bridge
#
interface GigabitEthernet1/0/8
port link-mode bridge
description to_cs
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 10 100 4000
#
scheduler logfile size 16
#
line class console
user-role network-admin
#
line class vty
user-role network-operator
#
line con 0
user-role network-admin
#
line vty 0 31
authentication-mode none
user-role network-admin
user-role network-operator
#
ip route-static 0.0.0.0 0 192.168.254.253
#
undo info-center logfile enable
#
domain system
#
domain default enable system
#
role name level-0
description Predefined level-0 role
#
role name level-1
description Predefined level-1 role
#
role name level-2
description Predefined level-2 role
#
role name level-3
description Predefined level-3 role
#
role name level-4
description Predefined level-4 role
#
role name level-5
description Predefined level-5 role
#
role name level-6
description Predefined level-6 role
#
role name level-7
description Predefined level-7 role
#
role name level-8
description Predefined level-8 role
#
role name level-9
description Predefined level-9 role
#
role name level-10
description Predefined level-10 role
#
role name level-11
description Predefined level-11 role
#
role name level-12
description Predefined level-12 role
#
role name level-13
description Predefined level-13 role
#
role name level-14
description Predefined level-14 role
#
user-group system
#
local-user admin class manage
password hash $h$6$5rqqQSRC6FNf2iKS$ImIGOc5VHvwxKMSWt+Jf1ReVHzA5m9dExKyGQaBi0qtyj+Qj98kmM7MW3A38Mb70Q8D3ZbCrzJXf1+nFU4/Hkw==
service-type telnet http https
authorization-attribute user-role network-admin
#
ip http enable
ip https enable
#
wlan global-configuration
#
wlan ap-group 1
ap ap1
ap ap2
vlan 1
ap-model WA5320
radio 1
radio enable
service-template 1 vlan 10
radio 2
radio enable
service-template 1 vlan 10
gigabitethernet 1
gigabitethernet 2
#
wlan ap-group default-group
vlan 1
#
wlan ap ap1 model WA5320
serial-id 219801A0YD8173E01730
vlan 1
radio 1
radio 2
gigabitethernet 1
gigabitethernet 2
#
wlan ap ap2 model WA5320
serial-id 219801A0YD8173E00084
vlan 1
radio 1
radio 2
gigabitethernet 1
gigabitethernet 2
#
Return
[AC]dis ip int b
*down: administratively down
(s): spoofing (l): loopback
Interface Physical Protocol IP Address Description
Vlan1 down down 192.168.0.100 --
Vlan100 up up 192.168.100.254 AP管理vlan
Vlan4000 up up 192.168.254.254 设备管理vlan
[AC]
[AC]
[AC]
[AC]dis wlan ap all
Total number of APs: 2
Total number of connected APs: 2
Total number of connected manual APs: 2
Total number of connected auto APs: 0
Total number of connected common APs: 2
Total number of connected WTUs: 0
Total number of inside APs: 0
Maximum supported APs: 256
Remaining APs: 254
Total AP licenses: 40
Remaining AP licenses: 38
Sync AP licenses: 0
AP information
State : I = Idle, J = Join, JA = JoinAck, IL = ImageLoad
C = Config, DC = DataCheck, R = Run, M = Master, B = Backup
AP name APID State Model Serial ID
ap1 1 R/M WA5320 219801A0YD8173E01730
ap2 2 R/M WA5320 219801A0YD8173E00084
<AC>telnet 192.168.254.253
Trying 192.168.254.253 ...
Press CTRL+K to abort
Connected to 192.168.254.253 ...
******************************************************************************
* Copyright (c) 2004-2018 New H3C Technologies Co., Ltd. All rights reserved.*
* Without the owner's prior written consent, *
* no decompiling or reverse-engineering shall be allowed. *
******************************************************************************
<CS>
<CS>
<CS>
<CS>
<CS>dis cu
#
version 7.1.070, Release 6126P10
#
sysname CS
#
telnet server enable
#
irf mac-address persistent timer
irf auto-update enable
undo irf link-delay
irf member 1 priority 1
#
lldp global enable
#
password-recovery enable
#
vlan 1
#
vlan 10
description 业务vlan
#
vlan 100
description AP管理vlan
#
vlan 4000
description 设备管理vlan
#
stp global enable
#
interface NULL0
#
interface Vlan-interface10
description 业务vlan
ip address 172.16.1.188 255.255.255.0
#
interface Vlan-interface4000
description 设备管理vlan
ip address 192.168.254.253 255.255.255.0
#
interface GigabitEthernet1/0/1
description to_poesw
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 100 4000
#
interface GigabitEthernet1/0/2
#
interface GigabitEthernet1/0/3
#
interface GigabitEthernet1/0/4
#
interface GigabitEthernet1/0/5
#
interface GigabitEthernet1/0/6
#
interface GigabitEthernet1/0/7
#
interface GigabitEthernet1/0/8
#
interface GigabitEthernet1/0/9
#
interface GigabitEthernet1/0/10
#
interface GigabitEthernet1/0/11
#
interface GigabitEthernet1/0/12
#
interface GigabitEthernet1/0/13
#
interface GigabitEthernet1/0/14
#
interface GigabitEthernet1/0/15
#
interface GigabitEthernet1/0/16
#
interface GigabitEthernet1/0/17
#
interface GigabitEthernet1/0/18
#
interface GigabitEthernet1/0/19
#
interface GigabitEthernet1/0/20
#
interface GigabitEthernet1/0/21
#
interface GigabitEthernet1/0/22
#
interface GigabitEthernet1/0/23
description to_ac
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 10 100 4000
#
interface GigabitEthernet1/0/24
description wan
port access vlan 10
#
interface Ten-GigabitEthernet1/0/25
#
interface Ten-GigabitEthernet1/0/26
#
interface Ten-GigabitEthernet1/0/27
#
interface Ten-GigabitEthernet1/0/28
#
scheduler logfile size 16
#
line class aux
user-role network-admin
#
line class vty
user-role network-operator
#
line aux 0
user-role network-admin
#
line vty 0 63
authentication-mode none
user-role network-admin
user-role network-operator
#
ip route-static 0.0.0.0 0 172.16.1.10
#
radius scheme system
user-name-format without-domain
#
domain system
#
domain default enable system
#
role name level-0
description Predefined level-0 role
#
role name level-1
description Predefined level-1 role
#
role name level-2
description Predefined level-2 role
#
role name level-3
description Predefined level-3 role
#
role name level-4
description Predefined level-4 role
#
role name level-5
description Predefined level-5 role
#
role name level-6
description Predefined level-6 role
#
role name level-7
description Predefined level-7 role
#
role name level-8
description Predefined level-8 role
#
role name level-9
description Predefined level-9 role
#
role name level-10
description Predefined level-10 role
#
role name level-11
description Predefined level-11 role
#
role name level-12
description Predefined level-12 role
#
role name level-13
description Predefined level-13 role
#
role name level-14
description Predefined level-14 role
#
user-group system
#
return
<CS> ping 172.16.1.10
Ping 172.16.1.10 (172.16.1.10): 56 data bytes, press CTRL_C to break
56 bytes from 172.16.1.10: icmp_seq=0 ttl=255 time=2.523 ms
56 bytes from 172.16.1.10: icmp_seq=1 ttl=255 time=2.012 ms
56 bytes from 172.16.1.10: icmp_seq=2 ttl=255 time=2.040 ms
56 bytes from 172.16.1.10: icmp_seq=3 ttl=255 time=1.951 ms
56 bytes from 172.16.1.10: icmp_seq=4 ttl=255 time=2.055 ms
--- Ping statistics for 172.16.1.10 ---
5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss
round-trip min/avg/max/std-dev = 1.951/2.116/2.523/0.206 ms
<CS>
<CS>
<CS>
<CS>telnet 192.168.254.252
Trying 192.168.254.252 ...
Press CTRL+K to abort
Connected to 192.168.254.252 ...
******************************************************************************
* Copyright (c) 2004-2018 New H3C Technologies Co., Ltd. All rights reserved.*
* Without the owner's prior written consent, *
* no decompiling or reverse-engineering shall be allowed. *
******************************************************************************
<poesw>
<poesw>
<poesw>
<poesw>
<poesw>
<poesw>dis cu
#
version 7.1.070, Release 6126P10
#
sysname poesw
#
telnet server enable
#
irf mac-address persistent timer
irf auto-update enable
undo irf link-delay
irf member 1 priority 1
#
lldp global enable
#
password-recovery enable
#
vlan 1
#
vlan 100
description AP管理vlan
#
vlan 4000
description 设备管理vlan
#
stp global enable
#
interface NULL0
#
interface Vlan-interface4000
ip address 192.168.254.252 255.255.255.0
#
interface GigabitEthernet1/0/1
description to_ap
port link-type trunk
port trunk permit vlan all
port trunk pvid vlan 100
poe enable
#
interface GigabitEthernet1/0/2
description to_ap
port link-type trunk
port trunk permit vlan all
port trunk pvid vlan 100
poe enable
#
interface GigabitEthernet1/0/3
#
interface GigabitEthernet1/0/4
#
interface GigabitEthernet1/0/5
#
interface GigabitEthernet1/0/6
#
interface GigabitEthernet1/0/7
#
interface GigabitEthernet1/0/8
description to_cs
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 100 4000
#
interface GigabitEthernet1/0/9
#
interface GigabitEthernet1/0/10
#
scheduler logfile size 16
#
line class aux
user-role network-admin
#
line class vty
user-role network-operator
#
line aux 0
user-role network-admin
#
line vty 0 63
authentication-mode none
user-role network-admin
user-role network-operator
#
ip route-static 0.0.0.0 0 192.168.254.253
#
radius scheme system
user-name-format without-domain
#
domain system
#
domain default enable system
#
role name level-0
description Predefined level-0 role
#
role name level-1
description Predefined level-1 role
#
role name level-2
description Predefined level-2 role
#
role name level-3
description Predefined level-3 role
#
role name level-4
description Predefined level-4 role
#
role name level-5
description Predefined level-5 role
#
role name level-6
description Predefined level-6 role
#
role name level-7
description Predefined level-7 role
#
role name level-8
description Predefined level-8 role
#
role name level-9
description Predefined level-9 role
#
role name level-10
description Predefined level-10 role
#
role name level-11
description Predefined level-11 role
#
role name level-12
description Predefined level-12 role
#
role name level-13
description Predefined level-13 role
#
role name level-14
description Predefined level-14 role
#
user-group system
#
return
<poesw>
<poesw>
<poesw>
<poesw>
<poesw>
<poesw>telnet
<poesw>telnet 192.168.254.254
Trying 192.168.254.254 ...
Press CTRL+K to abort
Connected to 192.168.254.254 ...
******************************************************************************
* Copyright (c) 2004-2018 New H3C Technologies Co., Ltd. All rights reserved.*
* Without the owner's prior written consent, *
* no decompiling or reverse-engineering shall be allowed. *
******************************************************************************
<AC>%Nov 30 13:22:25:483 2018 AC SHELL/5/SHELL_LOGIN: VTY logged in from 192.168.254.252.
<AC>
<AC>
<AC>dis wlan ap all
Total number of APs: 2
Total number of connected APs: 2
Total number of connected manual APs: 2
Total number of connected auto APs: 0
Total number of connected common APs: 2
Total number of connected WTUs: 0
Total number of inside APs: 0
Maximum supported APs: 256
Remaining APs: 254
Total AP licenses: 40
Remaining AP licenses: 38
Sync AP licenses: 0
AP information
State : I = Idle, J = Join, JA = JoinAck, IL = ImageLoad
C = Config, DC = DataCheck, R = Run, M = Master, B = Backup
AP name APID State Model Serial ID
ap1 1 R/M WA5320 219801A0YD8173E01730
ap2 2 R/M WA5320 219801A0YD8173E00084
<AC>
<AC>
<AC>
<AC>
