【动态任务-八】SpringMvc+quartz 整合Job（可使用依赖注入@Autowired）

在我们的任务类里面，我们需要使用到spring ioc 依赖注入的接口实现类

因为我们是Springmvc，我们需要在xml做一下配置，一般是spring-application.xml加入spring-quartz.xml

<import resource="spring-quartz.xml"/>

这个spring-quartz.xml我们新建一个，如下

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:tx="http://www.springframework.org/schema/tx"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
						http://www.springframework.org/schema/beans/spring-beans.xsd
						http://www.springframework.org/schema/aop
						http://www.springframework.org/schema/aop/spring-aop.xsd
						http://www.springframework.org/schema/context
						http://www.springframework.org/schema/context/spring-context.xsd
						http://www.springframework.org/schema/tx
						http://www.springframework.org/schema/tx/spring-tx.xsd">
	<!-- 动态任务组件 -->
	<bean id="jobFactory" class="com.jy.task.config.JobFactory"></bean>
	<bean id="schedulerFactoryBean" class="org.springframework.scheduling.quartz.SchedulerFactoryBean" >
	 <property name="jobFactory" ref="jobFactory"></property>
	</bean>
</beans>

代码结构如下

创建一个JobFactory的类

package com.jy.task.config;

import org.quartz.spi.TriggerFiredBundle;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.config.AutowireCapableBeanFactory;
import org.springframework.scheduling.quartz.AdaptableJobFactory;

public class JobFactory extends AdaptableJobFactory{

	@Autowired
	private AutowireCapableBeanFactory capableBeanFactory;

	@Override
	protected Object createJobInstance(TriggerFiredBundle bundle) throws Exception {
		//调用父类的方法
        Object jobInstance = super.createJobInstance(bundle);
        //进行注入
        capableBeanFactory.autowireBean(jobInstance);
		return jobInstance;
	}
}

创建ScheduleJobInit类，这个主要是启动的时候我们加载任务

package com.jy.task.config;

import javax.annotation.PostConstruct;

import org.apache.log4j.LogManager;
import org.apache.log4j.Logger;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

import com.jy.service.task.job.ScheduleService;


/**
 * 定时任务初始化
 */
@Component
public class ScheduleJobInit {

    /** 日志对象 */
    private static final Logger LOG = LogManager.getLogger(ScheduleJobInit.class);

    /** 定时任务service */
    @Autowired
    private ScheduleService  scheduleJobService;

    /**
     * 项目启动时初始化
     */
    @PostConstruct
    public void init() {
        LOG.info("定时任务初始化init");
        try {
			scheduleJobService.initScheduleJob();
		} catch (Exception e) {
			 LOG.error("定时任务初始化异常",e);
		}
        LOG.info("定时任务初始化end");
    }


}

iniScheduleJob方法参考

@Override
	public void initScheduleJob() throws Exception {
		//查找启用的任务
		List<Schedule> scheduleJobList = dao.getRunList();
		if (ObjectUtil.isNotEmpty(scheduleJobList)) {
			for (Schedule scheduleJob : scheduleJobList) {
				CronTrigger cronTrigger = ScheduleKit.getCronTrigger(scheduler, scheduleJob.getName(),scheduleJob.getGrouping());
				if (cronTrigger == null) {
					// 不存在，创建一个
					ScheduleKit.createJob(scheduler, scheduleJob);
				} else {
					// 已存在，那么更新相应的定时设置
					ScheduleKit.updateJob(scheduler, scheduleJob);
				}
			}
		}
	}

创建常量类JobConst

package com.jy.task.common;

public class JobConst {

	private JobConst() {}

    /** 任务调度的参数key */
    public static final String JOB_PARAM_KEY  = "scheduleJob";
    /**
     * 默认一次任务
     */
    public static final String DEF_ONCE_CRON="0 0 10/1 * * ?";

    public enum Type{
    	BEGIN(1,"运行"),EXCEPTION(2,"异常"),COMPLETE(3,"完成");
    	private Integer code;
		private String dec;
		private Type(int code,String dec){this.code = code;this.dec = dec;}
		public int code() {return this.code;}
		public String dec(){return this.dec;}
	}

}

任务实体类Schedule

package com.jy.entity.task.job;

import java.util.ArrayList;
import java.util.Date;
import java.util.List;

import org.apache.ibatis.type.Alias;

import com.jy.entity.base.BaseEntity;
@Alias("Schedule")
public class Schedule extends BaseEntity{

	private static final long serialVersionUID = 1L;

	/** 任务id */
	private String id;

	/** 任务名称 */
	private String name;

	/** 任务分组 */
	private String grouping;

    /** 任务别名 */
    private String  aliasName;

	/** 指定执行类 */
	private String jobClass;

	/** 任务状态  0停用 1启用 2删除 */
	private Integer status;

	/** 任务运行时间表达式 */
	private String cron;

	private List<Date> nextTimePoints=new ArrayList<>();

	/** 任务描述 */
	private String description;

	/** 创建时间 */
	private Date createTime;

	/** 修改时间 */
	private Date updateTime;

	private String keyWord;


	public String getId() {
		return id;
	}

	public void setId(String id) {
		this.id = id;
	}

	public String getName() {
		return name;
	}

	public void setName(String name) {
		this.name = name;
	}

	public String getGrouping() {
		return grouping;
	}

	public void setGrouping(String grouping) {
		this.grouping = grouping;
	}

	public String getCron() {
		return cron;
	}

	public void setCron(String cron) {
		this.cron = cron;
	}

	public Integer getStatus() {
		return status;
	}

	public void setStatus(Integer status) {
		this.status = status;
	}

	public String getJobClass() {
		return jobClass;
	}

	public void setJobClass(String jobClass) {
		this.jobClass = jobClass;
	}

	public String getDescription() {
		return description;
	}

	public void setDescription(String description) {
		this.description = description;
	}

	public Date getCreateTime() {
		return createTime;
	}

	public void setCreateTime(Date createTime) {
		this.createTime = createTime;
	}

	public Date getUpdateTime() {
		return updateTime;
	}

	public void setUpdateTime(Date updateTime) {
		this.updateTime = updateTime;
	}

	public List<Date> getNextTimePoints() {
		return nextTimePoints;
	}

	public void setNextTimePoints(List<Date> nextTimePoints) {
		this.nextTimePoints = nextTimePoints;
	}

	public String getAliasName() {
		return aliasName;
	}

	public void setAliasName(String aliasName) {
		this.aliasName = aliasName;
	}

	public String getKeyWord() {
		return keyWord;
	}

	public void setKeyWord(String keyWord) {
		this.keyWord = keyWord;
	}
}

这里我们写一个测试的job试试

创建JobTException类

package com.jy.task.job.test;

import org.apache.log4j.LogManager;
import org.apache.log4j.Logger;
import org.quartz.Job;
import org.quartz.JobExecutionContext;
import org.springframework.beans.factory.annotation.Autowired;

import com.jy.entity.task.job.Schedule;
import com.jy.entity.task.log.TaskLog;
import com.jy.service.task.log.TaskLogService;
import com.jy.task.common.JobConst;
import com.jy.task.common.ScheduleKit;

public class JobTException implements Job{

	   /* 日志对象 */
    private static final Logger logger = LogManager.getLogger(JobTException.class);

    @Autowired
	private TaskLogService logService;

	@Override
	public void execute(JobExecutionContext context){
		Schedule scheduleJob = (Schedule) context.getMergedJobDataMap().get(JobConst.JOB_PARAM_KEY);
		// 获取日志
		TaskLog log = ScheduleKit.getLog(scheduleJob);
		logService.record(log.type(JobConst.Type.BEGIN));
		try {
			int abc=1/0;
			System.out.println(abc);
			logService.record(log.type(JobConst.Type.COMPLETE));
		} catch (Exception e) {
			logger.error(e.toString(),e);
			logService.record(log.type(JobConst.Type.EXCEPTION).description(e.toString()));
		}

	}

}

这个类可以根据需要改成自己需要，这个只是为了测试而写，定时抛一个计算异常，

至于页面设计可以参考一下如下配套

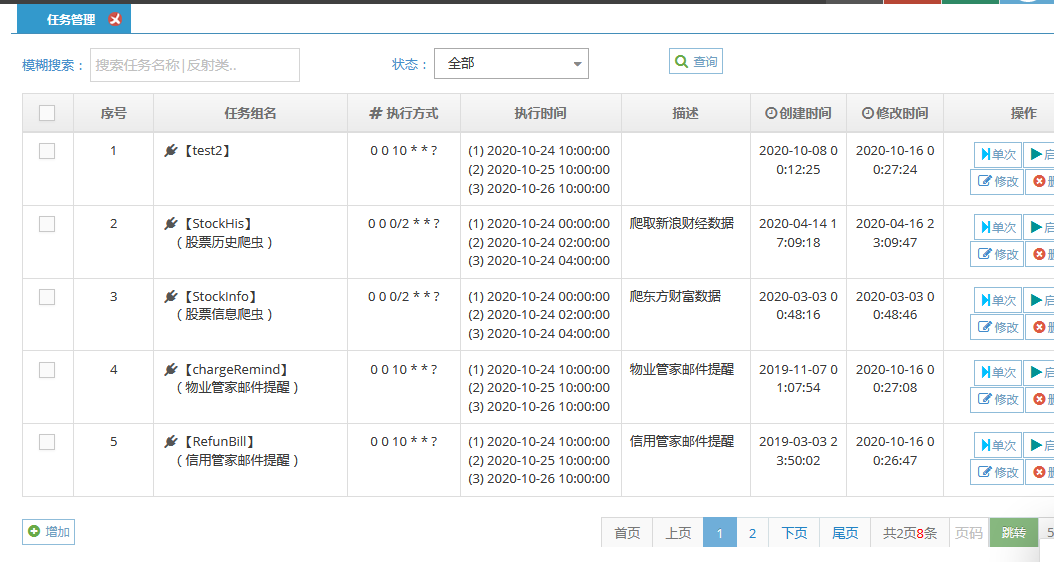

列表版面设计参考

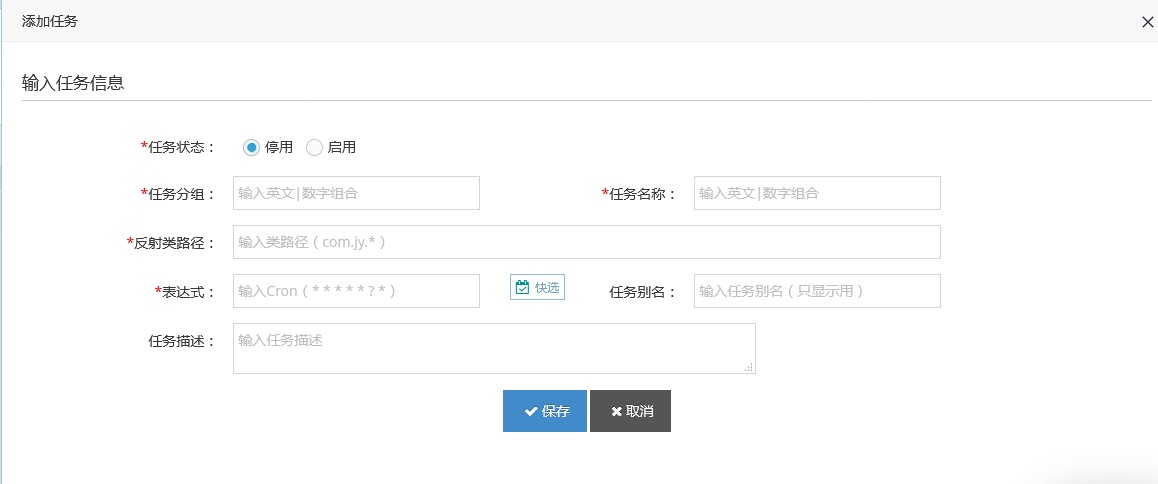

添加一个任务版面设计参考

然后这篇章这里结束

下一个篇幅会介绍一下我整理的工具类，敬请留意
