LineRenderer 线渲染器

LineRenderer 线渲染器

Shader:
// Upgrade NOTE: replaced ‘mul(UNITY_MATRIX_MVP,)’ with 'UnityObjectToClipPos()’

Shader “AngryBots/FX/LaserScope” {
Properties {
_MainTex (“MainTex”, 2D) = “white”
_NoiseTex (“NoiseTex”, 2D) = “white”
}

CGINCLUDE

	#include "UnityCG.cginc"

	sampler2D _MainTex;
	sampler2D _NoiseTex;

	half4 _MainTex_ST;
	half4 _NoiseTex_ST;

	fixed4 _TintColor;

	struct v2f {
		half4 pos : SV_POSITION;
		half4 uv : TEXCOORD0;
	};

	v2f vert(appdata_full v)
	{
		v2f o;

		o.pos = UnityObjectToClipPos (v.vertex);
		o.uv.xy = TRANSFORM_TEX(v.texcoord, _MainTex);
		o.uv.zw = TRANSFORM_TEX(v.texcoord, _NoiseTex);

		return o;
	}

	fixed4 frag( v2f i ) : COLOR
	{
		return tex2D (_MainTex, i.uv.xy) * tex2D (_NoiseTex, i.uv.zw);
	}

ENDCG

SubShader {
	Tags { "RenderType" = "Transparent" "Reflection" = "LaserScope" "Queue" = "Transparent"}
	Cull Off
	ZWrite Off
	Blend SrcAlpha One

Pass {

	CGPROGRAM

	#pragma vertex vert
	#pragma fragment frag
	#pragma fragmentoption ARB_precision_hint_fastest

	ENDCG

	}

}
FallBack Off

}

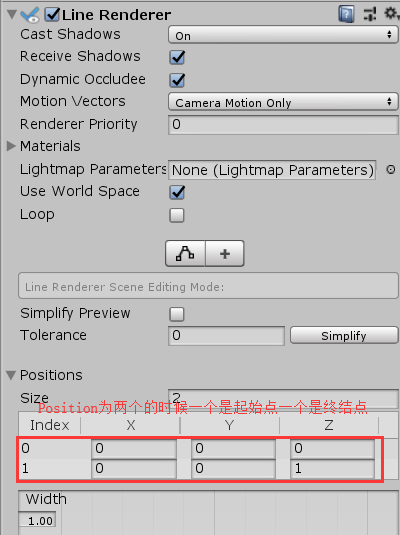

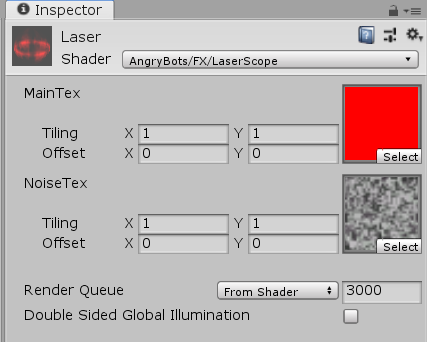

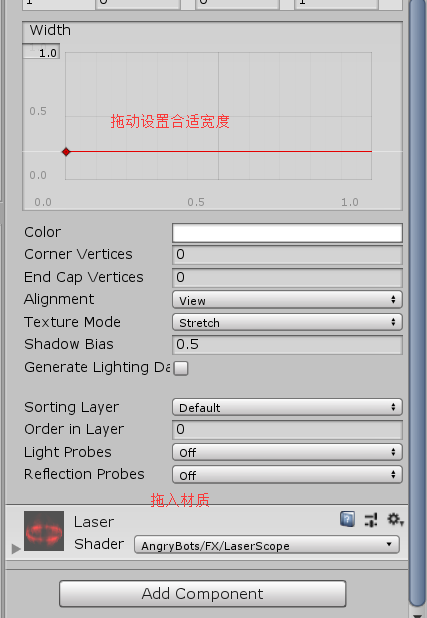

材质：


代码：

	//设置起始点坐标和终结点坐标
    lineRenderer.SetPosition(0,transform.position);
    lineRenderer.SetPosition(1, target.transform.position);

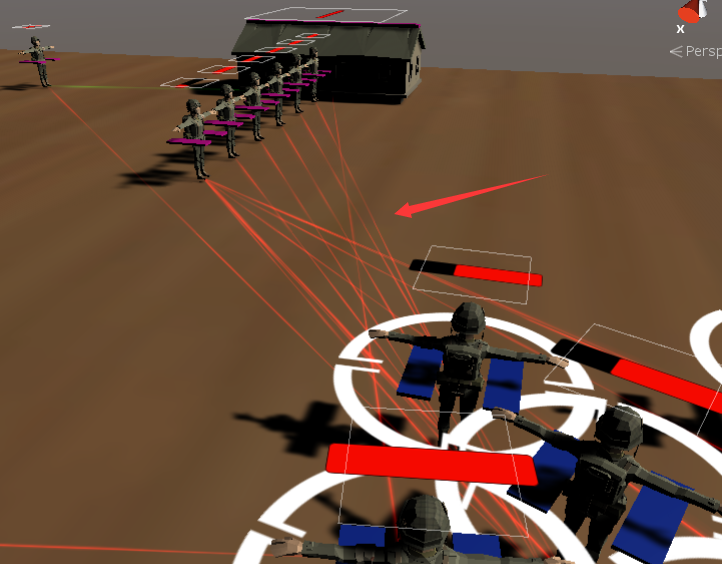

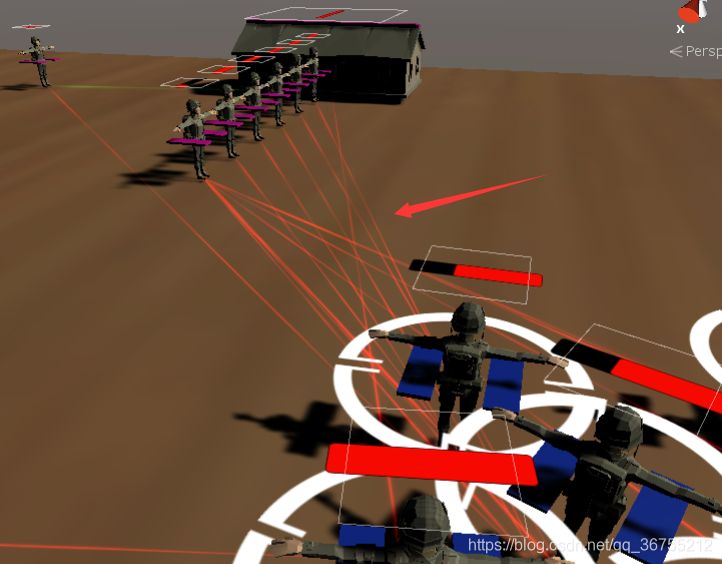

效果：
