交换机作为dhcp服务器，使用3层交换

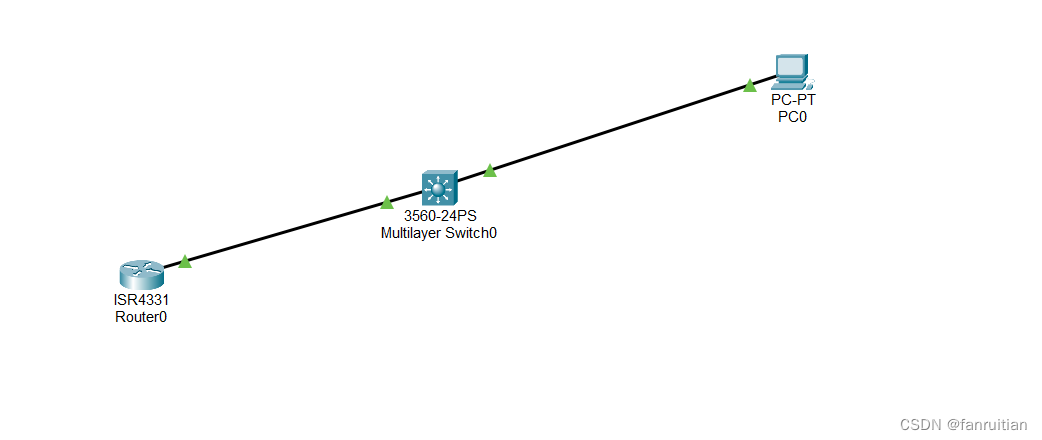

基本架构 1路由1交换1PC

要求：交换机作为dhcp服务器，网关ip为交换机自己，使用vlan 10，pc能ping通网关

配置重点：

1。网关加静态路由

2。交换机开启路由并加静态路由，交换机需要有一个与网关同网段的IP

交换机配置：

Switch#show running-config
Building configuration...

Current configuration : 1524 bytes
!
version 12.2(37)SE1
no service timestamps log datetime msec
no service timestamps debug datetime msec
no service password-encryption
!
hostname Switch
!
!
!
ip dhcp excluded-address 192.168.10.1 192.168.10.100
!
ip dhcp pool pool10
 network 192.168.10.0 255.255.255.0
 default-router 192.168.10.1
 dns-server 192.168.10.1
!
!
ip routing
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
spanning-tree mode pvst
!
!
!
!
!
!
interface FastEthernet0/1
!
interface FastEthernet0/2
!
interface FastEthernet0/3
!
interface FastEthernet0/4
!
interface FastEthernet0/5
!
interface FastEthernet0/6
!
interface FastEthernet0/7
!
interface FastEthernet0/8
!
interface FastEthernet0/9
!
interface FastEthernet0/10
!
interface FastEthernet0/11
!
interface FastEthernet0/12
!
interface FastEthernet0/13
!
interface FastEthernet0/14
!
interface FastEthernet0/15
!
interface FastEthernet0/16
!
interface FastEthernet0/17
!
interface FastEthernet0/18
!
interface FastEthernet0/19
!
interface FastEthernet0/20
!
interface FastEthernet0/21
!
interface FastEthernet0/22
!
interface FastEthernet0/23
!
interface FastEthernet0/24
!
interface GigabitEthernet0/1
!
interface GigabitEthernet0/2
 switchport access vlan 10
 switchport mode access
 switchport nonegotiate
!
interface Vlan1
 ip address 192.168.1.2 255.255.255.0
!
interface Vlan10
 mac-address 00e0.f7be.9501
 ip address 192.168.10.1 255.255.255.0
!
ip classless
ip route 0.0.0.0 0.0.0.0 192.168.1.1
!
ip flow-export version 9
!
!
!
!
!
!
!
!
line con 0
!
line aux 0
!
line vty 0 4
 login
!
!
!
!
end

 网关配置

Router#show running-config
Building configuration...

Current configuration : 707 bytes
!
version 16.6.4
no service timestamps log datetime msec
no service timestamps debug datetime msec
service password-encryption
!
hostname Router
!
!
!
!
!
!
!
!
ip cef
no ipv6 cef
!
!
!
!
!
!
!
!
!
!
!
!
spanning-tree mode pvst
!
!
!
!
!
!
interface GigabitEthernet0/0/0
 no ip address
 duplex auto
 speed auto
 shutdown
!
interface GigabitEthernet0/0/1
 ip address 192.168.1.1 255.255.255.0
 duplex auto
 speed auto
!
interface GigabitEthernet0/0/2
 no ip address
 duplex auto
 speed auto
 shutdown
!
interface Vlan1
 no ip address
 shutdown
!
ip classless
ip route 192.168.10.0 255.255.255.0 192.168.1.2
!
ip flow-export version 9
!
!
!
!
!
!
!
!
line con 0
!
line aux 0
!
line vty 0 4
 login
!
!
!
end

PC端能ping通，OK
