1.要素图层服务地址
http://192.168.120.19:6080/arcgis/rest/services/FeatureLayer/FeatureServer/2

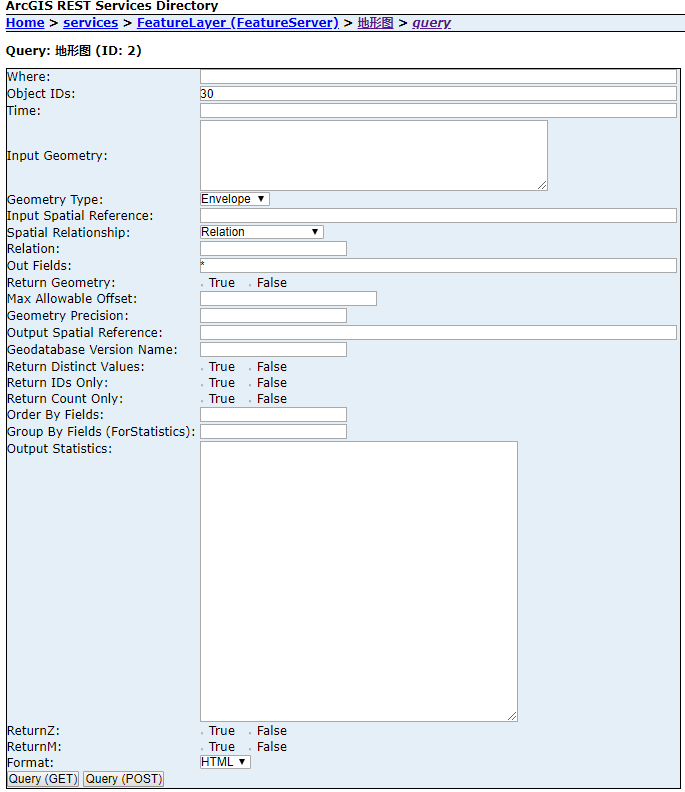

2.截图效果
3. 有效参数 Object IDs，接下来仅仅对该参数进行传值即可。
4.完整代码如下：
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
<meta name="viewport" content="initial-scale=1, maximum-scale=1,user-scalable=no">
<!--
davidpeng test demo
-->
<title>My Query Test</title>
<script src="https://js.arcgis.com/3.30/"></script>
<script>
require([
"dojo/dom", "dojo/on",
"esri/tasks/query", "esri/tasks/QueryTask", "dojo/domReady!"
], function (dom, on, Query, QueryTask) {
//要素图层
var queryTask = new QueryTask("http://192.168.120.19:6080/arcgis/rest/services/FeatureLayer/FeatureServer/2");
var query = new Query();
query.returnGeometry = false;
//显示所以字段信息
query.outFields = [
"*"
];
//事件监听函数
on(dom.byId("execute"), "click", myfunc);
function myfunc() {
query.objectIds = new Array( dom.byId("ids").value);//---asdi----------
queryTask.execute(query, showResults);
}
function showResults (results) {
var resultItems = [];
var resultCount = results.features.length;
for (var i = 0; i < resultCount; i++) {
var featureAttributes = results.features[i].attributes;
for (var attr in featureAttributes) {
resultItems.push("<b>" + attr + ":</b> " + featureAttributes[attr] + "<br>");
}
resultItems.push("<br>");
}
dom.byId("info").innerHTML = resultItems.join("");
}
});
</script>
</head>
<body>
查询要素信息:
<input type="text" id="ids" value="1">
<input id="execute" type="button" value="Get Details">
<br />
<br />
<div id="info" style="padding:5px; margin:5px; background-color:#eee;">
</div>
</body>
</html>
5.运行效果
