Kafka基础介绍、架构介绍、搭建步骤、常用命令

Kafka 介绍

官方网址

采用生产者消费者模型,具有高性能（单节点支持上千个客户端，百兆/s吞吐量）、持久性（消息直接持久化在普通磁盘上且性能好)、分布式（数据副本冗余、流量负载均衡、可扩展）、灵活性（消息长时间持久化+Client维护消费状态）的特点

Kafka优势

解耦与缓冲: 例如使用SparkStream时,于flume采集后的数据传输,解决了大量数据导致SparkStream崩溃的问题,flume与SparkStream只需要与kafka交互,实现系统之间解耦
FIFO（partition强有序): partition内部是FIFO的，partition之间呢不是FIFO的，当然我们可以把topic设为一个partition，这样就是严格的FIFO
0拷贝: 不经过jvm堆内内存,由jvm发送内核命令,直接从磁盘传输数据(不经过内存),提升速度提高吞吐量
可靠性保证: 数据存储在磁盘中,保障了数据的可靠性,默认数据保留7天,消费者可重复消费,并且保证消费者晒少消费一次
可用于异步通讯,峰值压力缓冲

对比同类产品

kafka：分布式，较长时间持久化，高性能，轻量灵活

RabbitMQ: 分布式，支持多种MQ协议，重量级

ActiveMQ: 与RabbitMQ类似

ZeroMQ: 以库的形式提供，使用复杂，无持久化

redis: 单机、纯内存性好，持久化较差

0拷贝介绍

CPU不需要为数据在内存之间的拷贝消耗资源。而它通常是指计算机在网络上发送文件时，不需要将文件内容拷贝到用户空间（User Space）而直接在内核空间（Kernel Space）中传输到网络的方式。

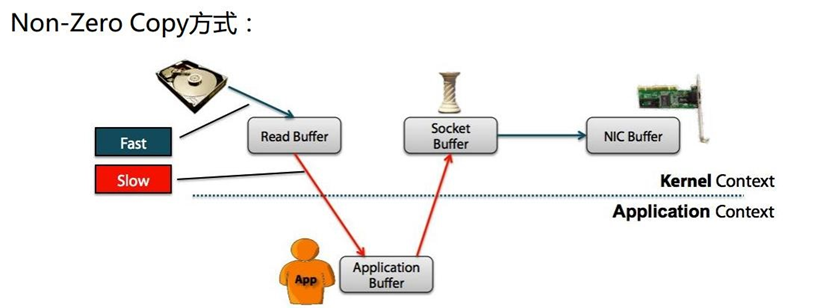

正常方式：在数据 -> Application Buffer -> Socket Buffer 过程中进行2次拷贝操作

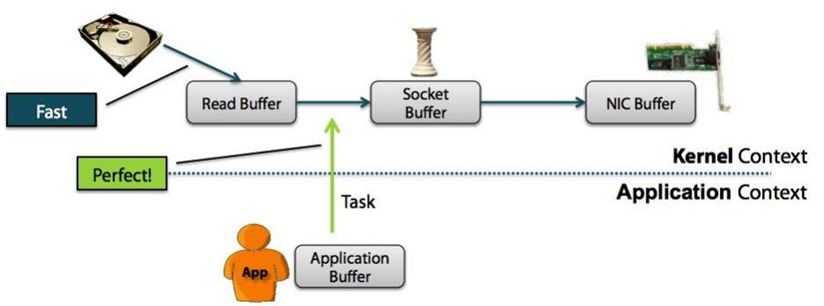

0拷贝方式：数据不经过 Application Buffer（不再写入内存）

架构介绍

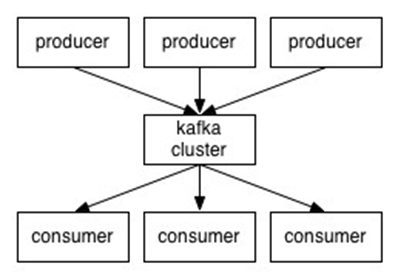

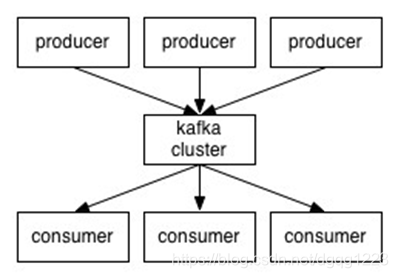

角色

在这里插入图片描述

producer : 消息生产者
broker：kafka的节点 (kafka集群的server)，broker之间不分主从关系，依赖zookeeper协调。broker负责处理消息读、写请求和存储消息
一个broker管理多个partition，一个partition只被一个broker管理
topic：消息分类（消息队列/分类）
- partition ：一个topic被切分成多个partition分布在broker中，目的是并行消费partition提高消费效率。
  partition分区内部强有序
consumer : 消息消费者，每个consumer 都有属于自己的consumer group ，同一个topic只能被消费者组中的一个consumer 消费
Consumer
消息消费者，向kafka broker取消息的客户端。每个消费者都要维护自己读取数据的offset。低版本0.9之前将offset保存在Zookeeper中，0.9及之后保存在Kafka的“__consumer_offsets”主题中。

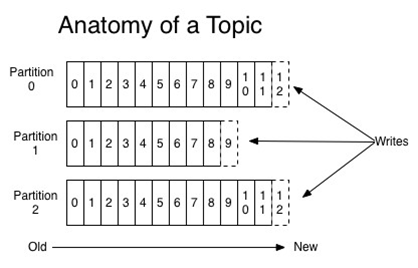

消息写入

在这里插入图片描述

采用0拷贝消息直接写入文件中，并不存储在内存中。根据时间策略（默认一周）删除。
producer通过轮询或消息中key的hash决定写往哪个partition中
在kafka中的每条消息都为KV结构，不指定Key时，Key为null。若key为null 则按照轮询的方式，若指定key则采用hash的方式分配
轮询的方式写入partition时，会以随机的方式写入一定条数的数据（消息）到partition中
除轮询和hash的方式写入partition，也可以自定义规则

强有序

每个partition中的内部消息都是强有序的，消费者按照写入消息顺序读取
其中每个消息都有一个序号 offset
consumer 会并行读取多个partition的消息，所以读取消息的顺序不同按照原始数据的顺序消费（仅在partition中强有序读取）

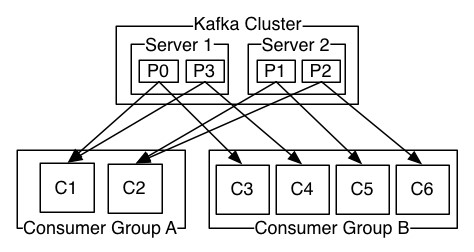

消息存储与生产消费模型

在这里插入图片描述

Kafka Cluster : 图中指一个topic（消息队列）
Server：图中指broker（kafka的节点）。P0、P1、P2、P3 为同一个topic的partiiton。Server1节点中保存了P0、P3 消息，Server2保存了P1、P2消息。
Consumer Group : 消费者组。同一个消息只能被消费者组中的一个消费者消费（例如：C1和C2在同一个消费者组，C1消费了P0，那么C2不会消费P0 ）。不同组消费同一个topic互不影响（例如：C1与C3为不同消费者组，C1，C3都可以消费P0），但是当C1读取P0中的消息没有读完退出，那么C2可以通过offset记录读取P0中剩余的消息

在0.8.2版本中Consumer自己维护消费记录（offset位置）存储到zookeeper中，0.9+版本后由kafka集群（broker）维护消费者offset

分布式

leader：在每个broker节点中都有leader角色负责管理中多个topic在该节点中的partition
关于partition副本：partition会产生副本到其他broker节点中，当lerder所在broker宕机时，其他节点的lerder会管理该broker中的partition（通过副本）

leader 均衡机制

通过创建topic以及指定3分区数2个副本数后写入数据，查看均衡信息

[root@node02 bin]# ./kafka-topics.sh --zookeeper node02:2181,node03:2181,node04:2181 --describe --topic tes
ttopic1Topic:testtopic1	PartitionCount:3	ReplicationFactor:2	Configs:
	Topic: testtopic1	Partition: 0	Leader: 2	Replicas: 2,0	Isr: 2,0
	Topic: testtopic1	Partition: 1	Leader: 0	Replicas: 0,1	Isr: 0,1
	Topic: testtopic1	Partition: 2	Leader: 1	Replicas: 1,2	Isr: 1,2

Replicas : 副本存放的位置
Isr: 启动集群后根据位置检查副本完整性位置

当某一个broker宕机时会根据宕机的Replicas顺序（副本优先的原则）重新选取leader，当broker从宕机恢复后会按照Replicas顺序恢复leader管理，自动均衡（默认开启）。auto.leader.rebalance.enable true

环境

kafka_2.10-0.9.0.1.tgz
CentOS6
java 1.7

搭建步骤

解压 kafuka tar xf kafka_2.10-0.9.0.1.tgz -C /opt/

修改 config/server.properties 配置文件

broker.id broker编号

zookeeper.connec ZK地址

2.11版本中需#delete.topic.enable=true 取消该行注释允许删除 topic
log.dirs=/tmp/kafka-logs 修改log路径

# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements.  See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License.  You may obtain a copy of the License at
#
#    http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
# see kafka.server.KafkaConfig for additional details and defaults

############################# Server Basics #############################

# The id of the broker. This must be set to a unique integer for each broker.
# broker编号
broker.id=0

############################# Socket Server Settings #############################

listeners=PLAINTEXT://:9092

# The port the socket server listens on
# 写消息的端口
#port=9092

# Hostname the broker will bind to. If not set, the server will bind to all interfaces
#host.name=localhost

# Hostname the broker will advertise to producers and consumers. If not set, it uses the
# value for "host.name" if configured.  Otherwise, it will use the value returned from
# java.net.InetAddress.getCanonicalHostName().
#advertised.host.name=<hostname routable by clients>

# The port to publish to ZooKeeper for clients to use. If this is not set,
# it will publish the same port that the broker binds to.
#advertised.port=<port accessible by clients>

# The number of threads handling network requests
num.network.threads=3

# The number of threads doing disk I/O
num.io.threads=8

# The send buffer (SO_SNDBUF) used by the socket server
socket.send.buffer.bytes=102400

# The receive buffer (SO_RCVBUF) used by the socket server
socket.receive.buffer.bytes=102400

# The maximum size of a request that the socket server will accept (protection against OOM)
socket.request.max.bytes=104857600


############################# Log Basics #############################

# A comma seperated list of directories under which to store log files
# 存储数据的路径
log.dirs=/kafka-logs

# The default number of log partitions per topic. More partitions allow greater
# parallelism for consumption, but this will also result in more files across
# the brokers.
num.partitions=1

# The number of threads per data directory to be used for log recovery at startup and flushing at shutdown.
# This value is recommended to be increased for installations with data dirs located in RAID array.
num.recovery.threads.per.data.dir=1

############################# Log Flush Policy #############################

# Messages are immediately written to the filesystem but by default we only fsync() to sync
# the OS cache lazily. The following configurations control the flush of data to disk.
# There are a few important trade-offs here:
#    1. Durability: Unflushed data may be lost if you are not using replication.
#    2. Latency: Very large flush intervals may lead to latency spikes when the flush does occur as there w
ill be a lot of data to flush.#    3. Throughput: The flush is generally the most expensive operation, and a small flush interval may lea
d to exceessive seeks.# The settings below allow one to configure the flush policy to flush data after a period of time or
# every N messages (or both). This can be done globally and overridden on a per-topic basis.

# The number of messages to accept before forcing a flush of data to disk
#log.flush.interval.messages=10000

# The maximum amount of time a message can sit in a log before we force a flush
#log.flush.interval.ms=1000

############################# Log Retention Policy #############################

# The following configurations control the disposal of log segments. The policy can
# be set to delete segments after a period of time, or after a given size has accumulated.
# A segment will be deleted whenever *either* of these criteria are met. Deletion always happens
# from the end of the log.

# The minimum age of a log file to be eligible for deletion
log.retention.hours=168

# A size-based retention policy for logs. Segments are pruned from the log as long as the remaining
# segments don't drop below log.retention.bytes.
#log.retention.bytes=1073741824

# The maximum size of a log segment file. When this size is reached a new log segment will be created.
log.segment.bytes=1073741824

# The interval at which log segments are checked to see if they can be deleted according
# to the retention policies
log.retention.check.interval.ms=300000

############################# Zookeeper #############################

# Zookeeper connection string (see zookeeper docs for details).
# This is a comma separated host:port pairs, each corresponding to a zk
# server. e.g. "127.0.0.1:3000,127.0.0.1:3001,127.0.0.1:3002".
# You can also append an optional chroot string to the urls to specify the
# root directory for all kafka znodes.
# zookeeper.connect=localhost:2181
zookeeper.connect=node02:2181,node03:2181,node04:2181

分发配置好的kafka到其他节点，并修改 config/server.properties 中broker.id

sed -i -e 's/broker.id=.*/broker.id=1/' /opt/kafka_2.10-0.9.0.1/config/server.properties

可以添加环境变量

启动kafka（需要先启动ZK）

nohup kafka-server-start.sh ./config/server.properties > kafka.log 2>&1 &
