SpringBoot整合RabbitMq

1. pom.xml

        <!--RabbitMQ 依赖-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-amqp</artifactId>
        </dependency>
        <!--RabbitMQ 测试依赖-->
        <dependency>
            <groupId>org.springframework.amqp</groupId>
            <artifactId>spring-rabbit-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.47</version>
        </dependency>

2.application配置

spring.rabbitmq.host=192.168.129
spring.rabbitmq.port=5672
spring.rabbitmq.username=admin
spring.rabbitmq.password=123

3.队列交换机配置类

@Configuration
public class QueueConfig {

    // 普通交换机
    public static final String X_EXCHANGE = "X";
    // 死信交换机
    public static final String Y_DEAD_LETTER_EXCHANGE = "Y";
    // 普通队列
    public static final String QUEUE_A = "QA";
    // 死信队列
    public static final String DEAD_LETTER_QUEUE = "QD";

    // 申明交换机
    @Bean("xExchange")
    public DirectExchange xExchange(){
        return new DirectExchange(X_EXCHANGE);
    }

    @Bean("yExchange")
    public DirectExchange yExchange(){
        return new DirectExchange(Y_DEAD_LETTER_EXCHANGE);
    }

    // 声明队列
    @Bean("queueA")
    public Queue queueA(){
        Map<String,Object> arguments = new HashMap<>();
        //声明当前队列绑定的死信交换机
        arguments.put("x-dead-letter-exchange", Y_DEAD_LETTER_EXCHANGE);
        //声明当前队列的死信路由 key
        arguments.put("x-dead-letter-routing-key", "YD");
        //声明队列的 TTL
        arguments.put("x-message-ttl", 10000);
        return QueueBuilder.durable(QUEUE_A).withArguments(arguments).build();
    }

    // 死信队列
    @Bean("queueD")
    public Queue queueD(){
        return QueueBuilder.durable(DEAD_LETTER_QUEUE).build();
    }

    // 绑定
    @Bean
    public Binding queueABindingX(@Qualifier("queueA") Queue queueA,
                                  @Qualifier("xExchange") DirectExchange xExchange){
        return BindingBuilder.bind(queueA).to(xExchange).with("XA");
    }
    @Bean
    public Binding queueDBindingY(@Qualifier("queueD") Queue queueD,
                                  @Qualifier("yExchange") DirectExchange yExchange){
        return BindingBuilder.bind(queueD).to(yExchange).with("YD");
    }


}

4.控制层发送消息

    @Autowired
    RabbitTemplate rabbitTemplate;

    // 发消息
    @GetMapping("/sendMsg/{message}")
    public void sendMsg(@PathVariable String message){
        log.info("当前时间：{},发送消息给两个TTL队列：{}",new Date().toString(),message);
        rabbitTemplate.convertAndSend("X", "XA","消息来自ttl为10s的队列："+ message);
        rabbitTemplate.convertAndSend("X", "XB","消息来自ttl为40s的队列："+ message);
    }

5.接受消息

@Component
@Slf4j
public class DeadLetterQueueConsumer {

    @RabbitListener(queues = "QD")
    public void receiveD(Message message, Channel channel)throws Exception{
        String msg = new String(message.getBody());
        log.info("当前时间：{}。收到死信队列的消息：{}",new Date().toString(),msg);
    }
}

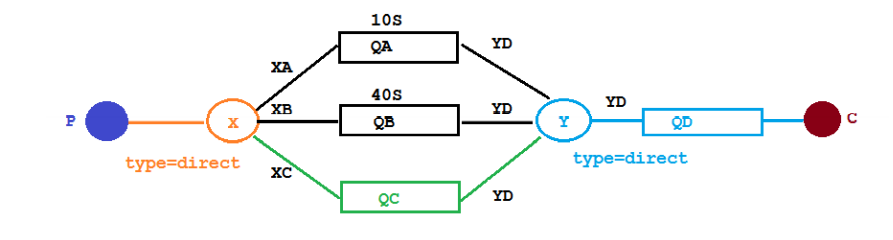

6.交换机示意图
