0. 摘要

本文主要描述如何搭建一个RNN的基本训练架构.主要从如何读取CSV文件中的数据,构建数据管道. 如何搭建模型,如何在主函数中开启训练.

未完，待更新

1. RNN的基础知识

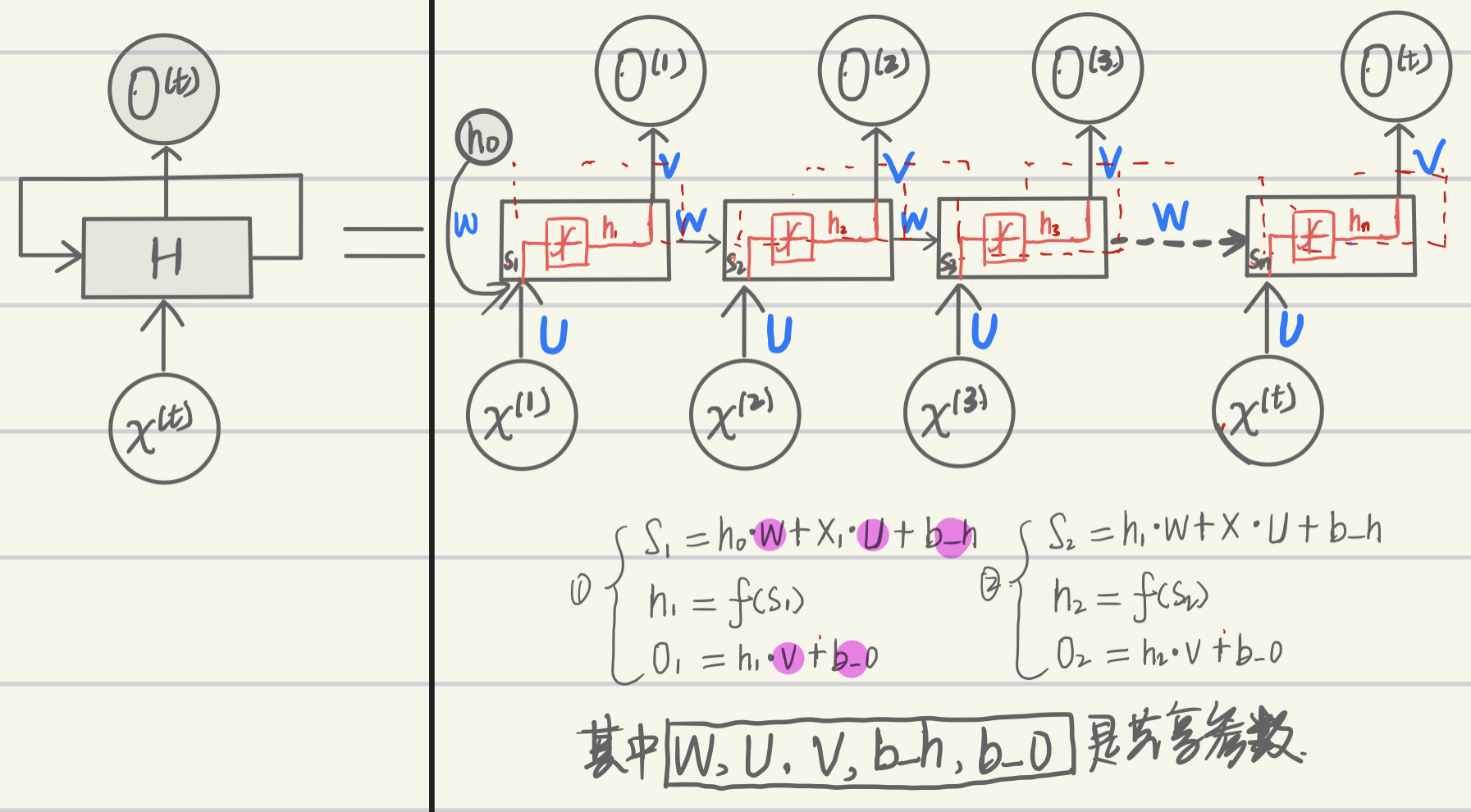

一个最简单的RNN结构展开图, X(t)表示循环神经网络在时刻t的输入,H是循环神经网络的主体结构,循环的过程就是H被不断执行的过程.O(t)代表t时刻循环神经网路的输出.

简单描述一下具体的过程:

在t时刻,H会读取输入层的输入x(t),并输出一个值O(t),同时H的状态值会从当前步传递到下一步.

也就是讲:H的输入除了来自输入层的输入x(t),还依赖于上一时刻的H(t-1).

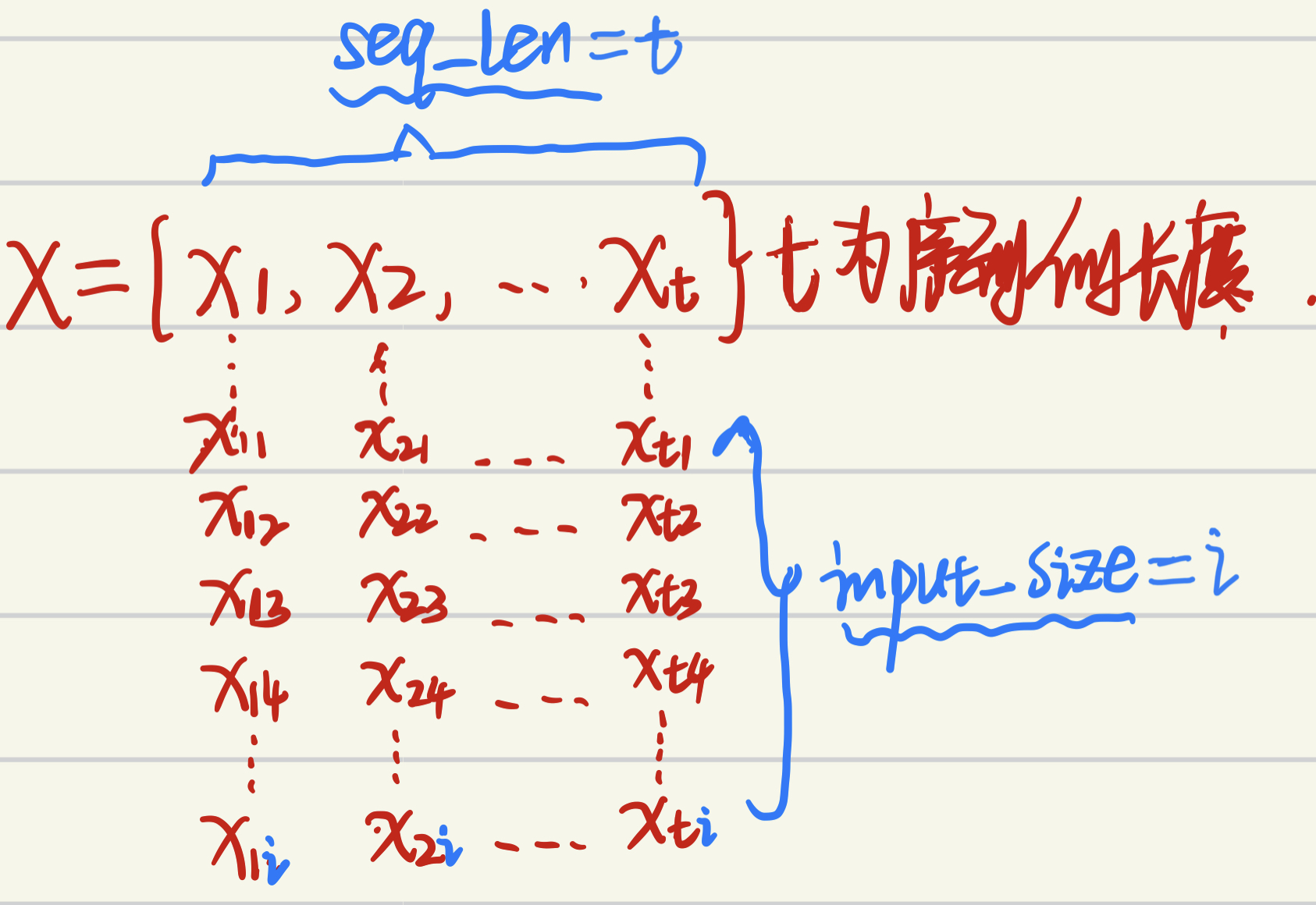

一般情况下,输入层的x为下图所示:

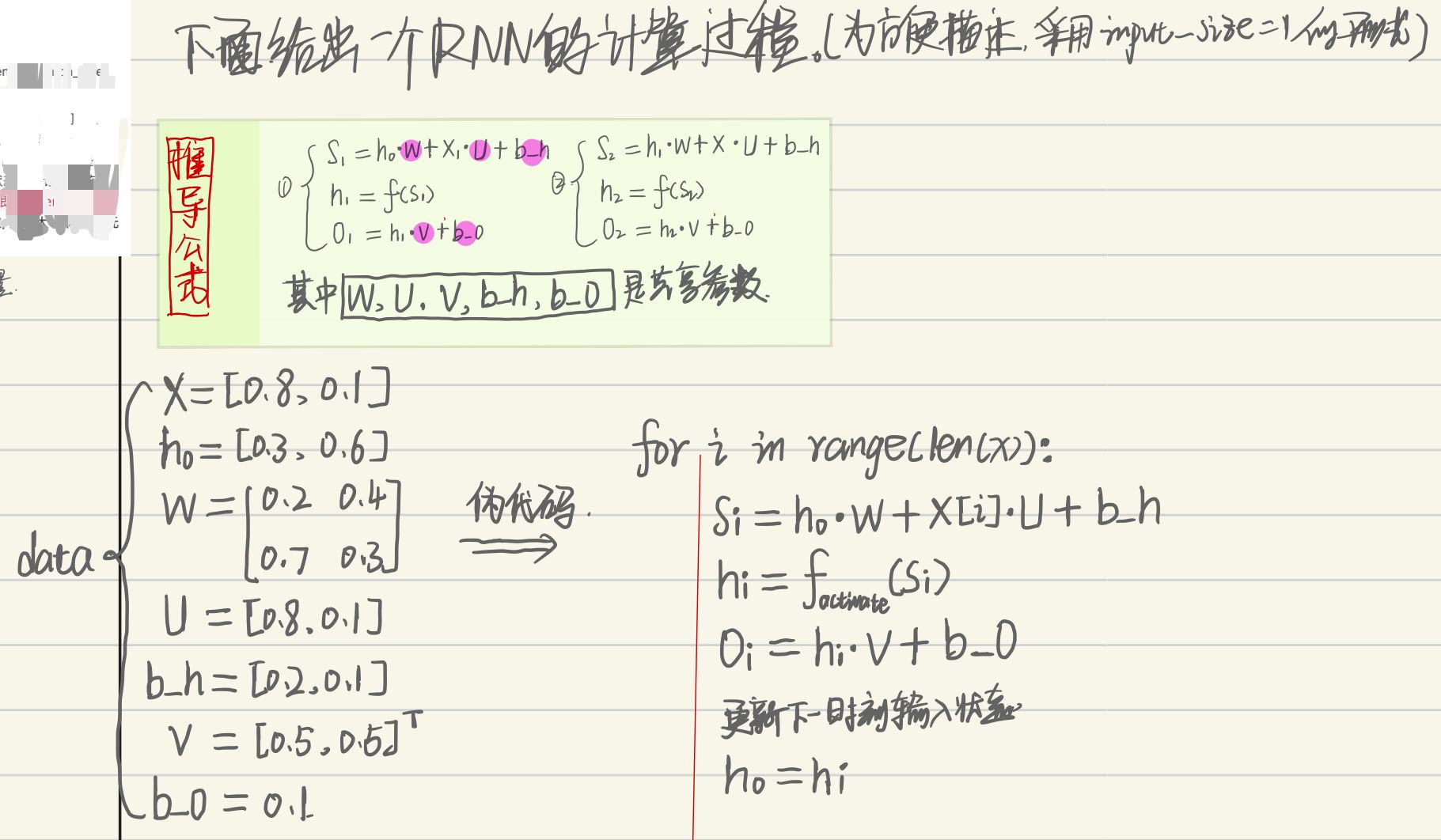

为了研究方便,下文的叙述令in_putsize = 1.下面使用

2. 一个RNN小实验

2.1 数据集准备

链接：https://pan.baidu.com/s/1HorFNE5mlDgAvFXU6_JXfQ
提取码：x521
train_data: 里面包含6列数据, 每一行作为一个训练输入, 其对应的输出在train_label所对应的行.

train_label: 里面包含1列数据

2.2 设计设计pytorch的数据管道

设计dataloader    data_loader.py

import torch
import numpy as np

class ImageFolder(torch.utils.data.Dataset):

    def __init__(self, train_data):
        self.data_sorce = np.array(train_data.iloc[:, 0:6])
        self.data_lable = np.array(train_data.iloc[:, 6:7])

    def __getitem__(self, index): # index = 0
        id_data = list(self.data_sorce)[index]  # id_data = list(data_sorce)[index]
        id_lable = list(self.data_lable)[index] # list(data_lable)[index]

        data = torch.Tensor(id_data).unsqueeze(1)
        label = torch.Tensor(id_lable)
        return data, label

    def __len__(self):
        return len(list(self.data_lable))

简单讲解一些这段代码:

这个是pytorch的 快速数据管道的构造的基本 架构, 一般情况下需要重新构造下面三个方法

__init__(self, train_data):  类初始化的时候, 需要传入一个靶向文件

__getitem__(self, index):  这个方法会在程序运行的时候,自动调用函数体里面的相关内容,同样也是构造子类的输出

__len__(self): 就如同名字一样,返回的数据集的长度

搭建模型文件, modelnet.py

import torch
from torch import nn

class Rnn(nn.Module):
    def __init__(self, INPUT_SIZE):
        super(Rnn, self).__init__()
        self.hidden_size = 20
        self.num_layers = 2
        self.rnn = nn.RNN(
            input_size=INPUT_SIZE,
            hidden_size=self.hidden_size,
            num_layers=self.num_layers,
            batch_first=True
        )

        self.out = nn.Linear(self.hidden_size, 1)

    def forward(self, x):
        r_out, h_state = self.rnn(x, None)#

        outs = []
        for time in range(r_out.size(1)):
            outs.append(self.out(r_out[:, time, :]))
        return torch.stack(outs, dim=1), h_state

该modelnet.py文件中的输入参数有:

INPUT_SIZE:(非超参数) 该参数应等于 输入序列的特征的维度

self.hidden_size:(超参数)=>输出结果特征层的维度

self.num_layers:(超参数)=>循环神经网络的层数

由于每个时间间隔的输入都会对应相应的输出(输出也具有维度[hadden_sizes]的向量), 本文中hadden_sizes设置大于1,

通过一个全连接层将输出的特征向量转换为标量作为最终的输出,当然可以根据具体的需求来转化.转换过程如下代码所示.

outs = []
for time in range(r_out.size(1)):
    outs.append(self.out(r_out[:, time, :]))

for循环,可以得到每一个时间间隔所对应的 输出. last_result = torch.stack(outs, dim=1) 的size为[batch,time_setp,1]

下面贴主函数的代码: main.py

import numpy as np
import matplotlib.pyplot as plt
import torch
from torch import nn
from modelnet import Rnn
from sklearn.model_selection import train_test_split
import pandas as pd
from data_loader import ImageFolder
from tqdm import trange

'''1.数据准备阶段
'''
# 导入训练数据文件
data_path = './Zhou_X.csv'
label_path = './Zhou_Y.csv'
# 指定输出的文件
txt_path = 'Zhou_X.txt'

# 定义一些超参数
INPUT_SIZE = 1         # 输入序列的特征维度
LR = 0.0001            # 学习率
BATCHSIZE_PER_CARD = 1 # batch_size
total_epoch = 40       # 总的训练循环次数

# 读取csv文件, sep = ' '代表表中的数据分割方式是' ' header = None是文件中没有关键字
data_train = pd.read_csv(data_path,sep = '	',header=None)
data_label = pd.read_csv(label_path,header=None)

# 训练数据 和 标签放在同一个容器中, axis是按列拼接
data_get = pd.concat([data_train,data_label], axis=1)
# data.iloc[:, 0:13]  # 按位置取某几列

# 将数据集 划分为训练集 和测试集
train_data, test_data = train_test_split(data_get,\
                                            train_size=0.7,random_state=0.1,\
                                            shuffle=False)

#################################################################
'''2.开始构造 训练框架'''
# 2.1构造pipe line
train_batchsize = torch.cuda.device_count() * BATCHSIZE_PER_CARD
val_batchsize = torch.cuda.device_count() * BATCHSIZE_PER_CARD

train_dataset = ImageFolder(train_data)
test_dataset = ImageFolder(test_data)

data_loader = torch.utils.data.DataLoader(
    train_dataset,
    batch_size=train_batchsize,
    shuffle=True,
    num_workers=0)

val_data_loader = torch.utils.data.DataLoader(
    test_dataset,
    batch_size=val_batchsize,
    shuffle=True,
    num_workers=0)


# 2.2 选择模型
model = Rnn(INPUT_SIZE)
print(model)

# 2.3 定义优化器和损失函数
optimizer = torch.optim.Adam(model.parameters(), lr=LR)
loss_func = nn.MSELoss()
# loss_func = nn.CrossEntropyLoss()

# 2.4 启动训练
global_step = 1
for epoch in range(1, total_epoch + 1):
    print('\n---------- Epoch:' + str(epoch) + ' ----------')
    data_loader_iter = iter(data_loader)
    train_epoch_loss = 0
    test_epoch_loss = 0

    with trange(len(data_loader_iter)) as t:
        for index in t:
            train_data_input, train_data_label = data_loader_iter.next()
            # x = torch.from_numpy(train_data_input)

            prediction, h_state = model(train_data_input)
            loss = loss_func(prediction[:,-1,:][0], train_data_label[0])
            optimizer.zero_grad()
            loss.backward()
            optimizer.step()

            global_step +=1
            train_epoch_loss = train_epoch_loss + loss
            t.set_postfix(step= global_step,loss = loss.data.numpy(), aver_loss= train_epoch_loss.data.numpy()/(index+1), learing_rate = LR)

    data_loader_iter = iter(val_data_loader)
    with trange(len(data_loader_iter)) as t:
        for index in t:
            with torch.no_grad():
                train_data_input, train_data_label = data_loader_iter.next()

                prediction, h_state = model(train_data_input)
                loss = loss_func(prediction[:,-1,:][0], train_data_label[0])

                test_epoch_loss = test_epoch_loss + loss
                t.set_postfix(step= global_step,loss = loss.data.numpy(), aver_loss= test_epoch_loss.data.numpy()/(index+1), learing_rate = LR)



# 整体预测
all_data  = ImageFolder(data_get)
all_data_loader = torch.utils.data.DataLoader(
    all_data,
    batch_size=1,
    shuffle=False,
    num_workers=0)

data_loader_iter = iter(all_data_loader)

input_caclaue = []
loss_caclaue = []
result = []
with trange(len(data_loader_iter)) as t:
    for index in t:
        with torch.no_grad():
            train_data_input, train_data_label = data_loader_iter.next()

            prediction, h_state = model(train_data_input)
            loss = loss_func(prediction[:,-1,:][0], train_data_label[0])

            input_caclaue.append([train_data_input.data.numpy(),train_data_label.data.numpy()])
            result.append(prediction[:,-1,:][0].data.numpy())
            loss_caclaue.append(loss.data.numpy())
            t.set_postfix(step = index,loss = loss.data.numpy(), aver_loss= test_epoch_loss/(index+1))



with open(txt_path,"w") as f:

    for index in range(len(result)):
        pass # index = 0
        str1 = ''
        for iterm in input_caclaue[index][0][0]:
            str1 = str1 + str(iterm[0]) + ' '
        str2 = str(input_caclaue[index][1][0][0])

        str3 = str(result[index][0])

        str4 = str(loss_caclaue[index])

        str_all = str1 + str2 + ' ' + str3 + ' ' + str4 + '\n'

        f.write(str_all)  # 自带文件关闭功能，不需要再写f.close()
