主要参考这两篇文章：代码部分基本参考k8s自定义生成controller三部曲 & 中间细节部分参考code-generator使用
然后踩了非常多的坑，最后在师兄亲自指导下才成功x
完整操作流程个人总结一下
初始化项目
这里有一个大坑
一开始在 $ GOPATH/src/目录下创建文件夹k8s_customize_controller：
走到后面发现，自动生成代码那里由于路径设计等原因生成的代码要么没有informer和lister要么就自己在项目root下重新新建一个k8s_customize_controller 然后在下面生成代码，就非常奇怪。最后发现，$GOPATH/src下必须要要两个目录层级，比如 $GOPATH/src/work/k8s_customize_contrller
才能正常生成代码
进入k8s_customize_contrller目录，执行
#创建目录
mkdir -p pkg/apis/bolingcavalry
#初始化项目 把环境拉到vendor中
go mod init vendor
# 获取依赖：此处可能会出现拉不到code-generator的情况，需要手动进入vendor目录 git clone k8s.io/code-generator
go get k8s.io/apimachinery@v0.0.0-20190425132440-17f84483f500
go get k8s.io/client-go@v0.0.0-20190425172711-65184652c889
go get k8s.io/code-generator@v0.0.0-20190419212335-ff26e7842f9d
创建CRD（Custom Resource Definition）
- 在能够执行kubectl的机器上创建student.yaml文件，内容如下：
apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
# metadata.name的内容是由"复数名.分组名"构成，如下，students是复数名，bolingcavalry.k8s.io是分组名
name: students.bolingcavalry.k8s.io
spec:
# 分组名，在REST API中也会用到的，格式是: /apis/分组名/CRD版本
group: bolingcavalry.k8s.io
# list of versions supported by this CustomResourceDefinition
versions:
- name: v1
# 是否有效的开关.
served: true
# 只有一个版本能被标注为storage
storage: true
# 范围是属于namespace的
scope: Namespaced
names:
# 复数名
plural: students
# 单数名
singular: student
# 类型名
kind: Student
# 简称，就像service的简称是svc
shortNames:
- stu
2.在student.yaml所在目录执行命令
kubectl apply -f student.yaml即可在k8s环境创建Student的定义，今后如果发起对类型为Student的对象的处理，k8s的api server就能识别到该对象类型，
kubectl get crd 查看已有的crd
kubectl get crd
NAME CREATED AT
students.bolingcavalry.k8s.io 2021-04-29T08:16:08Z
kubectl describe crd stu 命令查看更多细节，stu是在student.yaml中定义的简称
kubectl get crd
NAME CREATED AT
students.bolingcavalry.k8s.io 2021-04-29T08:16:08Z
ydzhang@ydzhangdeMacBook-Pro ~ % kubectl describe crd stu
Name: students.bolingcavalry.k8s.io
Namespace:
Labels: <none>
Annotations: <none>
API Version: apiextensions.k8s.io/v1
Kind: CustomResourceDefinition
Metadata:
Creation Timestamp: 2021-04-29T08:16:08Z
Generation: 1
Managed Fields:
API Version: apiextensions.k8s.io/v1
Fields Type: FieldsV1
fieldsV1:
f:status:
f:acceptedNames:
f:kind:
f:listKind:
f:plural:
f:shortNames:
f:singular:
f:conditions:
Manager: kube-apiserver
Operation: Update
Time: 2021-04-29T08:16:08Z
API Version: apiextensions.k8s.io/v1beta1
Fields Type: FieldsV1
fieldsV1:
f:metadata:
f:annotations:
.:
f:kubectl.kubernetes.io/last-applied-configuration:
f:spec:
f:conversion:
.:
f:strategy:
f:group:
f:names:
f:kind:
f:listKind:
f:plural:
f:shortNames:
f:singular:
f:preserveUnknownFields:
f:scope:
f:version:
f:versions:
f:status:
f:storedVersions:
Manager: kubectl-client-side-apply
Operation: Update
Time: 2021-04-29T08:16:08Z
Resource Version: 76925
Self Link: /apis/apiextensions.k8s.io/v1/customresourcedefinitions/students.bolingcavalry.k8s.io
UID: 78f13ee1-7c2b-400e-9073-77e311653e23
Spec:
Conversion:
Strategy: None
Group: bolingcavalry.k8s.io
Names:
Kind: Student
List Kind: StudentList
Plural: students
Short Names:
stu
Singular: student
Preserve Unknown Fields: true
Scope: Namespaced
Versions:
Name: v1
Served: true
Storage: true
Status:
Accepted Names:
Kind: Student
List Kind: StudentList
Plural: students
Short Names:
stu
Singular: student
Conditions:
Last Transition Time: 2021-04-29T08:16:08Z
Message: protected groups must have approval annotation "api-approved.kubernetes.io", see https://github.com/kubernetes/enhancements/pull/1111
Reason: MissingAnnotation
Status: False
Type: KubernetesAPIApprovalPolicyConformant
Last Transition Time: 2021-04-29T08:16:08Z
Message: no conflicts found
Reason: NoConflicts
Status: True
Type: NamesAccepted
Last Transition Time: 2021-04-29T08:16:08Z
Message: the initial names have been accepted
Reason: InitialNamesAccepted
Status: True
Type: Established
Stored Versions:
v1
Events: <none>
3.使用etcd查看保存的crd，（这一步没有做，本地没有装etcd）
4.前面的步骤使得k8s能识别Student类型，接下来创建个Student对象：创建object-student.yaml
apiVersion: bolingcavalry.k8s.io/v1
kind: Student
metadata:
name: object-student
spec:
name: "张三"
school: "深圳中学"
执行kubectl apply -f object-student.yaml会看到
kubectl apply -f object-student.yaml
student.bolingcavalry.k8s.io/object-student created
至此，自定义API对象（也就是CRD）就创建成功了，此刻我们只是让k8s能识别到Student这个对象的身份，但是当我们创建Student对象的时候，还没有触发任何业务（相当于创建Pod对象的时候，会触发kubelet在node节点创建docker容器），接下来要通过go代码实现创建Student对象时的触发各种业务操作（监听等等）
自动代码生成
- 进入项目目录 k8s_customize_controller/pkg/apis/bolingcavalry 下创建register.go
package bolingcavalry
const (
GroupName = "bolingcavalry.k8s.io"
Version = "v1"
)
- 在bolingcavalry下创建目录v1，在v1下创建doc.go,代码中的两行注释，都是代码生成工具会用到的，一个是声明为整个v1包下的类型定义生成DeepCopy方法，另一个声明了这个包对应的API的组名，和CRD中的组名一致；
// +k8s:deepcopy-gen=package
// +groupName=bolingcavalry.k8s.io
package v1
- 在v1下创建types.go，里面定义了Student对象的具体内容：
package v1
import (
metav1 "k8s.io/apimachinery/pkg/apis/meta/v1"
)
// +genclient
// +genclient:noStatus
// +k8s:deepcopy-gen:interfaces=k8s.io/apimachinery/pkg/runtime.Object
type Student struct {
metav1.TypeMeta `json:",inline"`
metav1.ObjectMeta `json:"metadata,omitempty"`
Spec StudentSpec `json:"spec"`
}
type StudentSpec struct {
name string `json:"name"`
school string `json:"school"`
}
// +k8s:deepcopy-gen:interfaces=k8s.io/apimachinery/pkg/runtime.Object
// StudentList is a list of Student resources
type StudentList struct {
metav1.TypeMeta `json:",inline"`
metav1.ListMeta `json:"metadata"`
Items []Student `json:"items"`
}
从上述源码可见，Student对象的内容已经被设定好，主要有name和school这两个字段，表示学生的名字和所在学校，因此创建Student对象的时候内容就要和这里匹配了；
4. 在v1目录下创建register.go文件，此文件的作用是通过addKnownTypes方法使得client可以知道Student类型的API对象：
package v1
import (
metav1 "k8s.io/apimachinery/pkg/apis/meta/v1"
"k8s.io/apimachinery/pkg/runtime"
"k8s.io/apimachinery/pkg/runtime/schema"
"k8s_customize_controller/pkg/apis/bolingcavalry"
)
var SchemeGroupVersion = schema.GroupVersion{
Group: bolingcavalry.GroupName,
Version: bolingcavalry.Version,
}
var (
SchemeBuilder = runtime.NewSchemeBuilder(addKnownTypes)
AddToScheme = SchemeBuilder.AddToScheme
)
func Resource(resource string) schema.GroupResource {
return SchemeGroupVersion.WithResource(resource).GroupResource()
}
func Kind(kind string) schema.GroupKind {
return SchemeGroupVersion.WithKind(kind).GroupKind()
}
func addKnownTypes(scheme *runtime.Scheme) error {
scheme.AddKnownTypes(
SchemeGroupVersion,
&Student{},
&StudentList{},
)
// register the type in the scheme
metav1.AddToGroupVersion(scheme, SchemeGroupVersion)
return nil
}
目前为止的代码结构如下：
tree
.
└── k8s_customize_controller
└── pkg
└── apis
└── bolingcavalry
├── register.go
└── v1
├── doc.go
├── register.go
└── types.go
5 directories, 4 files
5.本来使用如下方法即可生成代码，但是由于我的code-generator拉不下来，加上go环境有些问题，以及原文章省略了一些东西，所以使用创建脚本，自动生成代码的方法最后成功生成。
cd $GOPATH/src \
&& go get -u k8s.io/apimachinery/pkg/apis/meta/v1 \
&& go get -u k8s.io/code-generator/... \
&& cd $GOPATH/src/k8s.io/code-generator \
&& ./generate-groups.sh all \
k8s_customize_controller/pkg/client \
k8s_customize_controller/pkg/apis \
bolingcavalry:v1
创建脚本，自动生成代码
在项目目录k8s_customize_controller 下创建hack文件夹
mkdir hack && cd hack
建立tools.go来依赖code-generator,因为在没有代码使用code-generator时,go module 默认不会为我们依赖此包
// +build tools
/*
Copyright 2019 The Kubernetes Authors.
Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at
http://www.apache.org/licenses/LICENSE-2.0
Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.
*/
// This package contains code generation utilities
// This package imports things required by build scripts, to force `go mod` to see them as dependencies
package tools
import (
_ "k8s.io/code-generator/cmd/client-gen"
_ "k8s.io/code-generator/cmd/conversion-gen"
_ "k8s.io/code-generator/cmd/deepcopy-gen"
_ "k8s.io/code-generator/cmd/defaulter-gen"
_ "k8s.io/code-generator/cmd/go-to-protobuf"
_ "k8s.io/code-generator/cmd/import-boss"
_ "k8s.io/code-generator/cmd/informer-gen"
_ "k8s.io/code-generator/cmd/lister-gen"
_ "k8s.io/code-generator/cmd/openapi-gen"
_ "k8s.io/code-generator/cmd/register-gen"
_ "k8s.io/code-generator/cmd/set-gen"
)
同时 编写我们的构建脚本: update-codegen.sh
#!/usr/bin/env bash
# Copyright 2017 The Kubernetes Authors.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
set -o errexit
set -o nounset
set -o pipefail
# generate the code with:
# --output-base because this script should also be able to run inside the vendor dir of
# k8s.io/kubernetes. The output-base is needed for the generators to output into the vendor dir
# instead of the $GOPATH directly. For normal projects this can be dropped.
../vendor/k8s.io/code-generator/generate-groups.sh \
all \
service-broker-controllers/pkg/generated \
service-broker-controllers/pkg/apis \
objectstore:v1 \
--go-header-file $(pwd)/boilerplate.go.txt \
--output-base $(pwd)/../../
# "deepcopy,client,informer,lister"
在构建api时,我们还提供了文件头,所以我们在此也创建文件头:boilerplate.go.txt 当然,这个文件的头是可以定制的.
/*
Copyright The Kubernetes Authors.
Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at
http://www.apache.org/licenses/LICENSE-2.0
Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.
*/
6.生成代码
# 生成vendor文件夹
$ go mod vendor
# 进入项目根目录,为vendor中的code-generator赋予权限
$ chmod -R 777 vendor
# 调用脚本生成代码
$ cd hack && ./update-codegen.sh
Generating deepcopy funcs
Generating clientset for samplecontroller:v1alpha1 at code-generator-test/generated/clientset
Generating listers for samplecontroller:v1alpha1 at code-generator-test/generated/listers
Generating informers for samplecontroller:v1alpha1 at code-generator-test/generated/informers

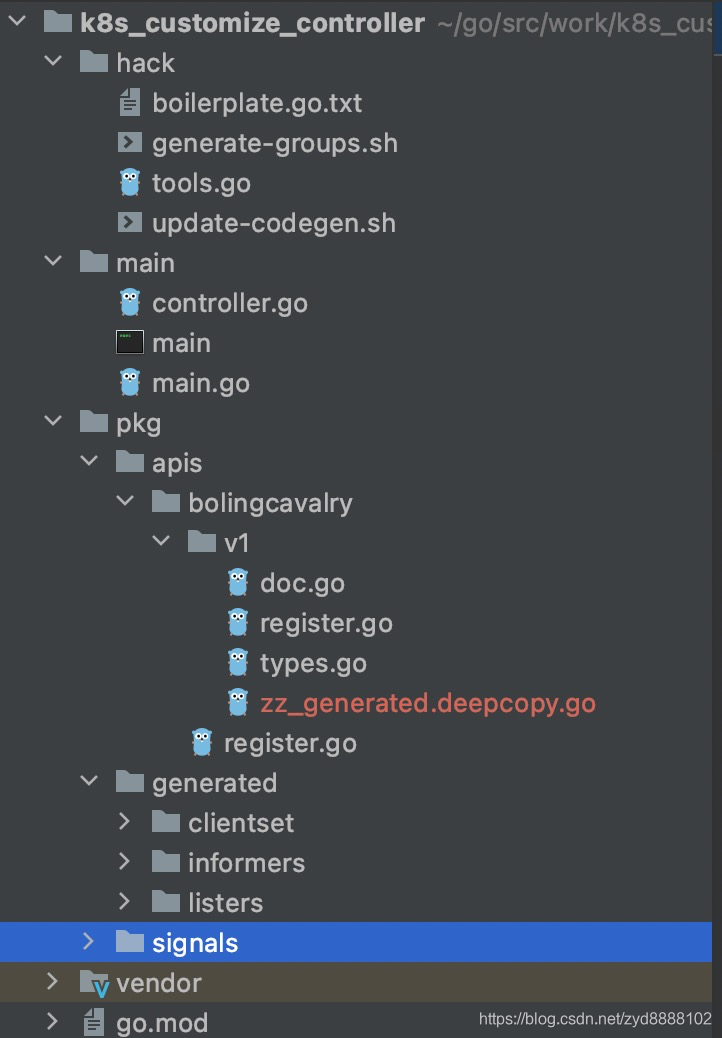

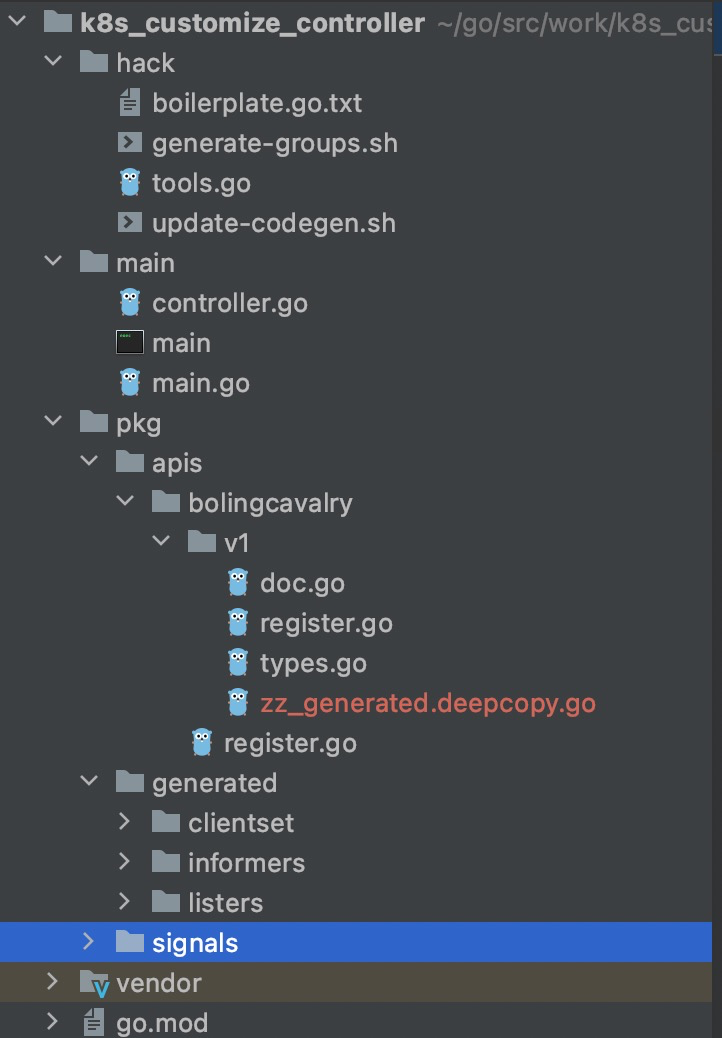

#此时目录变为如下情况
(待更新)
**
请务必要在外围创建一个文件夹把当前文件夹包住！！！！！！！
**
仔细观察,发现pkg/api/bolingcavalry/v1下多出了一个zz_generated.deepcopy.go的文件,在generated文件夹下生成了clientset和informers和listers三个文件夹
编写controller
1.在根目录下创建main文件夹，在main下创建controller.go
package main
import (
"fmt"
"time"
"github.com/golang/glog"
corev1 "k8s.io/api/core/v1"
"k8s.io/apimachinery/pkg/api/errors"
"k8s.io/apimachinery/pkg/util/runtime"
utilruntime "k8s.io/apimachinery/pkg/util/runtime"
"k8s.io/apimachinery/pkg/util/wait"
"k8s.io/client-go/kubernetes"
"k8s.io/client-go/kubernetes/scheme"
typedcorev1 "k8s.io/client-go/kubernetes/typed/core/v1"
"k8s.io/client-go/tools/cache"
"k8s.io/client-go/tools/record"
"k8s.io/client-go/util/workqueue"
bolingcavalryv1 "k8s_customize_controller/pkg/apis/bolingcavalry/v1"
clientset "k8s_customize_controller/pkg/generated/clientset/versioned"
studentscheme "k8s_customize_controller/pkg/generated/clientset/versioned/scheme"
informers "k8s_customize_controller/pkg/generated/informers/externalversions/bolingcavalry/v1"
listers "k8s_customize_controller/pkg/generated/listers/bolingcavalry/v1"
)
const controllerAgentName = "student-controller"
const (
SuccessSynced = "Synced"
MessageResourceSynced = "Student synced successfully"
)
// Controller is the controller implementation for Student resources
type Controller struct {
// kubeclientset is a standard kubernetes clientset
kubeclientset kubernetes.Interface
// studentclientset is a clientset for our own API group
studentclientset clientset.Interface
studentsLister listers.StudentLister
studentsSynced cache.InformerSynced
workqueue workqueue.RateLimitingInterface
recorder record.EventRecorder
}
// NewController returns a new student controller
func NewController(
kubeclientset kubernetes.Interface,
studentclientset clientset.Interface,
studentInformer informers.StudentInformer) *Controller {
utilruntime.Must(studentscheme.AddToScheme(scheme.Scheme))
glog.V(4).Info("Creating event broadcaster")
eventBroadcaster := record.NewBroadcaster()
eventBroadcaster.StartLogging(glog.Infof)
eventBroadcaster.StartRecordingToSink(&typedcorev1.EventSinkImpl{Interface: kubeclientset.CoreV1().Events("")})
recorder := eventBroadcaster.NewRecorder(scheme.Scheme, corev1.EventSource{Component: controllerAgentName})
controller := &Controller{
kubeclientset: kubeclientset,
studentclientset: studentclientset,
studentsLister: studentInformer.Lister(),
studentsSynced: studentInformer.Informer().HasSynced,
workqueue: workqueue.NewNamedRateLimitingQueue(workqueue.DefaultControllerRateLimiter(), "Students"),
recorder: recorder,
}
glog.Info("Setting up event handlers")
// Set up an event handler for when Student resources change
studentInformer.Informer().AddEventHandler(cache.ResourceEventHandlerFuncs{
AddFunc: controller.enqueueStudent,
UpdateFunc: func(old, new interface{}) {
oldStudent := old.(*bolingcavalryv1.Student)
newStudent := new.(*bolingcavalryv1.Student)
if oldStudent.ResourceVersion == newStudent.ResourceVersion {
//版本一致，就表示没有实际更新的操作，立即返回
return
}
controller.enqueueStudent(new)
},
DeleteFunc: controller.enqueueStudentForDelete,
})
return controller
}
//在此处开始controller的业务
func (c *Controller) Run(threadiness int, stopCh <-chan struct{}) error {
defer runtime.HandleCrash()
defer c.workqueue.ShutDown()
glog.Info("开始controller业务，开始一次缓存数据同步")
if ok := cache.WaitForCacheSync(stopCh, c.studentsSynced); !ok {
return fmt.Errorf("failed to wait for caches to sync")
}
glog.Info("worker启动")
for i := 0; i < threadiness; i++ {
go wait.Until(c.runWorker, time.Second, stopCh)
}
glog.Info("worker已经启动")
<-stopCh
glog.Info("worker已经结束")
return nil
}
func (c *Controller) runWorker() {
for c.processNextWorkItem() {
}
}
// 取数据处理
func (c *Controller) processNextWorkItem() bool {
obj, shutdown := c.workqueue.Get()
if shutdown {
return false
}
// We wrap this block in a func so we can defer c.workqueue.Done.
err := func(obj interface{}) error {
defer c.workqueue.Done(obj)
var key string
var ok bool
if key, ok = obj.(string); !ok {
c.workqueue.Forget(obj)
runtime.HandleError(fmt.Errorf("expected string in workqueue but got %#v", obj))
return nil
}
// 在syncHandler中处理业务
if err := c.syncHandler(key); err != nil {
return fmt.Errorf("error syncing '%s': %s", key, err.Error())
}
c.workqueue.Forget(obj)
glog.Infof("Successfully synced '%s'", key)
return nil
}(obj)
if err != nil {
runtime.HandleError(err)
return true
}
return true
}
// 处理
func (c *Controller) syncHandler(key string) error {
// Convert the namespace/name string into a distinct namespace and name
namespace, name, err := cache.SplitMetaNamespaceKey(key)
if err != nil {
runtime.HandleError(fmt.Errorf("invalid resource key: %s", key))
return nil
}
// 从缓存中取对象
student, err := c.studentsLister.Students(namespace).Get(name)
if err != nil {
// 如果Student对象被删除了，就会走到这里，所以应该在这里加入执行
if errors.IsNotFound(err) {
glog.Infof("Student对象被删除，请在这里执行实际的删除业务: %s/%s ...", namespace, name)
return nil
}
runtime.HandleError(fmt.Errorf("failed to list student by: %s/%s", namespace, name))
return err
}
glog.Infof("这里是student对象的期望状态: %#v ...", student)
glog.Infof("实际状态是从业务层面得到的，此处应该去的实际状态，与期望状态做对比，并根据差异做出响应(新增或者删除)")
c.recorder.Event(student, corev1.EventTypeNormal, SuccessSynced, MessageResourceSynced)
return nil
}
// 数据先放入缓存，再入队列
func (c *Controller) enqueueStudent(obj interface{}) {
var key string
var err error
// 将对象放入缓存
if key, err = cache.MetaNamespaceKeyFunc(obj); err != nil {
runtime.HandleError(err)
return
}
// 将key放入队列
c.workqueue.AddRateLimited(key)
}
// 删除操作
func (c *Controller) enqueueStudentForDelete(obj interface{}) {
var key string
var err error
// 从缓存中删除指定对象
key, err = cache.DeletionHandlingMetaNamespaceKeyFunc(obj)
if err != nil {
runtime.HandleError(err)
return
}
//再将key放入队列
c.workqueue.AddRateLimited(key)
}
上述代码有以下几处关键点：
a. 创建controller的NewController方法中，定义了收到Student对象的增删改消息时的具体处理逻辑，除了同步本地缓存，就是将该对象的key放入消息中；
b. 实际处理消息的方法是syncHandler，这里面可以添加实际的业务代码，来响应Student对象的增删改情况，达到业务目的；
2.接下来可以写main.go了，不过在此之前把处理系统信号量的辅助类先写好，然后在main.go中会用到（处理例如ctrl+c的退出），在$GOPATH/src/k8s_customize_controller/pkg目录下新建目录signals；
3.在signals目录下新建文件signal_posix.go：
// +build !windows
package signals
import (
"os"
"syscall"
)
var shutdownSignals = []os.Signal{os.Interrupt, syscall.SIGTERM}
4.在signals目录下新建文件signal_windows.go：
package signals
import (
"os"
)
var shutdownSignals = []os.Signal{os.Interrupt}
5.在signals目录新建文件signal_posix.go：
package signals
import (
"os"
"os/signal"
)
var onlyOneSignalHandler = make(chan struct{})
func SetupSignalHandler() (stopCh <-chan struct{}) {
close(onlyOneSignalHandler) // panics when called twice
stop := make(chan struct{})
c := make(chan os.Signal, 2)
signal.Notify(c, shutdownSignals...)
go func() {
<-c
close(stop)
<-c
os.Exit(1) // second signal. Exit directly.
}()
return stop
}
6.接下来可以编写main.go了，在k8s_customize_controller目录下创建main.go文件，内容如下，关键位置已经加了注释：
package main
import (
"flag"
"time"
"github.com/golang/glog"
"k8s.io/client-go/kubernetes"
"k8s.io/client-go/tools/clientcmd"
// Uncomment the following line to load the gcp plugin (only required to authenticate against GKE clusters).
// _ "k8s.io/client-go/plugin/pkg/client/auth/gcp"
clientset "k8s_customize_controller/pkg/generated/clientset/versioned"
informers "k8s_customize_controller/pkg/generated/informers/externalversions"
"k8s_customize_controller/pkg/signals"
)
var (
masterURL string
kubeconfig string
)
func main() {
flag.Parse()
// 处理信号量
stopCh := signals.SetupSignalHandler()
// 处理入参
cfg, err := clientcmd.BuildConfigFromFlags(masterURL, kubeconfig)
if err != nil {
glog.Fatalf("Error building kubeconfig: %s", err.Error())
}
kubeClient, err := kubernetes.NewForConfig(cfg)
if err != nil {
glog.Fatalf("Error building kubernetes clientset: %s", err.Error())
}
studentClient, err := clientset.NewForConfig(cfg)
if err != nil {
glog.Fatalf("Error building example clientset: %s", err.Error())
}
studentInformerFactory := informers.NewSharedInformerFactory(studentClient, time.Second*30)
//得到controller
controller := NewController(kubeClient, studentClient,
studentInformerFactory.Bolingcavalry().V1().Students())
//启动informer
go studentInformerFactory.Start(stopCh)
//controller开始处理消息
if err = controller.Run(2, stopCh); err != nil {
glog.Fatalf("Error running controller: %s", err.Error())
}
}
func init() {
flag.StringVar(&kubeconfig, "kubeconfig", "", "Path to a kubeconfig. Only required if out-of-cluster.")
flag.StringVar(&masterURL, "master", "", "The address of the Kubernetes API server. Overrides any value in kubeconfig. Only required if out-of-cluster.")
}
编译和启动
1.在项目根目录下执行
go get k8s.io/client-go/kubernetes/scheme \
&& go get github.com/golang/glog \
&& go get k8s.io/kube-openapi/pkg/util/proto \
&& go get k8s.io/utils/buffer \
&& go get k8s.io/utils/integer \
&& go get k8s.io/utils/trace
上述脚本将编译过程中依赖的库通过go get方式进行获取，属于笨办法，更好的方法是选用一种包依赖工具，具体的可以参照k8s的官方demo，这个代码中同时提供了godep和vendor两种方式来处理上面的包依赖问题，地址是：https://github.com/kubernetes/sample-controller
2.解决了包依赖问题后，在k8s_customize_controller/main目录下执行命令go build，即可在当前目录生成main的可执行文件；将该可执行文件main复制到k8s环境中，记得通过chmod a+x命令给其可执行权限；
chmod a+x main
./main -kubeconfig=$HOME/.kube/config -alsologtostderr=true
执行命令./main -kubeconfig=$HOME/.kube/config -alsologtostderr=true，会立即启动controller，看到控制台输出如下：
[root@master 31]# ./k8s_customize_controller -kubeconfig=$HOME/.kube/config -alsologtostderr=true
I0331 23:27:17.909265 21540 controller.go:72] Setting up event handlers
I0331 23:27:17.909450 21540 controller.go:96] 开始controller业务，开始一次缓存数据同步
I0331 23:27:18.110448 21540 controller.go:101] worker启动
I0331 23:27:18.110516 21540 controller.go:106] worker已经启动
I0331 23:27:18.110653 21540 controller.go:181] 这里是student对象的期望状态: &v1.Student{TypeMeta:v1.TypeMeta{Kind:"Student", APIVersion:"bolingcavalry.k8s.io/v1"}, ObjectMeta:v1.ObjectMeta{Name:"object-student", GenerateName:"", Namespace:"default", SelfLink:"/apis/bolingcavalry.k8s.io/v1/namespaces/default/students/object-student", UID:"92927d0d-5360-11e9-9d2a-000c29f1f9c9", ResourceVersion:"310395", Generation:1, CreationTimestamp:v1.Time{Time:time.Time{wall:0x0, ext:63689597785, loc:(*time.Location)(0x1f9c200)}}, DeletionTimestamp:(*v1.Time)(nil), DeletionGracePeriodSeconds:(*int64)(nil), Labels:map[string]string(nil), Annotations:map[string]string{"kubectl.kubernetes.io/last-applied-configuration":"{\"apiVersion\":\"bolingcavalry.k8s.io/v1\",\"kind\":\"Student\",\"metadata\":{\"annotations\":{},\"name\":\"object-student\",\"namespace\":\"default\"},\"spec\":{\"name\":\"张三\",\"school\":\"深圳中学\"}}\n"}, OwnerReferences:[]v1.OwnerReference(nil), Initializers:(*v1.Initializers)(nil), Finalizers:[]string(nil), ClusterName:"", ManagedFields:[]v1.ManagedFieldsEntry(nil)}, Spec:v1.StudentSpec{name:"", school:""}} ...
I0331 23:27:18.111105 21540 controller.go:182] 实际状态是从业务层面得到的，此处应该去的实际状态，与期望状态做对比，并根据差异做出响应(新增或者删除)
I0331 23:27:18.111187 21540 controller.go:145] Successfully synced 'default/object-student'
I0331 23:27:18.112263 21540 event.go:209] Event(v1.ObjectReference{Kind:"Student", Namespace:"default", Name:"object-student", UID:"92927d0d-5360-11e9-9d2a-000c29f1f9c9", APIVersion:"bolingcavalry.k8s.io/v1", ResourceVersion:"310395", FieldPath:""}): type: 'Normal' reason: 'Synced' Student synced successfully
至此，自定义controller已经启动成功了，并且从缓存中获取到了上一章中创建的对象的信息，接下来我们在k8s环境对Student对象做增删改，看看controller是否能做出响应；
验证controller
1.新开一个窗口连接到k8s环境，新建一个名为new-student.yaml的文件，内容如下：
apiVersion: bolingcavalry.k8s.io/v1
kind: Student
metadata:
name: new-student
spec:
name: "李四"
school: "深圳小学"
2.在new-student.yaml所在目录执行命令kubectl apply -f new-student.yaml
3.返回controller所在的控制台窗口，发现新输出了如下内容，可见新增student对象的事件已经被controller监听并处理：
I0331 23:43:03.789894 21540 controller.go:181] 这里是student对象的期望状态: &v1.Student{TypeMeta:v1.TypeMeta{Kind:"", APIVersion:""}, ObjectMeta:v1.ObjectMeta{Name:"new-student", GenerateName:"", Namespace:"default", SelfLink:"/apis/bolingcavalry.k8s.io/v1/namespaces/default/students/new-student", UID:"abcd77d6-53cb-11e9-9d2a-000c29f1f9c9", ResourceVersion:"370653", Generation:1, CreationTimestamp:v1.Time{Time:time.Time{wall:0x0, ext:63689643783, loc:(*time.Location)(0x1f9c200)}}, DeletionTimestamp:(*v1.Time)(nil), DeletionGracePeriodSeconds:(*int64)(nil), Labels:map[string]string(nil), Annotations:map[string]string{"kubectl.kubernetes.io/last-applied-configuration":"{\"apiVersion\":\"bolingcavalry.k8s.io/v1\",\"kind\":\"Student\",\"metadata\":{\"annotations\":{},\"name\":\"new-student\",\"namespace\":\"default\"},\"spec\":{\"name\":\"李四\",\"school\":\"深圳小学\"}}\n"}, OwnerReferences:[]v1.OwnerReference(nil), Initializers:(*v1.Initializers)(nil), Finalizers:[]string(nil), ClusterName:"", ManagedFields:[]v1.ManagedFieldsEntry(nil)}, Spec:v1.StudentSpec{name:"", school:""}} ...
I0331 23:43:03.790076 21540 controller.go:182] 实际状态是从业务层面得到的，此处应该去的实际状态，与期望状态做对比，并根据差异做出响应(新增或者删除)
I0331 23:43:03.790120 21540 controller.go:145] Successfully synced 'default/new-student'
I0331 23:43:03.790141 21540 event.go:209] Event(v1.ObjectReference{Kind:"Student", Namespace:"default", Name:"new-student", UID:"abcd77d6-53cb-11e9-9d2a-000c29f1f9c9", APIVersion:"bolingcavalry.k8s.io/v1", ResourceVersion:"370653", FieldPath:""}): type: 'Normal' reason: 'Synced' Student synced successfully
4.接下来也可以尝试修改和删除已有的Student对象，观察controller控制台的输出，确定是否已经监听到所有student变化的事件，例如删除的事件日志如下：
I0331 23:44:37.236090 21540 controller.go:171] Student对象被删除，请在这里执行实际的删除业务: default/new-student ...
I0331 23:44:37.236118 21540 controller.go:145] Successfully synced 'default/new-student'
版权声明：本文为zyd8888102原创文章，遵循CC 4.0 BY-SA版权协议，转载请附上原文出处链接和本声明。
