cesium 经纬度绘制点_cesium结合geoserver利用WFS服务实现图层新增(附源码下载)

 //绘制geojson图层样式
 var geoJsonStyle = {
 stroke: Cesium.Color.YELLOW,
 strokeWidth: 3,
 fill: Cesium.Color.YELLOW.withAlpha(0.1)
    };
 var geoserverUrl = 'http://localhost:8080/geoserver/WebGIS';
 var image_Source = new Cesium.UrlTemplateImageryProvider({
 //url: 'http://mt0.google.cn/vt/lyrs=t,r&hl=zh-CN&gl=cn&x={x}&y={y}&z={z}',
 //url: 'https://server.arcgisonline.com/arcgis/rest/services/World_Imagery/MapServer/tile/{z}/{y}/{x}',
        url: "http://map.geoq.cn/ArcGIS/rest/services/ChinaOnlineStreetPurplishBlue/MapServer/tile/{z}/{y}/{x}",
 //tilingScheme : new Cesium.GeographicTilingScheme(),
        credit: ''
    });
 var viewer = new Cesium.Viewer('map', {
 geocoder: false,
 homeButton: false,
 sceneModePicker: false,
 fullscreenButton: false,
 vrButton: false,
 baseLayerPicker: false,
 infoBox: false,
 selectionIndicator: false,
 animation: false,
 timeline: false,
 shouldAnimate: true,
 navigationHelpButton: false,
 navigationInstructionsInitiallyVisible: false,
 imageryProvider: image_Source
    });

 //加载geoserver wms服务
 var wms = new Cesium.WebMapServiceImageryProvider({
 url: geoserverUrl+'/wms',
 layers: 'WebGIS:testLayer',
 parameters: {
 service : 'WMS',
 format: 'image/png',
 transparent: true,
              }
     });
     viewer.imageryLayers.addImageryProvider(wms);


    viewer._cesiumWidget._creditContainer.style.display = "none";
    viewer.scene.globe.enableLighting = false;
 //viewer.scene.globe.depthTestAgainstTerrain = true;
    viewer.scene.globe.showGroundAtmosphere = false;

    viewer.camera.flyTo({
 destination : Cesium.Cartesian3.fromDegrees(113.90271877, 22.95186415,30000.0)
    });


 var handler = new Cesium.ScreenSpaceEventHandler(viewer.scene.canvas);
 var ellipsoid = viewer.scene.globe.ellipsoid;
     handler.setInputAction(function (movement) {
 //通过指定的椭球或者地图对应的坐标系，将鼠标的二维坐标转换为对应椭球体三维坐标
            cartesian = viewer.camera.pickEllipsoid(movement.position, ellipsoid);
 if (cartesian) {
 //将笛卡尔坐标转换为地理坐标
 var cartographic = ellipsoid.cartesianToCartographic(cartesian);
 //将弧度转为度的十进制度表示
 var longitudeString = Cesium.Math.toDegrees(cartographic.longitude);
 var latitudeString = Cesium.Math.toDegrees(cartographic.latitude);
 var point = longitudeString + ',' + latitudeString;
                queryByPoint(point,'testLayer',callbackLastQueryWFSService);
            }
    }, Cesium.ScreenSpaceEventType.LEFT_CLICK);


 var drawTool = new DrawTool({
 viewer: viewer,
 hasEdit: false
  });

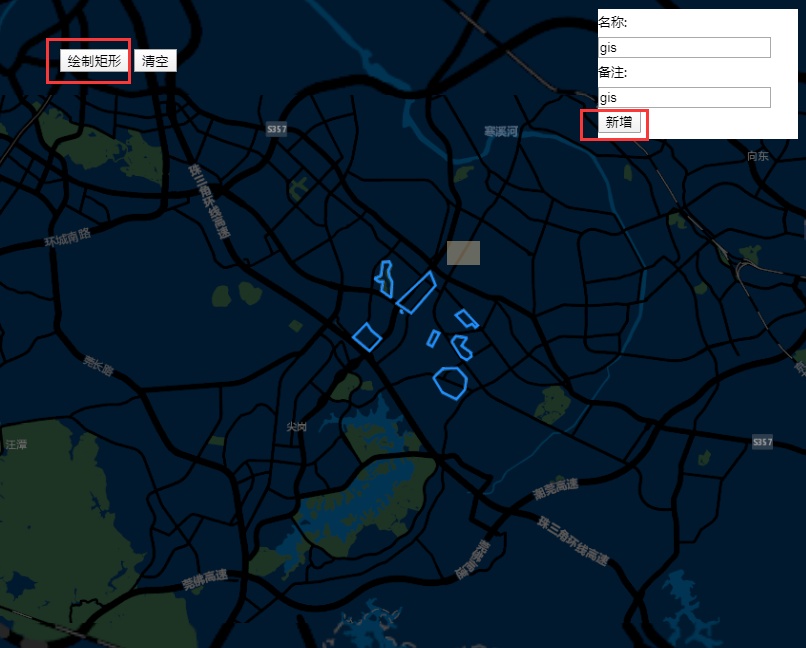

 //绘制矩形
  $("#rect_btn").click(function(){
 //clearMap()
 if (!drawTool) return;
    drawTool.startDraw({
 type: "rectangle",
 style: {
 heightReference: Cesium.HeightReference.CLAMP_TO_GROUND,
 //material:Cesium.Color.WHITE
            material:Cesium.Color.fromRgba(0x67ADDFFF)
        },
 success: function (evt) {
 //console.log('evt',evt);
 var leftup = evt.leftup;
 var rightdown = evt.rightdown;
 //世界坐标转地理坐标（弧度）
 var leftupcartographic = viewer.scene.globe.ellipsoid.cartesianToCartographic(leftup);
 var rightdowncartographic = viewer.scene.globe.ellipsoid.cartesianToCartographic(rightdown);
 //console.log('leftupcartographic',leftupcartographic);
 //地理坐标（弧度）转经纬度坐标
 var leftuppoint = [leftupcartographic.longitude / Math.PI * 180, leftupcartographic.latitude / Math.PI * 180];
 console.log('leftuppoint',leftuppoint);
 var rightdownpoint = [rightdowncartographic.longitude / Math.PI * 180, rightdowncartographic.latitude / Math.PI * 180];
 console.log('rightdown',rightdown);
 var extent = [leftuppoint[0].toFixed(6),leftuppoint[1].toFixed(6),rightdownpoint[0].toFixed(6),rightdownpoint[1].toFixed(6)];
 var polygon = null;
 if(extent && extent.length>0){
 //构造polygon
                      polygon = '';
                      polygon += extent[0] + ',' + extent[1] + ' ' ;
                      polygon += extent[2] + ',' + extent[1] + ' ' ;
                      polygon += extent[2] + ',' + extent[3] + ' ' ;
                      polygon += extent[0] + ',' + extent[3] + ' ' ;
                      polygon += extent[0] + ',' + extent[1] + ' ' ;
            }
 console.log('polygon',polygon);
 if(polygon){
 var content = '<span>名称:</span><input type="text" id="estate_num" /></br><span>备注:</span><input type="text" id="holder_nam" /></br><button type="button" id="addBtn">新增</button>';
                $("#infowindow").show();
                $("#infowindow").empty();
                $("#infowindow").append(content);
                $("#addBtn").click(function(){
 console.log('点击事件响应');
                  addLayers(polygon,$("#estate_num").val(),$("#holder_nam").val(),callbackAddLayersWFSService);
                });
            }
        }
    });
  });

 /*图层新增
   *@method addLayers
   *@param polygon 图形
   *@param fieldValue1 字段1值
   *@param fieldValue2 字段2值
   *@return callback
   */
 function addLayers(polygon,fieldValue1,fieldValue2, callback){
 var xml = '<wfs:Transaction service="WFS" version="1.0.0"    xmlns:opengis="http://webgis.com"    xmlns:wfs="http://www.opengis.net/wfs"    xmlns:ogc="http://www.opengis.net/ogc"   xmlns:gml="http://www.opengis.net/gml"   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"    xsi:schemaLocation="http://www.opengis.net/wfs   http://schemas.opengis.net/wfs/1.0.0/WFS-basic.xsd">';
……
